Домашние хранение вертикальный настенный быстро бойлер для душа электрический водонагреватель

Описание и отзывы

Трекер стоимости

Характеристики







Description of machine

1: 3 years quality guarantee for tank;
2: Metal housing with fashional and stylish design
3: 316L stainless steel heating element: Quality heating elements with seamless welding technology, achieves more effective prevention of crevice corrosion and long life,
4: Enameled inner tank: Electric water heater tank is a pressure vessel, with thickening of the high manganese steel materials, electrostatic dry powder enamel plasma welding process, anti-rust, corrosion, pressure.
5: Insulation: ultra-thick insulation and ultrafine microcellular foaming technology with CFC-free polyurethane foam ensures energy saving.
6: Multiple security protection: anti-dry heating protection, over pressure safety valve;

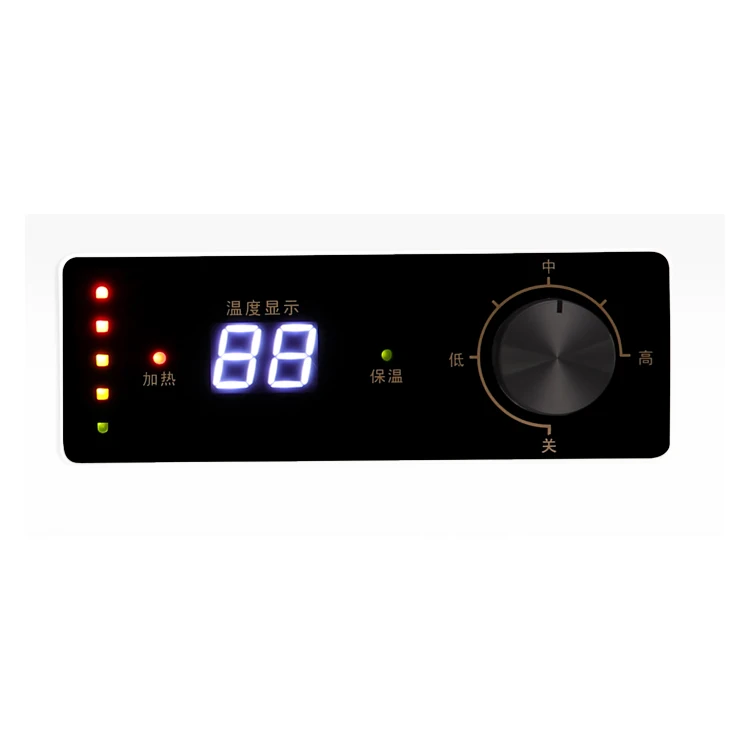

7: Water temperature displayer, Power indicater;
8: Enamel coating on water inlet / outlet







Technical Date-Overall Dimensions





Model	T03
Capacity	30L	40L	50L	60L	80L
Style	Vertical	Vertical	Vertical	Vertical	Vertical
Rated Power Consumption(W)	2200W	2200W	2200W	2200W	2200W
Power Supply(V/Hz)	220V~50Hz	220V~50Hz	220V~50Hz	220V~50Hz	220V~50Hz
Body housing shell	Metal
Temperature control	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical
Temperature range(℃)	35-75℃
Heating element	316L stainless steel	316L stainless steel	316L stainless steel	316L stainless steel	316L stainless steel
Inner tank	crystal enameled tank
Inner tank thickness(mm)	1.8	1.8	1.8	1.8	1.8
Foam insulation thickness(mm)	28	28	28	28	28
Packing	Standard export carton
Water-poof degree	IPX4
N.W.(kg)	16	16	18	20	24
G.W.(kg)	18	18	20	23	27
Product size(mm)	Ø395*560	Ø395*660	Ø395*765	Ø395*865	Ø425*933
Packing size(mm)	470*470*635	470*470*735	470*470*840	470*470*940	500*500*1020
20GP/ 40'HQ	180/436	156/384	144/348	96/240	88/230

Application scenario





FAQ

Q1:How long does the order take?

A:Sample order will be finished within 10 days and normal order will be finished within 30 days after receiving payment



Q2: How long is the warranty

A: We offer 3 years warranty for water tank, 1 year warranty for accessories.



Q3:Do you accept OEM or ODM orders?

A:Yes, Our R&D team will offer one stop service for you from original idea to finished product.



Q4:What’s the MOQ?

A: 500pcs(trial order's quantity is negotiable)



Q5: Do you provide samples? Is it free or extra?

A: Sample is available, sample fee will be returned when order is given



Q6: What payment terms?

A: T/T 30% deposit, balance paid before shipment.
