Характеристики
Multifunctional Automatic Packaging Equipment 0.1-5 Liter Plastic Bottles Detergent Dishwashing Liquid Filling Capping Labeling Machine
Equipment Brief Introduction:

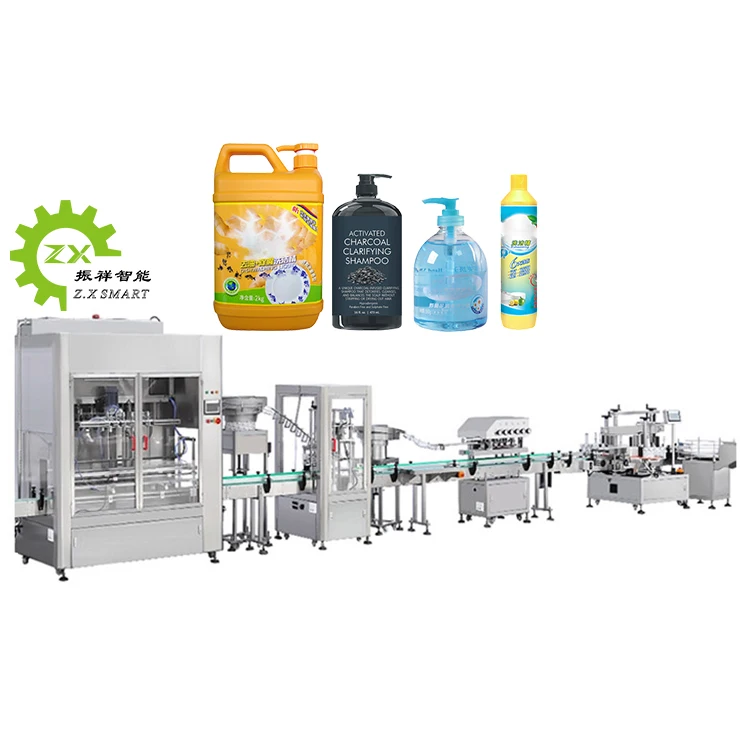

This Production Line Includes A 6 Self-Flow Filling Machine, A Pneumatic Claw Capping Machine, A Linear Capping Machine, A Double Side Labeling Machine And A Bottle Carousel Machine;
The Machine Type, Number Of Machines, Speed, Capacity, Size, Etc. Of The Production Line Can Be Customized According To The Customer'S Production Needs; We Can Develop A Professional Integrated Filling And Packaging Production Line Plan For The Customer.
This Automatic Filling Line can be customized to fill various products,such as : Laundry detergent, shampoo, softener, dish soap,conditioner, hand soap, mouthwash, facial cleanser, face cream, various essential oils, etc.
The Machine Type, Number Of Machines, Speed, Capacity, Size, Etc. Of The Production Line Can Be Customized According To The Customer'S Production Needs; We Can Develop A Professional Integrated Filling And Packaging Production Line Plan For The Customer.
This Automatic Filling Line can be customized to fill various products,such as : Laundry detergent, shampoo, softener, dish soap,conditioner, hand soap, mouthwash, facial cleanser, face cream, various essential oils, etc.

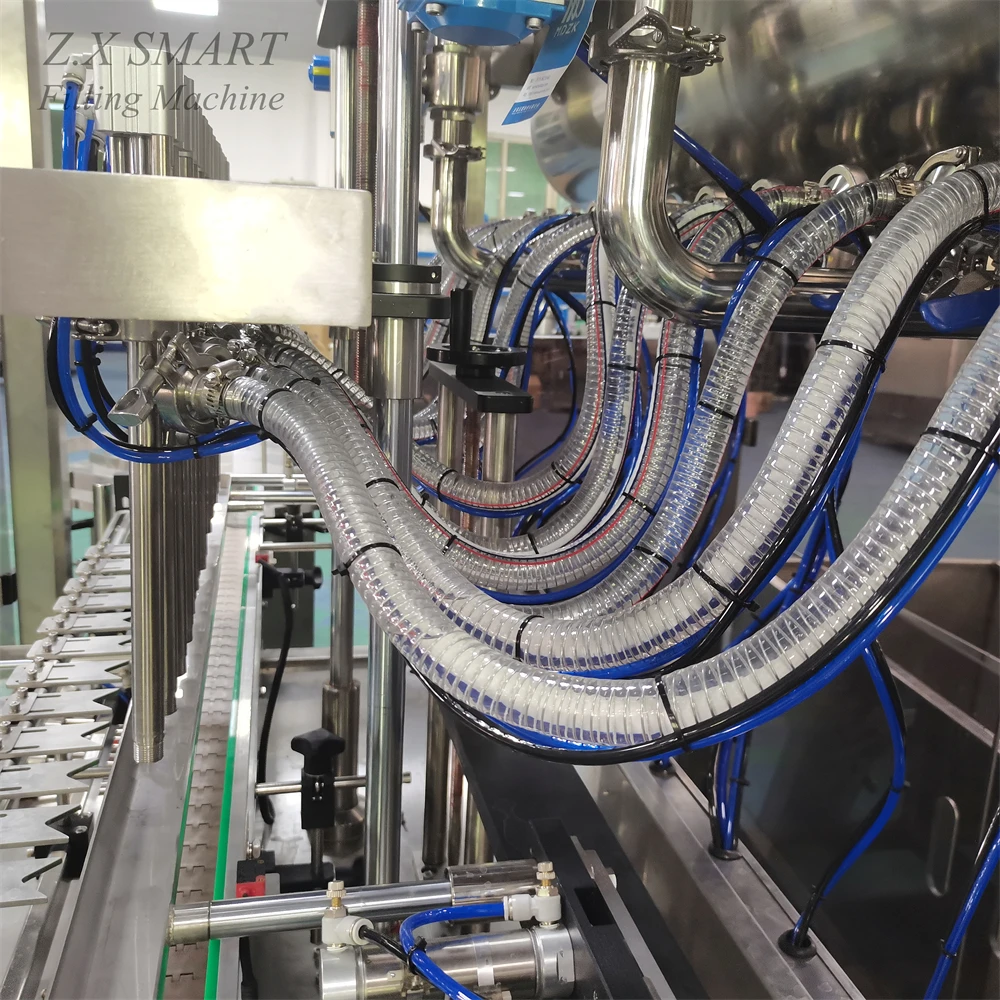

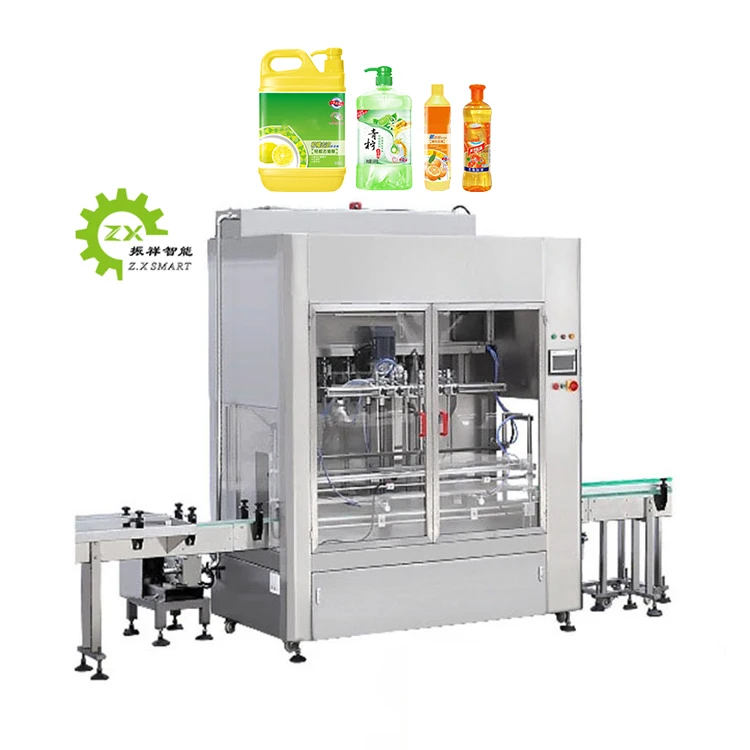

Parameters of 6 Self-Flow Filling Machine | |
Number of filling heads | 6 |
Filling capacity | 0.5L-5L |
Filling form | Self-flowing multi-headed into the bottom of the bottle and fast and slow side edge |
Filling speed | 6-8 bottles / minute (4L bottle) |
Filling accuracy | ±1% |
Material | The filling frame is made of 304# stainless steel |

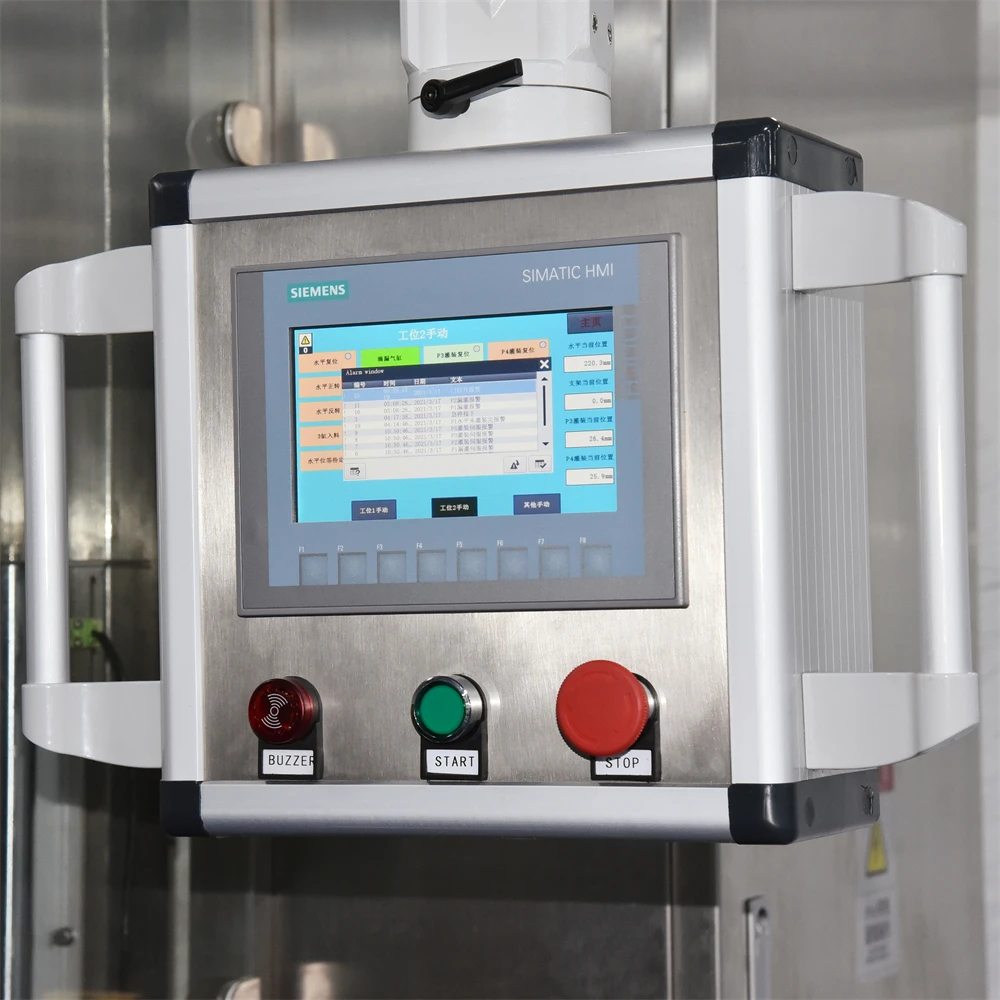

Program control | PLC + touch screen |
Filling mouth and trough contact liquid parts | 316# stainless steel, silica gel, POM |
Air pressure | 0.6-0.8MPa |
Conveyor belt | 114mm wide POM chain belt, speed 0-15 m / min, height 750mm ± 25mm off the ground |
Conveying motor | 750W variable frequency speed regulating motor |
Power | About 2.2KW/380V three-phase five-wire |
Main trough capacity | 200 liters (with liquid level switch, the feed tube is inserted into the bottom, and the trough cover needs to prevent foam overflow). |
Conveyor belt entrance with bilateral bottle placing table | 2000X300mm (length X width) |
Parameters of Air Claw Type Capping Machine | |
Suitable specifications | According to the sample provided by the customer |
Cover method | Vibrating plate cover |
Cap form | Gripper grip cap |
Speed | 15-20 bottles / minute |
Conveyor belt | 114mm wide POM chain belt, speed 0-15 m / min, height 750mm ± 25mm from the ground |
Material | The frame is made of 304# stainless steel |
Program control | PLC + touch screen man-machine |
Machine power | About 800W |
Air pressure | 0.6-0.8MPa |
Power supply | AC220V, 50/60HZ single phase. |
Parameters of Linear Capping Machine | |
Lower cover method | Manual cover (the nozzle bottle needs to be manually placed, and the nozzle cover direction needs to be consistent) |
Suitable specifications | According to the sample provided by the customer |
Cap form | 8-round counter-type cap |
Speed | 20-30 bottles / minute |
Material | The frame is made of 304 stainless steel |
Program control | PLC + touch screen |
Machine power | 200W |
Air pressure | 0.6-0.8MPa |
Conveyor belt | Shared with the filling machine |
Parameters of Double Side Labeling Machine | |
Applicable labeling position | Partial bottle and double side stickers |
Applicable product range | Provide samples according to customers |
Applicable label rang | Sample provided by customer |
Production capacity | >30 bottles / minute |
Labeling accuracy | Plane ± 1m (except for the error of the partial bottle itself) |
Voltage | 220V |
Power | About 1.2KW |
Conveyor belt | 114mm wide POM chain belt, speed 0-15 m / min, height 750mm ± 25mm from the ground |
Program control | PLC + touch screen man-machine interface |
Applicable paper roll | inner diameter 76mm, outer diameter maximum 300mm |
Conveyor belt | shared with the filling machine |
Parameters of Bottle Carousel Machine | |
Suitable specifications | According to the sample provided by the customer |
Turntable diameter | 800mm |
Height of the table top from the ground | 750mm |
Material | The turntable adopts 304# stainless steel |
Power supply | 220V, 140W, 50HZ single phase |
Drive motor | 140W domestic brand AC motor |
Speed control mode | About 1.2KW |
Q:What industry is your product suitable for?
A:The product line we develop and produce is suitable for the production of various, liquid, paste, powder, solid products. The specific product materials, functions, specifications and production capacity can be customized according to customers' products and requirements.
Q: What if the machine fails during use?
A:Our products will be carefully inspected and ensured before delivery, and we will provide the correct instructions for use of the products; in addition, our products support lifetime warranty warranty service, if there are any questions during the use of the product, please consult our work. personnel.
Q: When can I get my machine after paid?
A: The delivery time of a production line is generally 60 days; the product is about 15-30 days.We will deliver it on time as the date we agreed both side.
Q: How can I install my machine when it arrives?
A: We will provide installation videos and tutorials, or send our engineer to your side ASAP you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q:What payment do you accept?
A: We generally use T/T or L/C, and we can negotiate the payment method.
A:The product line we develop and produce is suitable for the production of various, liquid, paste, powder, solid products. The specific product materials, functions, specifications and production capacity can be customized according to customers' products and requirements.
Q: What if the machine fails during use?
A:Our products will be carefully inspected and ensured before delivery, and we will provide the correct instructions for use of the products; in addition, our products support lifetime warranty warranty service, if there are any questions during the use of the product, please consult our work. personnel.
Q: When can I get my machine after paid?
A: The delivery time of a production line is generally 60 days; the product is about 15-30 days.We will deliver it on time as the date we agreed both side.
Q: How can I install my machine when it arrives?
A: We will provide installation videos and tutorials, or send our engineer to your side ASAP you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q:What payment do you accept?
A: We generally use T/T or L/C, and we can negotiate the payment method.
