Jiabaida Смарт bms 12v 4s 120a Защитная плата для lifepo4 аккумуляторная батарея с UART

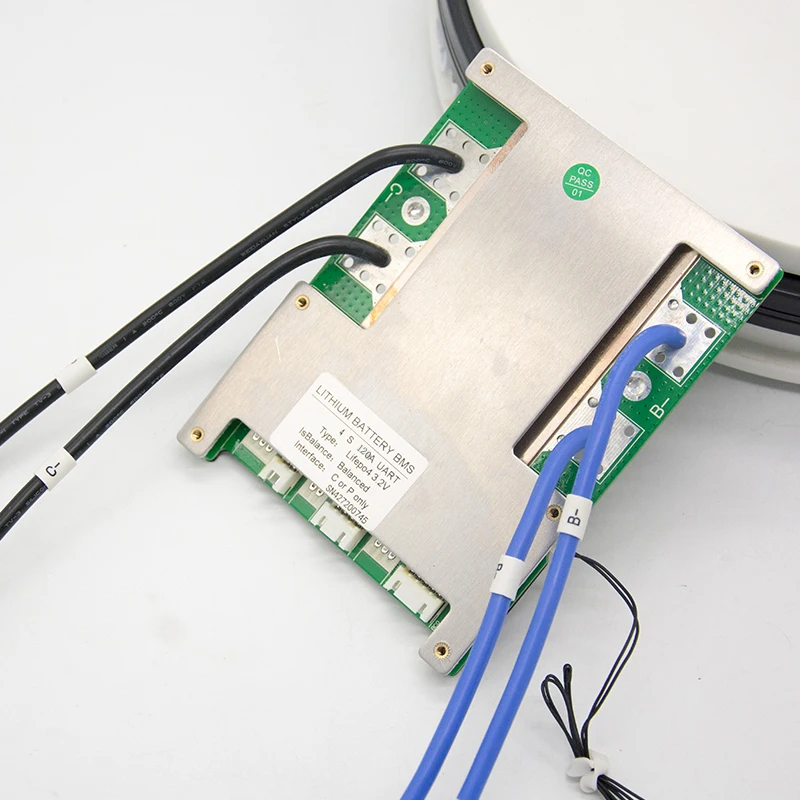

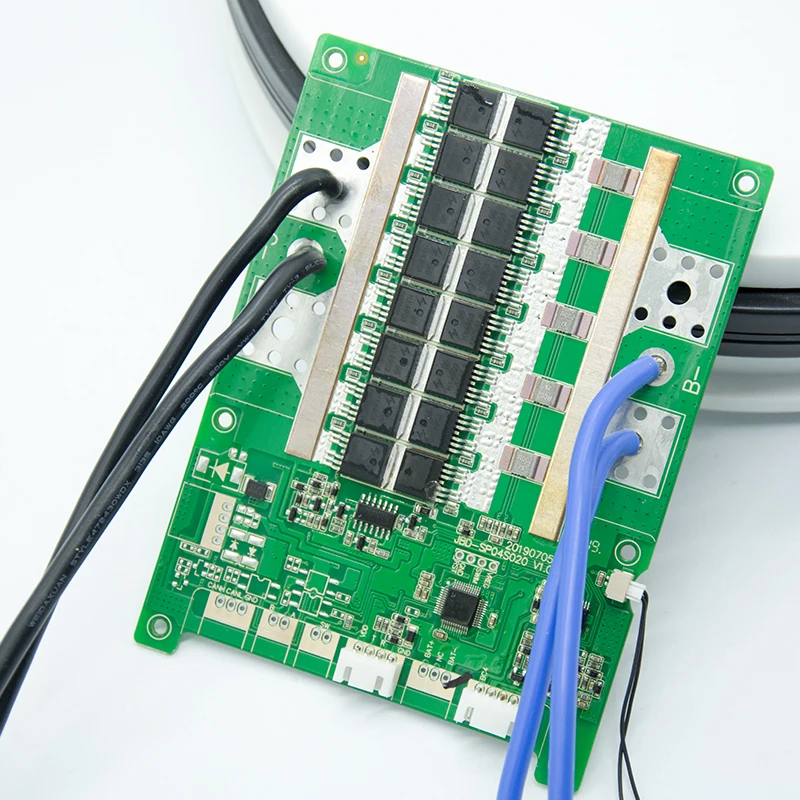

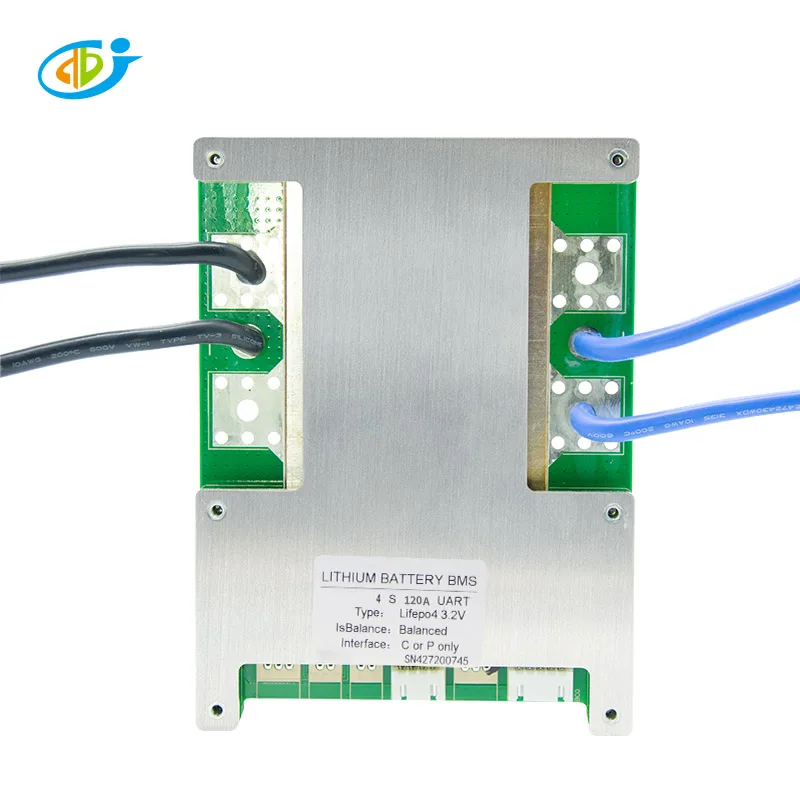

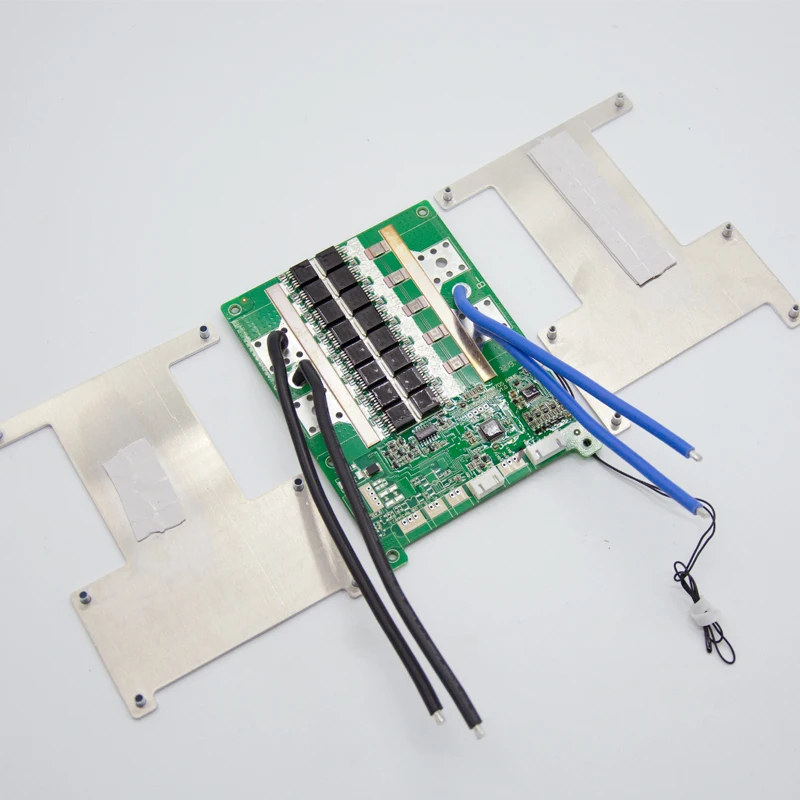

JBD-SP04S020 is a series of 4 battery packs specially designed for starting batteries, electric energy storage and other products of Dongguan Jibaida Electronic Technology Co., LTD . And the design of intelligent protection board scheme;Suitable for different chemical properties of lithium cell, such as lithiumion, lithium polymer, lithium iron phosphate, etc.bao .Protection plate with strong load capacity, continuous discharge current up to 120A.

● 4 cell series protection
● Various protection functions for charging and discharging
● Discharge overcurrent, short circuit protection functional processes of hardware
● Software over - voltage, under - voltage, temperature, overload protection
● Accurate SOC calculation, with automatic learning SOC function
● Hardware discharge over - current, short - circuit protection function processing

● RS485 and CANBUS communication are reserved.

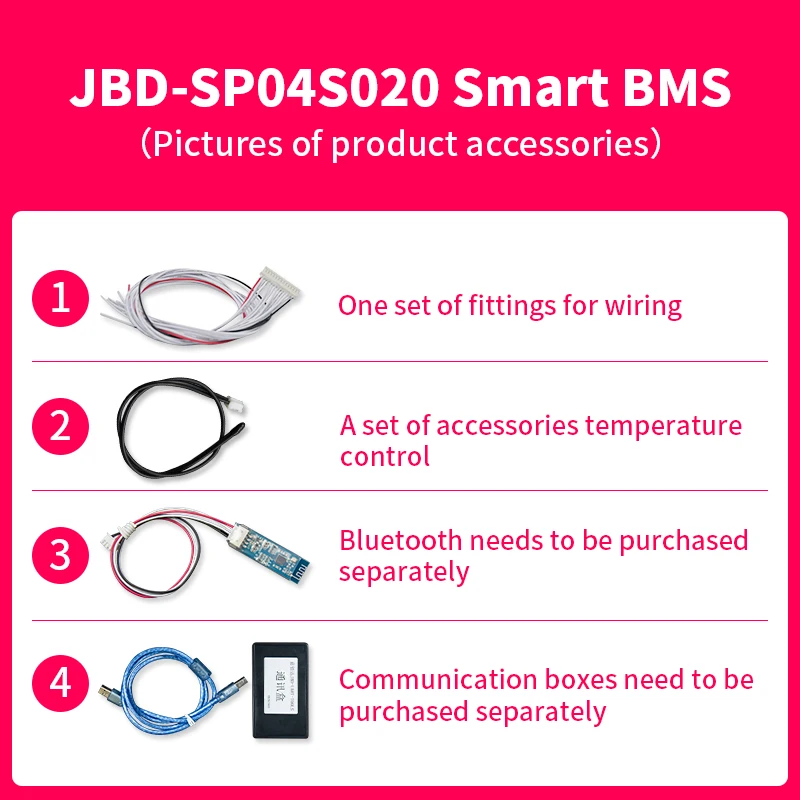

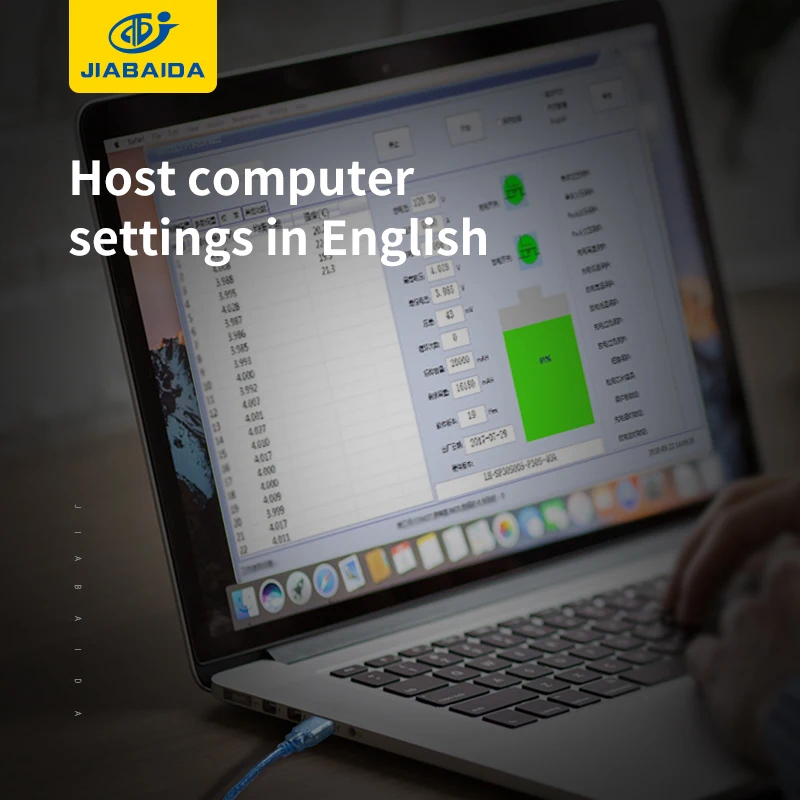

● UART communication function, which can read all battery data in real time, and update online

● Reserve switch control protection panel output

Overcharge protection: When the battery is under the charging state, the voltage keeps going up. When the protection board detects that the voltage of any cell is higher than the overcharge protection value, the protection board will start timing immediately. When the time reaches the overcharge protection delay, the protection board will turn off the charging MOS tube, at that time, it cannot be charged.
Overcharge protection recovery: After the overvoltage protection appears on the protection board, the battery voltage will going down under the static or discharge state of the battery. When the protection board detects that each voltage is lower than the recovery voltage of the overcharge protection, the protection board will output a signal and turn on the charging MOS tube to charge.
Over-discharge protection: When the battery is under the discharge state, the voltage keeps going down. When the protection board detects that the voltage of any cell is lower than the overcharge protection value, the protection board will start timing immediately. When the time reaches the over discharge protection delay, the output signal of the protection board will turn off the discharge MOS tube, the load lock circuit will work, but, it cannot discharge at this time.
Over discharge protection recovery: After the over discharge protection appears on the protection board, the battery voltage will going up under the static or discharge state of the battery. When the protection board detects that each voltage is higher than the recovery voltage of the over discharge protection. At this time, disconnect the load or charge, the protection board will output a signal and turn on the charging MOS tube to charge.
Overcurrent protection: When the battery is under the static or discharge state, the current suddenly increases. When the protection board detects that the current reaches the overcurrent protection value, the protection board will start timing at that time. When the current duration in the circuit reaches the overcurrent protection delay time, the output signal of the protection board will turn off the discharge MOS tube, and the load lock circuit will work. At this time, the discharge cannot be conducted.
Overcurrent protection recovery: After the discharge overcurrent protection appears on the protection board, the discharge MOS tube is turned off, and the current in the loop becomes 0. At this time, the load is disconnected or charged, the output signal of the protection board will turn on the discharge MOS tube to discharge.
