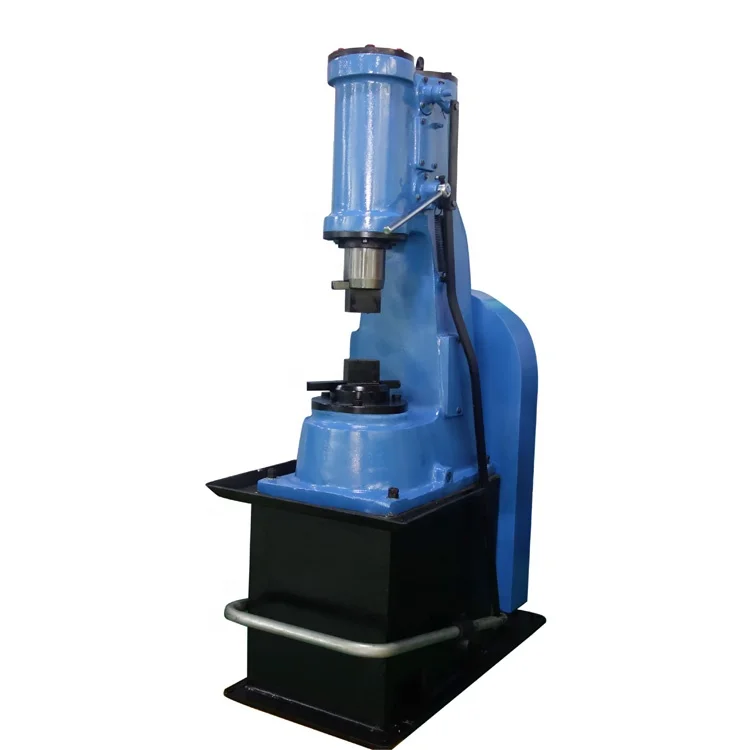

Product Description
C41-16S new type pneumatic forging hammer is a kind of free forging hammer.The design is based on the time proved designs of the old European hammers many which are still in use today. With a self contained power hammer, you require no external air supply or high pressure hoses.
It can be used for all kinds of free forgings,such as stretching,upsetting,puching,hot shearing,forged welding,bending and
twisting.It can be used for die forging with boster dies,but can't be used for closed die forging,because the blow energy of close die forging is very big,the hammer rod,guide,working cylinder...ect main parts will be damaged.
It can be used for all kinds of free forgings,such as stretching,upsetting,puching,hot shearing,forged welding,bending and
twisting.It can be used for die forging with boster dies,but can't be used for closed die forging,because the blow energy of close die forging is very big,the hammer rod,guide,working cylinder...ect main parts will be damaged.
Main Features
1) Simple structure ,self-contained .No need additional air compressor,easy in installation and maintation.
2) Adopting advanced resin cast hammer frame and other parts make the surface of cast very smooth.
3) Less Maintenance.Automatic and fully adjustable oil system.
4)Very easy to control,can by handle or footpedal control hammer working.
5) Provide 3-5 years spare parts for instead of wearing parts
6).Can special order the long ram type,that would keep the top die doesn't retract inside the cylinder.that can allow to use a little larger hammer die.
2) Adopting advanced resin cast hammer frame and other parts make the surface of cast very smooth.
3) Less Maintenance.Automatic and fully adjustable oil system.
4)Very easy to control,can by handle or footpedal control hammer working.
5) Provide 3-5 years spare parts for instead of wearing parts
6).Can special order the long ram type,that would keep the top die doesn't retract inside the cylinder.that can allow to use a little larger hammer die.
NEW DESIGN ADVANTAGES :

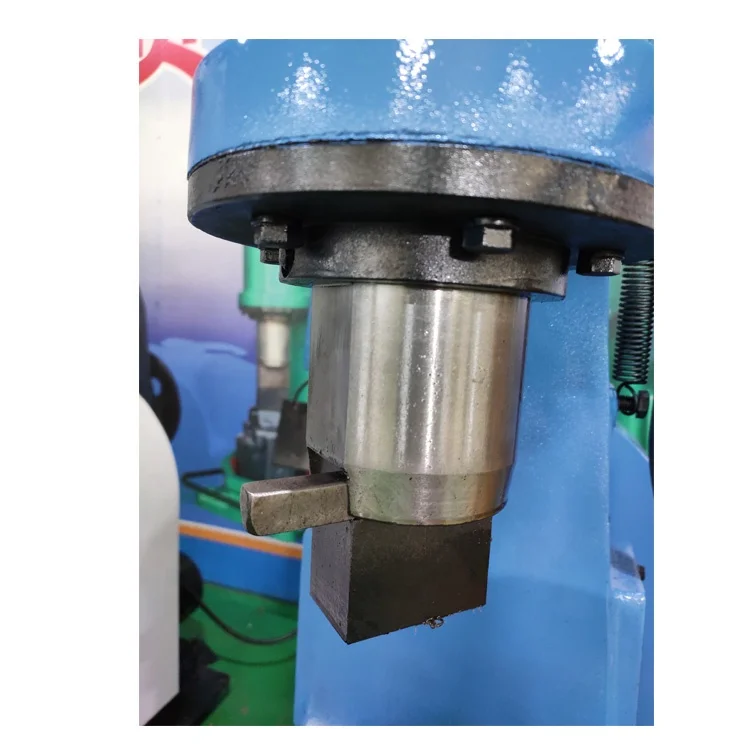

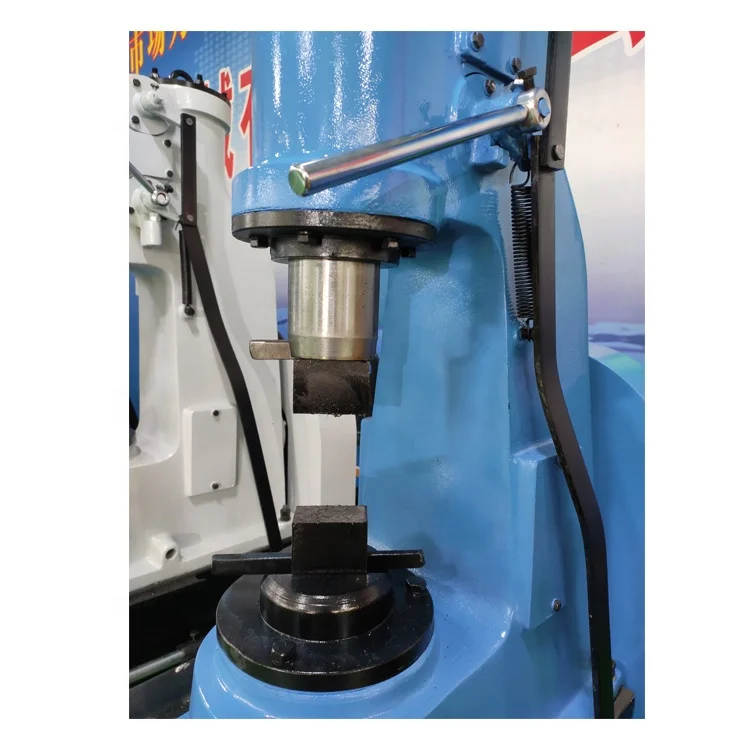

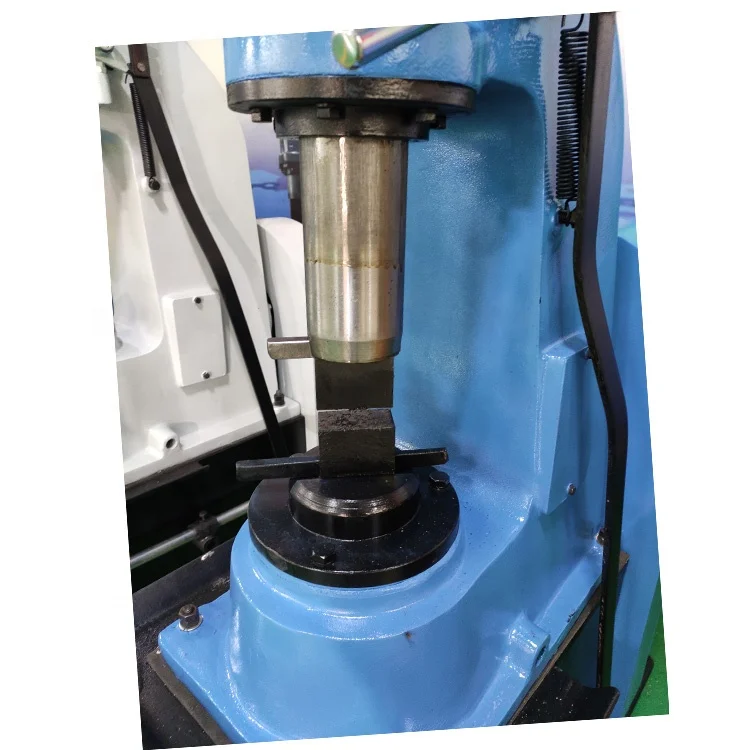

1. with long hammer ram keep the top hammer die doesn't retract inside the front cylinder.That design allow user to use any
kinds of hammer dies even larger than original hammer die.
2. The new design all give a little deep throat from hammer ram center line to hammer frame.That can allow user to forge some wider workpiece.
3. The new design make the hammer die easy to change and suitable with hammer die wedge.
4. This new design can avoid the hammer die’s wedge scratching the front cylinder,so that
Would protect the hammer cylinder without damage.
5. Because of long hammer ram,that means it has longer stroke than normal one.so even the same kilogram hammer,the long hammer
ram would have longer stroke,so it would be powerful than normal hammer.
Detail Specifications
We aslo have C41-6KG,C41-16KG,C41-20KG,C41-25KG,C41-40KG,C41-75KG,C41-100KG for choose according different forging work need.You can choose the model according by the following specifications.
kinds of hammer dies even larger than original hammer die.
2. The new design all give a little deep throat from hammer ram center line to hammer frame.That can allow user to forge some wider workpiece.
3. The new design make the hammer die easy to change and suitable with hammer die wedge.
4. This new design can avoid the hammer die’s wedge scratching the front cylinder,so that
Would protect the hammer cylinder without damage.
5. Because of long hammer ram,that means it has longer stroke than normal one.so even the same kilogram hammer,the long hammer
ram would have longer stroke,so it would be powerful than normal hammer.
Detail Specifications
We aslo have C41-6KG,C41-16KG,C41-20KG,C41-25KG,C41-40KG,C41-75KG,C41-100KG for choose according different forging work need.You can choose the model according by the following specifications.
New Model with Long hammer ram specification | ||||||||||||||
No. | Name. | Unit | C41-16S | C41-25S | C41-40S | C41-75S | ||||||||
1 | Weight of falling parts | Kg | 16 | 25 | 40 | 75 | ||||||||
2 | Max. hit energy | Kj | 0.18 | 0.27 | 0.53 | 1 | ||||||||
3 | Hit number | min -1 | 258 | 250 | 245 | 210 | ||||||||
4 | Working area height | mm | 180 | 240 | 250 | 300 | ||||||||
5 | Tup axis to hammer body | mm | 180 | 240 | 280 | 330 | ||||||||
6 | Dimension of top and bottom die surface | mm | 70x40 | 100x50 | 120x50 | |||||||||
7 | Forged Capacity | Round piece | mm | ￠37 | ￠47 | ￠ 70 | ￠85 | |||||||
7 | Maximum forge | Square piece | mm | 35x35 | 40x40 | 52x52 | 65x65 | |||||||
8 | Motor | Type | ||||||||||||
8 | Rate power | kw | 1.5 | 3 | 4 | 7.5 | ||||||||
Motor | speed | r.p.m | 1440 | 1440 | 1440 | 1440 | ||||||||
9 | Overall dimension | mm | 660x420x970 | 900x510x1380 | 1080x600x1530 | 1500x720x2050 | ||||||||
10 | Total weight | Kg | 240 | 760 | 880 | 2280 | ||||||||
Direction for use
Air hammer is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling, forging, welding,
bending and twisting. It is also used for forge in bolster dies. Air hammer is also called forging hammer, blacksmithing hammer,
pneumatic forging hammer, power hammer and so on. Air hammer falling weight at 6kg,16kg, 20kg, 25kg, 40kg, 55kg, 75kg, 100kg,150kg mainlyfor artistic wrought iron, artistic forging, blacksmith, agriculture tools and small open die forging parts.
bending and twisting. It is also used for forge in bolster dies. Air hammer is also called forging hammer, blacksmithing hammer,
pneumatic forging hammer, power hammer and so on. Air hammer falling weight at 6kg,16kg, 20kg, 25kg, 40kg, 55kg, 75kg, 100kg,150kg mainlyfor artistic wrought iron, artistic forging, blacksmith, agriculture tools and small open die forging parts.
Description of application effect
Our hammer can help blacksmiths complete many kinds of works.Especially for some agriculture tools.It is best choice for some small repair shop or tools shop.They can get powerful force from hammer and finish perfectful and high efficent.

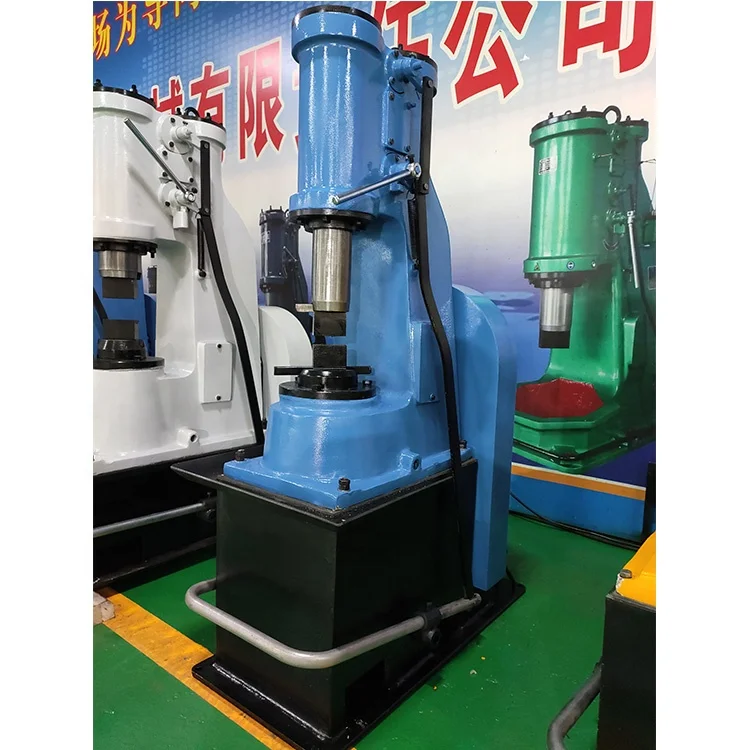

Detailed Images
Our Hammer also Provide customized service.Customer can order some optional hammer die for diffferent kinds of forging works.
Size Information
Mini Size | C41-16S | C41-16SDB |
Length | 660 | 765 |
Width | 420 | 425 |
Height | 970 | 1525 |
