Камера видеонаблюдения использует сиамский провод питания Rg59 коаксиальный
- Категория: >>>
- Поставщик: Hangzhou,Jianye,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 33.60 $* | 35.66 $* |
| Aug-20-2025 | 33.98 $* | 35.94 $* |
| Jul-20-2025 | 28.60 $* | 29.24 $* |
| Jun-20-2025 | 32.60 $* | 34.87 $* |
| May-20-2025 | 28.88 $* | 29.95 $* |
| Apr-20-2025 | 32.58 $* | 34.11 $* |
| Mar-20-2025 | 32.1 $* | 34.44 $* |
| Feb-20-2025 | 31.67 $* | 33.79 $* |
| Jan-20-2025 | 31.47 $* | 33.35 $* |
Характеристики
Products Description
305m 500m 1000ft rg 59 +2DC coaxial cable
0.81CCS+3.66FPE + Al Foil/blue/bonded +80*0.12AL+6.1PVC(Black)
Inner Conductor (mm): 0.81± 0.01 BC / CCS
Dielectric (mm): 3.66± 0.10 FPE / SPE
Outer Conductor (mm): 4.3
Jacket (mm): 6.1± 0.1 PVC / PE
Dielectric (mm): 3.66± 0.10 FPE / SPE
Outer Conductor (mm): 4.3
Jacket (mm): 6.1± 0.1 PVC / PE
(Mini) RG59 + 2 power | ||
Inner conductor | (0.58mm / 0.81mm) BC/CCS | |
Insulation | (2.0mm / 3.7mm) Solid PE / Foam PE | |
Shield | Aluminum foil | |
Braid | Aluminum wire/ Copper clad Aluminum wire/ bare copper wire/ Tinned copper wire / the diameter of wire from 0.12mm / Coverage : 40%~96% | |
Jacket | (3.5mm / 5.9mm) PVC | |
Color | Black /White or as per customer's requirement | |
Power cable (have 2.5mm²/ 0.5mm²/ 0.75mm²/ 1.0mm²),18 AWG | ||
Inner conductor | (14*0.15mm/ 16*0.2mm/ 24*0.2mm) Stranded Bare Copper | |
Insulation | (1.25mm/ 1.8mm/ 2.0mm) PVC | |
Over jacket | (3.5*3.5mm / 6.0*3.5mm) PVC | |
Length | 100m/ 200m/ coil/ cardboard reel/ wooden reel/ or as per customer's requirement. | |

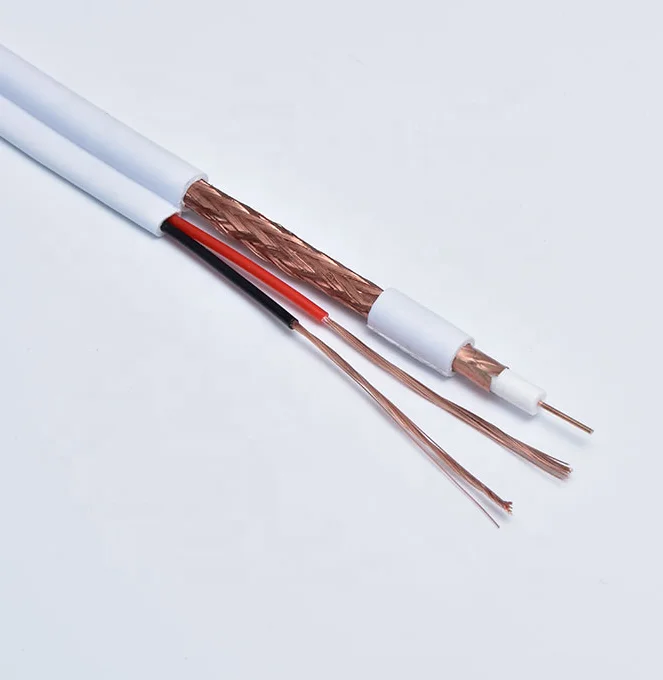

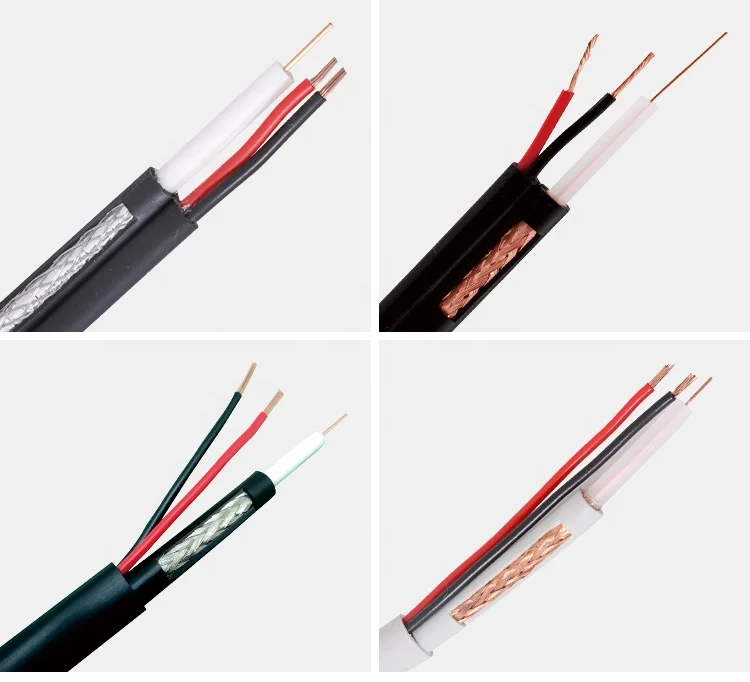

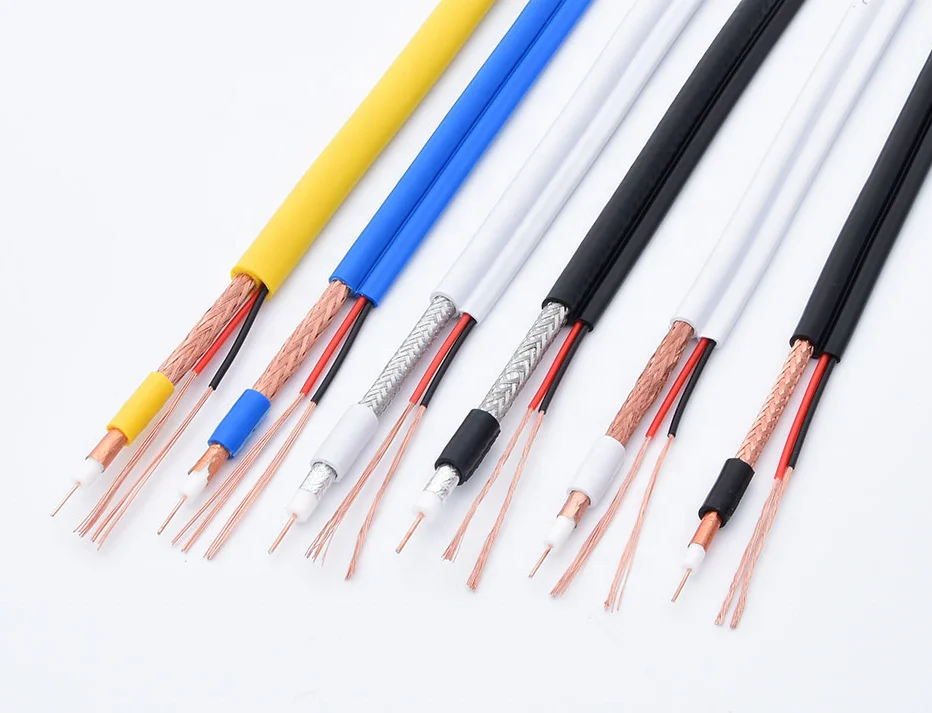

Details Images
Product packaging
Coaxial Cable packing :
1). Coil With Carton
100M/Coil, 6 Coil/Carton
200M/Coil, 300M/Coil, 2 Coil/Carton
Other Length: 20Yard/Coil, 30Yard/Coil, 60Yard/Coil, 100Yard/Coil.
2). Reel With Pallet or Not
100M/Paper Reel
100M/Plastic Reel, 200M/Palstic Reel, 305M/Plastic.
305M/Wooden Reel, 500M/Wooden Reel
3). Reel In Box, With Pallet
500ft Reel In Box.
1000ft/Reel In Box.
Color Box and OEM Package available.
20" Container Full Load: 350-420km.
40" Container Full Load: 650-780km.
100M/Coil, 6 Coil/Carton
200M/Coil, 300M/Coil, 2 Coil/Carton
Other Length: 20Yard/Coil, 30Yard/Coil, 60Yard/Coil, 100Yard/Coil.
2). Reel With Pallet or Not
100M/Paper Reel
100M/Plastic Reel, 200M/Palstic Reel, 305M/Plastic.
305M/Wooden Reel, 500M/Wooden Reel
3). Reel In Box, With Pallet
500ft Reel In Box.
1000ft/Reel In Box.
Color Box and OEM Package available.
20" Container Full Load: 350-420km.
40" Container Full Load: 650-780km.

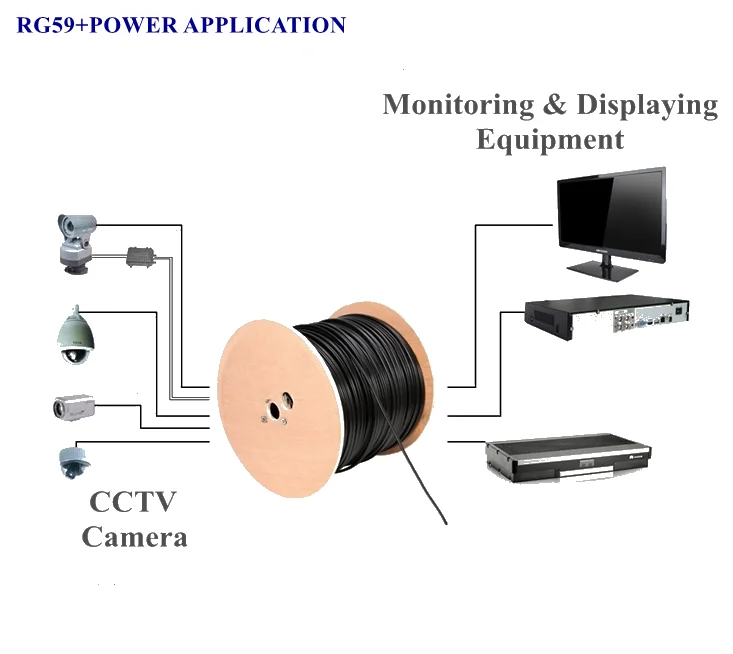

Application
