Характеристики
Product Description

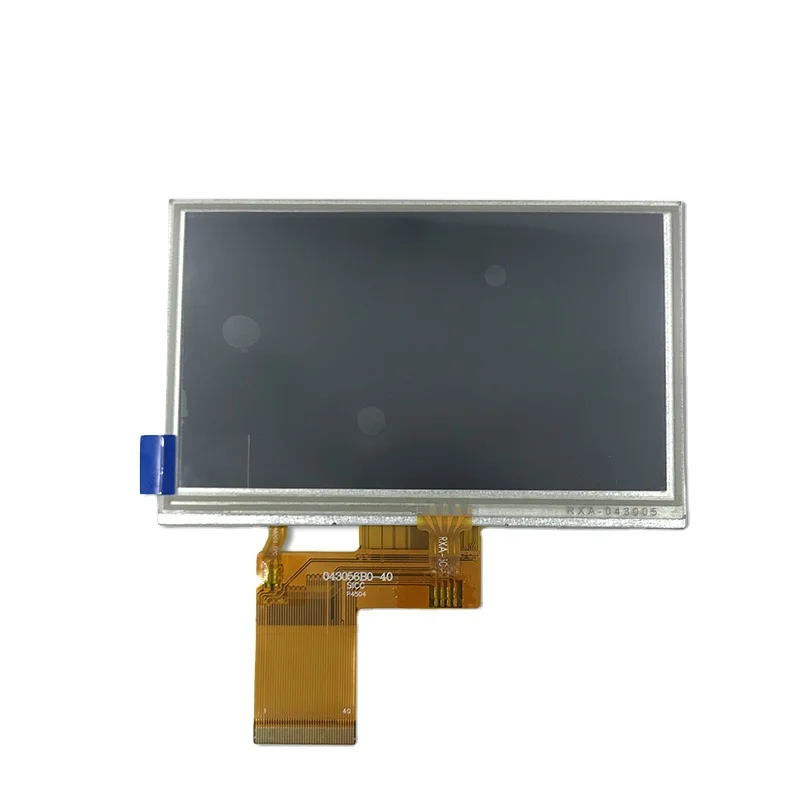

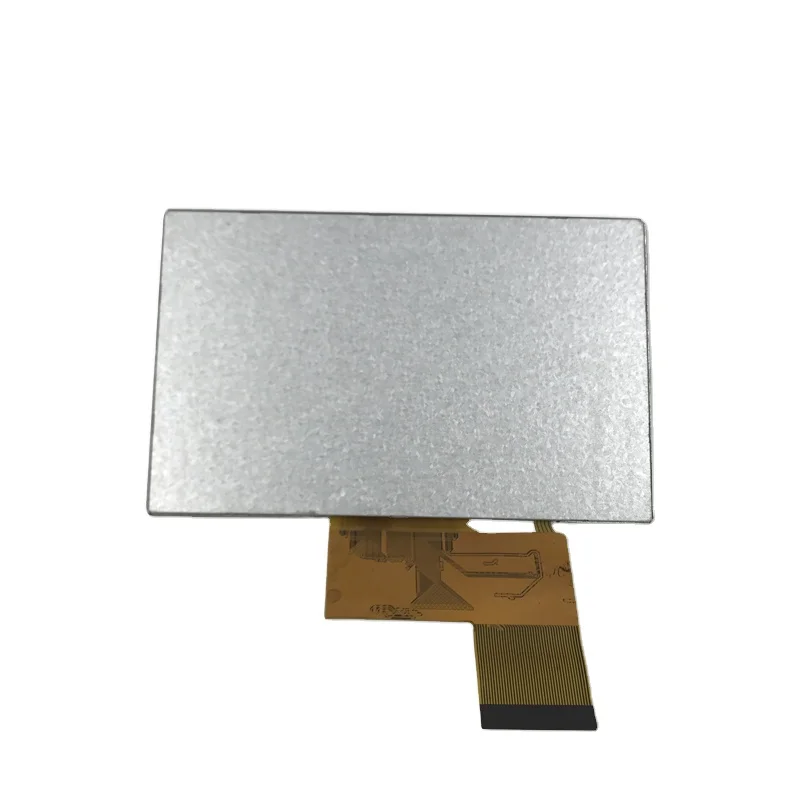

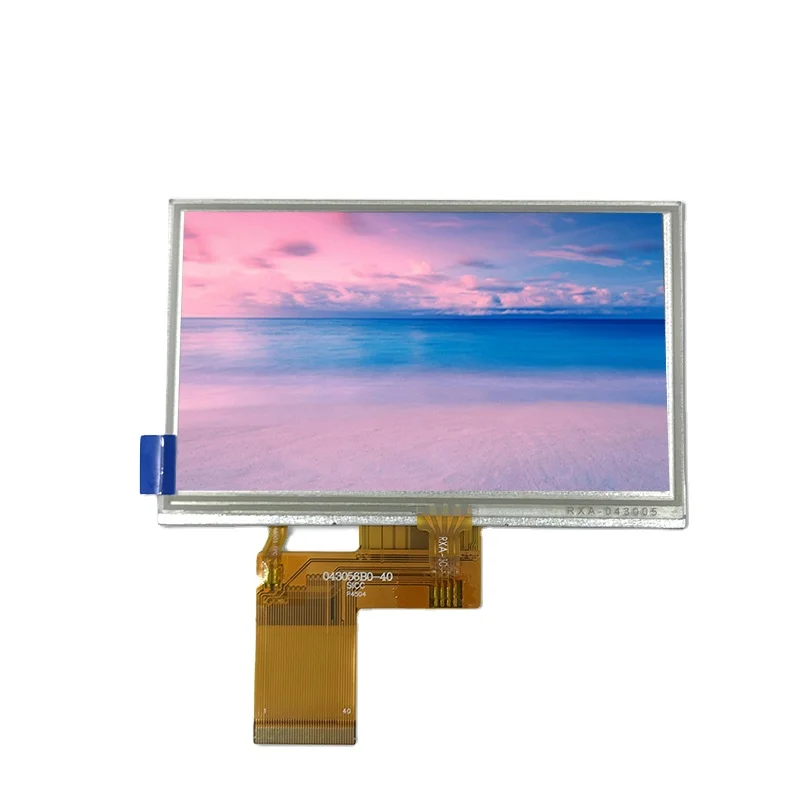

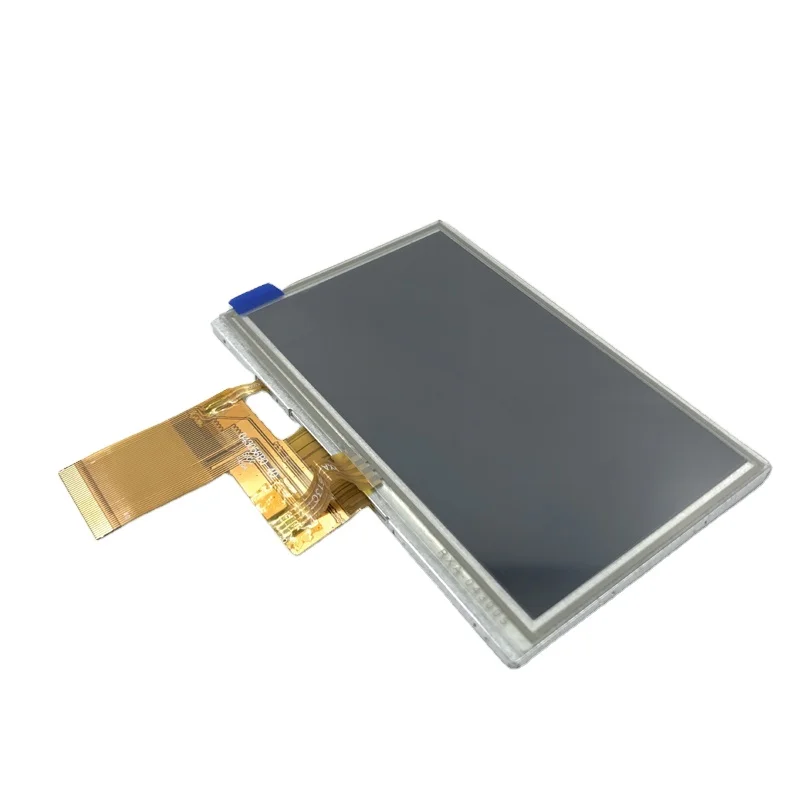

This HX043042B7R-TR_43005 is a wide 4.3 inch LCD display with thin film transistors as active elements and contains 480(H)*270(V) pixels. It is composed of a TFT-LCD panel, driver IC, FPC, and a backlight unit and resisitve touch panel. The model is compliant with RoHS environmental criterion.
General Specification of Display
| Item | Specification | |
| Display Specification | Brand name | Hong Xian Display |
| Size | 4.3 inch diagonal | |
| Resolution | 480*272 dots | |
| Pixel pitch | 0.198(H)*0.198(V) | |
| Display Mode | Normally White, Transmissive | |
| Viewing Direction | 12 O'CLOCK | |
| Luminance | 250 | |
| Mechanical Charateristics | Panel Outline | 105.5mm(W)*67.2mm(H)*3.0mm(T) |
| Active Area | 95.04mm(H)*53.856mm(V) | |
| LCD Numbers | 7 LEDS | |
| Operation Temp | -20℃~70℃ | |
| Storage Temp | -30℃~80℃ | |
| Interface | RGB 40pin |

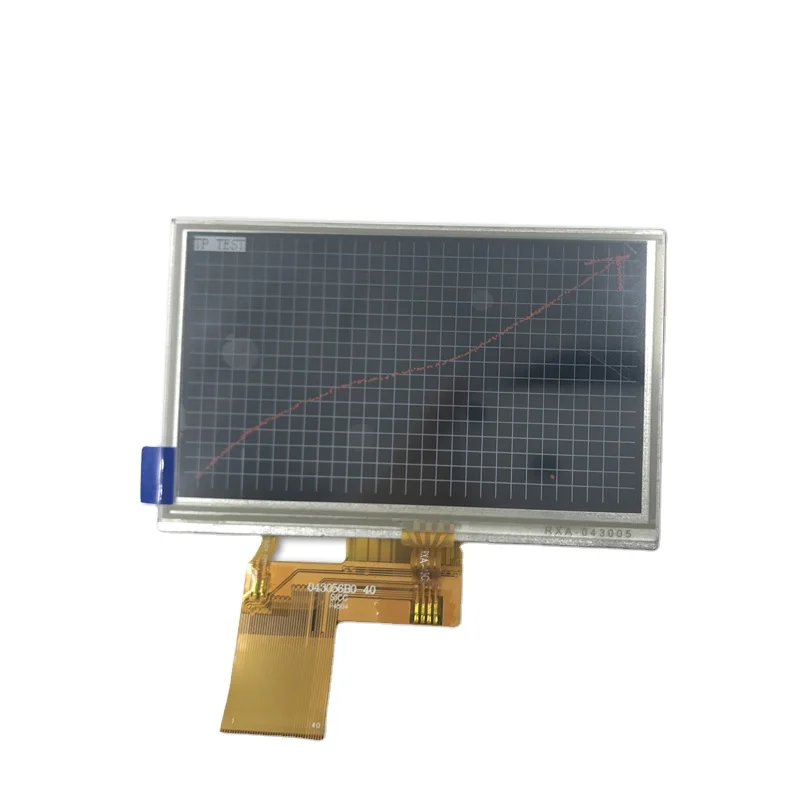

General Specification of Touch Panel
| Item | Specification | |
| TP Specification | Brand name | Hong Xian Touch Panel |
| Size | 4.3 inch diagonal | |
| Resolution | 480*272 dots | |
| Material | Film 0.188+glass | |
| Circuit Level | DC5V 1mA | |
| Luminousness | >78% | |
| Operating Pressure | 50-100g | |
| Mechanical Charateristics | Panel Outline | 104.7mm(W)*64.4mm(H)*1.2mm(T) |
| Active Area | 97.2mm(H)*55.4mm(V) | |
| working Life | 1,000,000times | |
| Operation Temp | -10℃~60℃ | |
| Storage Temp | -20℃~70℃ | |
| Tolerance | +0.5mm |
Packaging & Shipping
Our Services
We welcome your customization order on tft lcd display and touch panel. We offer customization services on the frame, backlight brightness, shapes, FPCs, interface definition, silk-printing, touch with gloves and so on.
| Customization Process | HongXian Process |
| 1. Customer Requirement | Receive customization requirements on TFT LCD DISPLAY and TOUCH PANEL from our Customer. |
| 2. Initial Evaluation | HX evaluates the case and provide reasonable solutions. |
| 3. Customer Confirmation | HX needs customer's confirmation on the solution. |
| 4. Estimate Tooling Cost | HX Provides the reasonable tooling cost, MOQ and quotation on the new model. |
| 5. Customer Payment | Customer finishs the payment on the tooling cost. |
| 6. Provide Formal Drawing | HX designs the model and provides the formal drawing to our customer. |
| 7. Customer Confirmation | Customer checks the formal drawing, and then signs back the drawing if the drawing fullfills the requirement. |
| 8. Start to Make the Tooling | HX starts to make the tooling and provides the sample. |
| 9. Sample Confirmation | HX sends samples to our customer and Help them to do the sample debugging. If everything meets the expectation, our customer needs to sign the sample back to HX. |
| 10. Production | HX outsources the materials and arranges those materials to the production line. HongXian will keep customers updated with the production schedule. |
| 11. Make the Delivery | HX make the delivery to our customers. |
| 12. After-Sales Service | HX provides follow-up technical support based on the policy of one year warranty. |
