Штекер с 4
- Категория: Connectors & Terminals >>>
- Поставщик: Zhenjiang,Binjiang,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.11 $* | 0.7 $* |
| Aug-19-2025 | 0.71 $* | 0.42 $* |
| Jul-19-2025 | 0.49 $* | 0.47 $* |
| Jun-19-2025 | 0.57 $* | 0.90 $* |
| May-19-2025 | 0.20 $* | 0.68 $* |
| Apr-19-2025 | 0.57 $* | 0.85 $* |
| Mar-19-2025 | 0.24 $* | 0.29 $* |
| Feb-19-2025 | 0.63 $* | 0.56 $* |
| Jan-19-2025 | 0.79 $* | 0.38 $* |
Характеристики

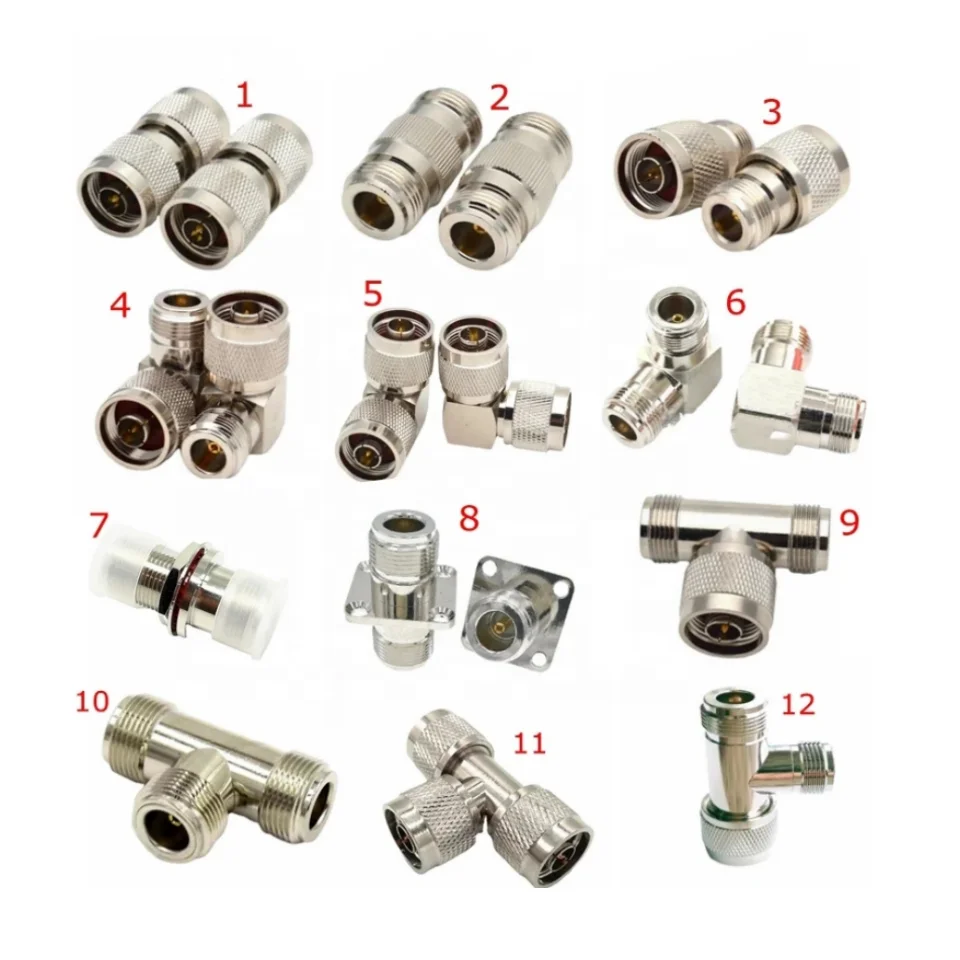

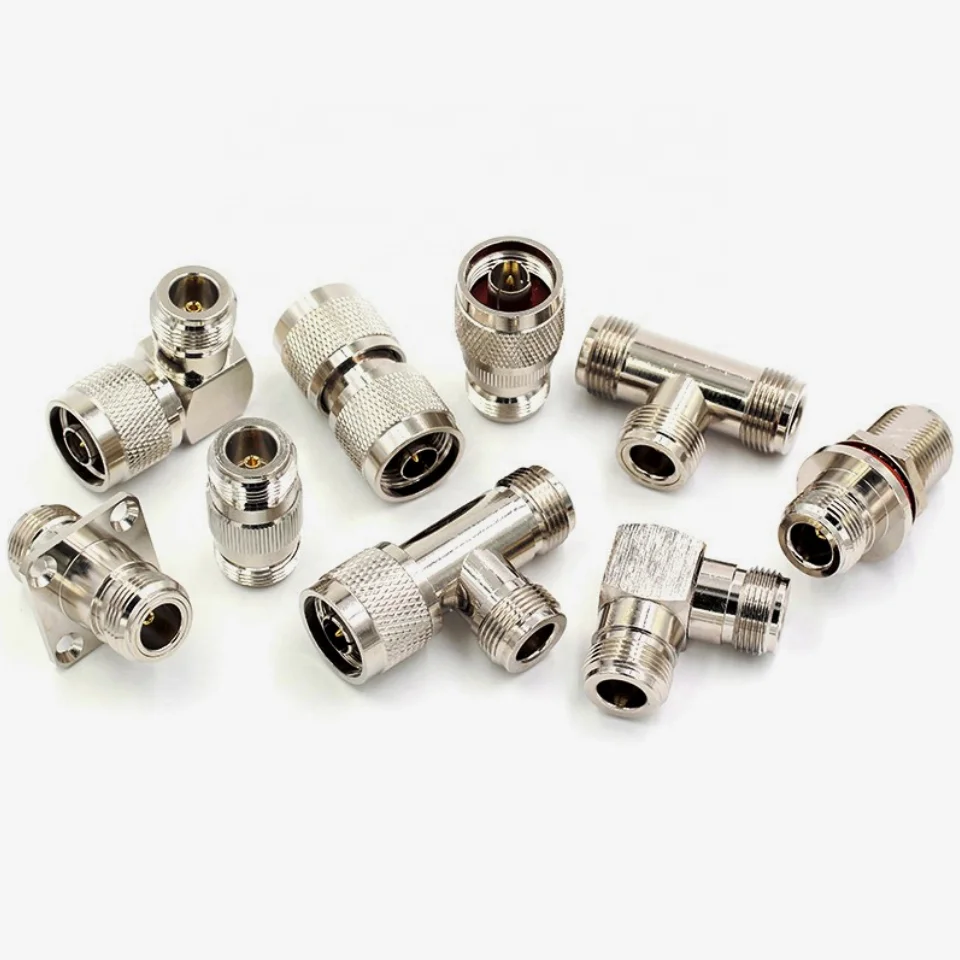

N Type Connector L16 N Male Female 90Degree Right Angle 4hole Flange with O-ring Tee Type 3Way Splitter Bulkhead RF Brass Copper
1. We focus on the manufacturing of rf connectors, adaptors, cables since 1991
2. Low VSWR up to high frequency
3. Waterproof and air proof
4. Mating with many applications
5. Low price and high quality
6. Various kinds, can meet your diversified purchase need
7. We keep developing new models, if our present products are not suitable for you, we can also customize for you !
★ We have been making RF connectors since 1991.
★ Our custom RF cable connectors are manufacture direct and skillful manufactured.
★ RF cable connectors in 50 ohms can be the following types such as EIA, 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB .
★ RF cable connectors can be connected on the coaxial cable includes: RG141/RG142/RG174/RG178/RG179/RG180/RG187/RG196/RG213/RG214/RG218/RG219/RG223/RG303/RG316/RG316DS/RG393/RG400/RG401/RG402/RG405/RG58U/1/2 / 7/8 / LMR195/LMR240/LMR400,ect.
★ RF cable connectors can be produced to cable assemblies with many different cable types and custom lengths depending on your needs and applications.
★ If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.
N Type Connector L16 N Male Female 90Degree Right Angle 4hole Flange with O-ring Tee Type 3Way Splitter Bulkhead RF Brass Copper | ||||||
Temperature Range | -55~+155°C (PE Cable -40~+85°C) | |||||
Impedance | 50Ω | |||||
Vibration | 98m/S2 (10~2000Hz), 10g | |||||
Frequency Range | DC-12.4GHz(semi-rigid cable DC-18 GHz) | |||||
Insertion Loss | ≤ 0.15dB/6GHz | |||||
Withstanding Voltage | 1000V r.m.s at sea level | |||||
Working Voltage | 335Vr.m.s at sea level | |||||
Insulation Resistance | ≥ 5000 MΩ | |||||
Durability | ≥ 500(cycles) | |||||
Contact resistance: | CenterContact ≤ 3mΩ | |||||
Outer Contact ≤ 2.5mΩ | ||||||
Voltage Standing Wave Ratio: | Straight | flex cable ≤ 1.10+0.02f | ||||
Semi-rigid cable ≤ 1.07+0.018f | ||||||
Right angle | flex cable ≤ 1.20+0.03f | |||||
Semi-rigid cable ≤ 1.17+0.02f | ||||||
1.Q: Are you the manufacture or the trading company?
A : We are the manufacture focused on manufacturing rf connector, coaxial cables, antenna, lightning arrester since 1991!
2. Q: How long will the delivery take?
A : About 7-10 days.(We have a large stock.)
3. Q : How do your company deal with the problem on quality？
A : We are the manufacture focused on manufacturing rf connector, coaxial cables, antenna, lightning arrester since 1991!
2. Q: How long will the delivery take?
A : About 7-10 days.(We have a large stock.)
3. Q : How do your company deal with the problem on quality？
A : We have 7-year experience in the field of rf connectors . High quality and perfect service earn us great reputation . We will have a detailed analysis of the problem. If our product is unqualified , we will deal with the problem according to contract. You have no need to worry about following problem. Our team will provide you great service.
4. Q: Can you send sample for us to test?
A: Of Course! You can check the quality of our products by ordering samples.
5. Q: What kind of payment term you accept?
A: Paypal, western union, alipay, T/T, Bank transfer, Credit Card, GOOGLE_PAY, APPLE_PAY, etc.
6. Q: Is customized service availble?
A: Yes, we can do ODM / OEM. If you need customized service please contact me.
7. Q: The price of your product is too high, can you give me discount?
A : Did you know our product ? If you dont know much about it , you cant judge whether our products are expensive or not.
Actually, the price is reasonable , which product is cheaper than our product？ In the shared market , our products in same grade are not cheaper than us. The quality of our product is match with the price.
8. Q : Can you guarantee the quality of product ?
A : Sure , high quality give us confidence to do business with your company . Long-termcooperation is what we need most instead of short-term cooperation.
4. Q: Can you send sample for us to test?
A: Of Course! You can check the quality of our products by ordering samples.
5. Q: What kind of payment term you accept?
A: Paypal, western union, alipay, T/T, Bank transfer, Credit Card, GOOGLE_PAY, APPLE_PAY, etc.
6. Q: Is customized service availble?
A: Yes, we can do ODM / OEM. If you need customized service please contact me.
7. Q: The price of your product is too high, can you give me discount?
A : Did you know our product ? If you dont know much about it , you cant judge whether our products are expensive or not.
Actually, the price is reasonable , which product is cheaper than our product？ In the shared market , our products in same grade are not cheaper than us. The quality of our product is match with the price.
8. Q : Can you guarantee the quality of product ?
A : Sure , high quality give us confidence to do business with your company . Long-termcooperation is what we need most instead of short-term cooperation.
