Водонепроницаемое прочное портативное устройство IP67 со сканером штрих-кода

Specification

Physical Parameter

Weight:

260g(battery included)

Dimension:

165.6mm× 76mm× 16mm (LxWxH)

System Parameter

CPU:

Eight-core 1.5GHz

OS:

Android 10.0

Memory:

16GB EMMC/2GB DDR3

Display:

5inch,IPSscreen:1280*720

Keys:

4 function buttons on the front (including F1 and F2 custom buttons)

5 side keys: Volume + and -, left and right scan buttons and power

Battery:

3.8V, 4000mAh Li-Ion rechargeable battery

Function Configuration

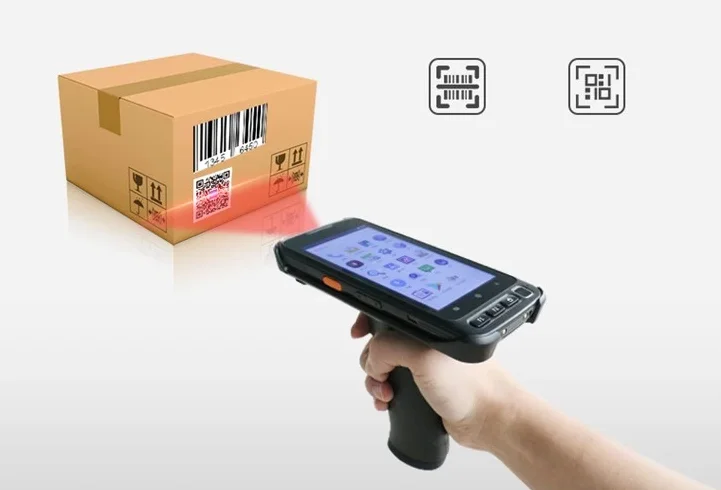

Barcode Scanner:

Zebra SE 4710 2D barcode scanner

Reading speed: 60scan/s

Reading distance: 584MM under normal visible light, 100MM in dark environment

Readable Code: Linear: UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5, Code 2 of
5, Matrix 2 of 5, MSI, Telepen, Trioptic, China Post 2D Stacked: PDF417, MicroPDF417, GS1 Composite 2D Matrix: Aztec Code, Data
Matrix, QR Code, Micro QR Code, MaxiCode, Han Xin Code Postal: Intelligent Mail Barcode, Postal-4i, Australian Post, British Post,
Canadian Post, Japanese Post, Netherlands (KIX) Post, Postnet, Planet Code OCR Option: OCR-A, OCR-B, E13B (MICR)

NFC:

NXP 548 chip

Supports 14443A Topza, 14443A MIFARE UL, JIS 6319-4 Sony Felica, 14443A/B NXP DESFire

UHF(Optional)

Default band:

FCC(NA, SA)917.4 – 927.2 MHz

ETSI(EU)865.6 – 867.6 MHz

TRAI(India)865 – 867 MHz

KCC(Korea)917– 923.5 MHz

MIC(Japan)916.8 – 923.4 MHz

ACMA(Australia)920 – 926 MHz

SRRC-MII(P.R.China)920.1– 924.9 MHz

Customizable band(859 – 873 MHz and 915 – 930 MHz)

Protocol: EPC global Gen 2 (ISO 18000-6C)

Reading Distance: 0~3m

Reading Speed: Up to 200 tags/sec reading 96-bit EPC

Output Power: Separate read and write levels, 1dBm steps adjustable

from 0dBm to +26dBm.

Fingerprint:

Supported

Bluetooth:

BT4.0+EDR, supports SDAP, HSP, HFP, AVRCP, A2DP, OPP, PBAP

Camera:

8 MP AF Back Camera

GPS:

GPS/Beidou/GLONASS

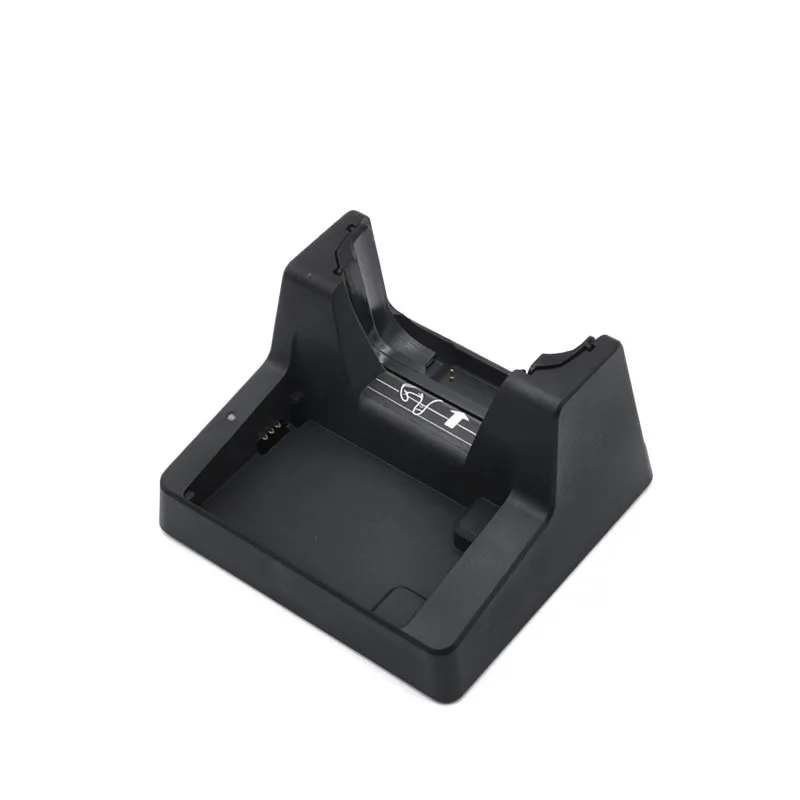

Charging Cradle(Optional):

Supported

Indicator:

Three colors: red, green and blue

Audio:

Built-in speaker, earphone, microphone, vibrator

Sensor:

3D Accelerometer, 3D Gyroscope, Electronic compass, Range sensor and Light sensor

External Interface

USB:

TYPE-C

Charging:

TYPE-C, charging cradle optional

Extension Interface:

RS232 Bottom extension interface

Communication

Wireless Communication:

Dual-SIM, 4G

1. GSM: B5/850; B8/900; B3/1800; B2/1900;

CDMA 1X

2. 3G: WCDMA B1/2100;B2/1900;B5/850;B8/900;

3G: CDMA2000/EVDO

3G: TD/SCDMA

3. FDD-LTE, B1/2100; B3/1800; B7/2600; B20/800;

4. TDD: B38/B39/B40/B41

WLAN:

2.4G/5G Dual-band, 802.11 a/b/g/n

Protocol WEP, WPA, WPA-PSK, WPA-v2.0

Reliability

Protection Rate:

IP67

ESD:

±8KVdischarge, ±12KV air discharge

Environmental

Operation Temperature:

-20°C to 60°C

Storage Temperature:

-40°C to 80°C

Humidity:

10% to 95% (Non-Condensing)

Secondary Development

SDK:

SDK available
