Характеристики

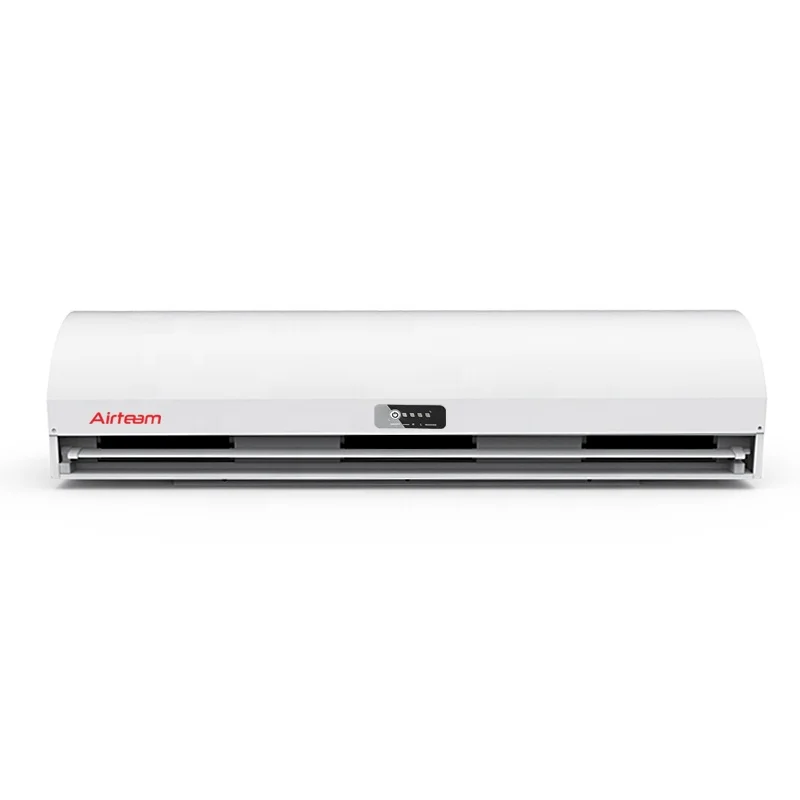

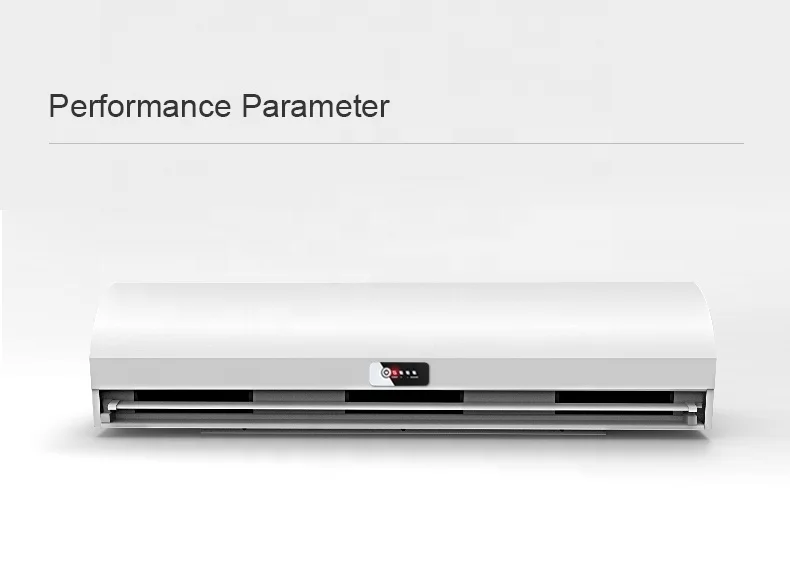

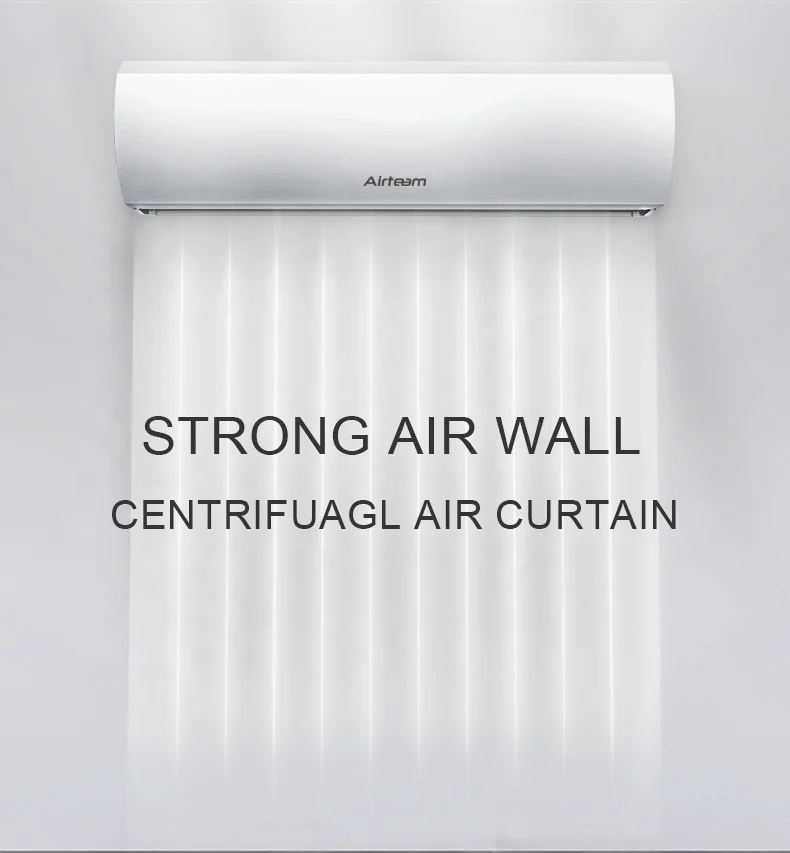

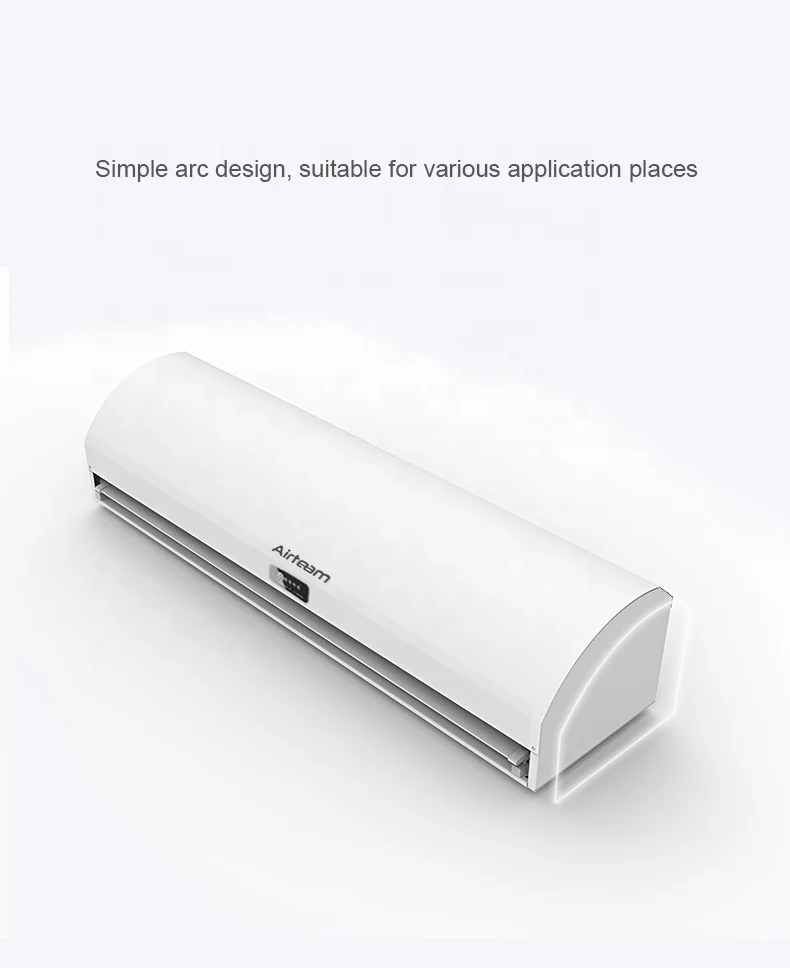

CENTRIFUGAL AIR CURTAIN - STRONG AIR WALL
* All metal spraying with better fire prevention, corrosion resistance performance;* New guide louver design is available so that the wind can be adjusted randomly to meet environment with different requirements for wind direction;
* Multiple control methods, such as manual switch, IR remote, magnet switch and door sensor, multiple control modes are available to satisfy different requirements at different places;

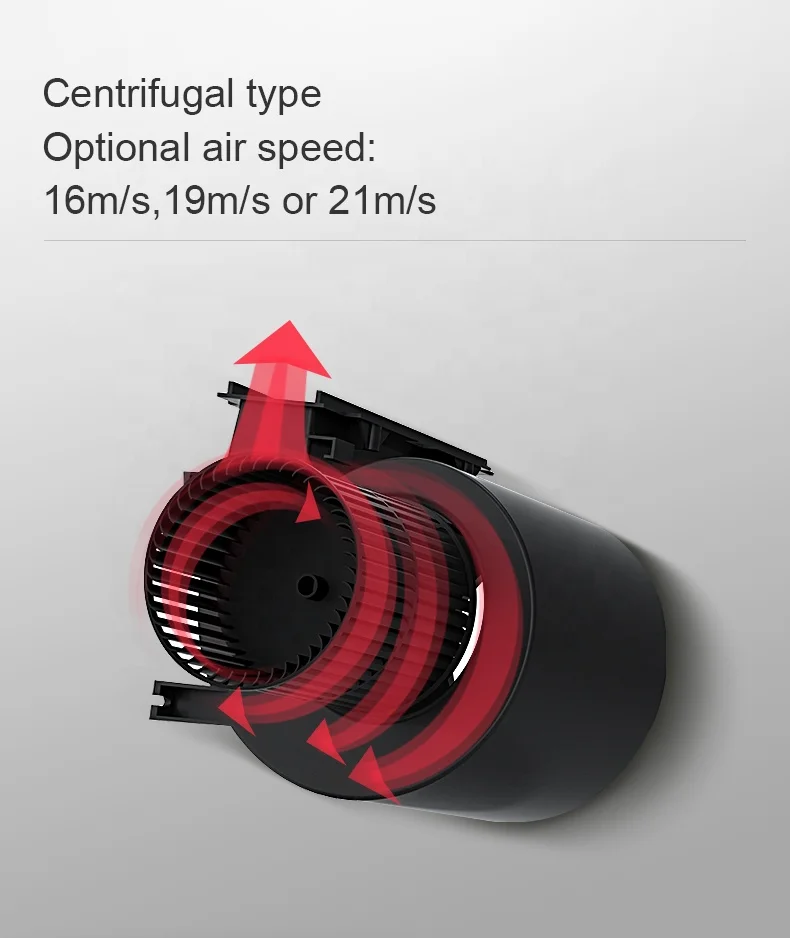

* Turbine impeller injection molded by ABS and glass fiber injection is characterized of high intensity and low noise;
* The unequal pitch and multi-blade rotor design is characterized of lower noise and smaller vibration;
* All pure copper wire motor at low temperature to ensure consistent running without failure;
* Professional air duct design can realize more silent effect and superior performance of the product;
* High-quality ball bearing to ensure motor running more smoothly and silent;
* Resettable thermal protection device will disconnect power when the product is at abnormal high temperature to avoid potential safety hazards to make the operation more safe;
* Start up at 100V ultra-low voltage which is more convenient in operation;
* Enclosure class IP44
* Insulation class E
Model | Spec.(mm) | Voltage (V) | Freq. (Hz) | Input power (W) | Air speed(m/s) High Low | Air flow CMH CFM | Noise (dB) | Dimension (mm) |
LM3509L(-1Y) | 900 | 110/220 | 50/60 | 250 | 16 13 | 1120 660 | 53 | 900x230x225 |
LM3510L(-1Y) | 1000 | 110/220 | 50/60 | 280 | 16 13 | 1290 760 | 53 | 1000x230x225 |
LM3512L(-1Y) | 1200 | 110/220 | 50/60 | 320 | 16 13 | 1430 842 | 54 | 1200x230x225 |
LM3515L(-1Y) | 1500 | 110/220 | 50/60 | 400 | 16 13 | 1780 1048 | 56 | 1500x230x225 |
LM3518L(-1Y) | 1800 | 110/220 | 50/60 | 490 | 16 13 | 2240 1317 | 58 | 1800x230x225 |
LM4509L(-1Y) | 900 | 110/220 | 50/60 | 300 | 19 16 | 1250 740 | 64 | 900x230x225 |
LM4510L(-1Y) | 1000 | 110/220 | 50/60 | 350 | 19 16 | 1350 800 | 64 | 1000x230x225 |
LM4512L(-1Y) | 1200 | 110/220 | 50/60 | 400 | 19 16 | 1650 976 | 65 | 1200x230x225 |
LM4515L(-1Y) | 1500 | 110/220 | 50/60 | 500 | 19 16 | 2330 1201 | 66 | 1500x230x225 |
LM4518L(-1Y) | 1800 | 110/220 | 50/60 | 600 | 19 16 | 2500 1470 | 68 | 1800x230x225 |

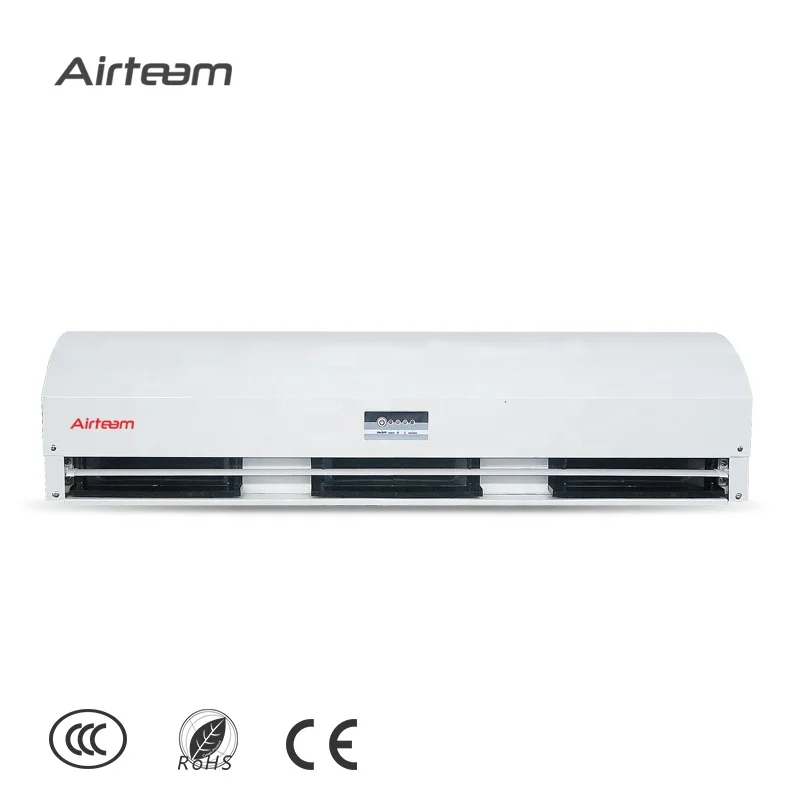

Certifications
CE, CCC, RoHs, ISO9001, LVD
