Характеристики

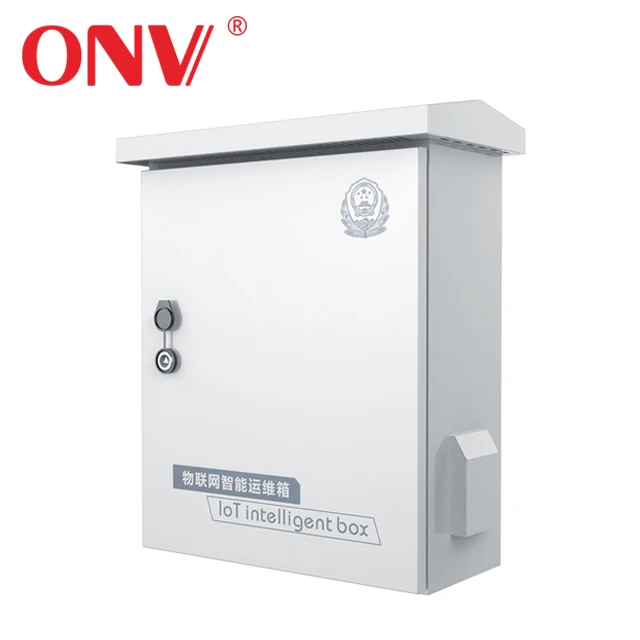

IoT PoE intelligent box

The ONV-IoT9000-ZH series is an IoT comprehensive intelligent box independently developed by ONV. It is an intelligent transmission and power control system with high integration, high functionality, and simple use. It has a modular structure and provides multiple sets of power output and remote monitoring control. The transmission module can be selected according to the application requirements to realize the optical transmission of various topologies. The IoT comprehensive intelligent box consists of project requirements, integrated PoE power supply network transmission module, port lightning protection module, power supply control module, etc. The high-performance, high-stability power supply with an intelligent control unit embedded in the main control board The control core provides practical and detailed, stable and advanced automatic control functions. The IoT comprehensive intelligent box can realize the detection and centralized monitoring and management of the environment, power supply, temperature, communication link and other equipment in the box. The interface is rich and powerful. It can be used for public security safe city monitoring, communication industry base stations, integrated computer rooms, and other monitoring needs, to improve the reliability of unattended sites. It is applicable to the construction of smart security IoT, such as safe city, intelligent transportation, country town monitoring, road checkpoint monitoring, infrastructure, and environmental management, natural disaster monitoring and control, water conservancy monitoring, and communication base station monitoring.

▲  Built-in lightning protection module, air switch, input voltage detection, input voltage overload/underload alarm, lightning strike count indication.
▲  Modular design, centralized the power supply, automatic reclosing, voltage short circuit trip, self-recovery power supply. More than 1 set AC220V power output, 3 set DC12V output, 1 set AC24V output, 1 set DC52V output.

▲ Remote PoE power supply and management, multi-channel UTP network connection, fiber connection, link alarm, supporting optical fiber splice trays.
▲ Power failure detection, voltage, current monitoring, on-site recording and remote viewing of device name and model, voltage output, real-time reporting of detection results, positioning of equipment through cloud platform and online map.

▲  The PoE intelligent box related information can be managed by the QR code in the box to record all status information and logs of the device.
▲  A mechanical lock is installed in the box to record the log of the door opening and closing operation personnel and time; tamper alarm, the user can set when the door is opened, the operation and maintenance platform actively alerts.

▲  The network management data is output through Ethernet, and the key data of operation and maintenance is transmitted through the optical fiber and the IoT transmission module, and transmitted through the 4th generation mobile communication technology and WIFI signals.
▲  Centralize operation and maintenance management cloud platform, through the cloud platform software, User can manage the front-end devices, remotely view the status devices in real-time, and operate the power supply status. when the front-end devices are abnormal, it can be notified of sound and light, pop-up windows, etc. The user at the same time forms a QR code to send work orders, maintenance personnel to receive work orders under the application view, timely troubleshooting. The centralize management cloud platform has alarm records, history records, fault statistics analysis reports, and operation log records.

Item
Belonging module
Function and interface
Parameter
Operating Voltage
Automatic reclosing
AC175-240V
AC100-240V
Access AC voltage range: AC90-264V 50-60Hz
Device Interface
Network transmission
LC/SC fiber port
2*100/1000M SFP fiber ports (Optional LC / SC interface)
Gigabit RJ45 port
8*10/100/1000Base-X RJ45 ports
Console port
1set Ethernet switch console configuration interface
Power
supply
POE power supply
Port 1-7 support IEEE802.3af/at POE output
DC48V power interface
1 set single output 250W / 48V DC power supply
DC12V power interface
1 set 3-port output 90W / 12V DC power supply, 12V / 2A
AC24V power interface
1 set single output 60W / 24V AC power supply
AC220V power interface
5 hole AC power socket
Data control
RS485 interface
1 set RS485 communication interface
RS232 interface
1 set RS232 communication interface
Switch output
1 set switch output (Connect the alarm circuit, alarm indicator, etc.)
Switch input
2 set switch input (Box door switch, water leak detection)
Protective Function
Lightning protection
Network lightning protection
6-port gigabit network lightning protection
40KA anti-surge protection (SPD)
40KA AC surge protector
Automatic reclosing
Short circuit protection
In case of short-circuit fault, the power-off action time ≤0.1S
Electric leakage protection
Electric Leakage current> 30mA, power-off action time≤0.1S
Over current / overload protection
Power-off protection when the current is greater than 1.15 times the rated current and greater than 30S or the instantaneous
current is greater than 3 times the rated current
Over voltage protection
Power-off protection when the supply voltage is higher than the rated upper limit working voltage + 5V
Under voltage protection
Power-off protection when the supply voltage is higher than the rated lower limit working voltage -5V
Detection and protection before closing
Failure to restart before closing
Operation
and
Maintenance
Data control
Main control board parameters
Flash:4GByte
DDR: 512MByte
CPU: ARM 600MHz
Unauthorized unpacking monitoring alarm and video
Illegal unpacking alarm, video recording, and upload.
Power failure alarm
DC12V power failure alarm
AC220V mains power failure alarm
Fan status monitoring alarm
Fan failure alarm
Fan speed control
Temperature detection alarm
Alarm temperature setting,
Above the upper-temp limit, start the fan to dissipate heat;
Less than the lower temp limit, start the chassis heating (The heating module needs to be purchased separately)
Operation and maintenance
Water leak detection alarm
Chassis flooding alarm
Power monitoring alarm
Real-time alarm for mains over-voltage, under-voltage, lightning strike,short circuit fault
Lightning protection frequency monitoring
Count lightning strike times to protect equipment installation and maintenance in advance
Power consumption statistics
Real-time display of chassis voltage, current, power
Output voltage / current control and monitoring alarm
DC12V output control and alarm
AC24V output control and alarm
AC220V output control and alarm
PoE power output control and alarm
System information display screen
Company LOGO
Local management IP address
Query / display the local I / O port status information
Query / display the information of local voltage and current consumption.
SMS alarm
The platform sends an alarm message SMS to the mobile phone of the operation and maintenance personnel
Network transmission
PoE output network management
Delay start of power supply
Scheduling of PoE operation and time
PoE port real-time power viewing,
PoE port power priority configuration
PoE output power allocation, off& af &at
PoE switch network management configuration
DHCP Serve, IGMP multicast
Port mirroring, Port rate setting
Network VLAN division
Link aggregation, QoS configuration
Network storm suppression
MAC + VLAN + IP + port binding
IPV4 / IPV6 dual stack protocol
802.1X access control, 802.3X flow control
ERPS and spanning tree ring network networking, etc.
Internet self-healing (Network watchdog)
Network traffic monitoring, offline recovery, downtime recovery, and storm recovery.
Network monitoring alarm
Network port dropped alarm
Optical port dropped alarm
Device connection topology and status monitoring alarm
intelligent box connection topology
Rename device name
Custom topology design
Expansion Module
Data control
4G wireless transmission
4G wireless communication function expansion and control
Intelligent box heating
The automatic heating system is suitable for long-term low-temperature environment operation
GPS positioning
Positioning accuracy ± 0.5 meters
Local information storage
Specify or select local system information backup, local storage, provide accurate operation and maintenance information records
Chassis repair lights
LDE Light when the box door is opened, providing lighting for smart box installation and maintenance.
Chassis Protection
Case shell
Chassis protection level
IP55
Fan
3200RPM
Power supply air switch
AC220V/16A air switch
Dimension
H*W*T:540x440x240mm
Chassis material
1.8mm galvanized steel sheet
Insect net
The ventilation holes are covered with insect nets to ensure the interior of the box is clear

INSTALLATION STEPS

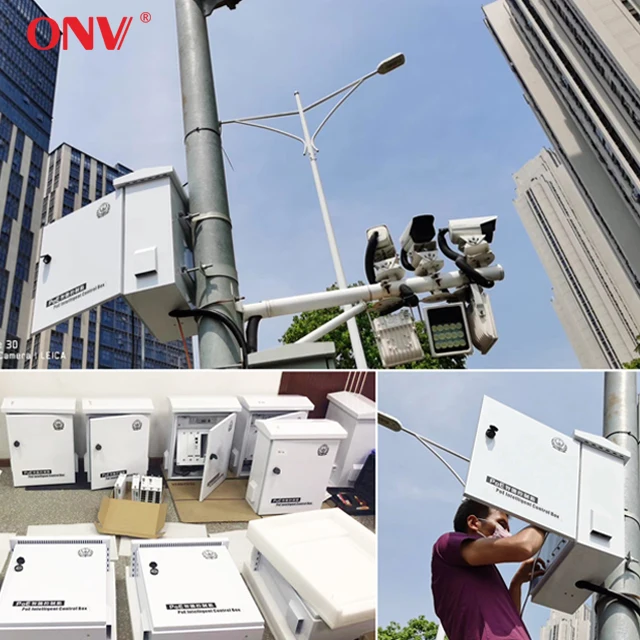

▲  Hold pole installation only supports vertical round pole installation.
▲  When installing the machine, you need to use the matching sheet metal mounting   parts and screws.
▲  Wear protective gloves when installing.
▲  It is forbidden to install the intelligent box under power.
▲  The exterior paint of the intelligent box should be kept intact. If the paint is lost, the paint needs to be replenished immediately to prevent corrosion.

Model
Description
Leopard7000-PoE-IoT
IoT PoE intelligent control box with lightning arrester, air switch, power automatic closing protection module, multi-output power module, Ethernet switch, optical fiber terminal box, etc. It has 8* 10/100/1000M RJ45 ports and 2*100/1000M SFP slot ports. Port 1-7 can support IEEE802.3af/at standard PoE. remotely control through a cloud platform,  realize cluster management, pole hoop mounting.
Leopard7000-SW-IoT
IoT Ethernet intelligent control box with lightning arrester, air switch, power automatic closing protection module, multi-output power module, Ethernet switch, optical fiber terminal box, etc. It has 8* 10/100/1000M RJ45 ports and 2*100/1000M SFP slot ports. remotely control through a cloud platform, realize cluster management, pole hoop mounting.
Leopard7000-AC/DC-IoT
IoT intelligent control box with lightning arrester, air switch, power automatic closing protection module, multi-output power module, etc. It can be used with other control boxes, remotely control through a cloud platform, realize cluster management, pole hoop mounting.
PACKING LIST
CONTENT
QTY
UNIT
IoT PoE intelligent control box
1
SET
Mounting kits(pole hoop)
1
SET
User guide
1
PC
Warranty card
1
PC
Note: IoT PoE intelligent control box does not match the SFP module.
