4-колесный скейтборд Электрический мусоровоз с задненавесным погрузчиком 1200 кг
- Категория: Special Transportation >>>
- Поставщик: Changzhou,Paragon,Vehicle,Accessories,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.54 $* | 0.74 $* |
| Aug-15-2025 | 0.76 $* | 0.59 $* |
| Jul-15-2025 | 0.70 $* | 0.25 $* |
| Jun-15-2025 | 0.21 $* | 0.95 $* |
| May-15-2025 | 0.17 $* | 0.33 $* |
| Apr-15-2025 | 0.48 $* | 0.61 $* |
| Mar-15-2025 | 0.93 $* | 0.23 $* |
| Feb-15-2025 | 0.78 $* | 0.11 $* |
| Jan-15-2025 | 0.13 $* | 0.27 $* |
Характеристики
Product Description
| Technical Specification for 4-Wheel Electric Garbage Rear Loader | |||
| Vehicle Basic Parameters | External Dimension(L x W x H) | 4.26m(L) x 1.5m(W) x 2.2m(H) | |
| Nos of Passenger | 2 | ||
| Front Tread(mm) | 1210 | ||
| Rear Tread(mm) | 1210 | ||
| Wheel Base(mm) | 2090 | ||
| Max Mileage (Km) | 80 | ||
| Max Speed (Km/h) | 30 | ||
| Min Turning Radius(m) | 5 | ||
| Max Turning Angle(Degree) | 45 | ||
| Gradeability | 10 degree | ||
| Volume of Garbage Container(CM3) | About 3.60 (2550 L x 1446 W x 1100 H) | ||
| Norminal Load Capacity(Kg) | 2500 | ||
| Vehicle Weight (Kg) | 1980 | ||
| Ground Clearance(mm) | 140mm | ||
| Min Braking Distance(m) at V=20Km/h | 5 | ||
| Max Tipping Angle | 50 degree | ||
| Vehicle Body Configurations | Chassis | Heavy duty, with hydraulic braking systems, E coating | |
| Front Wind Shield | Laminated glass panel, with wiper | ||
| Driver's Cabinet | Fiber glass body by integral moulding, doors optional | ||
| Floor | Anti-slippery leather pad | ||
| Dashboard | Fiber glass material, with speedo meter, battery indicator, current meter, combination buttons, etc. | ||
| Mirrors | Available | ||
| Lamps and Signals | Headlamp, left/right indicators in front and rear, position lamp, brake lamp, horn and reverse buzzer | ||
| Garbage Container | The whole lining inside container is made of SS steel | ||

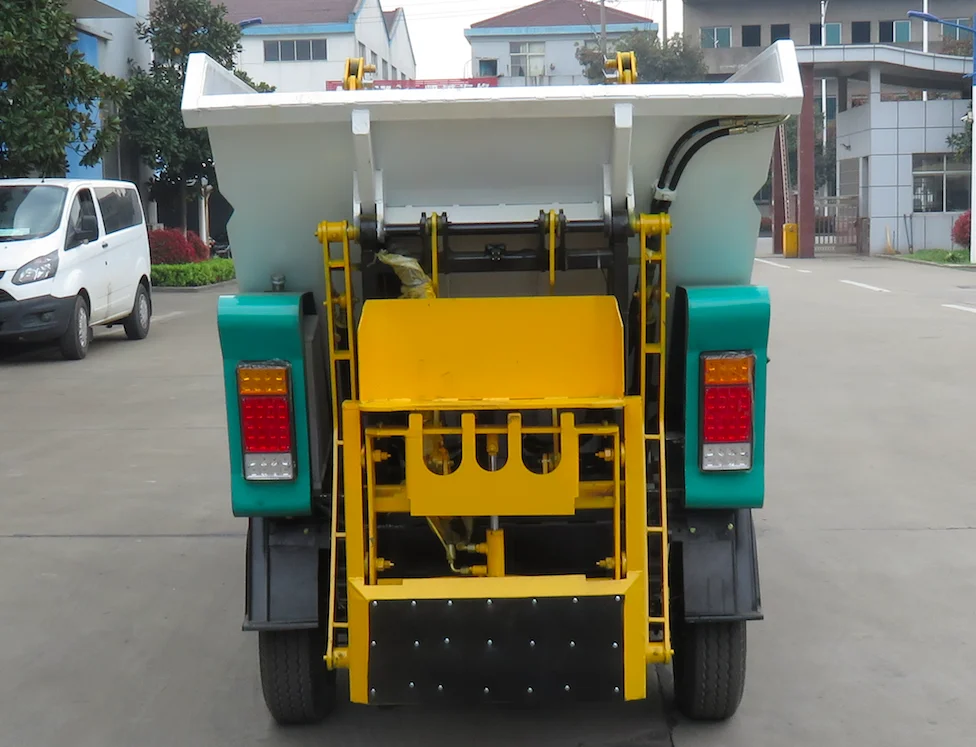

| Dustbin Lifting Mechanism | Hydraulic operated self-locking and pressing lifting system, easy to operate | ||
| Compactor | Available | ||
| Electric Components | Battery capacity | 72V 250Ah Lithium Ion Battery or 72V 200Ah Gel SMF Lead Acid Battery | |
| Driving Motor | 72V 6.3KW DC Series motor | ||
| Charger | 72V 30Ah smart auto-cut, 8 hours to full charge | ||
| Hydraulic System | Hydraulic Cylinder for Tipping | Diameter 80mm x 235mm(L) x 1 piece | |
| Hydraulic Cylinder for Compactor | Diameter 50mm x 290mm(L) x 2 pieces | ||
| Motor for Pump | 72V 1500W DC motor | ||
| Hydraulic Pump Pressure(Mpa) | 16 | ||
| Control Voltage(VDC) | 12 | ||
| Oil Tank(L) | 16 | ||
| Tipping Process Duration(S) | 12 | ||
| Dustbin Loading&unloading CT(S) | 10 | ||
Our Services
Our technical services and supports are including but not limited to:
1.Vehicle manufacturing training and commissioning at the customers’ sites
2.Vehicle modifications
3.Vehicle optimization and upgrades
4.Trouble shooting and analysis
5.Homologation support
6.Vehicle repair and maintenance
7.On-line support
We usually provide vehicle manufacturing and commissioning services to our regular customers in our vehicle manufacturing plants in Changzhou city free of charge. In case our customer requires such service at their site, we will send engineers to their place and they will only need to be responsible for the related transportation, hotel and food for our engineers.
Vehicle modifications, optimizations and upgrades are considered and performed when our customers are having different requirements which our existing vehicle models are not able to meet fully. Such modifications are load capacity increase, space increase, safety improvements, range increase, function increase and comfort increase.
Company Information
Changzhou Paragon Vehicle Accessories Co., Ltd is located in Changzhou City, the world famous electric vehicle manufacturing base. We processes full manufacturing experience and vast expertise in design, manufacturing and supplying various types of low and medium speed electric trucks, loaders, and tricycles with wide range of applications from civil construction, garbage handling, cleaning, public & private passenger transportation, cargo transportation and entertainment. We endeavor to forge long-term and mutual-win partnership with our customers, by offering to our customers with quality products at competitive prices, as well as on time delivery, continuous technical training, supports and adequate spare parts.
Our Mission: Make people around the world enjoy our electric vehicles
Our Vision: Redefine the short distance transportation in green and economical ways.
Our Value: RIGHT - Responsibility, Integrity, Greenness, Happiness, Team spirit.
We sincerely welcome customers from al over the world, and we are looking forward to offer you the best products with sound technical supports.
FAQ
1.Do you have a minimum order quantity? ----- Yes, we do have MOQ. However, we will also be glad to supply sample vehicle to our customers upon their request.
2. What kinds of payment methods do you accept? ----- Our regular payment term is 40% advance payment after contract is signed, and 60% payment before delivery for batch order, all by T/T. We will prepare and send you the goods readiness proof before you make the 70% payment.
3. What is the product warranty? ----- Usually we do not provide warranty to the exported products, however, we ensure we will use quality parts and components for all vehicles we supply. Meanwhile we will provide certain free spare parts to our customers for the batch orders.
4. Do you guarantee safe and secure delivery of products?----- Yes, we have established long cooperation with trustworthy freight forwarding companies and logistic companies who are experienced in handling and shipping our electric vehicles and parts in a safe way. In addition, we understand our products deeply thus we will always be able to choose the most reliable packing methods.
5. How about the shipping charges? ----- We will choose the most suitable and economic way to ship the electric vehicles ordered by our customers. We will choose the shipping company who offers the most competitive prices.
6. Can you supply the relevant documentation? ----- Yes, we can provide most documents including but not limited to WMI, Technical Specification, Certificate of Origin, Dangerous Goods Certificate, MSDS, Certificate for Safe Transportation of Chemical Goods, etc.
7. What is your normal lead time? ----- The lead time for batch order is about 30 days after the advance payment is received. For sample order it may take longer time, depending on the production load, your customized requirements and the availability of components.
8. Are there any services available? ----- Yes, we are providing on-line technical services and supports to all vehicles we supply. And we also provide free consultancy services to electric vehicles and their components.
