Прямые продажи с завода переключаемая пленка для конфиденциальности умные аксессуары пленки
- Категория: Building & Industrial Glass >>>
- Поставщик: Shenzhen,Sunwotech,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 357.0 $* | 375.20 $* |
| Aug-16-2025 | 354.94 $* | 372.15 $* |
| Jul-16-2025 | 297.54 $* | 312.55 $* |
| Jun-16-2025 | 348.35 $* | 365.27 $* |
| May-16-2025 | 303.10 $* | 318.3 $* |
| Apr-16-2025 | 342.1 $* | 359.42 $* |
| Mar-16-2025 | 339.72 $* | 356.69 $* |
| Feb-16-2025 | 336.4 $* | 353.85 $* |
| Jan-16-2025 | 333.95 $* | 350.87 $* |
Характеристики
Product Description

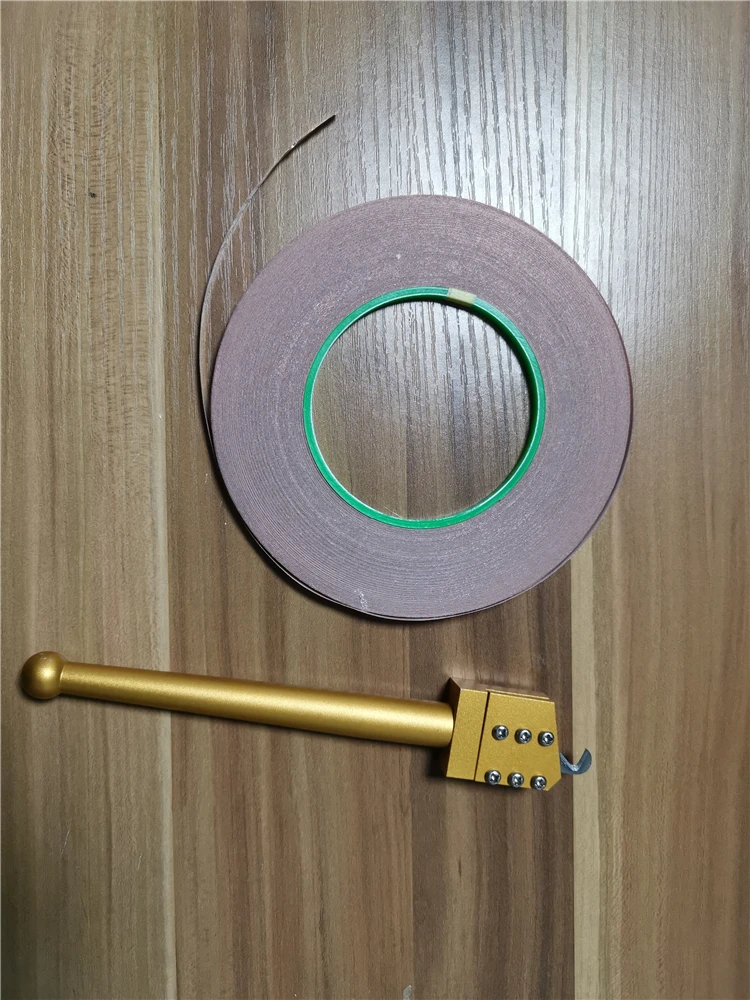

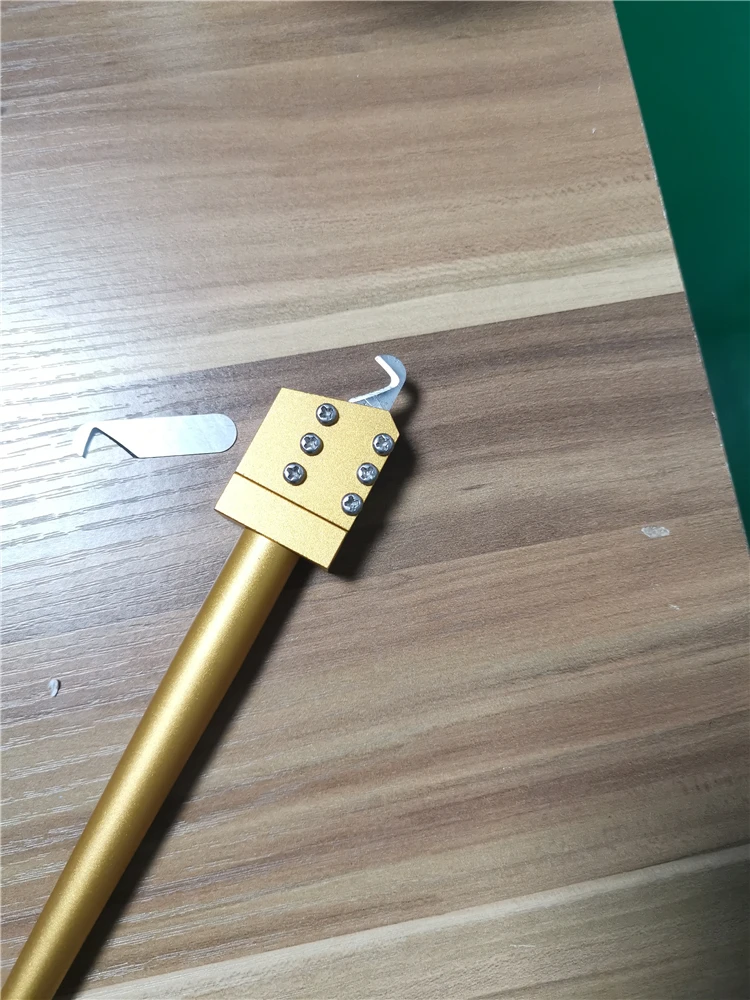

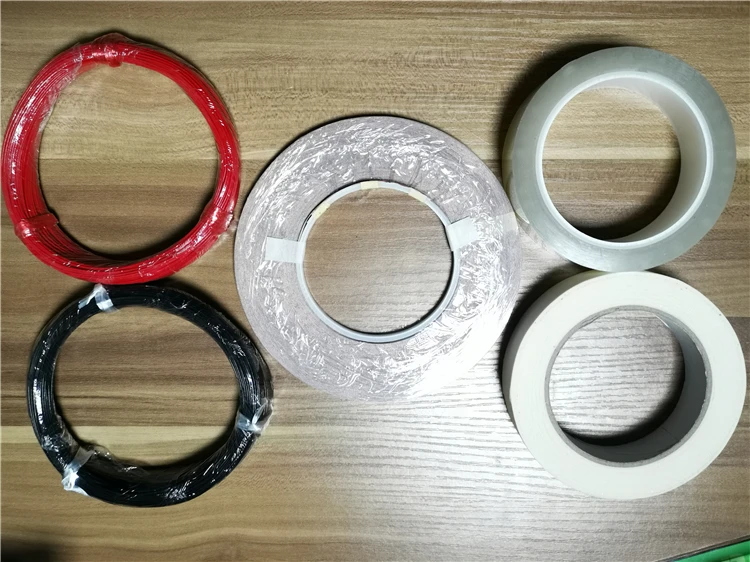

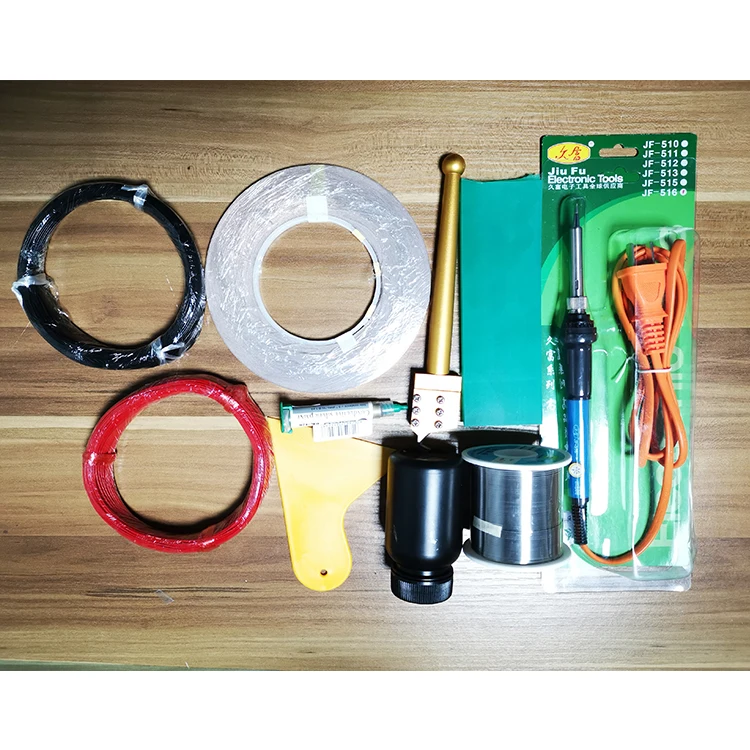

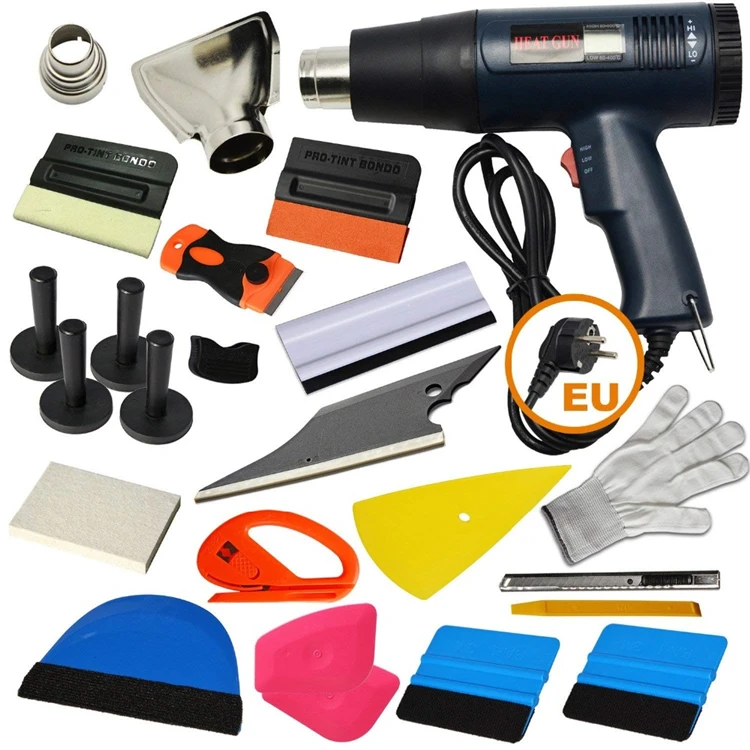

Item Name: | PDLC Film Accessories |
Keywords: | pdlc smart film, switchable privacy film，PDLCfilm |
Size: | Max. 1800mm x 6000mm |
Certificate: | ISO9001/CE/ROHS/FCC/SGS |
Function: | Fabricating electrode |
Feature: | Tools |
Type: | Tools |
Surface Treatment: | Tools |
Forming principle
It is the low molecular liquid crystal and the prepolymer mixed, under certain conditions by polymerization reaction, the formation of micron-level liquid crystal droplets evenly dispersed in the polymer network, and then use the liquid crystal molecules dielectric anisotropy to obtain a light Response material.
It is a liquid crystal display function film
It is in the PDLC dimming film coated with AB glue, affixed to the glass surface;
Can achieve dimming film glass penetration and privacy protection .
It uses a polymer dispersion liquid crystal (PDLC) as a display structure
It is a two-layer flexible transparent conductive film as an electrode
Able to adjust the voltage under the moment to achieve a transparent and opaque switch
It is in the PDLC dimming film coated with AB glue, affixed to the glass surface;
Can achieve dimming film glass penetration and privacy protection .
It uses a polymer dispersion liquid crystal (PDLC) as a display structure
It is a two-layer flexible transparent conductive film as an electrode
Able to adjust the voltage under the moment to achieve a transparent and opaque switch
Working Principle
1.The optical function of the film is realized by the optical characteristics of the liquid crystal ;
2.Electronically controlled dimmable glass inside the liquid crystal molecules will show irregular distribution ;
3.At this point, the electronic control glass presents a translucent and opaque appearance ;
4.After power, inside the liquid crystal molecules appear neatly arranged ;
5.The light can be free to penetrate, then electronically controlled liquid crystal glass showed a transparent state .
2.Electronically controlled dimmable glass inside the liquid crystal molecules will show irregular distribution ;
3.At this point, the electronic control glass presents a translucent and opaque appearance ;
4.After power, inside the liquid crystal molecules appear neatly arranged ;
5.The light can be free to penetrate, then electronically controlled liquid crystal glass showed a transparent state .
Working principle diagram:
Performance Parameters
The liquid crystal dimming film (PL) technical standards | ||||||
Project | Power mode | Parameter | ||||
Optical parameters | Visible light transmittance | ON | ≥82% | |||
OFF | ≤4.7% | |||||
Parallel light transmittance | ON | >82% | ||||
OFF | <3.5% | |||||
Haze | ON | ≤3.5% | ||||
OFF | ≥96% | |||||
Viewing angle | ON | 140° | ||||
Electrical parameters | Operating Voltage | ON | 48V/60V (±2) AC | |||
Saturation voltage | ON | <36V | ||||
Response time | OFF-ON | <45ms | ||||
ON-OFF | <45ms | |||||
Power consumption | ON | <4w/m2 | ||||
Physical parameters | Thickness | 0.4mm | ||||
The biggest size | 1800*6000mm | |||||
Bonding force | 100gf | |||||
Environmental parameters | Operating temperature | -30ºC-70ºC | ||||
Storage temperature | -30ºC-70ºC | |||||
Years of use | ≥50000h | |||||
Number of switches | >10 million times | |||||
Example
Installation Steps
Packing&Shipping
Company Introduction
Shenzhen Sunwotech Technology Co., Ltd is located in Shenzhen Special Economic Zone. We are a new and high technology company with producing and sales together. The new material technology we developed has obtained many patents in China. Our products are sold worldwide and the main market is European countries and North America.
We are the only company who has the third generation technology of Ultra Clear Electronic smart Film. And we have intellectual property on the PDLC product ingredients and production procedures. Because of our outstanding R&D team, we are the leading company of PDLC smart film manufactures in China.
With our advanced producing procedures and high quality material imported from Europe, we exert our effort providing the clearest, the purist and the longest service life PDLC smart film for the in building and car.
We are the only company who has the third generation technology of Ultra Clear Electronic smart Film. And we have intellectual property on the PDLC product ingredients and production procedures. Because of our outstanding R&D team, we are the leading company of PDLC smart film manufactures in China.
With our advanced producing procedures and high quality material imported from Europe, we exert our effort providing the clearest, the purist and the longest service life PDLC smart film for the in building and car.
FAQ
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us
or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity,
and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business
and make friends with them,no matter where they come from.
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us
or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity,
and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business
and make friends with them,no matter where they come from.
