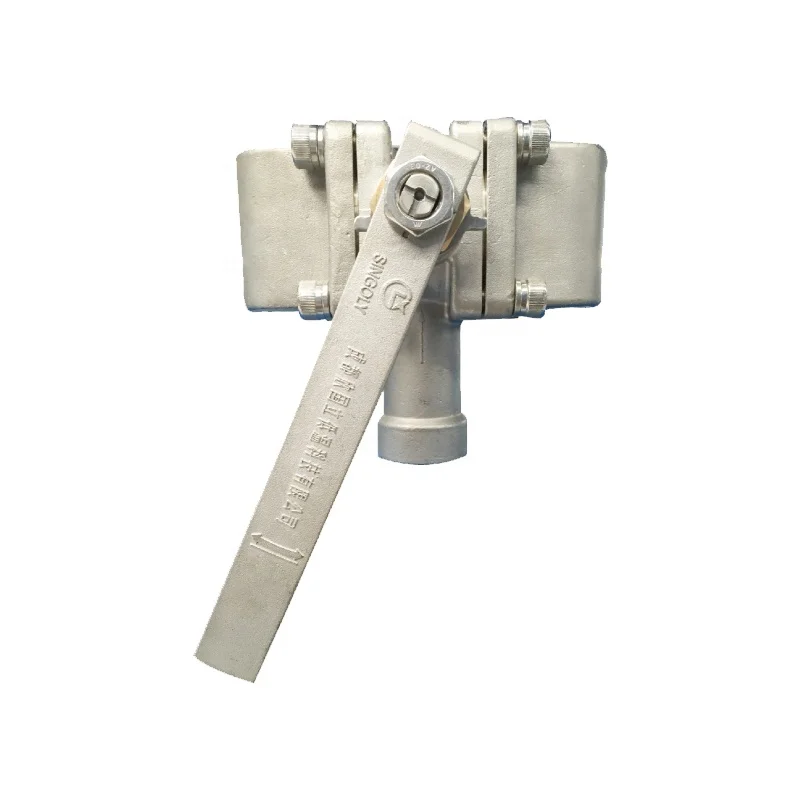

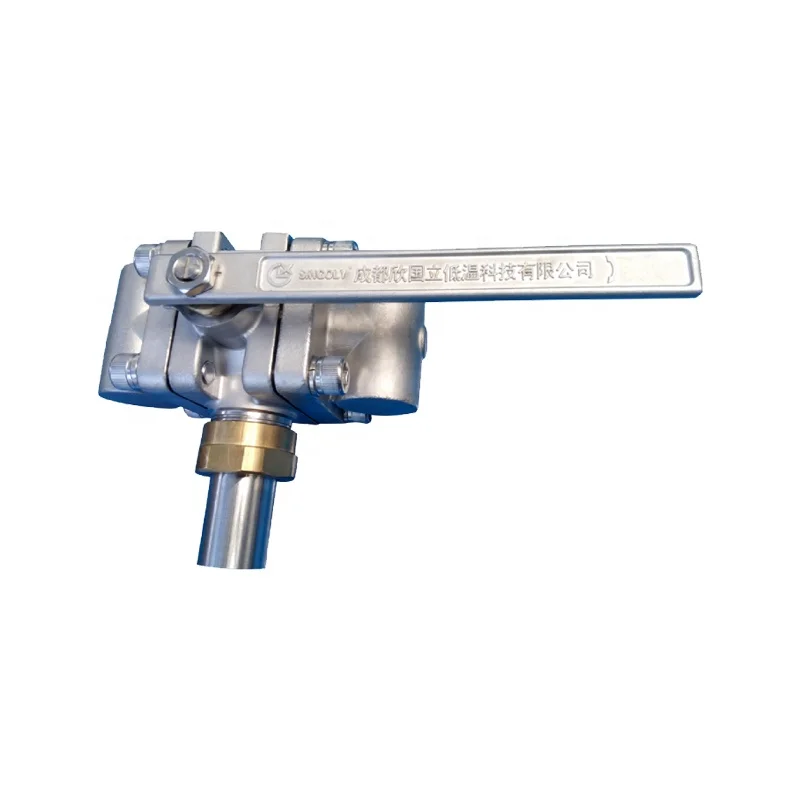

Лучшая цена криогенный Трехходовой направленный клапан из нержавеющей
- Категория: Шаровые клапаны >>>
- Поставщик: Jianyang,Greenfir,New,Energy,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 44.69 $* | 45.17 $* |
| Jul-20-2025 | 36.10 $* | 37.49 $* |
| Jun-20-2025 | 44.10 $* | 45.68 $* |
| May-20-2025 | 43.78 $* | 44.9 $* |
| Apr-20-2025 | 35.67 $* | 36.41 $* |
| Mar-20-2025 | 43.18 $* | 44.5 $* |
| Feb-20-2025 | 42.77 $* | 43.20 $* |
| Jan-20-2025 | 42.78 $* | 43.31 $* |
Характеристики
Product Description

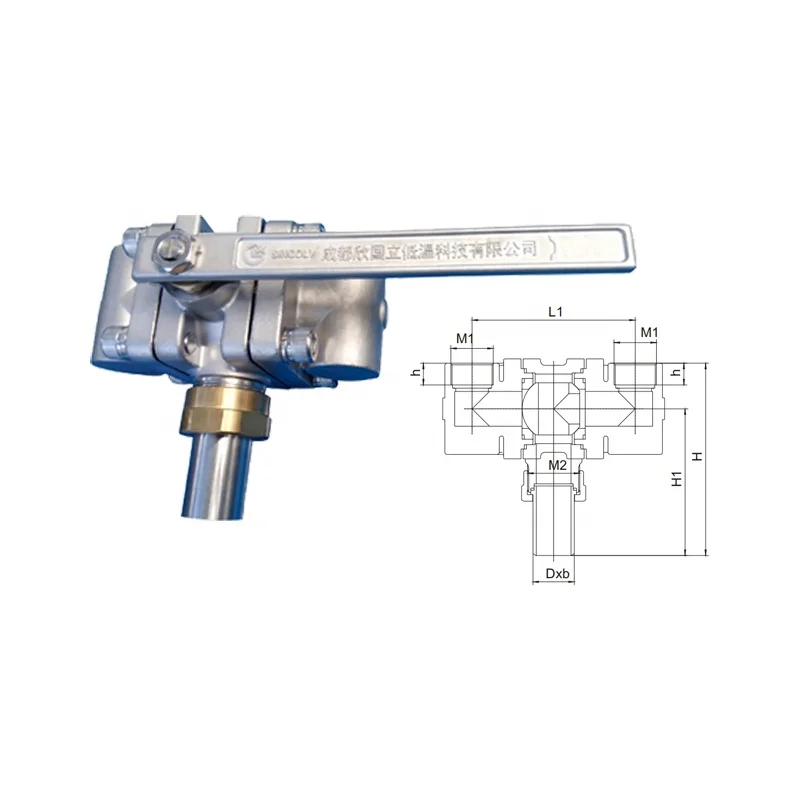

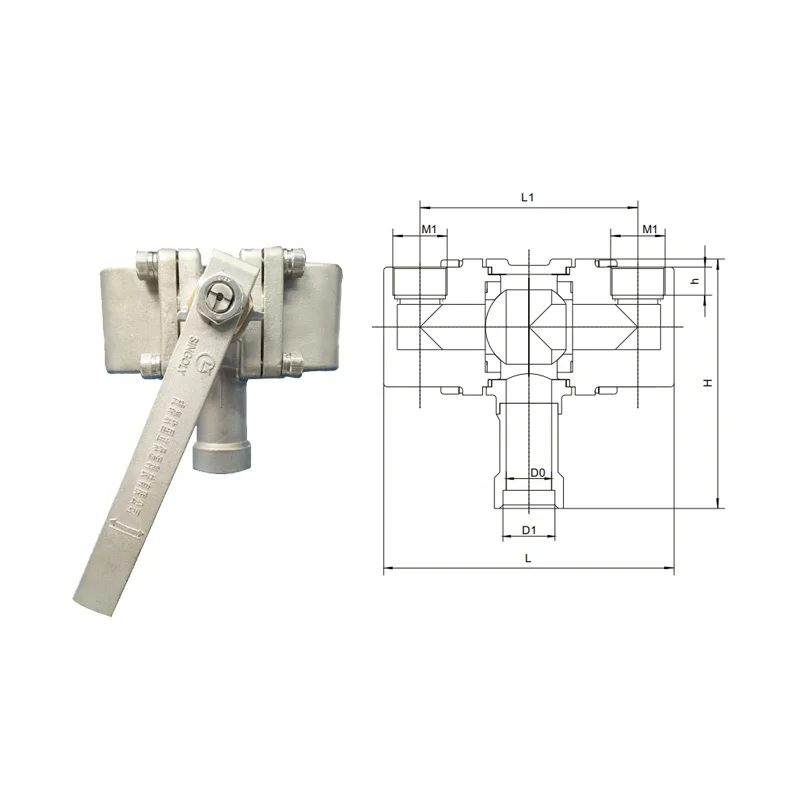

Three-way ball valve has T type and L type. The T-shape can connect three orthogonal pipelines with each other and cut off the third channel, which can split and merge. The L three-way ball valve type can only connect two orthogonal pipelines, and cannot maintain the third pipeline to communicate with each other at the same time. It only plays a role of distribution.

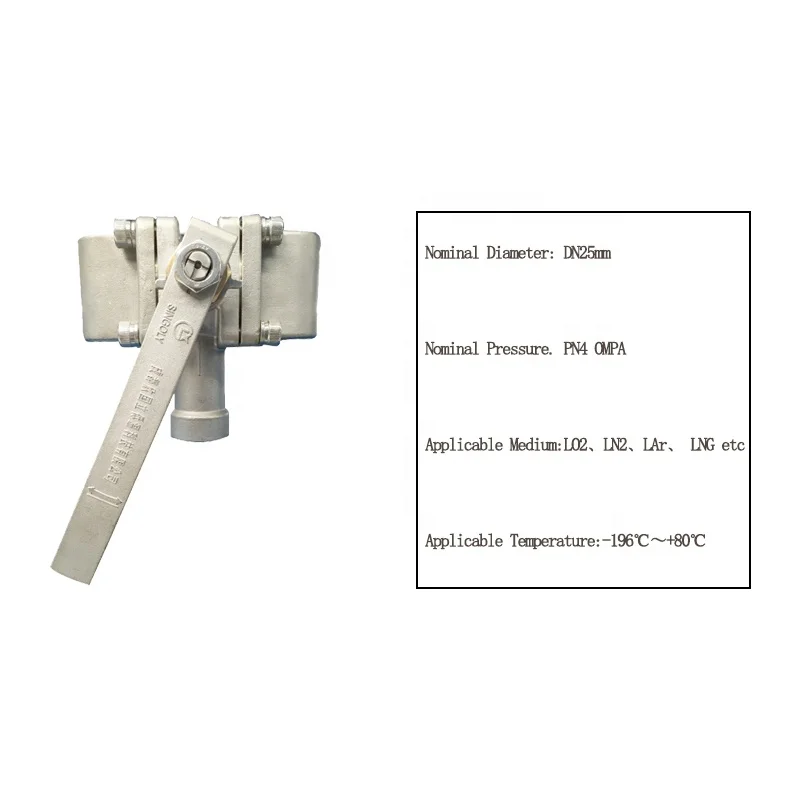

Main Technical Parameter
Nominal Diameter: DN25mm
Nominal Pressure: PN4.0MPa
Applicable Medium:O2、N2、Ar etc
Applicable Temperature:-196℃～+80℃
Main Material Of Parts
Body: CF8
Disc: Stainless steel
Stem: Stainless steel
Sealing Ring: Reinforcing PTFE
Disc: Stainless steel
Stem: Stainless steel
Sealing Ring: Reinforcing PTFE
Product Advantages
1. The fluid resistance is small, and its resistance coefficient is equal to that of a pipe section of the same length.
2. Simple structure, small size and light weight.
3. It is tight, reliable, and well sealed, and has been widely used in vacuum systems.
4. It is easy to operate and open and close quickly. It only needs to rotate 90° from fully open to fully closed, which is convenient for remote control.
5. The maintenance is convenient, the structure of the ball valve is simple, the sealing ring is generally movable, and it is convenient to disassemble and replace.
6. When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when the medium passes.
7. It has a wide range of applications, with a diameter ranging from a few millimeters to a few meters, and can be applied from high vacuum to high pressure.
2. Simple structure, small size and light weight.
3. It is tight, reliable, and well sealed, and has been widely used in vacuum systems.
4. It is easy to operate and open and close quickly. It only needs to rotate 90° from fully open to fully closed, which is convenient for remote control.
5. The maintenance is convenient, the structure of the ball valve is simple, the sealing ring is generally movable, and it is convenient to disassemble and replace.
6. When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when the medium passes.
7. It has a wide range of applications, with a diameter ranging from a few millimeters to a few meters, and can be applied from high vacuum to high pressure.
Related Products
After Sales Service
Life-long Service
1.If there is a problem, it will arrive at the scene within 5 working days to deal with the problem.
2.During the warranty period,the company is responsible for replacing the problematic equipment.
3.Outside the warranty period, technical maintenance services are provided, and the costs incurred are borne by the buyer.
3.Outside the warranty period, technical maintenance services are provided, and the costs incurred are borne by the buyer.
Company Introduction
Chengdu Xinguoli Cryogenic Technology Co., Ltd. was established in April 2008. It is a technology-based joint-stock company specialized in the design, manufacture, sales and technical advisory services of natural gas liquefaction equipment and cryogenic equipment pressure piping components. , Zhongyuan and Southwest Sales Company. The company's registered capital is 19 million yuan and the employees are more than 100.
The company has gathered a group of experienced low-temperature processes and equipment,low-temperature special valve research and development personnel, including 18 people with intermediate and
higher professional titles, some have obtained two national patents, with a unique frictionless structure to achieve a switching life of 1 million More than two times of leakage-free double eccentric plate butterfly valve and four-link butterfly valve level R&D personnel,there have been twelve national patents, based on the absorption of U.S.-Japan technology and made significant innovations in low-temperature storage application valve research and development personnel; also There are professional management personnel who have produced and manufactured LNG low temperature according to AP standards and PED legal requirements. The company has new CNC
lathes, welding equipment, first-class low-temperature testing and inspection equipment and advanced CAD design center.The company's professionally designed and manufactured valve varieties are: butterfly, membrane regulating valve, ball valve,globe valve, throttle valve, check valve, pressure reducing valve, safety, instrument valve, breathing valve, three-way switching reading and so on. The nominal diameter is up to 1600mm, the maximum pressure is 42MPa, the use temperature is -269℃, the maximum is +850℃, and there are manual, pneumatic, electric and other transmission methods. Mainly used in air separation equipment,natural gas liquefaction separation equipment, petrochemical tail gas separation equipment, LO2, LN2, LAr, LH2, LCO2 low
temperature storage and transportation equipment, pressure swing adsorption oxygen production, nitrogen and hydrogen recovery equipment, ethylene high temperature cracking device, power station And other fields.
The company's production vehicles are 6052 square meters, and 118 sets of various technological equipments, which meet the requirements of permit resource conditions and special valve conditions in TSGD2001-2006 "Pressure Pipe Component Manufacturing License Rules"; the design and manufacture of safety accessories can reach TSGZF001-2006 The requirements of "Safety Valve Safety Technical Supervision Regulations". The
company can fully meet the relevant requirements for the production, testing and testing of pressure piping components and safety accessories.
lathes, welding equipment, first-class low-temperature testing and inspection equipment and advanced CAD design center.The company's professionally designed and manufactured valve varieties are: butterfly, membrane regulating valve, ball valve,globe valve, throttle valve, check valve, pressure reducing valve, safety, instrument valve, breathing valve, three-way switching reading and so on. The nominal diameter is up to 1600mm, the maximum pressure is 42MPa, the use temperature is -269℃, the maximum is +850℃, and there are manual, pneumatic, electric and other transmission methods. Mainly used in air separation equipment,natural gas liquefaction separation equipment, petrochemical tail gas separation equipment, LO2, LN2, LAr, LH2, LCO2 low
temperature storage and transportation equipment, pressure swing adsorption oxygen production, nitrogen and hydrogen recovery equipment, ethylene high temperature cracking device, power station And other fields.
The company's production vehicles are 6052 square meters, and 118 sets of various technological equipments, which meet the requirements of permit resource conditions and special valve conditions in TSGD2001-2006 "Pressure Pipe Component Manufacturing License Rules"; the design and manufacture of safety accessories can reach TSGZF001-2006 The requirements of "Safety Valve Safety Technical Supervision Regulations". The
company can fully meet the relevant requirements for the production, testing and testing of pressure piping components and safety accessories.
"Customer needs as the center, process management as the basis, continuous improvement for quality, and brand innovation for development" is the company's basic philosophy. We will design, manufacture and manufacture products in accordance with the requirements of ISO9001 and API Spec Q1 quality management system. , Sales, installation and commissioning services, etc. to implement the entire process of control to ensure the success of customer applications and market success.
