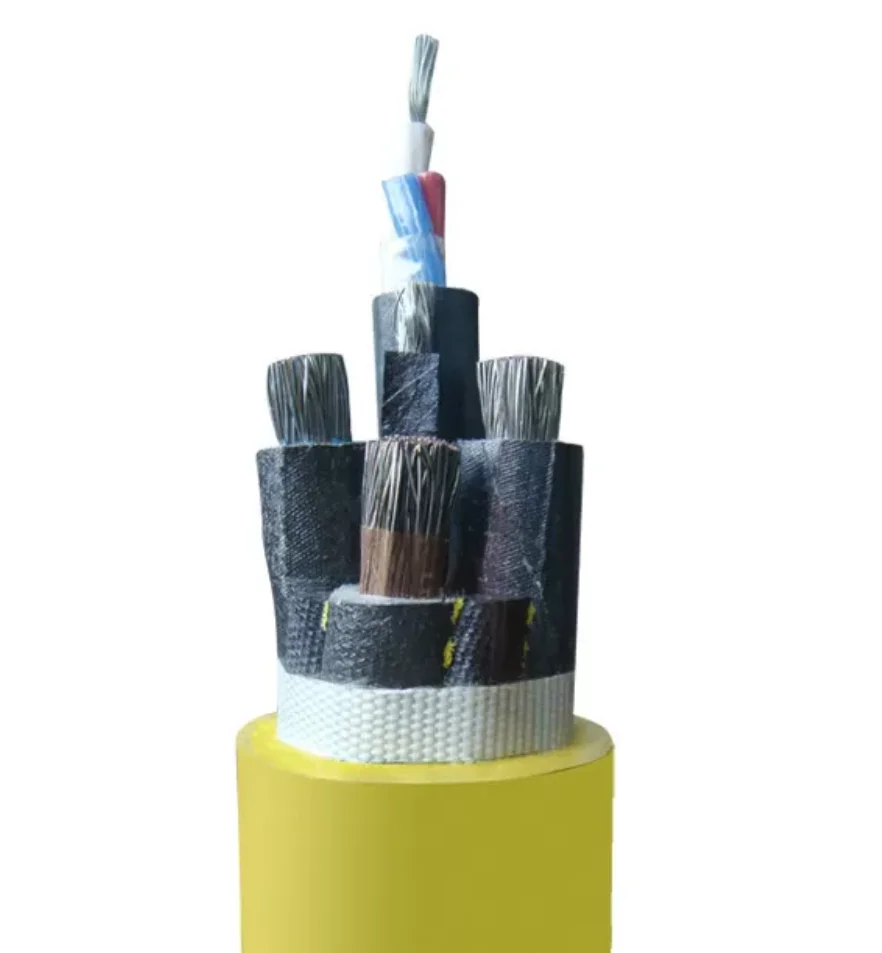

Мягкий кабель с резиновой оболочкой 1 9 КВ/3 3 кВ для машины добычи угля
Мягкий кабель с резиновой оболочкой 1 9 КВ/3 3 кВ для машины добычи угля
Мягкий кабель с резиновой оболочкой 1 9 КВ/3 3 кВ для машины добычи угля

Мягкий кабель с резиновой оболочкой 1 9 КВ/3 3 кВ для машины добычи угля


Поделиться:


Цена:76,52 ₽ - 3 825,51 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 90.48 $* 95.61 $*
Aug-19-2025 90.76 $* 95.11 $*
Jul-19-2025 75.65 $* 79.22 $*
Jun-19-2025 88.47 $* 92.86 $*
May-19-2025 77.26 $* 81.12 $*
Apr-19-2025 87.46 $* 91.92 $*
Mar-19-2025 86.78 $* 90.38 $*
Feb-19-2025 85.48 $* 89.95 $*
Jan-19-2025 84.80 $* 88.47 $*

Характеристики

1.Application

Rated voltage of power supply of 1.9/3.3kv and below mining and similar equipment connected

2.Conditions of Use

The line core allows for a long time working temperature of 65 degrees, the minimum bending radius of the wire is 6 times the diameter of the cable. The yellow jacket cable shall not be exposed to the sun for long time.
3.Model
MCP
Product Standards
4.Specification size
MCP-0.38/0.66KV
Core x Conductor Nominal section(mm2)
Nominal thickness(mm)
Cable outside diameter(mm)
Power line core
Ground core
Control core
Power line core insulation
thickness
minimum value
Maximum value
3x16
1x4
3x2.5
1.6
4.5
33.0
38.0
3x25
1x6
4x2.5
1.8
5.5
39.0
45.0
3x35
1x6
4x4
1.8
5.5
42.5
48.3
3x50
1x10
4x4
2.0
5.5
47.5
54.5
3x70
1x16
4x6
2.0
6.0
53.0
60.5
3x95
1x25
4x6
2.2
6.0
59.5
67.0
3x120
1x25
4x6
2.4
6.0
63.5
72.0
3x150
1x35
4x10
2.4
6.0
68.5
76.5
3x185
1x35
4x10
2.6
6.0
74.3
82.5
Company Profile
About Us
Henan Tong-da Cable Co., Ltd, successfully listed on Shenzhen Stock Exchange on Mar.3rd, 2011 (Stock Abbreviation: Tongda Stock, Stock Code: 002560), has devoted itself to the production, R & D and sales of wires and cables for more than 30 years.
The company covers an area of 360,000 square meters with a registered capital of 440 million RMB, which owns eight kinds of major professional products: Phase and earth conductor, power cable, overhead insulated cable, fire resistant cable, environmental protection PVC insulated building wire, contact and catenary wire for Electrified Railway, cable for rail traffic and control cable. Not only special wires and cables in flame retardant, fire resistant, low-smoke free halogen, irradiation cross-linking and etc. can be produced simultaneously, but also can meet the standard of IEC, British BS, American ASTM, German DIN and others, on the basis of customers' requirements.
The company has passed ISO9001 quality system certification, ISO14001 environmental system certification, OHSAS18001 occupational health system certification, CCC National Product Certification, PCCC product certification, CRCC railway product certification, and obtained the National Industrial Product Production License, AAA credit rating certificate, etc.
As the long-term main supplier of State Grid of China Corporation, China Southern Power Grid Corporation, Provincial Power Grid Corporation, China Railway Corporation and many large well-known real estate companies, Tong-da's products, widely used in smart grid, electrified railway, urban rail traffic, real estate engineering, home decoration, have exported to more than 60 countries and regions, such as Europe, Middle East, Southeast Asia, Africa and highly received unanimous praise from numerous customers.
workshop
The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. We are equipped with advanced production and inspection equipment and the products strictly according to international standards or customers' requirements.
R & D Building
The company has obtained 48 patents, including 5invention patents. and be approved "ehv conductor in henan province engineering technology research center", has accumulated rich technical reserves for company development.
Customer visit
Customer visit
The company exports to South America, Southeast Asia, the Middle East, Europe, North America, Africa and more than 60 countries and regions, and enjoys a certain reputation among users.
Product packaging
Explanation
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.
FAQ
Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 30 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power
Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines,
Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,Bolivia,Thailand Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay , Sri Lanka,New
Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our workshops
are equipped with advanced production and inspection equipment and the products strictly according to international standards or
customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.
Q5. What’s the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.
Q6. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar
model is OK for you. we provide the free samples for inspection while freight is charged.
Q7. What is our payment terms ?
We can accept the following payment terms: T/T, L/C, O/A
