RCI-601P трубы и кабель
- Категория: Другие электронные измерительные инструменты >>>
- Поставщик: Tianjin,Grewin,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 4126.20 $* | 4209.16 $* |
| Jul-15-2025 | 3346.47 $* | 3413.90 $* |
| Jun-15-2025 | 4061.3 $* | 4142.27 $* |
| May-15-2025 | 4029.14 $* | 4110.63 $* |
| Apr-15-2025 | 3217.8 $* | 3281.57 $* |
| Mar-15-2025 | 3964.92 $* | 4043.21 $* |
| Feb-15-2025 | 3931.88 $* | 4010.87 $* |
| Jan-15-2025 | 3899.48 $* | 3977.79 $* |
Характеристики
Product Overview
RCI-601P INTELLIGENT PIPE AND CABLE LOCATOR

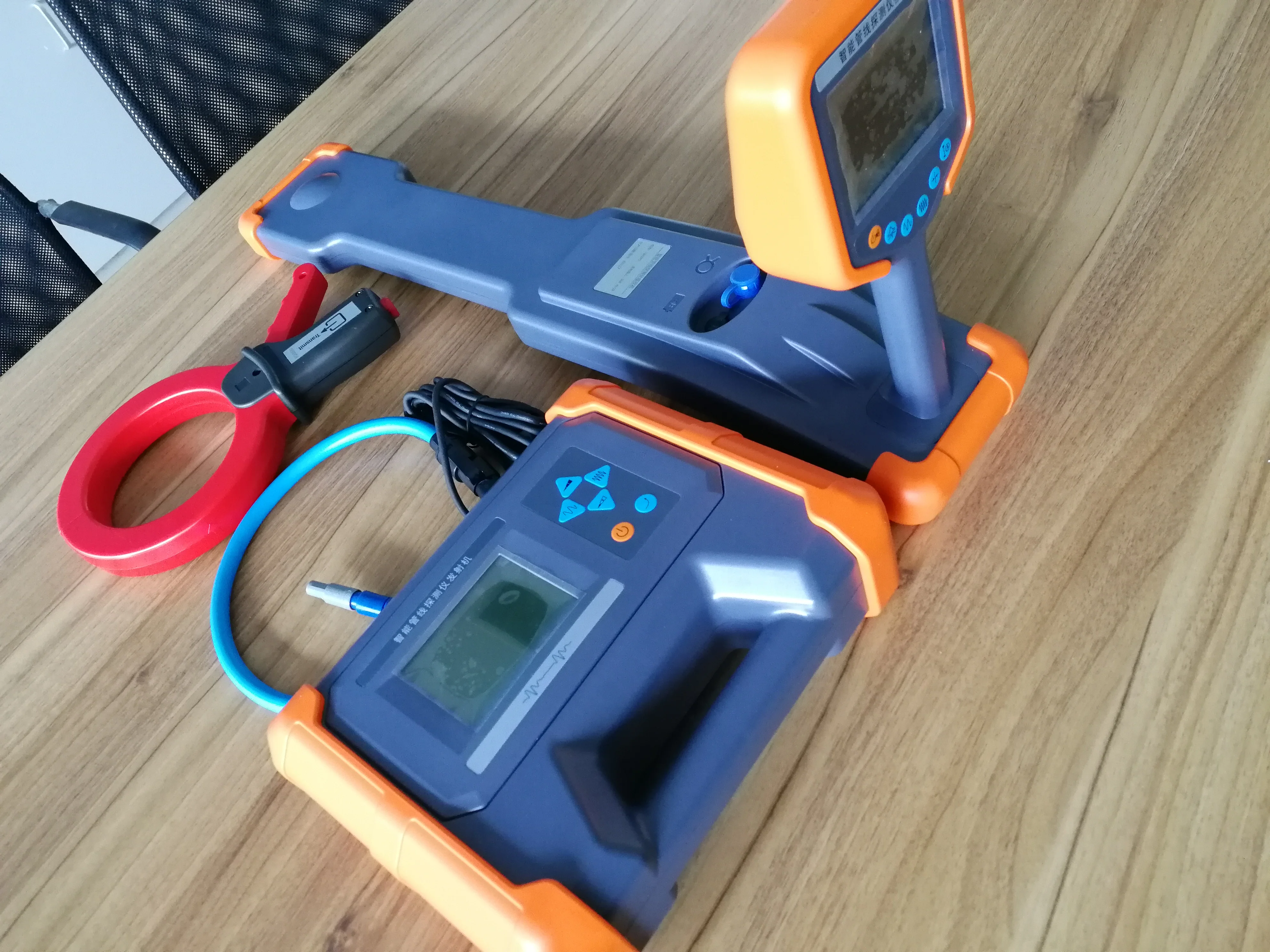

RCI-601P is a high performance underground metallic pipe locating system. It consists a transmitter and a receiver, can be
used to do route tracing, pipe exploration and depth measurement of the underground cables and metallic pipes.It can also be used to identify target cable from a bunch of cables, locate the pipe insulation damage and part type cable fault.
used to do route tracing, pipe exploration and depth measurement of the underground cables and metallic pipes.It can also be used to identify target cable from a bunch of cables, locate the pipe insulation damage and part type cable fault.
FEATURES AT A GLANCE

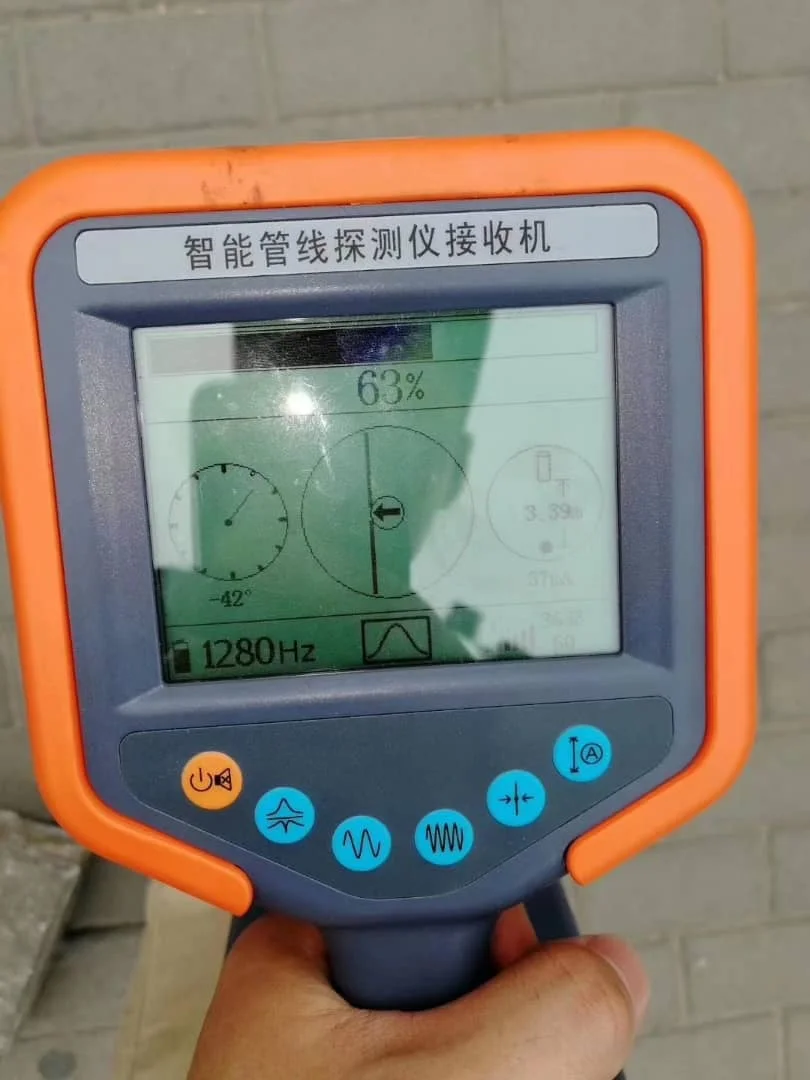

Compass display: to display pipe position and left-right direction directly.
Right/wrong indication: measure the pipe current direction to indicate tracing
result correct or wrong and avoid the nearby lines interference under certain frequencies.
Depth measurement and current measurement and display the signal strength history cursor.
All digital high accuracy sampling which is stable and reliable with ultra high sensitivity and narrow receiving transmission band to greatly enhance the capacity of resisting disturbance and fully inhibit the power interference and harmonic interference from the nearby running cable and pipe.
Cable/pipe identification:flexible Clamp (optional) identification and sensor
identification. Clamp identification can precisely gives accurate result. sensor
(optional) identification could be used when the Clamp identification is not
Right/wrong indication: measure the pipe current direction to indicate tracing
result correct or wrong and avoid the nearby lines interference under certain frequencies.
Depth measurement and current measurement and display the signal strength history cursor.
All digital high accuracy sampling which is stable and reliable with ultra high sensitivity and narrow receiving transmission band to greatly enhance the capacity of resisting disturbance and fully inhibit the power interference and harmonic interference from the nearby running cable and pipe.
Cable/pipe identification:flexible Clamp (optional) identification and sensor
identification. Clamp identification can precisely gives accurate result. sensor
(optional) identification could be used when the Clamp identification is not
applicable.Compass display: to display pipe position and left-right direction directly.
Right/wrong indication: measure the pipe current direction to indicate tracing
result correct or wrong and avoid the nearby lines interference under certain frequencies.
Depth measurement and current measurement and display the signal
strength history cursor.
All digital high accuracy sampling which is stable and reliable with ultra high sensitivity and narrow receiving transmission band to greatly enhance the capacity of resisting disturbance and fully inhibit the power interference and harmonic interference from the nearby running cable and pipe.
Cable/pipe identification:flexible Clamp (optional) identification and sensor
identification. Clamp identification can precisely gives accurate result. sensor
(optional) identification could be used when the Clamp identification is not applicable.
Right/wrong indication: measure the pipe current direction to indicate tracing
result correct or wrong and avoid the nearby lines interference under certain frequencies.
Depth measurement and current measurement and display the signal
strength history cursor.
All digital high accuracy sampling which is stable and reliable with ultra high sensitivity and narrow receiving transmission band to greatly enhance the capacity of resisting disturbance and fully inhibit the power interference and harmonic interference from the nearby running cable and pipe.
Cable/pipe identification:flexible Clamp (optional) identification and sensor
identification. Clamp identification can precisely gives accurate result. sensor
(optional) identification could be used when the Clamp identification is not applicable.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Output mode | Direct Connection output, Clamp Coupling Output (optional), Radiation output, fault location booster (optional). |
2 | Output Frequency | 640Hz (complex frequency), 1280Hz (complex frequency), 10kHz, 33kHz, 82kHz,197kHz. |
3 | Output power | max. 10W, 10 levels adjustable, auto impedance matching. |
4 | Direct connection voltage | max. 150Vpp. |
5 | HMI | 320x240 LCD |
6 | Power supply | 4 X built-in 18650 Li-on batteries, standard 7.4V, 6.8Ah. |
7 | Cable identification mode | flexible Clamp (optional) intelligent identification and sensor (optional) identification |
8 | Volume | transmitter 280x220x90mm,receiver 680x277x120mm |
9 | Weight | transmitter 2.3 kgs, receiver 2.0 kgs |
10 | Charger | input AC 100~240V,50/60Hz,output DC8.4V,2A |
11 | Others | Temperature: -10-40℃,humidity 5-90%,elevation <4500m |
