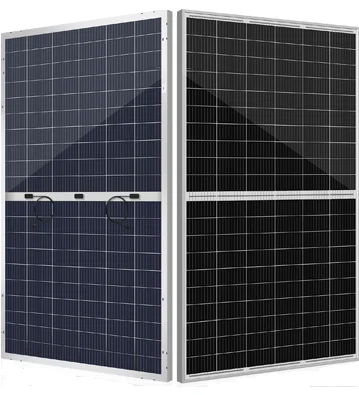

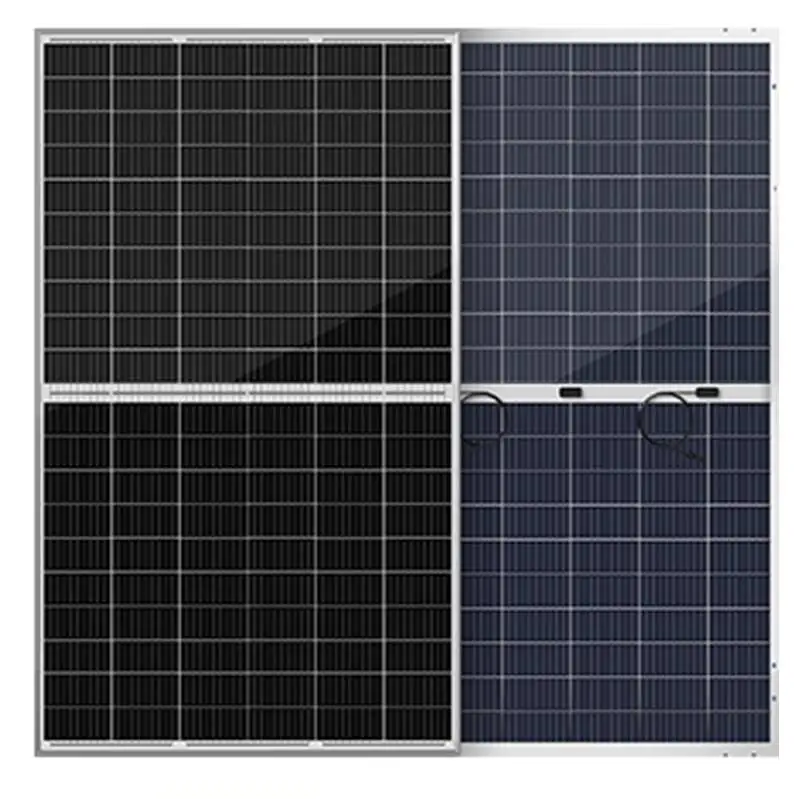

Двухслойный моно-солнечный модуль 340 Вт 330 325 двухслойная солнечная

Описание и отзывы

Трекер стоимости

Характеристики

ELECTRICAL DATA(STC)
Peak Power Watts-Pmax(Wp)	330W	335W	340W
Power Output Tolerance-P MAX (W)	0~+5W
Maximum Power Voltage-V MPP (V)	34.1	34.4	34.6
Maximum Power Current-l MPP (A)	9.67	9.73	9.82
Open Circuit Voltage-V OC (V)	41.9	42.3	42.5
Short Circuit Current-l SC (A)	10.35	10.4	10.51
Module Efficiencyηm (%)	19.55	19.85	20.15
STC	Irradiance 1000w/m2,module temperature 25℃,air mass 1.5





Mechanical Parameters
Cell Type	Mono-crystalline 158.75*156.75mm(6 inch)
No.of Cells	120(6×20)
Dimension	1684*1002*6mm
Glass	2.2mm,high transmission,low iron,tempered glass
Junction Box	IP65 & IP67 Rated
Output Cable	Section size:4mm2,length:300mm
Frame	anodized aluminum alloy
No.of Bypass Diodes	3
Connector	MC4 compatible
Weight	24kgs

















By sea	From Tianjin Seaport
By air	From Beijing Airport
By express	By DHL or others



















Related Products



FAQ



1. Q: Do you have your own factory?

    A: Yes, we have. Our factory located in Tangshan city, Hebei province.Near Beijing and Tianjin.

2. Q: How can I visit your factory?

    A: Before you take off from your country, please let us know. We will arrange time to pick you up.

3. Q: Do you provide free sample?
    A: Sorry, we can supply the sample,but it is not free charge.

4. Q: Could you print our company LOGO on the nameplate and package?
    A: Yes, we can do OEM.

5. Q: How about the package?

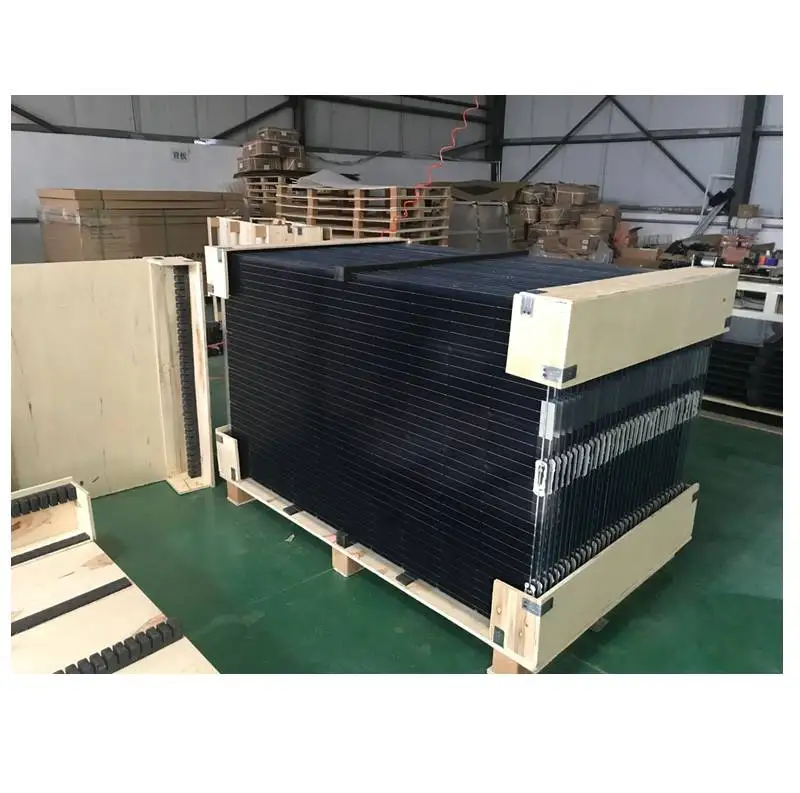

    A: Plywooden box pallet or carton box pallet.

6. Q: Do you accept custom design on size and package?
    A: Yes, if the size and package are reasonable.
