Характеристики


Products Application
The control cable is used as the connecting line between all kinds of electrical appliances, meters and automatic devices. It is mainly used for AC rated voltage 600/1000V and under control, monitoring circuit and protection circuit.

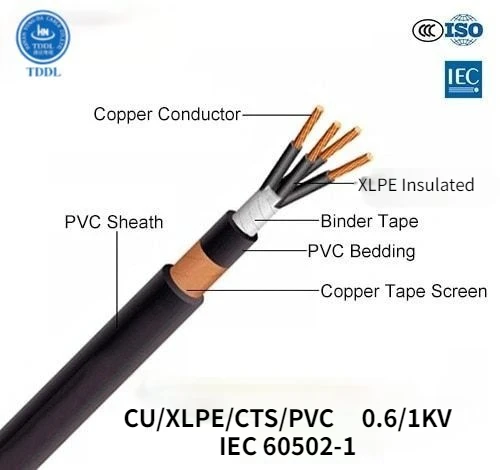

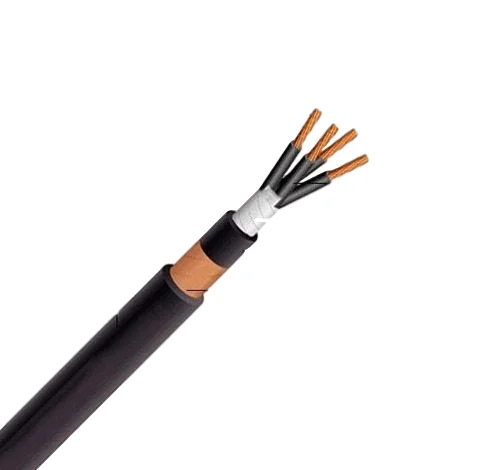

Product Construction


1)Conductor : Copper ,Class 1 or Class 2,solid or stranded Circular conductors
2)Insulation: Cross-linked polyethylene XLPE
3)Filler: Non-hygroscopic material
4)Binder tape: Non-hygroscopic material
5)Metallic screen: Copper tape screen
6)Oversheath: Polyvinyl chloride PVC
Product Standards
SPECIFICATIONS:
IEC 60228 Conductors of insulate cables
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1 kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1:Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)
No. of cores and nominal cross section
Thickness of Insulation
Thickness of Copper tape
Thickness of
Approx.
Approx. weight
Max. DC resistance of conductor（20℃）
Sheath
overall Diameter
(mm2)
(mm)
(mm)
(mm)
(mm)
(kg/km)
(Ω/km)
KYJVP2 (N2XSY) - 0.6/1kV
2X1.5
0.7
0.05-0.10
1.8
9.4
128
12.1
3X1.5
0.7
0.05-0.10
1.8
9.8
149
12.1
4X1.5
0.7
0.05-0.10
1.8
10.5
177
12.1
5X1.5
0.7
0.05-0.10
1.8
11.3
206
12.1
7X1.5
0.7
0.05-0.10
1.8
12.1
249
12.1
10X1.5
0.7
0.05-0.10
1.8
14.9
340
12.1
12X1.5
0.7
0.05-0.10
1.8
15.3
380
12.1
14X1.5
0.7
0.05-0.10
1.8
16.1
426
12.1
16X1.5
0.7
0.05-0.10
1.8
16.9
472
12.1
19X1.5
0.7
0.05-0.10
1.8
17.7
534
12.1
24X1.5
0.7
0.05-0.10
1.8
20.5
660
12.1
27X1.5
0.7
0.05-0.10
1.8
20.9
718
12.1
30X1.5
0.7
0.05-0.10
1.8
21.6
782
12.1
37X1.5
0.7
0.05-0.10
1.8
23.3
925
12.1
44X1.5
0.7
0.05-0.10
1.8
26
1087
12.1
48X1.5
0.7
0.05-0.10
1.8
26.5
1160
12.1
52X1.5
0.7
0.05-0.10
1.9
27.4
1252
12.1
61X1.5
0.7
0.05-0.10
1.9
29
1432
12.1
2X2.5
0.7
0.05-0.10
1.8
10.2
159
7.41
3X2.5
0.7
0.05-0.10
1.8
10.7
191
7.41
4X2.5
0.7
0.05-0.10
1.8
11.5
230
7.41
5X2.5
0.7
0.05-0.10
1.8
12.4
270
7.41
7X2.5
0.7
0.05-0.10
1.8
13.3
334
7.41
10X2.5
0.7
0.05-0.10
1.8
16.5
461
7.41
12X2.5
0.7
0.05-0.10
1.8
17
521
7.41
14X2.5
0.7
0.05-0.10
1.8
17.9
587
7.41
16X2.5
0.7
0.05-0.10
1.8
18.7
656
7.41
19X2.5
0.7
0.05-0.10
1.8
19.7
747
7.41
24X2.5
0.7
0.05-0.10
1.8
22.9
929
7.41
27X2.5
0.7
0.05-0.10
1.8
23.4
1017
7.41
30X2.5
0.7
0.05-0.10
1.8
24.2
1111
7.41
37X2.5
0.7
0.05-0.10
1.8
26.1
1326
7.41
44X2.5
0.7
0.05-0.10
1.9
29.4
1577
7.41
48X2.5
0.7
0.05-0.10
2
30.1
1701
7.41
52X2.5
0.7
0.05-0.10
2
30.9
1822
7.41
61X2.5
0.7
0.05-0.10
2.1
33
2110
7.41
2X4
0.7
0.05-0.10
1.8
11.1
203
4.61
3X4
0.7
0.05-0.10
1.8
11.7
249
4.61
4X4
0.7
0.05-0.10
1.8
12.6
304
4.61
5X4
0.7
0.05-0.10
1.8
13.7
362
4.61
7X4
0.7
0.05-0.10
1.8
14.7
455
4.61
10X4
0.7
0.05-0.10
1.8
18.4
633
4.61
12X4
0.7
0.05-0.10
1.8
19
722
4.61
14X4
0.7
0.05-0.10
1.8
19.9
819
4.61
16X4
0.7
0.05-0.10
1.8
21
919
4.61
19X4
0.7
0.05-0.10
1.8
22
1054
4.61
24X4
0.7
0.05-0.10
1.8
25.7
1316
4.61
27X4
0.7
0.05-0.10
1.8
26.3
1448
4.61
30X4
0.7
0.05-0.10
1.9
27.4
1599
4.61
37X4
0.7
0.05-0.10
2
29.7
1933
4.61
44X4
0.7
0.05-0.10
2.1
33.6
2297
4.61
48X4
0.7
0.05-0.10
2.1
34.2
2466
4.61
52X4
0.7
0.05-0.10
2.1
35.1
2646
4.61
61X4
0.7
0.05-0.10
2.2
37.4
3071
4.61
