Ftth esc250d фибра sc/apc Быстрый разъем mecanico sc apc 250d

Ftth esc250d фибра sc/apc Быстрый разъем mecanico sc apc 250d

Категория: Fiber Optic Equipment >>>
Поставщик: Hunan,Zhongruiguang,Communication,Equipment,Co.,Ltd.

Цена:0,40 $ - 0,50 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.10 $*	0.15 $*
Aug-15-2025	0.80 $*	0.16 $*
Jul-15-2025	0.57 $*	0.9 $*
Jun-15-2025	0.56 $*	0.58 $*
May-15-2025	0.84 $*	0.45 $*
Apr-15-2025	0.87 $*	0.83 $*
Mar-15-2025	0.40 $*	0.6 $*
Feb-15-2025	0.6 $*	0.16 $*
Jan-15-2025	0.56 $*	0.74 $*

Характеристики

Products Description

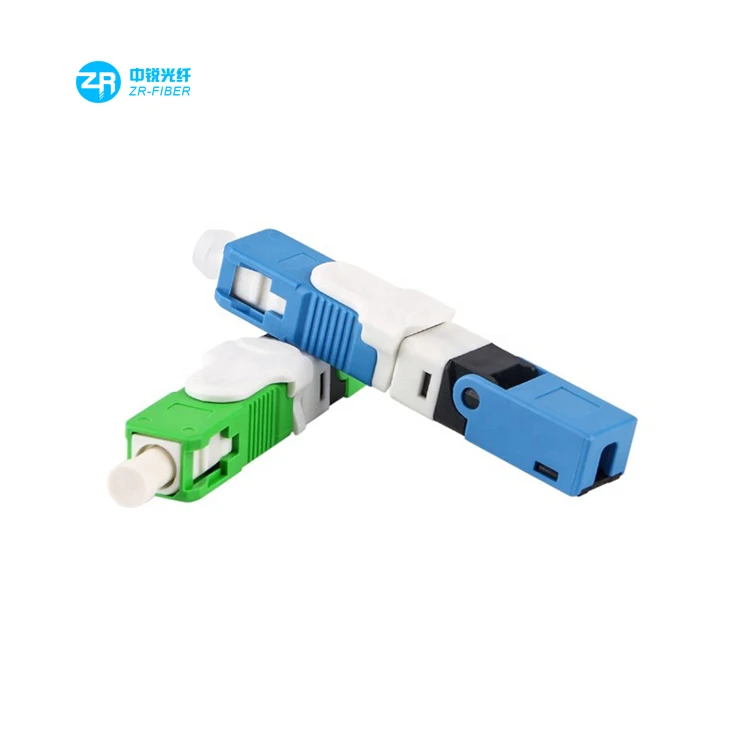

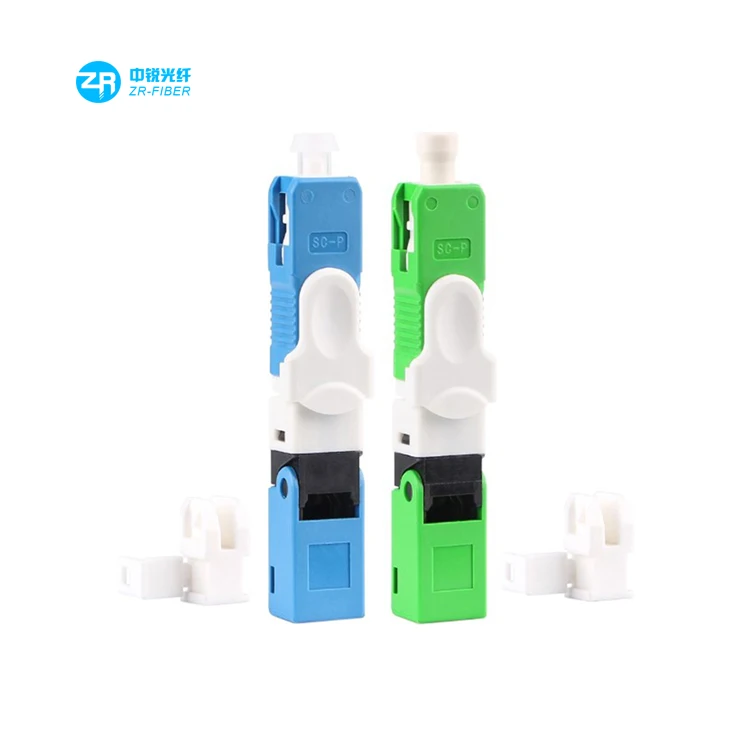

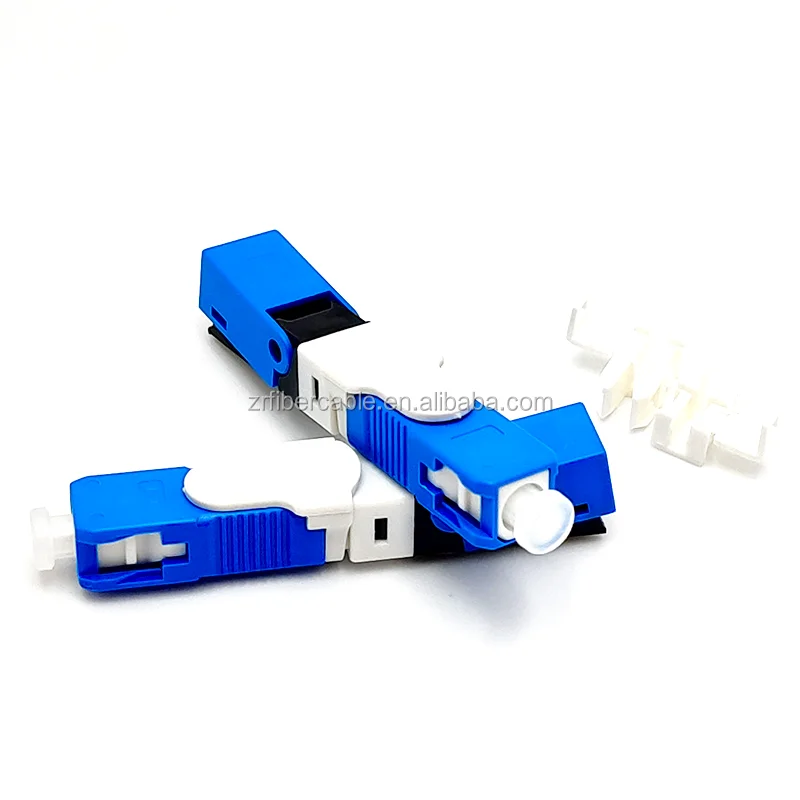

ftth esc250d fibra sc/apc sc/pc fast conector mecanico sc apc 250d conector sc/upc

Fast connector are factory pre-polished field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and proprietary index matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fiber. Fast connectors are compatible with 250um and 900um optical fiber as well as 900um, 2mm, 3mm and drop cable cordage. All primary fiber types are supported. and each connector is color per industry standard requirments to aid in identification during and afger installation. Incorporated in device is an innovation. Translucent wedge enabling the use of a common VFI to provide a "pass/fail" signal once physical contact is achieved.

Applicaiton:

Used to open the FTTH fiber terminal end.
In the box, cabinet, such as wiring into the box.
Off the back of the accidents such as fiber, maintenance.
LAN, wan, data and video transmission.
The construction of the fiber end user access and maintenance.
Optical fiber access of mobile base station.

Product description

Installed in order to ensure the quality and efficiency of research and development of the high ratio of the fiber
optic fast in products.
Pressure welding parts adopt new unique structure design, installation no injecting, no grinding, no material .
With embedded optical fiber type structure .
Installed with high quality and high success rate and fast and other characteristics .
Can be reused, the scene is simple.
Easy to carry

Fast Connector Specification
Mode	SM		MM
Polish	UPC	APC	PC
Insertion Loss	Typical ≤0.2dB Maximum ≤0.3dB			≤0.25dB
Return Loss	≥50dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strengh	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
