Безвентиляторный промышленный встроенный однобортный компьютер с 2 LAN DI DO RS485 RS232 CAN
- Категория: Development Boards and Kits >>>
- Поставщик: Baoding,Forlinx,Embedded,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.50 $* | 0.21 $* |
| Aug-19-2025 | 0.81 $* | 0.67 $* |
| Jul-19-2025 | 0.49 $* | 0.19 $* |
| Jun-19-2025 | 0.30 $* | 0.15 $* |
| May-19-2025 | 0.71 $* | 0.0 $* |
| Apr-19-2025 | 0.3 $* | 0.47 $* |
| Mar-19-2025 | 0.44 $* | 0.12 $* |
| Feb-19-2025 | 0.44 $* | 0.29 $* |
| Jan-19-2025 | 0.94 $* | 0.45 $* |
Характеристики
Product Description

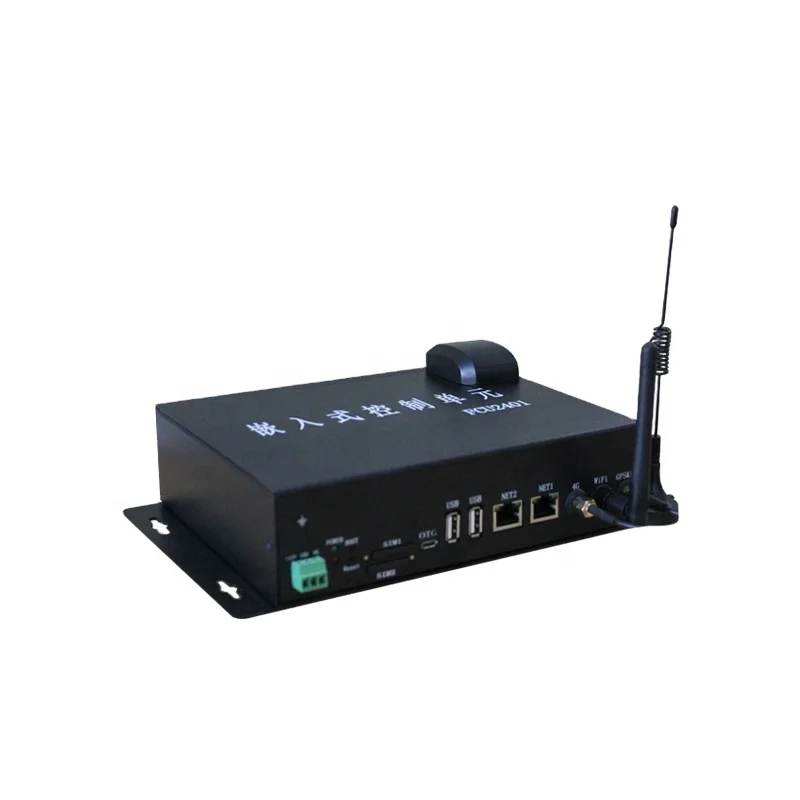

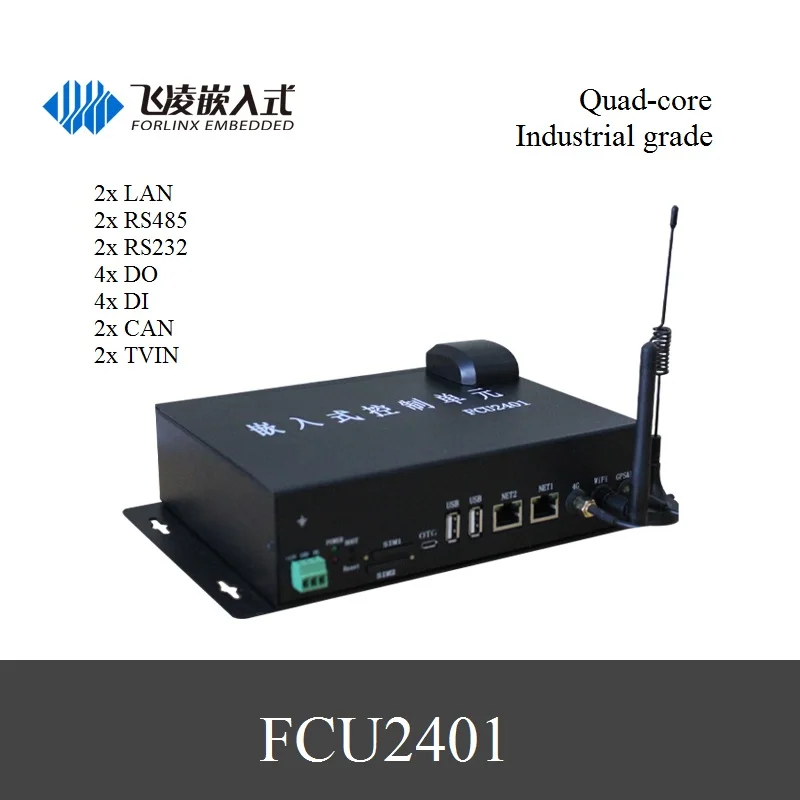

Fanless Embedded Industrial Computer PC with GPS& Beidou 2 LAN DI DO RS485 RS232 CAN TVIN
FCU2401 embedded computer is designed based on Allwinner Cortex-A7 featuring quad-core processor A40i @1.2GHZ, it integrates with MAli400MP2 GPU, RAM 1GB(2GB upgradable) and 8GB eMMC. It has a variety of peripheral sources, such as RS485, CAN , ESAM , USB , Ethernet , 4G , WiFi , GPS , LVDS , HDMI , DI , DO , audio and SATA. All communication interfaces are designed with isolation protection solution and tested by ESD4. It can support dual-screen playing. Applicable for edge computing, EV charger, express cabinet, advertising machine, vending machine and other self-service devices.
Product features:
Can support HDMI and LVDS display out, can be used together;
Supports two analog camera input, applicable for video monitoring and image analizing;
Has two isolated Ethernet ports;
Has two isolated RS485;
Has two RS232, one is debug port and the other is a general RS232 isolated;
Two isolated CAN;
4x DI, dry contact input, optocoupler isolation;
4x DO, relay output, contact point 5A 250VAC, 5A 30VDC;
Complies with ISO7816 protocol;
2x USB HOST;
WIFI available for both STA and AP;
Can support 4G wireless network (optional module);
SATA: can support a 2.5'' portable hard disk;
Has 1 speaker channel;
Can support GPS/Beidou;
Built-in super capacitor for power failure solution, the capacitor can support system running for 15 seconds(with 7'' display) to
avoid data loss;
DC 12V power adapter, with anti-reverse protect solution
Dual-Ethernet, dual-CAN, dual-RS485, practicable for power management, EV charger and car electronics gateway and other
applications
Can support A-GNSS, can support BD2 B1 together with GPS L1

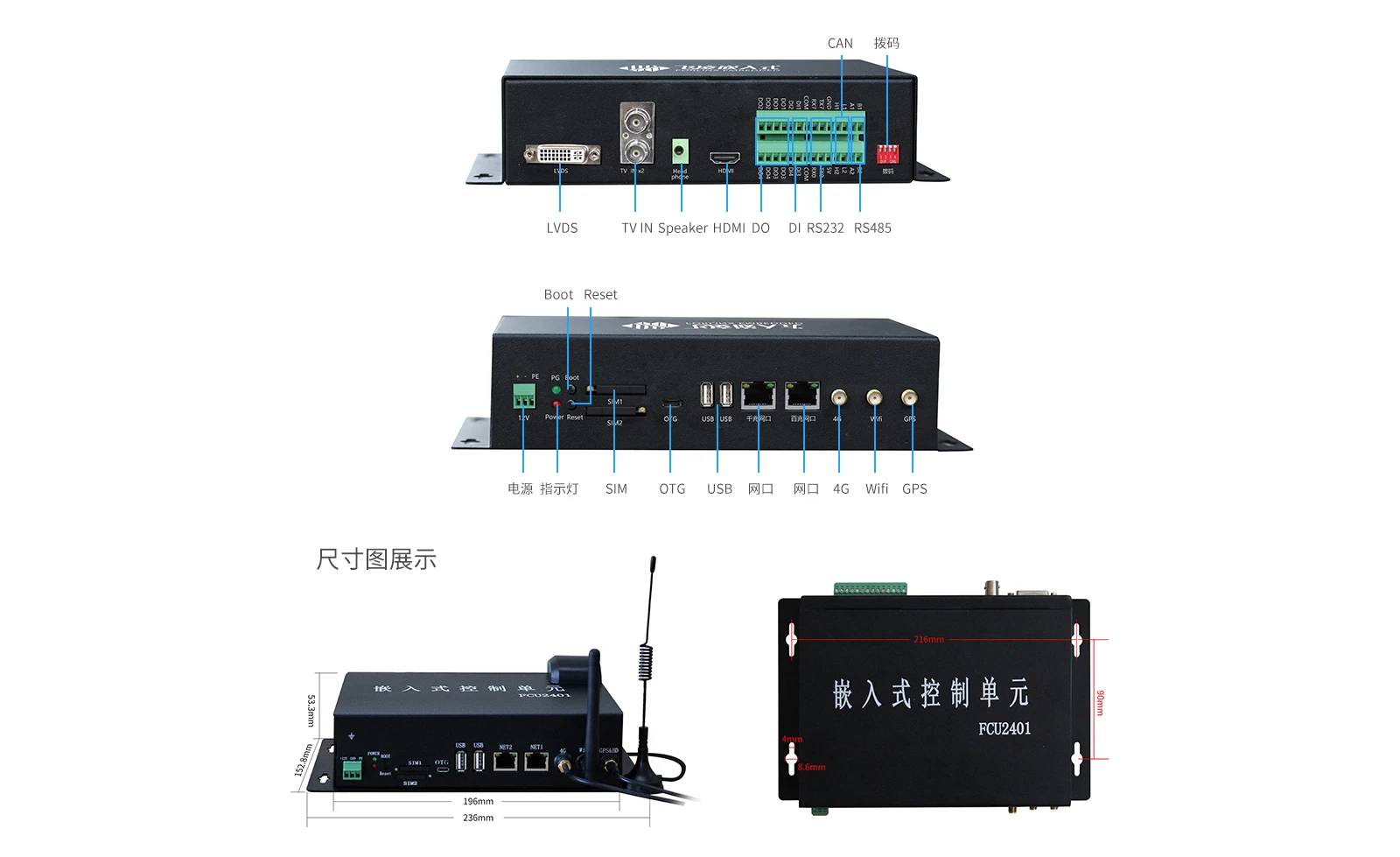

FCU2401 Hardware Features | ||
CPU | Allwinner A40iARM Cortex-A7 1.2GHz | |
RAM | DDR3L 1GB(2GB optional) | |
Flash | 8GB eMMC | |
Ethernet | 1x 10/100Mbps，1x 10/100/1000Mbps, ESD4, EFT3 | |
RS485 | 2x RS485, 3KV isolation, ESD4, EFT3 | |
RS232 | 2x RS232, 3KV isolation, ESD4, EFT3, one debug port and one isolated with 5V power output, output rate 1W | |
DO | 4x DO, replay output, contact point 5A 250VAC, 5A 30VDC | |
DI | 4x DI, dry contact input | |
CAN | 2x CAN, 2.5KV isolation, power 3KV isolation, ESD4, FET3 | |
GPS | can support Beidou& GPS dual-mode | |
HDMIv1.4 | one standard HDMI1.4, can support 1080@60fps | |
LVDS | standard DVI-I | |
TVIN | two analog cameras input, can support NTSC and PAL | |
Audio | 1x speaker, can support a 4Ω 1W speaker | |
4G | Model: Quectel EC20, China Mobile 4G/3G/2G, China Union 4G/3G/2G and China Telecom 4G, has two SIM card slots | |
WIFI | can support both STA and AP | |
USB Host | 2x USB Host 2.0, ESD 4 | |
USB OTG | for system flashing and debug, can not supply power to peripherals | |
RTC | on-board CR2032 | |
ESAM | ISO7816 protocol | |
Hard disk storage | can support a 2.5'' SATA disk | |
DIP switch | RS485, CAN optional | |
Power in | DC 12V, anti-reverse and over-current protection | |
Power failure solutin | super capacitor can support system running for 15s once CPU detects external power failure | |
Reset key | system reset key | |
Boot key | used together with reset key for system firmware updating | |
LED | 2, to detect power supllying mode, external power supply or super capacitor power supply | |
Work environment | RH: 5％～95％, non-condensing, working: -40℃~+80℃ , storage: -40℃～+85℃1 | |
Software Source Linux3.10+ QT5.9 | ||||||
Driver | Driver code path in kernel | Device name | Cortex-A7 | |||
NIC | drivers/net/ethernet/allwinner/ | /sys/class/net/eth* | 68mm* 45mm | |||
LCD backlight | video/sunxi/disp2/disp/ | 4.2V | ||||
LED | drivers/leds/leds-gpio.c | /sys/class/leds/ | board-to-board connection | |||
U-disk | drivers/usb/storage/ | /dev/sdx | 10%~ 90% non-condensing | |||
USB 4G | drivers/usb/serial/ | /dev/ttyUSB* | ||||
USB camera | drivers/media/usb/uvc/uvc_video.c | |||||
SD card | drivers/mmc/card/drivers/mmc/host/sun* | /dev/block/mmcblk0pX | ||||
LCD framebuffer | drivers/video/sunxi/disp2/disp/lcd/ | /dev/fb0 | ||||
RTC | drivers/rtc/rtc-rx8010.cdrivers/rtc/rtc-sunxi.c /*not loaded*/ | /dev/rtc0/dev/rtc0 | ||||
Serial | drivers/tty/serial/sunxi-uart.c | /dev/tty* | ||||
Watchdog | arch/arm/mach-sunxi/sun8i.c | /dev/ | ||||
WiFi | drivers/net/wireless/ | wlan0 | ||||
Audio | sound/soc/sunxi | /dev/snd/ | ||||
Smart card reader | drivers/char/sunxi-scr/sunxi-scr.c | |||||
TVIN | drivers/media/platform/sunxi-tvd/ | |||||
TWI | drivers/i2c/i2c-sunxi.c | |||||
SATA | drivers/ata/ahci_sunxi.c | |||||
Packing & Delivery
Accessory of a development board including power adapter, debug cable
generally, the packing will be a development board a box (23*19*9cm)
Item | QTY |
FCU2401 | 1 |
12V/3A power adapter | 1 |
2.4G antenna | 1（for Wi-Fi） |
Beidou&GPS antenna | 1（SMA male header, 5 meters） |
4G wireless module | 1(optional) |
4G full-band antenna | 1(optional) |
