Вакуумная подъемная система стальная пластина вакуумное подъемное
- Категория: Vacuum Lifter >>>
- Поставщик: Kunshan,Haonaiqi,Automation,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.19 $* | 0.57 $* |
| Aug-16-2025 | 0.81 $* | 0.32 $* |
| Jul-16-2025 | 0.19 $* | 0.4 $* |
| Jun-16-2025 | 0.58 $* | 0.59 $* |
| May-16-2025 | 0.40 $* | 0.71 $* |
| Apr-16-2025 | 0.77 $* | 0.89 $* |
| Mar-16-2025 | 0.86 $* | 0.98 $* |
| Feb-16-2025 | 0.36 $* | 0.11 $* |
| Jan-16-2025 | 0.86 $* | 0.12 $* |
Характеристики
Product Description
Type | JS-J300 | JS-C300 | JS-J600 | JS-C600 | JS-J800 | JS-C800 | ||||
Quota bearing | 300KG | 300KG | 600KG | 600KG | 800KG | 800KG | ||||
Suction cup diameter | 200mm | 200mm | 200mm | 200mm | 200mm | 200mm | ||||
suction cups | 4pcs | 4pcs | 6pcs | 6pcs | 8pcs | 8pcs | ||||
Dimensions | 220*136*62 | 220*136*62 | 220*136*62 | 220*136*62 | 220*136*62 | 220*136*62 | ||||
Size of adsorption material | 2400*1200 | 2400*1200 | 3000*1500 | 90° | ||||||
Rotation angle | 360° | 360° | 360° | |||||||
Charging voltage | 220V | 220V | 220V | |||||||
Detailed Images

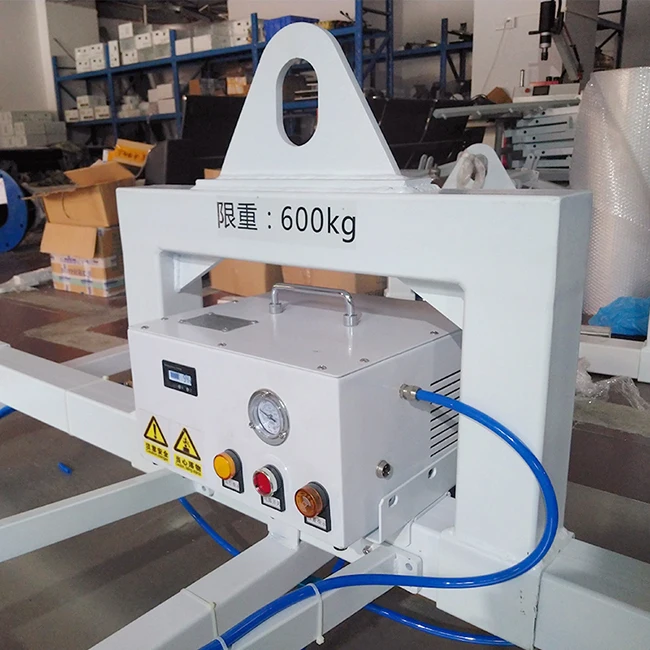

Control box
Built in intelligent alarm device, with intelligent alarm and automatic detection system. When the true space is lower than the specified value, the system will alarm automatically
Vacuum control hand valve
Single valve control suction and discharge, push forward to open, pull back to close
Buffer suction cup device
Each suction cup is equipped with buffer, which can effectively ensure the work of vacuum sucker and the safety of workpiece
1. Take out the lifting lug and put it on a table
2. Insert the main beam and place it in the middle
2. Insert the main beam and place it in the middle
3. Install the inner suction cup beam, and the distance between the beam and the lifting lug is about 20mm
4. Install the outer suction cup beam, about 80mm away from the outer end of the main beam, and connect the air pipe
5. Install the main box, screw lock the main beam under the base of the main engine
6. Install the handle and connect the air pipe
