Износостойкий термостойкий поликристаллический алмаз TSP и
- Категория: Abrasives >>>
- Поставщик: Chenguang,Machinery,&Electric,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.37 $* | 0.33 $* |
| Aug-19-2025 | 0.89 $* | 0.50 $* |
| Jul-19-2025 | 0.95 $* | 0.41 $* |
| Jun-19-2025 | 0.44 $* | 0.81 $* |
| May-19-2025 | 0.54 $* | 0.42 $* |
| Apr-19-2025 | 0.61 $* | 0.10 $* |
| Mar-19-2025 | 0.9 $* | 0.0 $* |
| Feb-19-2025 | 0.48 $* | 0.66 $* |
| Jan-19-2025 | 0.56 $* | 0.79 $* |
Характеристики
Polycrystalline diamond (PCD) for gem processing
Thermally stable diamond cutters maintain sharpness at temperatures up to 2000°F and are stronger to withstand drilling impact forces. Drill bits employing the TSP cutters are capable of reducing overall system costs through increasing rates of penetration and bit life.
TSP materials with increased fracture resistance, can now be brazed with high attachment shear strength using microwave and combustion synthesis brazing. With so many advantages, the tsp bit will be the fourth-generation drill bit for petroleum and geothermal drilling applications.
We have advanced techniques to test the impact resistance, thermal stability and wear-resistance. to meet different clients special requirement.

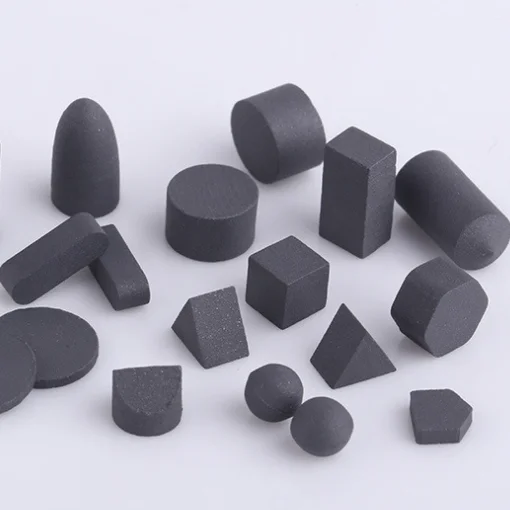

Shape: Cubes, Cylinders, Discs, Rectangles, Triangles, hemi-Spheres, oval etc.
Application: As gauge protector and drilling cutters inserting for rock cutter machines and coal mining core drill bits for geotechnical (mining,water well drilling) tunneling, quarrying,construction and machinery aspect.
Working formation: Soft rocks and sea drilling with hardness 3-6 degrees, such as lime rock, marble, shale, etc, and in medium to hard rock with coarse grains formations.
More detailed:
Thermally stable diamond drill bit cutters maintain sharpness at temperatures up to 2000°F and are stronger to withstand drilling impact forces. Drill bits employing the TSP cutters are capable of reducing overall system costs through increasing rates of penetration and bit life.
Thermal stable diamond(TSP) cutter specifications | ||||

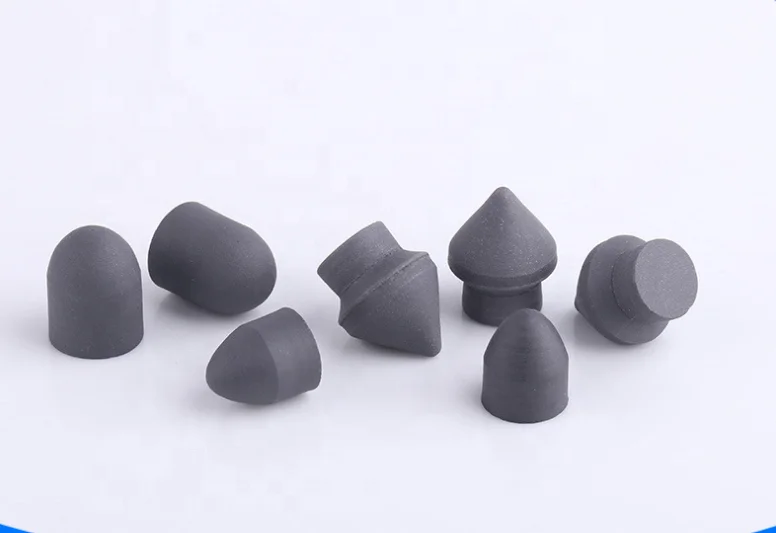

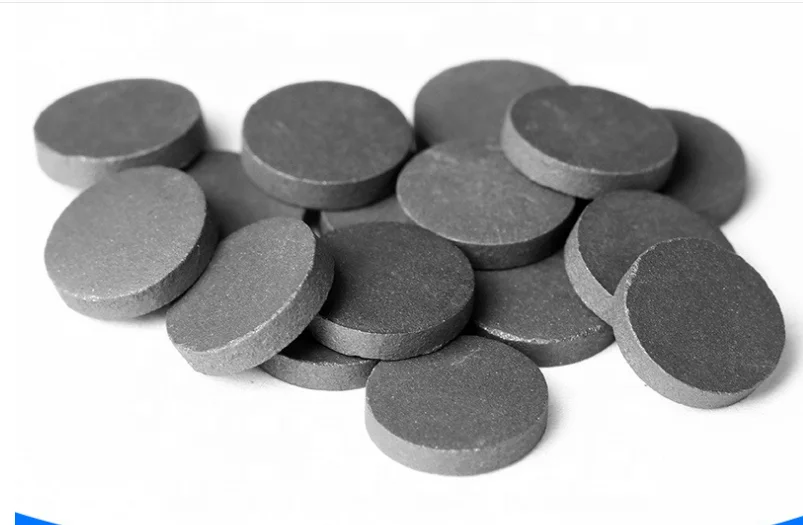

Cylinder/button shape Diameter x Height x Angle (mm) | ||||
1x1.2x120° | 1.5x2x120° | 1.5x4x180° | 2x4x120° | 2x4x180° |
3x3x180° | 3x8x120° | 3x8x180° | 4x4x180° | 4x10x120° |
4x10x180° | 5x10x120° | 5x10x180° | 6x10x120° | 6x10x180° |
8x3x180° | 8x5x180° | 10x0.75x180° | 10x1x180° | 10x2x180° |

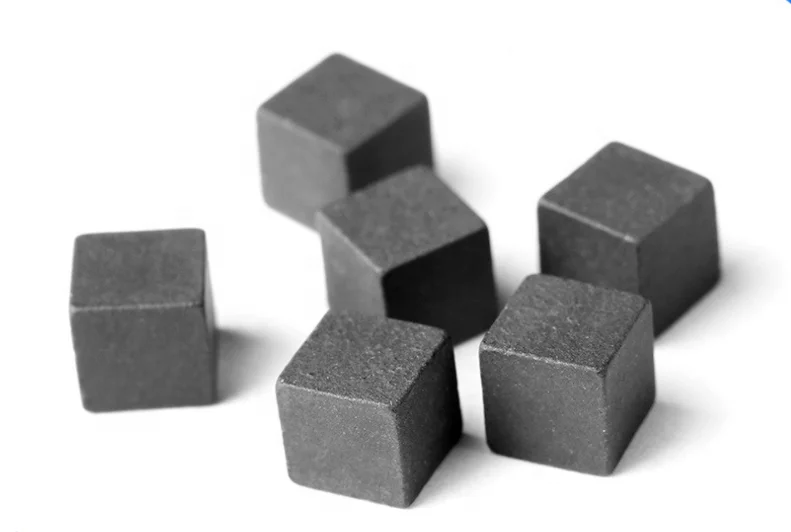

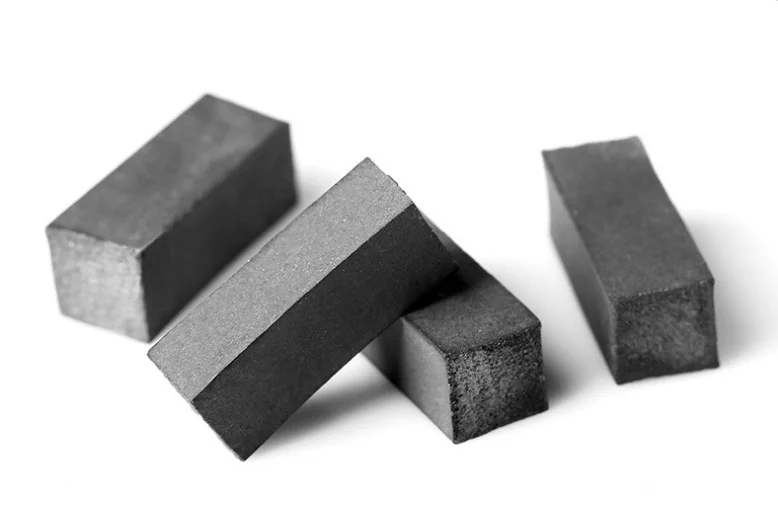

Rectangle/cube shape Length x Widthx Height (mm) | ||||
1.5x1.5x1.5 | 1.5x1.5x4 | 1.5x1.5x5 | 1.5x1.5x10 | 2.5x2.5x2.5 |
3x3x3 | 3x3x10 | 3x5x10 | 3x6x10 | 4x4x4 |
4x6x10 | 5x5x5 | 5x5x10 | 10x10x10 |
|

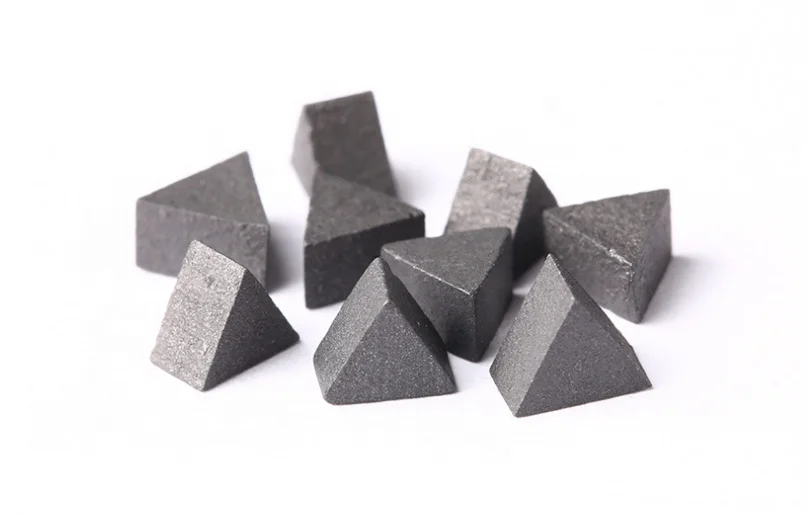

Triangle shape Length1 x Length2 x Length3 x Height (mm) | ||||
4x4x4x2.6 | 5x5x5x3 | 6x6x6x3.5 | 6x6x6x4 | 6x6x6x4.5 |
Special shape(oval shape) Width x Height x Radius (mm) | ||||
3x3x10xR1.5 | 5x5x10xR3 | 5x10x20xR7 |
|
|
Quality Control:
1. Strict raw material selection to guarantee impurity below 200ppm; the binder's purity over 99.5%.
2. Advanced blending techniques to ensure thorough & even blending of diamond with binder.
3. Scientific formula & synthesis procedures. We can also adjust formula & procedures as per customers’ requirements for the most suitable products.
4. Strict control of other auxiliary materials to guarantee precise dimensions & best quality
Feel free to contact with me
