Характеристики

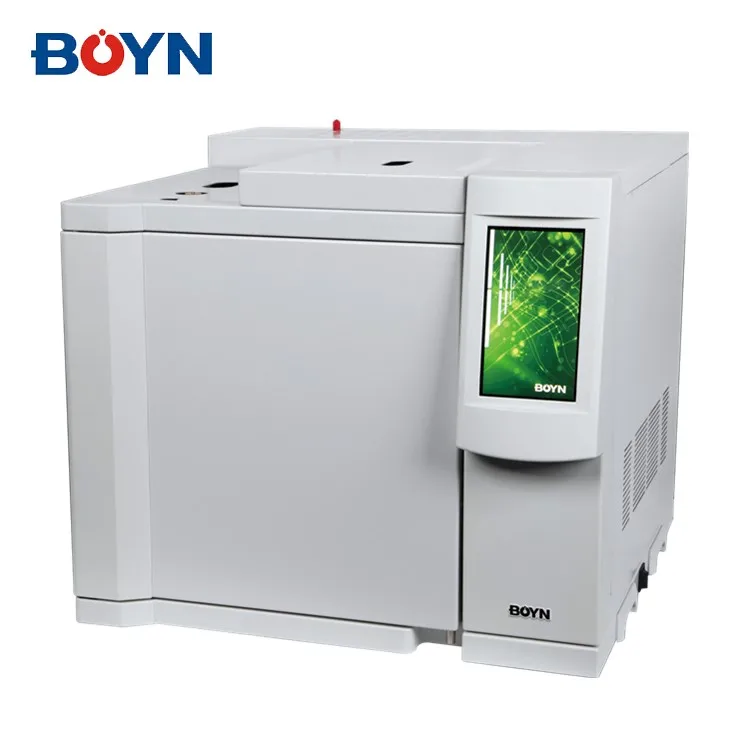

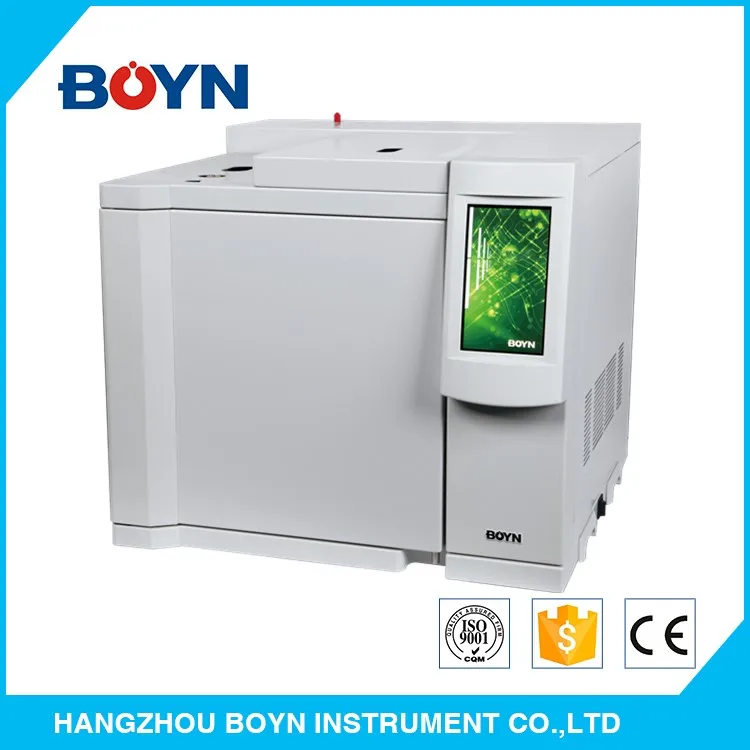

BNGC-A112 Gas Chromatograph FID TCD FID+TCD (Software Optional)
7-inch color touch screen, display the flow rate and pressure value of the electronic gas path.- Computer anti-control (need to choose PC-side anti-control software) and the host touch screen to achieve synchronous two-way control
Main Feature:
-7-inch color touch screen, display the flflow rate and pressure value of the electronic gas path.
-Computer anti-control (need to choose PC-side anti-control software) and the host touch screen to achieve synchronous two-way control.
-Multi-core, 32-bit embedded hardware system to ensure reliable operation of the instrument.
-One key to start function.
-The extensible synchronous external triggering function can be initiated by external signals (autosam-pler, thermal analyzer, etc.) at the same time to start the host and workstation.
-Perfect system of self-test function and automatic fault identifification.
-Extended interface with 8 external events, which can be equipped with various function control valves and operate according to their own timing.
-20 sets of sample test mode can be stored by memory
-RS232 communication port
Column oven | |
Inner volume | 22L |
Temperature range | RT+ 5°C - 400°C |
Temperature control accuracy | ± 0.1 °C |
Temperature programming | 9 step |
Program Total Time | 9999.9 min |
Max. Heating rate | 0.1 - 60°C / min |
Max. cooling rate | ≤ 10 mins (250°C -50°C) |
|
|
Sample injector | |
Temperature range | RT+ 7°C - 420°C |
Temperature control type | Independent |
Carrier gas flow control type | constant pressure |
Max quantity of simultaneous installations | 3PCS |
Injection unit type | packed column or split |
Split ratio | Split ratio display |
Pre column pressure range | 0 - 400kpa |
Pre column pressure accuracy | 0.1kpa |
Flow setting range | H2 0-200ml / min |
|
|
Detector | |
Optional | FID, TCD |
Temperature control range | RT+7 ℃ - 420 ℃ |
Max quantity of simultaneous installations | 2 |
Ignition type | automatic |
Hydrogen flame ionization detector (FID) | |
Logarithmic amplifier High Voltage Switch Control Baseline signal display | |
Detection limit: | ≤ 3 × 10-12 g / s (sample: n-hexadecane) |
Baseline noise: ≤ 5 × 10-14 A | ≤ 5 × 10-14 A |
Baseline drift: ≤ 6 × 10-13 A | ≤ 6 × 10-13 A |
Dynamic range | 10 |
RSD | ≤ 3% |
Thermal Conductivity Detector (TCD) | |
Sensitivity | 5000mV.ml / mg (sample: n-hexadecane) |
Baseline noise | ≤ 0.05 mV |
Baseline drift | ≤ 0.15 mV / 30 min |
Dynamic range | 10 |
Overall dimension & weight | |
Power | 220V ± 22V, 50Hz ± 1Hz, 3000W |
Packing dimension | 740 x 730 x 800mm |
G.W. | 70kg |
|
|
