Изоляционное оборудование для производства стекла изоляционный
- Категория: Оборудование для производства стеклянных изделий >>>
- Поставщик: Jinan,YBKE,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5950.41 $* | 6248.93 $* |
| Aug-16-2025 | 5900.75 $* | 6195.52 $* |
| Jul-16-2025 | 4950.40 $* | 5198.76 $* |
| Jun-16-2025 | 5800.80 $* | 6090.42 $* |
| May-16-2025 | 5050.12 $* | 5303.17 $* |
| Apr-16-2025 | 5700.12 $* | 5985.78 $* |
| Mar-16-2025 | 5650.48 $* | 5933.20 $* |
| Feb-16-2025 | 5600.44 $* | 5880.41 $* |
| Jan-16-2025 | 5550.98 $* | 5828.11 $* |
Характеристики

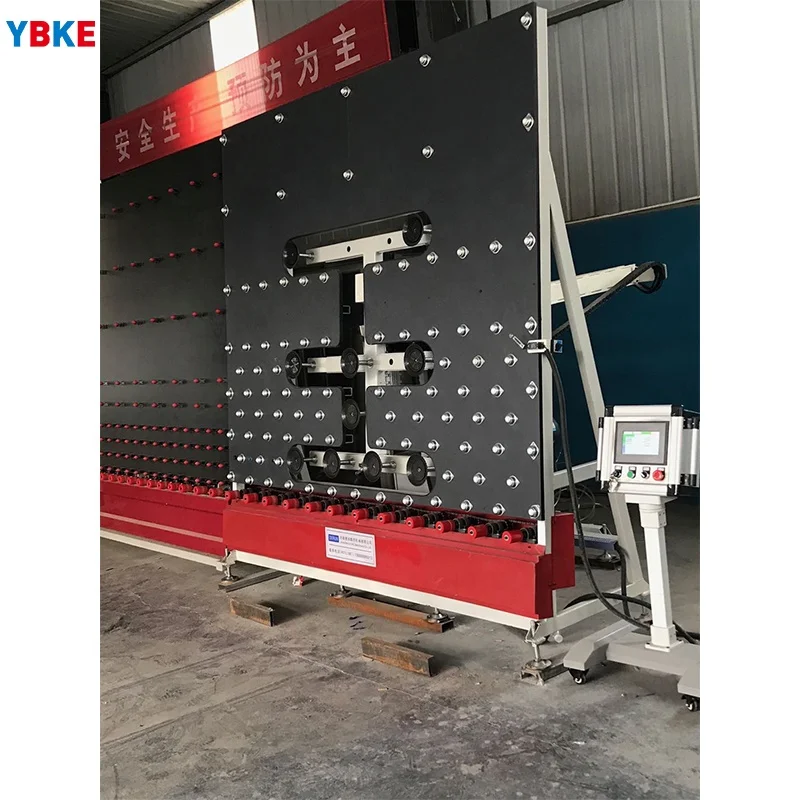

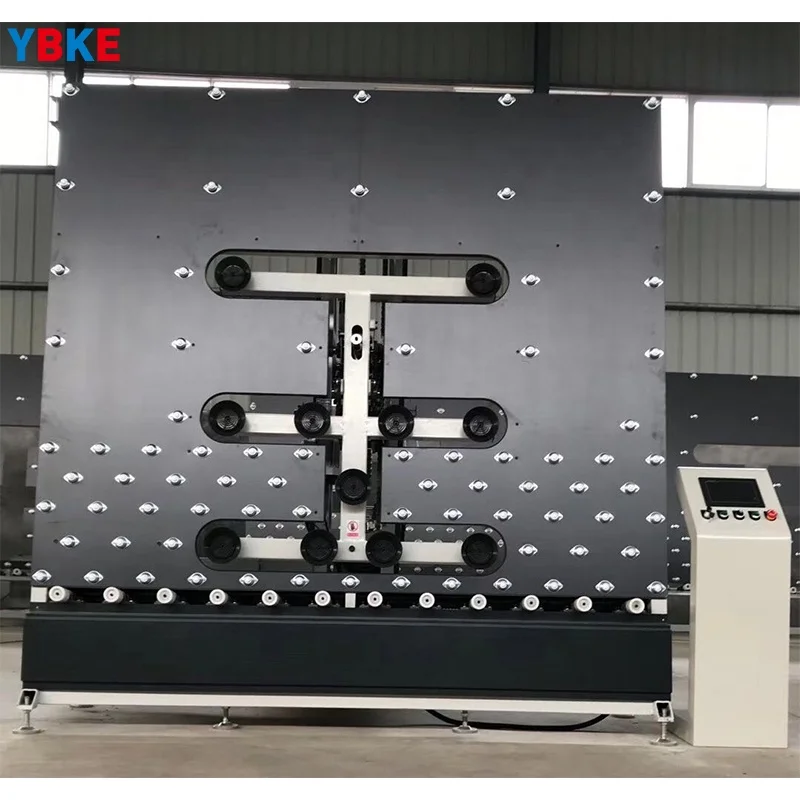

Insulating Glass Production Machinery insulating glass loading lifter
Technical Parameters
Voltage | 380 V; 50 Hz |
Max. glass size | 2000*2400 mm |
Min. glass size | 400*400 mm |
Max. stroke | 1360 mm |
Air consumption | 0.5 m³/min |
Air pressure | 0.5-0.8MPa |
Dimension | 2600×2600×2600mm |
Weight | 1100 kg |
Performance features:
1. After the glass is loaded, it is automatically transferred to the transition stage for automatic acceleration, which reduces
the time for manual pickup and placement of the glass and the distance between the glass front and back.
2. Improve efficiency and avoid the safety of manual operation.
3.The transmission motor provides power and moves forward and backward on the track depending on the slider. The frame is equipped with a sucker arm, whose position is adjusted up and down.
4.The equipment is composed of four main parts: vacuum system, walking system,feeding system and lifting system.
5.The transmission speed is controlled by inverter, and the whole operation process is controlled by PLC.
6.The number of loading glass can be set on the human-machine interface.
the time for manual pickup and placement of the glass and the distance between the glass front and back.
2. Improve efficiency and avoid the safety of manual operation.
3.The transmission motor provides power and moves forward and backward on the track depending on the slider. The frame is equipped with a sucker arm, whose position is adjusted up and down.
4.The equipment is composed of four main parts: vacuum system, walking system,feeding system and lifting system.
5.The transmission speed is controlled by inverter, and the whole operation process is controlled by PLC.
6.The number of loading glass can be set on the human-machine interface.
Packing&Shipping
1.For big machine and full container load, usually wrapped in stretch film.
2.For open top container load, put on top grade plastic overcoat and tarpaulin to protect the equipment from moisture and water.
3.For less than container load, iron frame fixed and standard export wooden case for optional.
2.For open top container load, put on top grade plastic overcoat and tarpaulin to protect the equipment from moisture and water.
3.For less than container load, iron frame fixed and standard export wooden case for optional.
Company Introduction
Our services
♥ 12 months guarantee of the whole machine, 7*24 online free technical support;
♥ Design drawing of the factory workshop;
♥ English manual and video tutorial;
♥ Skilled engineer install the machine;
♥ Training workers for you;
♥ Local technical support or Spare parts support,We will provide the consumable parts at an agency price when you need
replacement.
♥ Design drawing of the factory workshop;
♥ English manual and video tutorial;
♥ Skilled engineer install the machine;
♥ Training workers for you;
♥ Local technical support or Spare parts support,We will provide the consumable parts at an agency price when you need
replacement.
Exhibition & Customers Visiting
FAQ
1.Question:Are you manufacturer?
Answer: Yes,we are the professional manufacturer which have more than 5 workshops.
2.Question: About this Machine,What’s the guarantee?
Answer:
1).Our guarantee for 12 months.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).We will provide the consumable parts at agent price
5).24 hours online service each day, free technical support.
3.Question:If our price is higher than another company or factories?
Answer: Please check the difference of the machine of parts ,service and guarantee, especially the machine inner electric parts, sometimes, if the machine have breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.
Answer: Yes,we are the professional manufacturer which have more than 5 workshops.
2.Question: About this Machine,What’s the guarantee?
Answer:
1).Our guarantee for 12 months.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).We will provide the consumable parts at agent price
5).24 hours online service each day, free technical support.
3.Question:If our price is higher than another company or factories?
Answer: Please check the difference of the machine of parts ,service and guarantee, especially the machine inner electric parts, sometimes, if the machine have breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.
