Потолочный вентилятор 24 фута HVLS от производителя Guangzhou
- Категория: Other Ventilation Fans >>>
- Поставщик: Guangzhou,Qixiang,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 2142.64 $* | 2249.97 $* |
| Aug-20-2025 | 2124.39 $* | 2230.94 $* |
| Jul-20-2025 | 1782.95 $* | 1871.86 $* |
| Jun-20-2025 | 2088.41 $* | 2192.91 $* |
| May-20-2025 | 1818.76 $* | 1909.5 $* |
| Apr-20-2025 | 2052.16 $* | 2155.96 $* |
| Mar-20-2025 | 2034.10 $* | 2136.33 $* |
| Feb-20-2025 | 2016.21 $* | 2117.52 $* |
| Jan-20-2025 | 1998.12 $* | 2098.36 $* |
Характеристики
Product Description
17ft giant Industrial Big ass Ceiling Fan manufacturer with direct drive motor
Direct drive ceiling fan specially dedicated for large scale space. The streamlined fan blade adopts aaerodynamics principles and advanced process , the diameter is from 2.4-7.2 meters. Only using the efficient direct drive motor, it can creat plenty of comfortable natural wind.
It's only 880W/660W. 16Hours will spend only 14 kwh, and because it's no gearbox reducer, there is no need to maintaince , it's servo and can used more tha 15 years.
Model | HVD-B7200 | HVD-B6700 | HVD-B6200 | HVD-B5200 | HVD-S4200 | HVD-S3600 | HVD-S3000 | HVD-S2500 | ||||||
Blades Qty | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | ||||||
Weight | 109KG | 105KG | 100KG | 96KG | 64KG | 62KG | 60KG | 58KG | ||||||
Power | 1.3KW | 0.88KW | 0.66KW | 0.66KW | ||||||||||
Max speed | 55PRM | 60RPM | 70RPM | 80RPM | 90RPM | 90RPM | 100RPM | 120RPM | ||||||
Max air volume m3/min | 14860 | 13700 | 12360 | 10830 | 7900 | 7300 | 5800 | 4900 | ||||||
Power supply | 380V 3 phase | 220v/single phase | ||||||||||||
Rated currents | 2.2A | 2.63A | ||||||||||||
Noise level | <39db | <38db | ||||||||||||
Detailed Images
Main parts
.
Rare earth permanent magnet servo drive motor

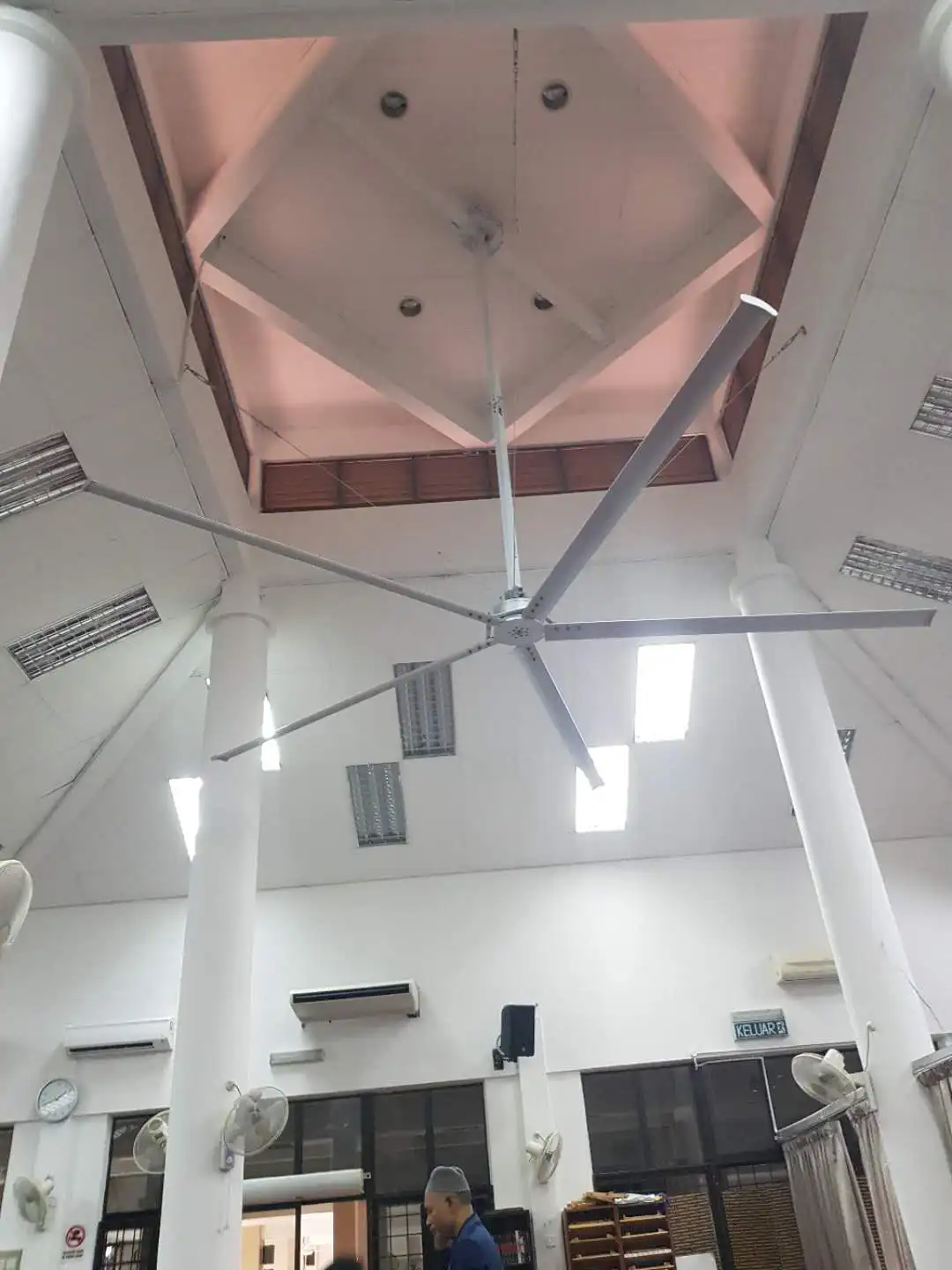

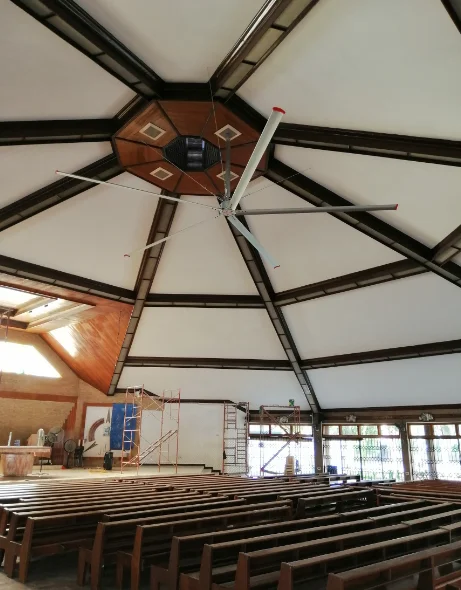

1.IP64,small volume, no lubrication oil, low energy comsuption with no maintance, it can work for almost 15 years, beautiful apperance, specially for villa, church, cafe shop, restaraunts etc.
2.Motor design with high heat pyrolysis technics,the running temperature is around 38℃.
3.The digital closed control with inner precision Hall induction can control on-off station correctly and continuously variable.
Integrated control box
Servo drive system can make fan have a fast reaction with DSP control core and inner complex control algorithm. In addition, it has continuously variable, precise localization and the protection system with over voltage,over currents.
Fan blades
1.7075 aviation aluminum magnesium alloy with T6 anodizing heat treatment.High resistance to deformation and anti fracture.Tensile strength is 572mpa, the thickness is 2.00mm.
2.5 strength ribs in the inner fan, and one is 3mm thickness for more strong structure and not easy to deform and bench.
SKF bearing (deep groove ball bearing + thrust ball bearing)
Bearing transmission adopts high strength low alloy steel construction.
Strong mechanical properties, precision measurement to ensure longer life.
hIgh strength bolts and fasten glue
High strength bolt in level 12.9, made of 30 CrMnSi, with 271 screw fastening glue to prevent loosening.

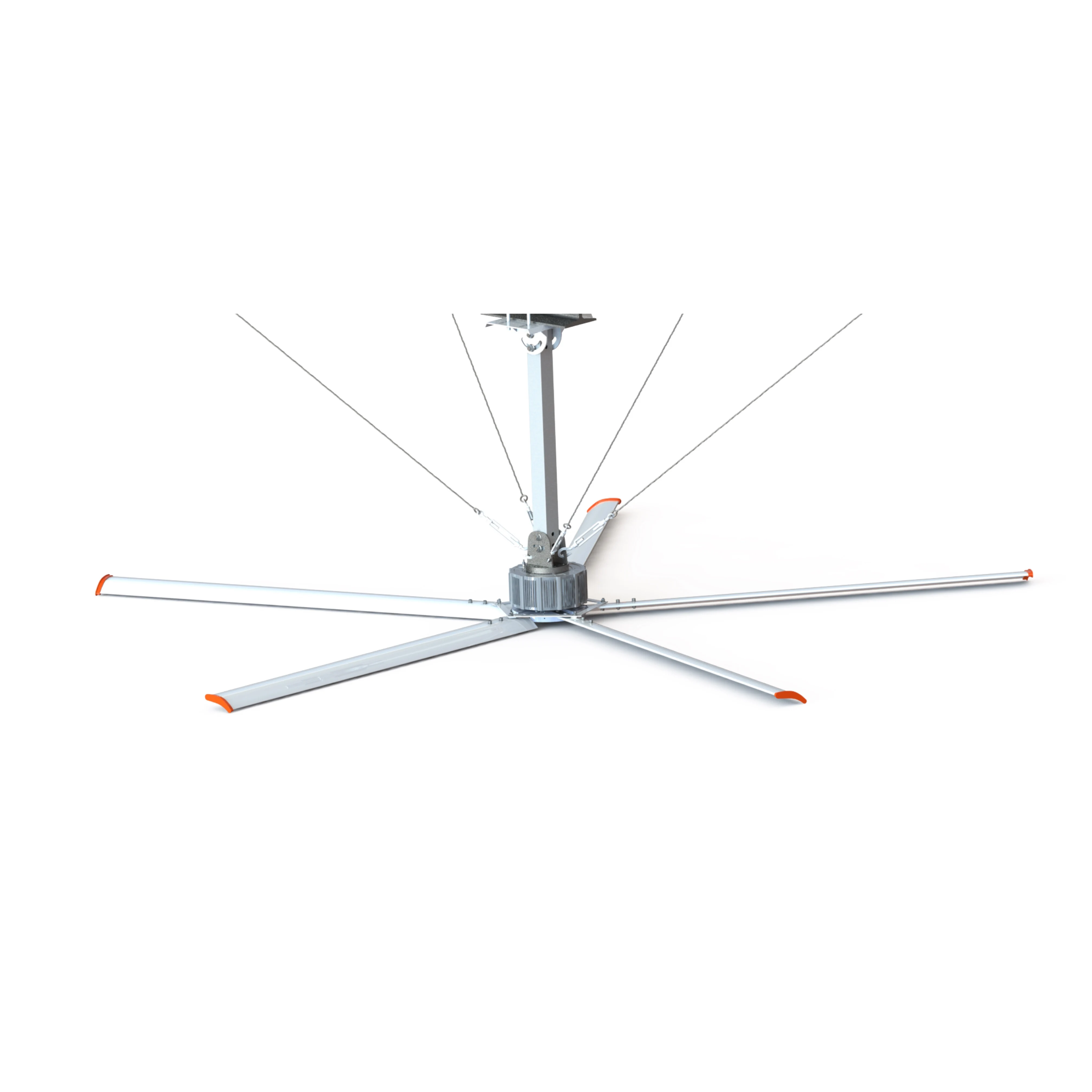

Wire ropes in 4 directions to keep balance
4 wire ropes with 8mm to keep balance in 4 directions to prevent the fan in large inertial rotation shaking, guarantee operation stability and security.
Inspection
Packing & Delivery
Company information
Qixiang company
Our company is established in 2006, and now has 3 business line. 1.Ventilation equipment, HVLS fans, Servo distric fans.
2. Industrial doors, including fast rolling door, hard material rolling door,transparant doors, etc.
3. DOCK platforms, mainly include hystraulic and airbag dock platforms, door seal and door cover.
4.Good after sales, 24 hours service, and customers first.
