Хорошо продаваемые устройства расходомера Endress Hauser
US $302.00-$390.00
Цифровой расходомер воды YF-S201 DN15 + трубопровод для контроля жидкости водяной насос электромагнитный метр
- Категория: Flow Meters >>>
- Поставщик: Foshan,Shunde,Zhongjiang,Energy,Saving,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 36.28 $* | 38.2 $* |
| Aug-16-2025 | 35.33 $* | 37.76 $* |
| Jul-16-2025 | 30.23 $* | 32.90 $* |
| Jun-16-2025 | 35.68 $* | 37.34 $* |
| May-16-2025 | 30.77 $* | 32.86 $* |
| Apr-16-2025 | 34.11 $* | 36.93 $* |
| Mar-16-2025 | 34.58 $* | 36.88 $* |
| Feb-16-2025 | 34.15 $* | 36.91 $* |
| Jan-16-2025 | 33.60 $* | 35.49 $* |
Характеристики

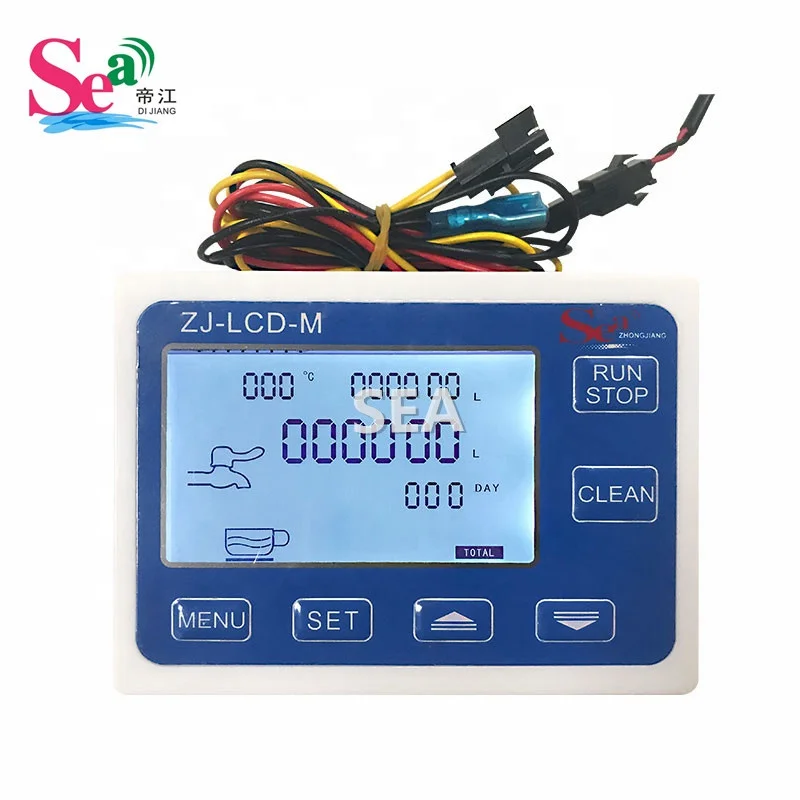

QUANTITATIVE CONTROL WATER METER
LCD-M
《cumulative flow and instantaneous flow, single quantitative and total quantitative,
and water temperature detection 》
USE IN MANY KINDS OF INDUSTRIAL LIQUID FLOW QUANTITATIVE MANAGEMENT
All Raw Materials Conform To ROHS Standard
Adopt advanced single chip microcomputer technology.

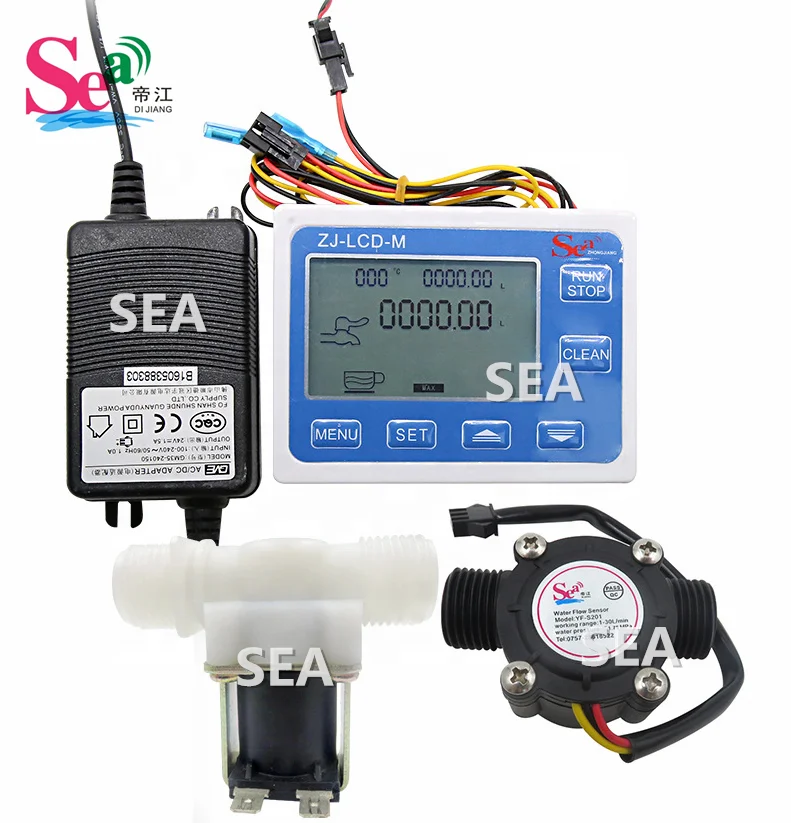

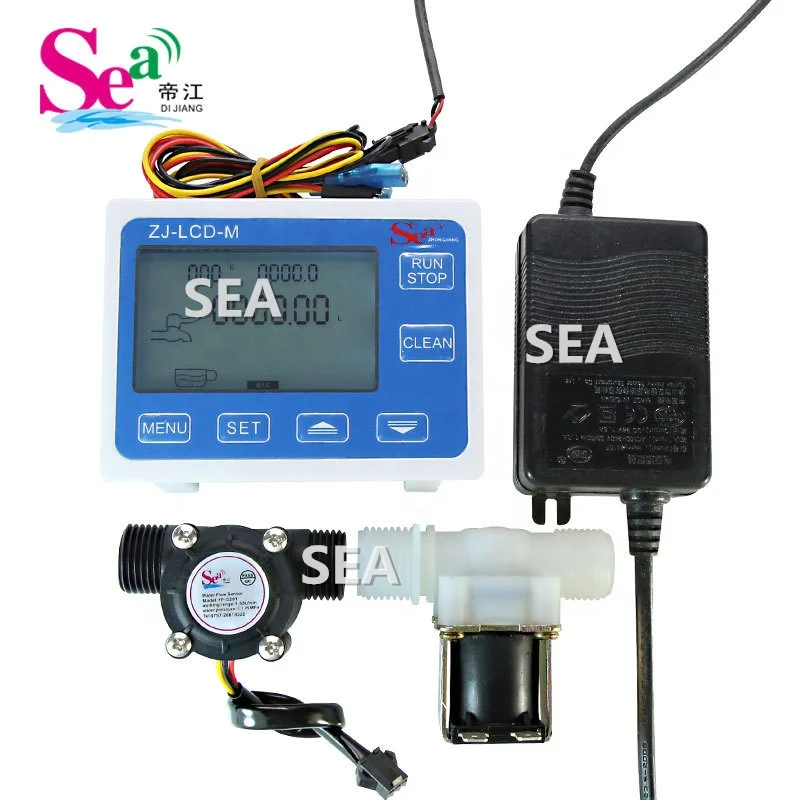

Connected with a NPN signal flow sensor and a solenoid valve to be a liquid flow control system.
K value of sensor model YF-S201：007.50 LPM

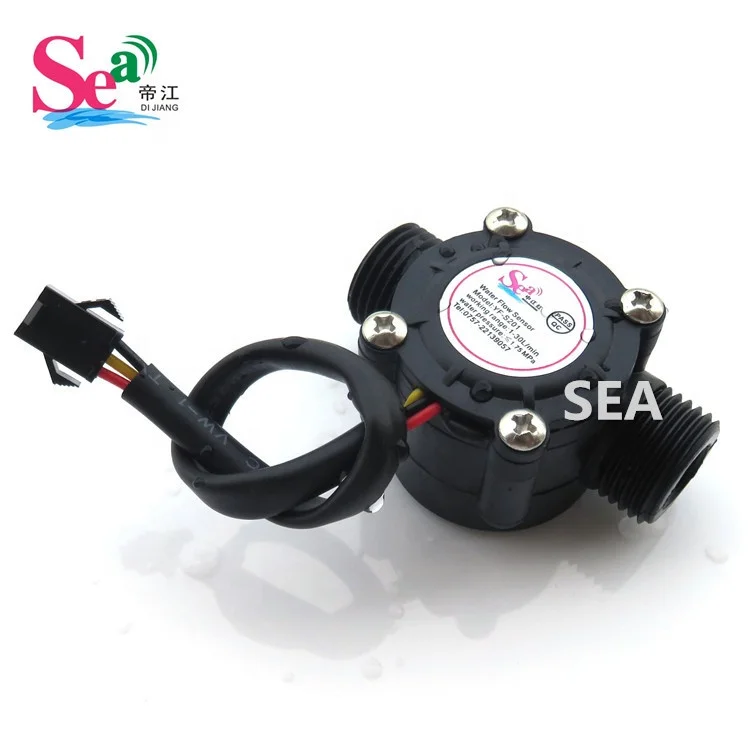

Model No.: YF-S201
1 Sensor: Hall Effect ; Signal Output
2 Pipe Connection: DN15
3 Product Material: Nylon + glass fiber
4 Operating Range: DC5~24V
4 Working Current: >10mA
6 Rated Voltage: DC5V
7 Flow Range: 1-25L\\min
8 Accuracy: F=7.5*Q ±3% (Q=L/min=60) 【F =7.5x60 = 450 pulses/liter/minute】
1 Sensor: Hall Effect ; Signal Output
2 Pipe Connection: DN15
3 Product Material: Nylon + glass fiber
4 Operating Range: DC5~24V
4 Working Current: >10mA
6 Rated Voltage: DC5V
7 Flow Range: 1-25L\\min
8 Accuracy: F=7.5*Q ±3% (Q=L/min=60) 【F =7.5x60 = 450 pulses/liter/minute】

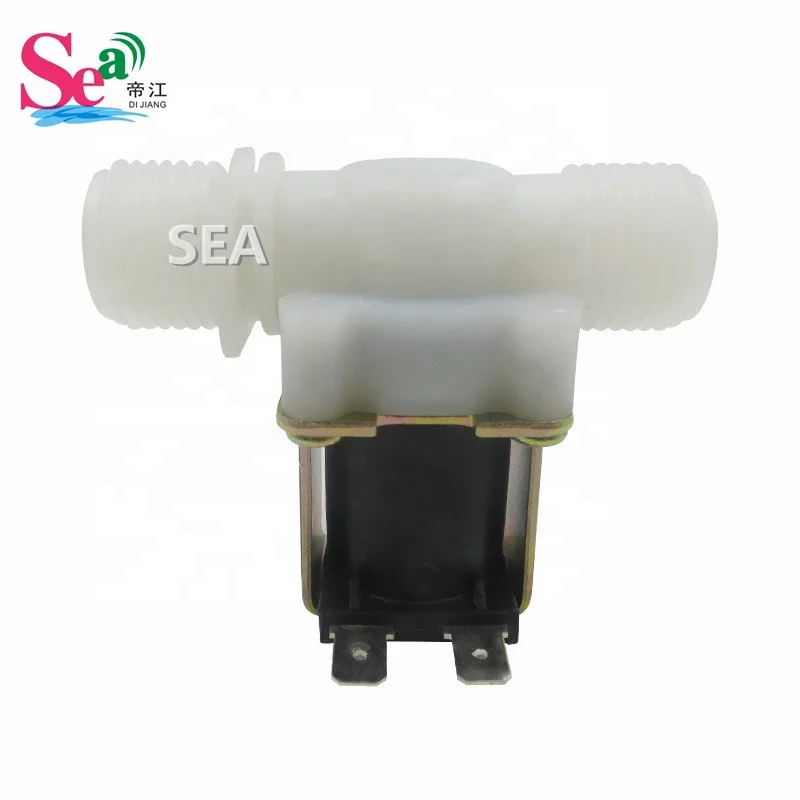

1 Pipe Connection: G1/2''
2 Operating Voltage: DC12V /24V/ AC220V
3 Working Current: 420mA
4 Coil Resistance: 27.7Ω
5 Rated Power: 5W
6 Medium Temperature: 0 ~ 100℃
7 Water Pressure: 0.02 ~ 0.8MPA
