Новый Huawei SmartAX EA5801 серии EA5801-GP08 EA5801E mini olt
US $389.00-$700.00
Коаксиальный кабель для камеры системы видеонаблюдения RG59 + 2DC rg
- Категория: Telecommunications >>>
- Поставщик: Hangzhou,Jianye,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 33.11 $* | 35.16 $* |
| Aug-20-2025 | 33.93 $* | 35.5 $* |
| Jul-20-2025 | 28.11 $* | 29.97 $* |
| Jun-20-2025 | 32.58 $* | 34.12 $* |
| May-20-2025 | 28.20 $* | 29.14 $* |
| Apr-20-2025 | 32.80 $* | 34.43 $* |
| Mar-20-2025 | 32.44 $* | 34.24 $* |
| Feb-20-2025 | 31.50 $* | 33.31 $* |
| Jan-20-2025 | 31.3 $* | 33.1 $* |
Характеристики
Products Description

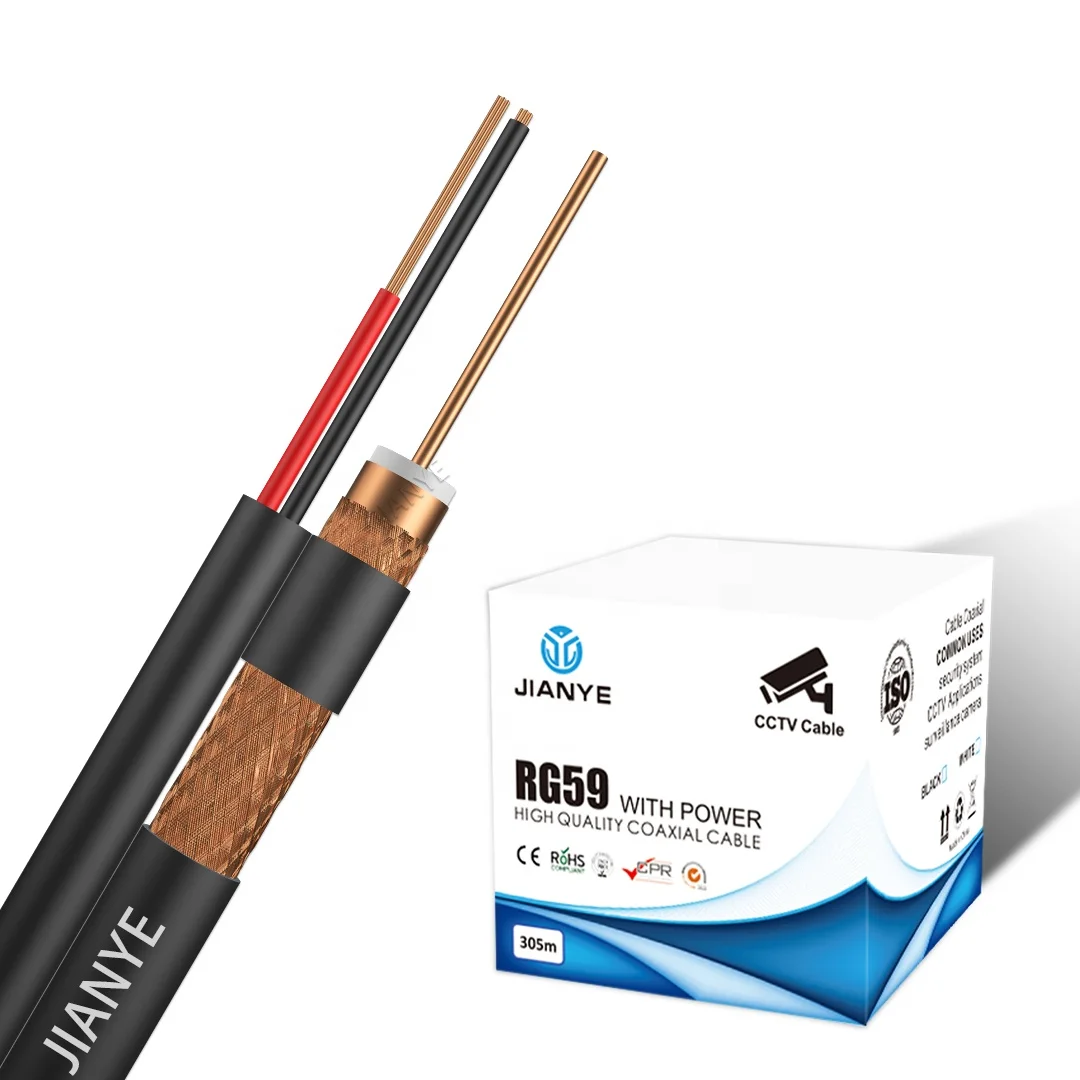

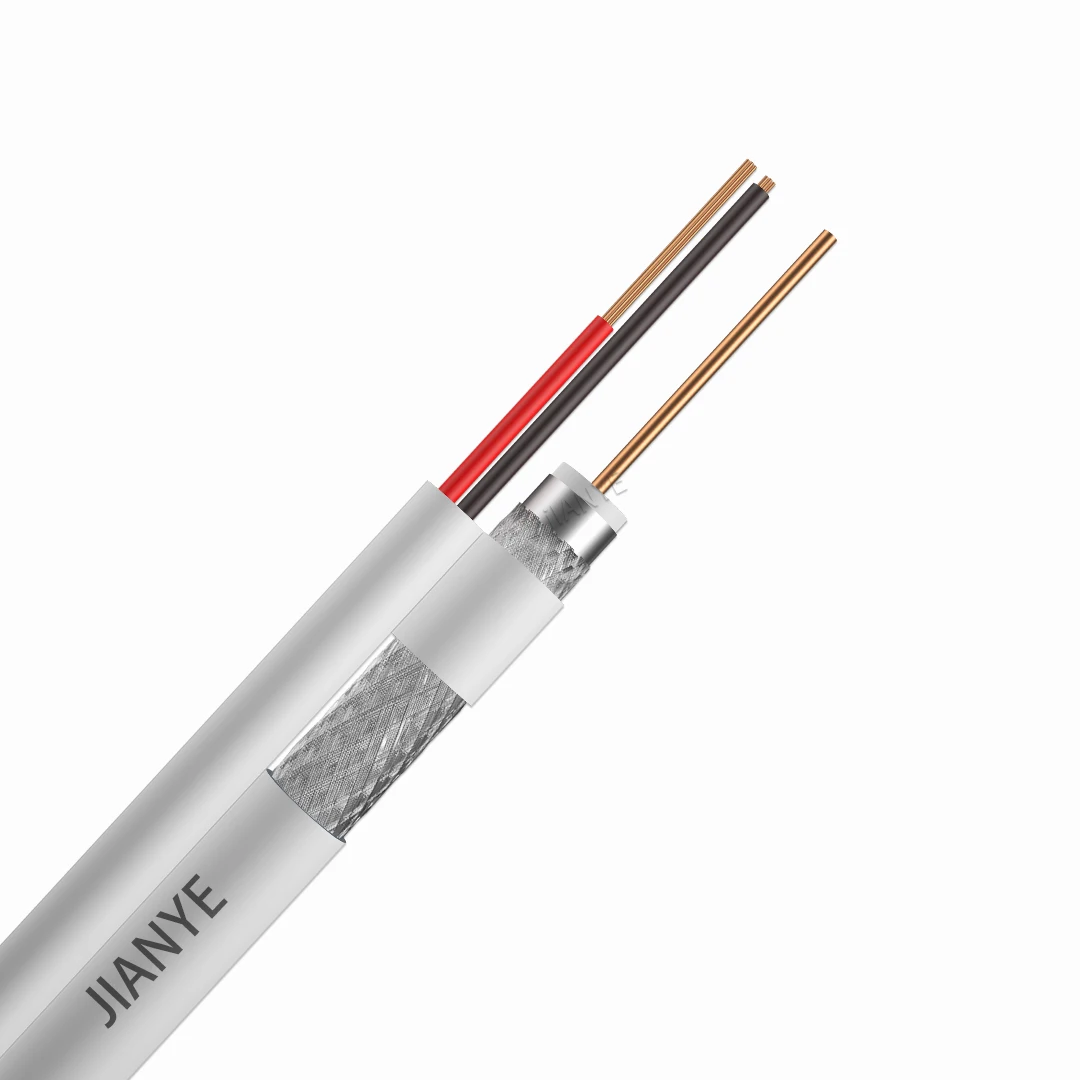

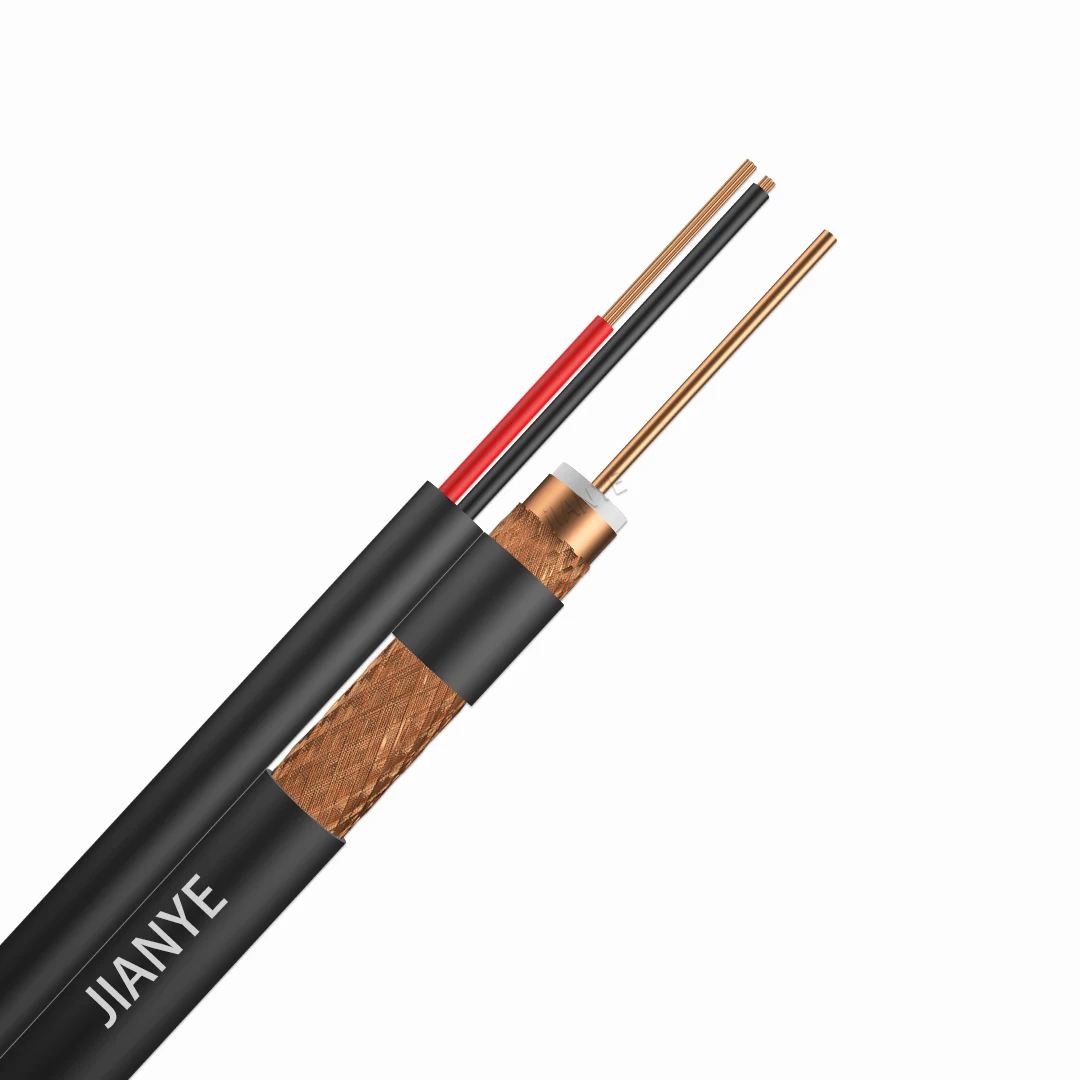

305m 500m 1000ft rg 59 +2DC coaxial cable
Setellite Monitor CCTV CATV Camera Coaxial Cable RG59+2DC rg 59 coaxial cable with power
0.81CCS+3.66FPE + Al Foil/blue/bonded +80*0.12AL+6.1PVC(White/Black)
Inner Conductor (mm): 0.81± 0.01 BC / CCS
Dielectric (mm): 3.66± 0.10 FPE / SPE
Outer Conductor (mm): 4.3
Jacket (mm): 6.1± 0.1 PVC / PE
Dielectric (mm): 3.66± 0.10 FPE / SPE
Outer Conductor (mm): 4.3
Jacket (mm): 6.1± 0.1 PVC / PE
RG59 (Mini) or RG59 with power cable specification | ||
Inner conductor | (0.58mm / 0.81mm) BC/CCS | |
Insulation | (2.0mm / 3.7mm) Solid PE / Foam PE | |
Shield | Aluminum foil | |
Braid | Aluminum wire/ Copper clad Aluminum wire/ bare copper wire/ Tinned copper wire / the diameter of wire from 0.12mm / Coverage : 40%~96% | |
Jacket | (3.5mm / 5.9mm) PVC | |
Color | Black /White or as per customer's requirement | |
Power cable (have 2.5mm²/ 0.5mm²/ 0.75mm²/ 1.0mm²),18 AWG | ||
Inner conductor | (14*0.15mm/ 16*0.2mm/ 24*0.2mm) Stranded Bare Copper | |
Insulation | (1.25mm/ 1.8mm/ 2.0mm) PVC | |
Over jacket | (3.5*3.5mm / 6.0*3.5mm) PVC | |
Length | 100m/ 200m/ coil/ cardboard reel/ wooden reel/ or as per customer's requirement. | |
Details Images
Product packaging

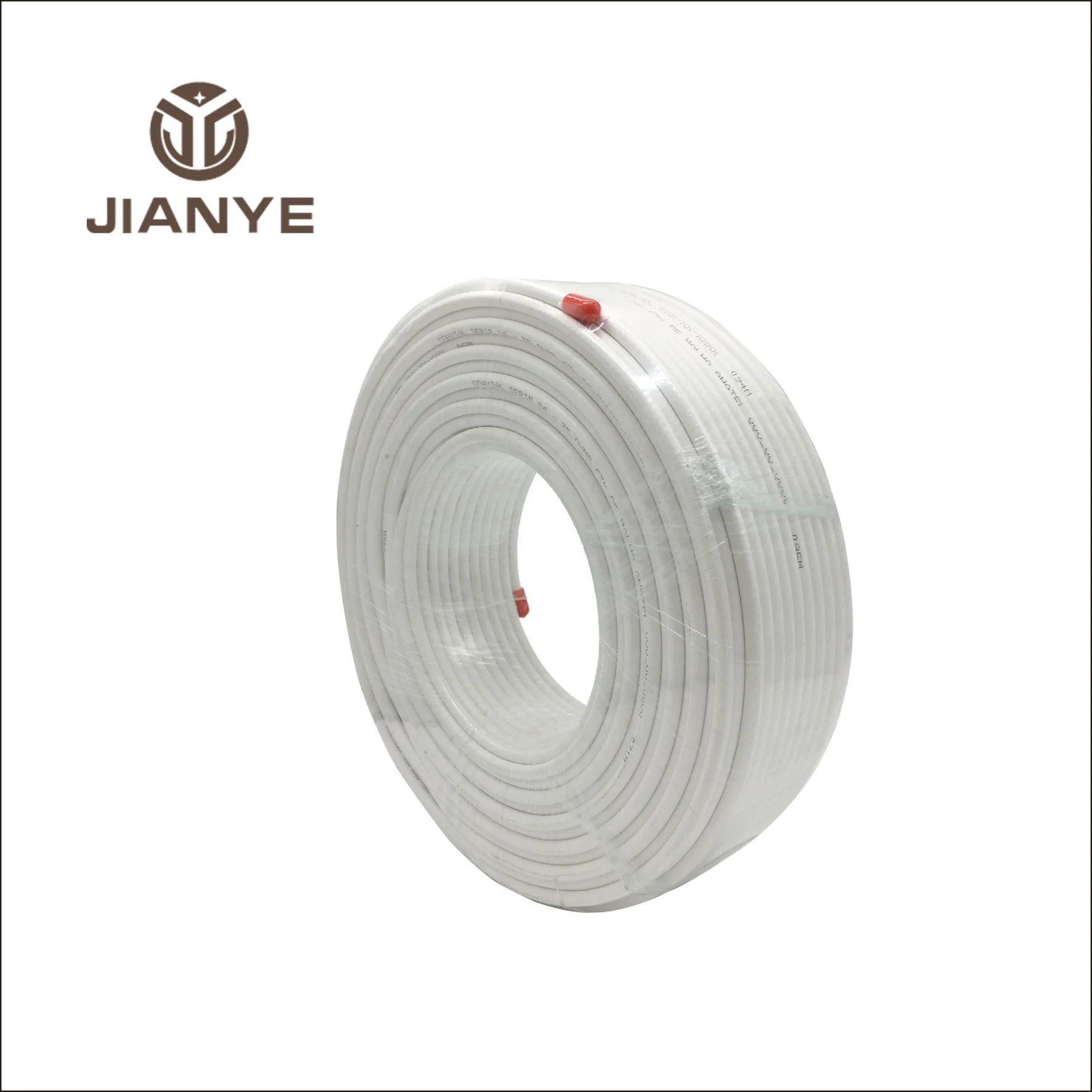

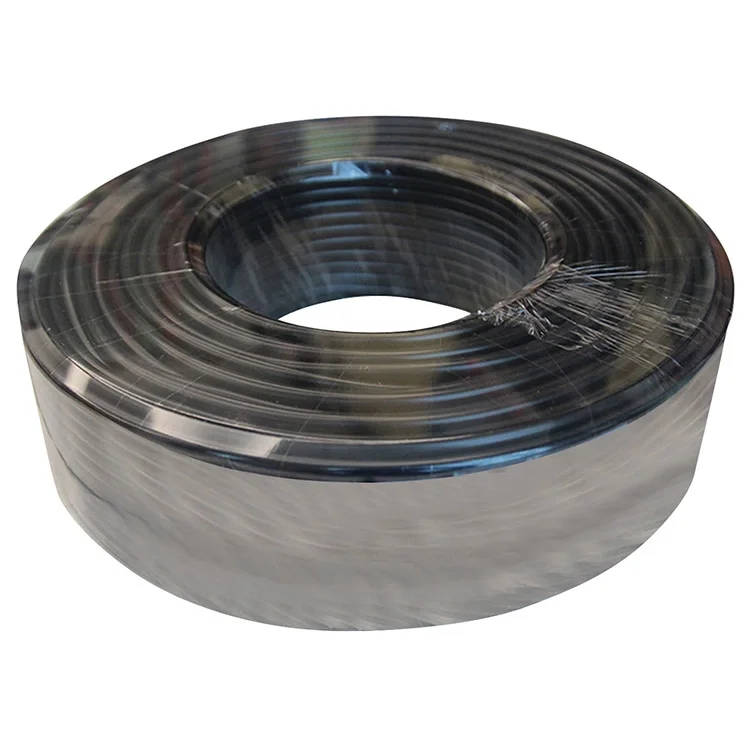

Coaxial Cable packing :
1). Coil With Carton
100M/Coil, 6 Coil/Carton
200M/Coil, 300M/Coil, 2 Coil/Carton
Other Length: 20Yard/Coil, 30Yard/Coil, 60Yard/Coil, 100Yard/Coil.
2). Reel With Pallet or Not
100M/Paper Reel
100M/Plastic Reel, 200M/Palstic Reel, 305M/Plastic.

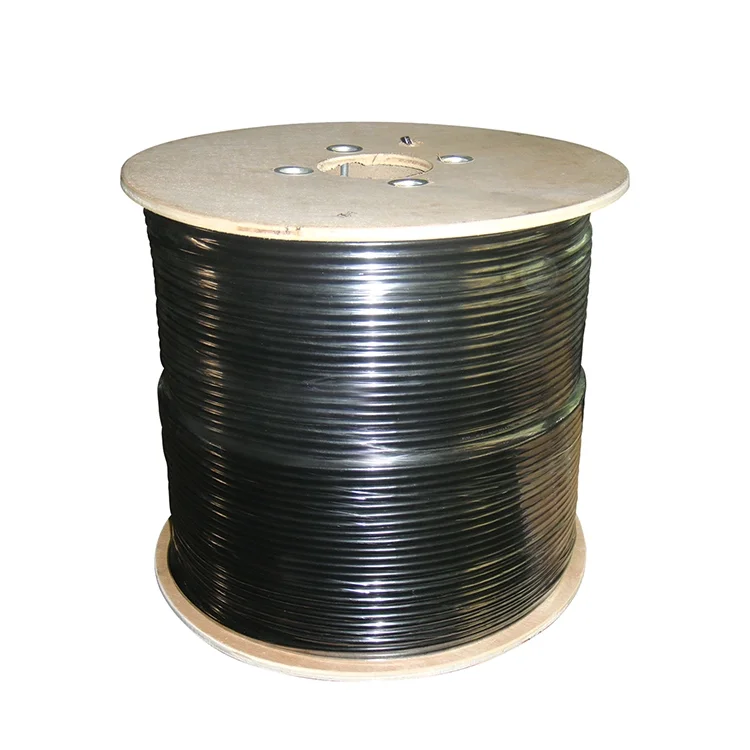

305M/Wooden Reel, 500M/Wooden Reel
3). Reel In Box, With Pallet
500ft Reel In Box.
1000ft/Reel In Box.
Color Box and OEM Package available.
20" Container Full Load: 350-420km.
40" Container Full Load: 650-780km.
100M/Coil, 6 Coil/Carton
200M/Coil, 300M/Coil, 2 Coil/Carton
Other Length: 20Yard/Coil, 30Yard/Coil, 60Yard/Coil, 100Yard/Coil.
2). Reel With Pallet or Not
100M/Paper Reel
100M/Plastic Reel, 200M/Palstic Reel, 305M/Plastic.
305M/Wooden Reel, 500M/Wooden Reel
3). Reel In Box, With Pallet
500ft Reel In Box.
1000ft/Reel In Box.
Color Box and OEM Package available.
20" Container Full Load: 350-420km.
40" Container Full Load: 650-780km.
Setellite Monitor CCTV CATV Camera Coaxial Cable RG59+2DC rg 59 coaxial cable with power
Application
CCTV CAMERA CABLE
Company Profile
Hangzhou Jianye Cable Co.,Ltd is a Professional manufacturer with more than 10 years experience in the communications cable industry in China. We can manufacture and supply coaxial cables, lan cables, fiber optic cables and the cable assembly etc,. we have 16 produce lines can supply 8*40ft containers cargo per day . some cables such as RG59,RG6 with power , cat5e ,cat6 ,cat7 ,Drop cable,ADSS cable, GYXTW cable , hot sell at south east ,Europe, America ,mid east market and good feedback.Our factory is located in Lin an Hangzhou city,only 3 hours to Shanghai and Ningbo sea Port , Convenient transportation and fast delivery .
We carefully test cables under ISO 9001-2000 quality management before shipping to the customers. We have very advanced testing machines, including Agilent, HP analyzer, OTDR... We Controls the quality constantly and strictly in order to give the best products to the users.
Our company always devotes to developing custom cables according to clients needs. We can make design for you from specification to logo , packing , look forward to working with you and getting mutual benefit in future.welcome visit us any time . thank you .
We carefully test cables under ISO 9001-2000 quality management before shipping to the customers. We have very advanced testing machines, including Agilent, HP analyzer, OTDR... We Controls the quality constantly and strictly in order to give the best products to the users.
Our company always devotes to developing custom cables according to clients needs. We can make design for you from specification to logo , packing , look forward to working with you and getting mutual benefit in future.welcome visit us any time . thank you .
Certifications
