Характеристики



Products Application


This product is suitable for ac 50HZ, it can be used in line with rated voltage of 0.6/1kv power transmission and distribution. For Laying indoor, tunnel and underground. Able to bear external mechanical force, but unable to bear large pulling force.

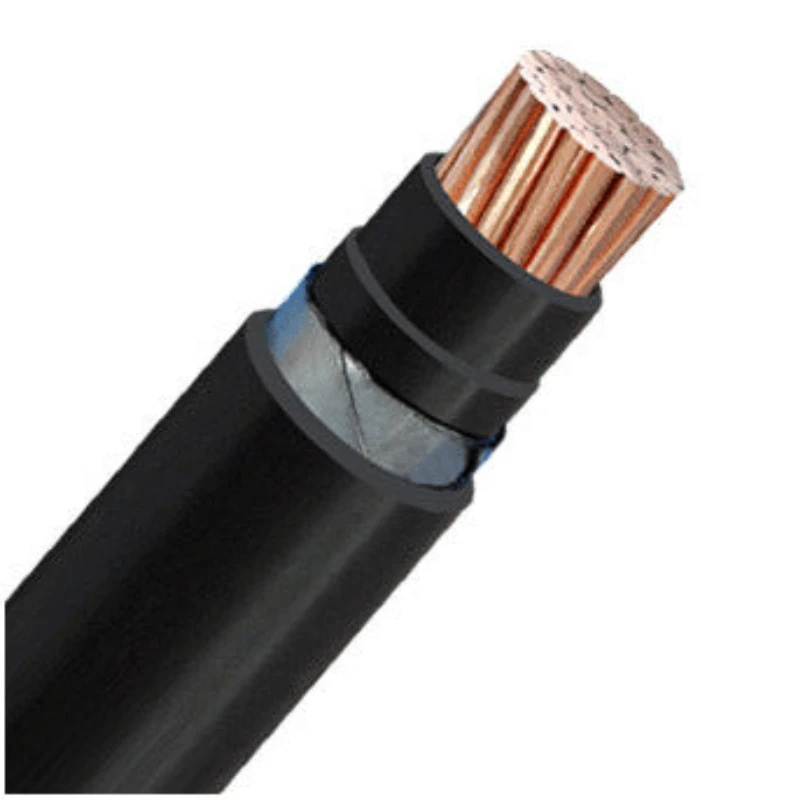

Product Construction




1)Conductor : Copper or aluminum ,Class 1 or Class 2,solid or stranded conductors
2) Insulation: Polietileno reticulado XLPE
3)Inner sheath:Polyvinyl chloride PVC
4)Armour: Non-magnetic steel-tape
5)Outer sheath:Polyvinyl chloride PVC


Product Standards


SPECIFICATIONS:
IEC 60228 Conductors of insulate cables
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1 kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1:Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV) .


0.6/1kV-1 core copper conductor XLPE insulated steel tape armored PVC sheathed power cable
Nominal cross sectional area
Insulation thickness
Non-magnetic steel tape thickness
Sheath thickness
Approximate outer diameter
Approx.
weight
Max.D.C resistance of conductor（20℃）
Current carrying capacity
mm2
mm
mm
mm
mm
kg/km
Ω/km
In Air(A)
In Ground(A)
1X10
0.7
0.2
1.8
11.8
244.0
1.83
75
47
1X16
0.7
0.2
1.8
12.9
318.0
1.15
97
62
1X25
0.9
0.2
1.8
14.6
430.0
0.727
125
78
1X35
0.9
0.2
1.8
15.2
533.0
0.524
155
94
1X50
1.0
0.2
1.8
16.7
668.0
0.387
190
110
1X70
1.1
0.2
1.8
18.5
893.0
0.268
245
135
1X95
1.1
0.2
1.8
20.1
1157.0
0.193
300
160
1X120
1.2
0.2
1.8
21.7
1410.0
0.153
350
185
1X150
1.4
0.2
1.8
23.7
1705.0
0.124
400
205
1X185
1.6
0.2
1.8
25.7
2082.0
0.0991
460
235
1X240
1.7
0.2
1.8
28.0
2652.0
0.0754
-
-
1X300
1.8
0.2
1.9
31.0
3259.0
0.0601
-
-
1X400
2.0
0.2
2.0
35.0
4135.0
0.047
-
-




Company Profile


About Us
Henan Tong-da Cable Co., Ltd, successfully listed on Shenzhen Stock Exchange on Mar.3rd, 2011 (Stock Abbreviation: Tongda Stock, Stock Code: 002560), has devoted itself to the production, R & D and sales of wires and cables for more than 30 years.
The company covers an area of 360,000 square meters with a registered capital of 440 million RMB, which owns eight kinds of major professional products: Phase and earth conductor, power cable, overhead insulated cable, fire resistant cable, environmental protection PVC insulated building wire, contact and catenary wire for Electrified Railway, cable for rail traffic and control cable. Not only special wires and cables in flame retardant, fire resistant, low-smoke free halogen, irradiation cross-linking and etc. can be produced simultaneously, but also can meet the standard of IEC, British BS, American ASTM, German DIN and others, on the basis of customers' requirements.
The company has passed ISO9001 quality system certification, ISO14001 environmental system certification, OHSAS18001 occupational health system certification, CCC National Product Certification, PCCC product certification, CRCC railway product certification, and obtained the National Industrial Product Production License, AAA credit rating certificate, etc.
As the long-term main supplier of State Grid of China Corporation, China Southern Power Grid Corporation, Provincial Power Grid Corporation, China Railway Corporation and many large well-known real estate companies, Tong-da's products, widely used in smart grid, electrified railway, urban rail traffic, real estate engineering, home decoration, have exported to more than 60 countries and regions, such as Europe, Middle East, Southeast Asia, Africa and highly received unanimous praise from numerous customers.


workshop
The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. We are equipped with advanced production and inspection equipment and the products strictly according to international standards or customers' requirements.
R & D Building
The company has obtained 48 patents, including 5invention patents. and be approved "ehv conductor in henan province engineering technology research center", has accumulated rich technical reserves for company development.


Customer visit


Customer visit
The company exports to South America, Southeast Asia, the Middle East, Europe, North America, Africa and more than 60 countries and regions, and enjoys a certain reputation among users.


Product packaging


Explanation
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.
