Industrial grade precision water treatment system high flow liquid cartridge filter housings





DAGYEE Cartridge Housing

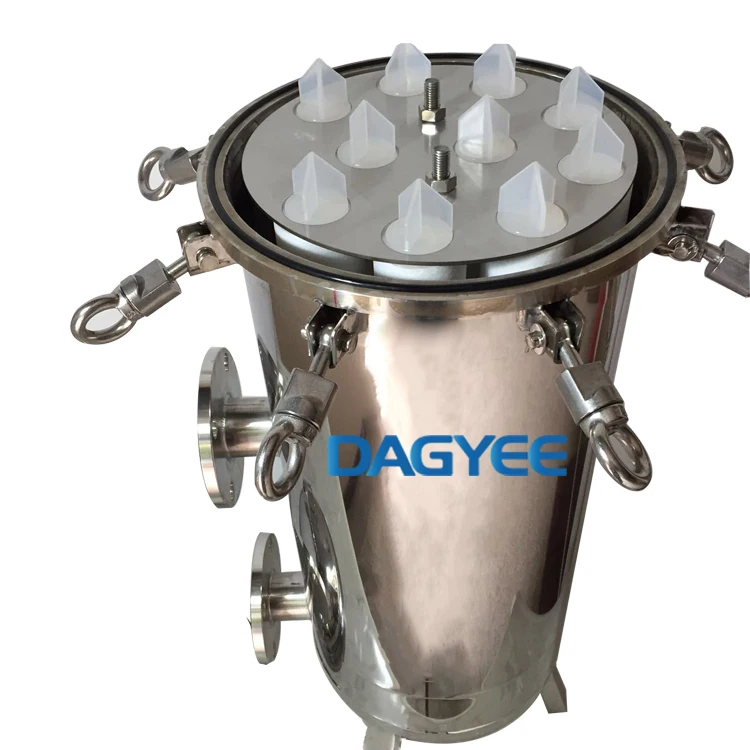

Multi-barrel stainless steel liquid filter housing is a high-quality solution for high-volume filtration. Our multi-cartridge housing can accommodate 5 to 22 standard 30-inch and 40-inch filter elements, and the liquid filtration flow rate is up to 65 m3/hr.

Commercial and industrial filter housing liquid containers are ideal for chemical systems, commercial RO and membrane water treatment systems for pre-filtration, high-purity water, post-filtration, food and beverage, industrial facilities, etc.

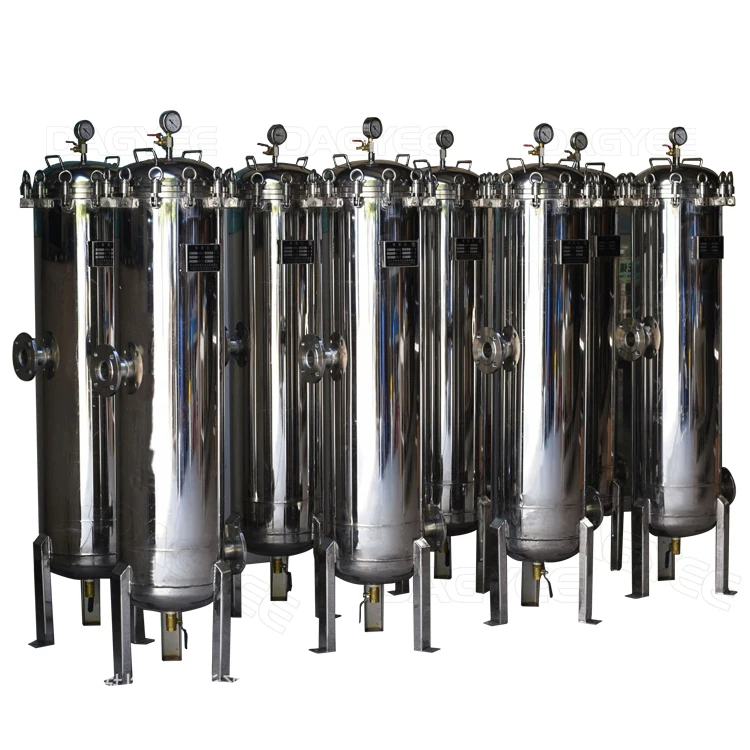

We always have a large stock of stainless steel liquid housings for commercial and industrial use. Most of the models shown are available from stock immediately.



DAGYEE Cartridge Housing Feature

• Low pressure drop


• Permanently piped filter housing open without special tools and without disturbing the piping


• Machined cover gasket groove provides positive O-ring sealing


• Easy to clean


• In-line inlet and outlet


• Stainless steel internals


• Standard Options


• Carbon steel, 304 or 316 stainless steel housings


• Accommodates 10, 20, 30 or 40-inch cartridge



Cartridge Housing Technical
Model	Size	Dimension mm	Flow m3/hr	Inlet Outlet	Pressure
DPF-10-170	10''	170*430	1-2	1''	0.6Mpa
DPF-10-200	10''	200*430	2-3	1''	0.6Mpa
DPF-20-170	20''	170*690	3-4	1''	0.6Mpa
DPF-20-200	20''	200*690	4-6	1 1/2''	0.6Mpa
DPF-20-250	20''	250*690	6-8	2''	0.6Mpa
DPF-30-200	30''	200*940	7-8	1 1/2''	0.6Mpa
DPF-30-250	30''	250*940	10-11	2''	0.6Mpa
DPF-40-200	40''	200*1240	9-11	2''	0.6Mpa
DPF-40-250	40''	250*1240	13-15	2''	0.6Mpa
DPF-40-300	40''	300*1350	14-18	2''	1.0Mpa
DPF-40-320	40''	320*1350	16-20	2''	1.0Mpa
DPF-40-350	40''	350*1350	20-30	2 1/2''	1.0Mpa
DPF-40-400	40''	400*1430	30-40	3''	1.0Mpa
DPF-40-450	40''	450*1450	50-65	3''	1.0Mpa



DAGYEE Cartridge Housing Removal

• Suspended matter


• Algae


• Impurities


• Fine particles
