Product Description

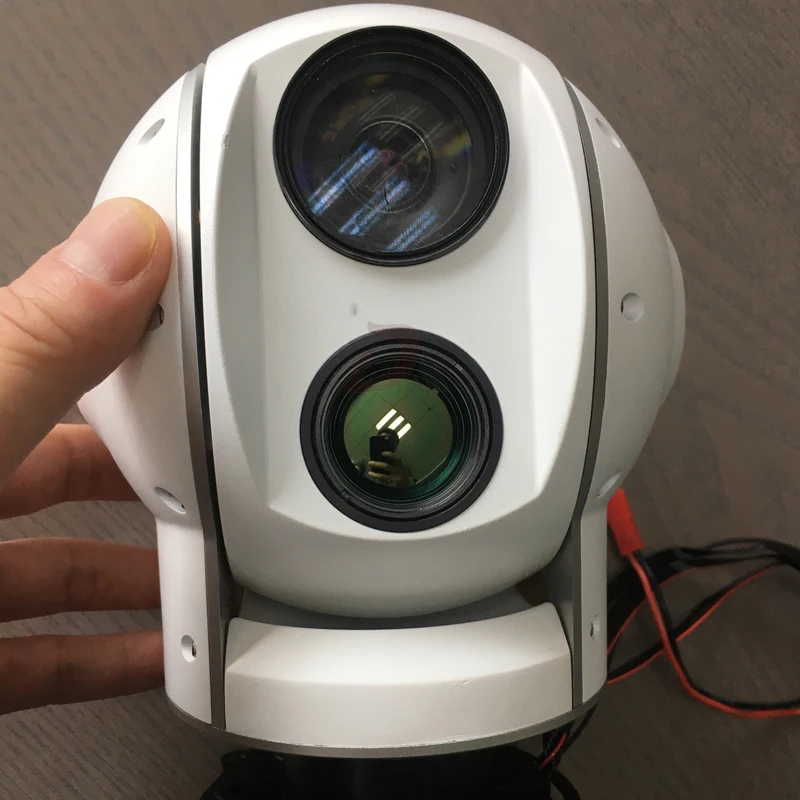

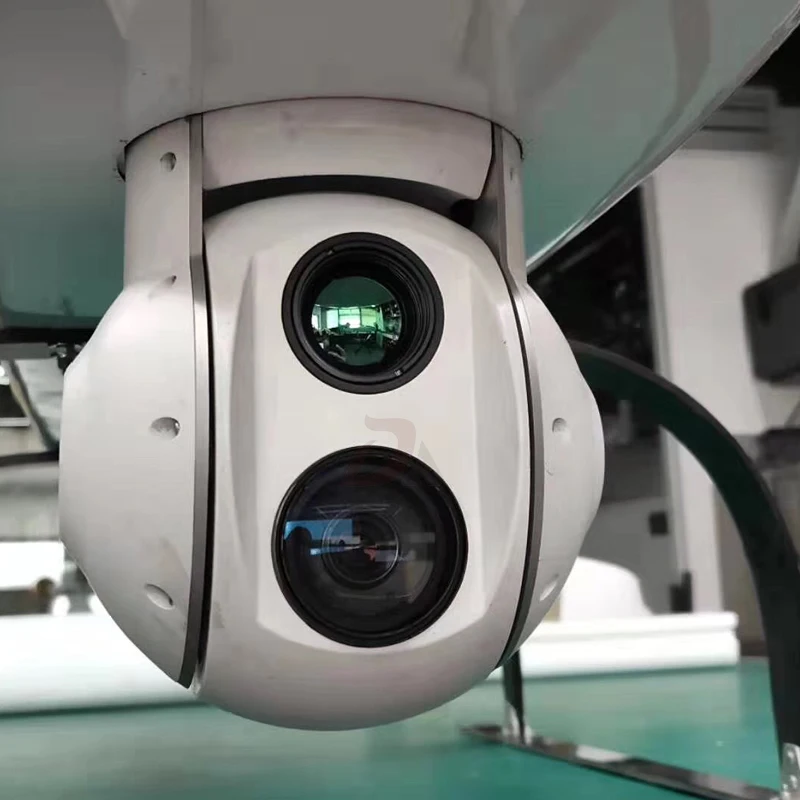

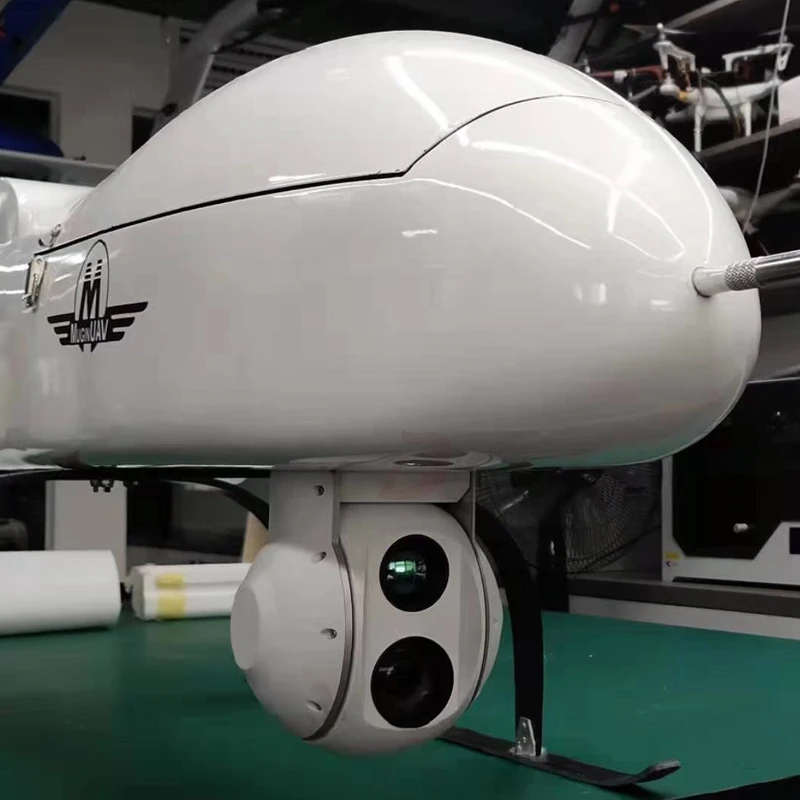

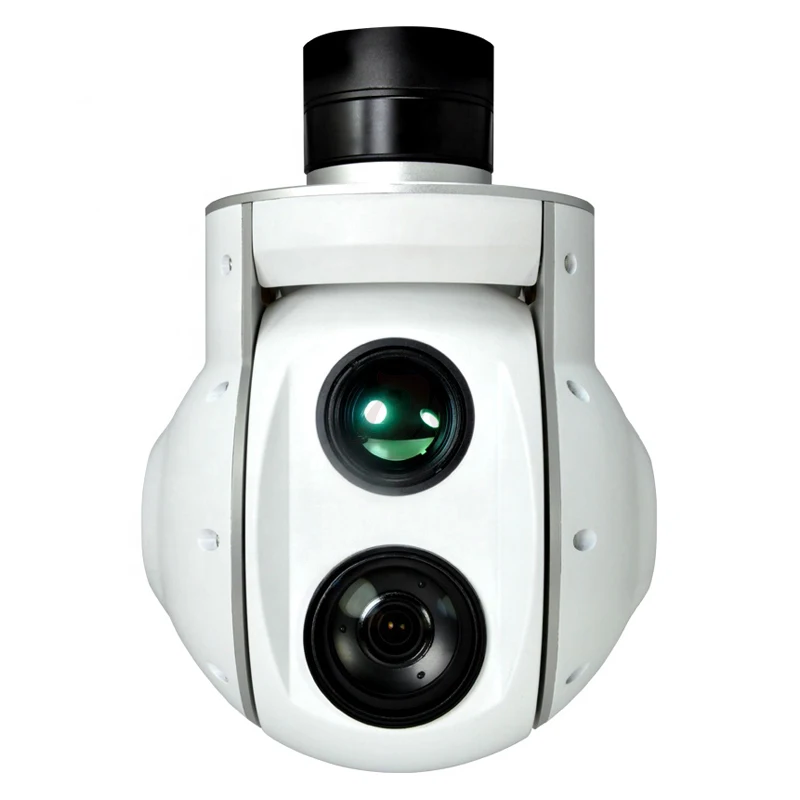

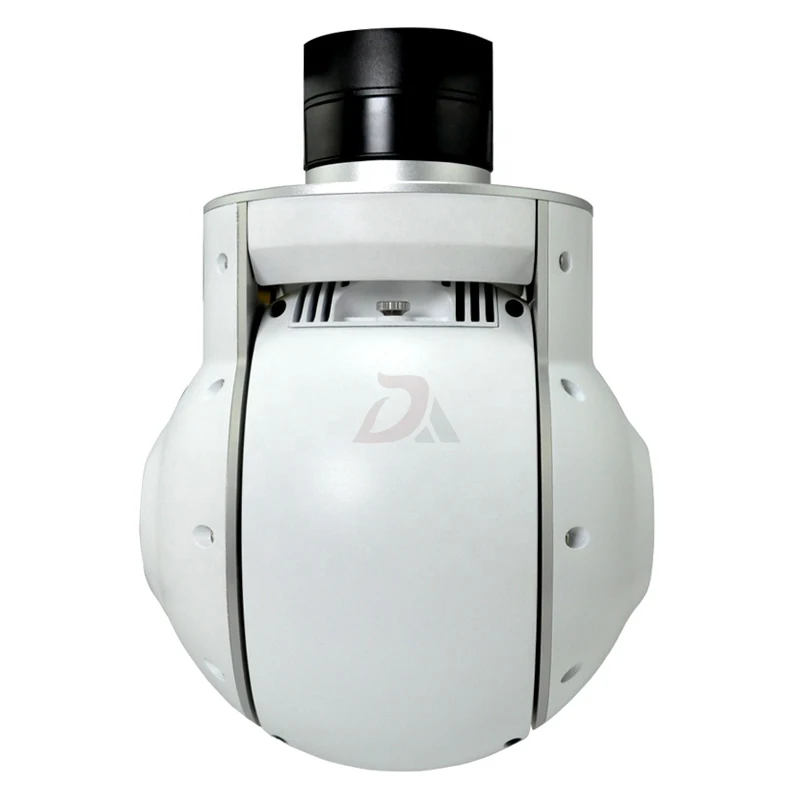

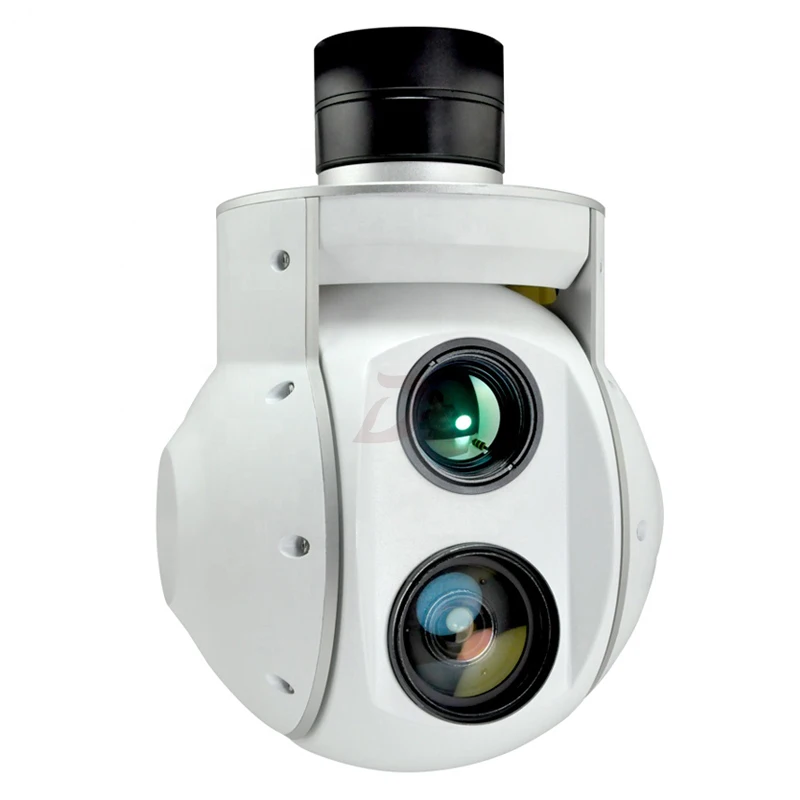

UAV Aircraft Dual Vision Target Tracking Infrared Drone Thermal Camera

SONY EV7520 30x Starlight Camera
Imager sensor	1/2.8-typeExmor R CMOS
Lens	30x zoom 4.3 ~129 mm F1.6 to F4.7
Digital zoom	12x (360x with optical zoom)
Minimum illumination	Colour: 0.01 lx(F1.6, AGC on,1/30 s)
S/N ratio	More than 50 dB
Backlight compensation	YES
High Definition	1920x1080P(Full-HD)
Minimum object distance	10 mm (wide end) to 1200 mm (tele end) (Default: 300 mm)
Video Output	HDMI/SDI/SD Card/RJ45
640 25mm Thermal Imaging Camera
Detector	Uncooled long wave (8μm~14μm) thermal imager
Detector pixel	640*480
Lens	25mm
FOV	24.6°x18.5°
NETD	≤50mK (@25℃)
MRTD	≤650mK(@characteristic frequency)
Color palette	Black, white, pseudo color
Gimbal Description
Power Consumption	Quiescent 400mA@12V, Working 500mA@12V
Pitch angle range of action	-90°~+90°
Roll angle range of action	-85°~+85°
Yaw angle range of action	-170°~+170°
Angle jitter	pitch and roll direction±0.01° ,horizontal direction±0.01°
Size	L127W 122H177.1mm
Weight	1151g

Object Tracking Function

1. Function description

B u i l d -in normalization, cross-correlation and tracking algorithm,combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor,tracking information display.
2. Tracking Performance
1 ) U pdate rate of deviation pixel 50Hz
2) Output delay of deviation pixel <15ms
3) Minimum object contrast 5%
4) The minimal signal-to-noise ratio (SNR) 4
5) Minimum object size 16*16 pixel
6) Maximum object size 160*160 pixel
7) Tracking speed 32 pixel/frame
8) The mean square root values of pulse noise in the object position<0.5pixel
9) Object memory time 100 frames

POD description.jpg Connection of control box and wiring instructions

Camera control line

Zoom: camera zoom control line,connect PWM receiver on third gear, or rocker.

Focus: camera manual focus control line, connect receiver on third gear, or rocker. If not connect, the camera will focus automatically after zooming.

Pic/Rec: photography/video, mode switching, video and photography control, connect receiver on third gear.

Switch from middle to high: photography/video mode switching

Switch from middle to low: (1)In the video mode:if video record is stop , video record starts ,if video record
is starting , switch from middle to low again, the video record will stop; (2)In the photo mode: take a pictures.

Multi: Multi control channel for other function, such as tracking, laser light. IR cut , etc

AV: analog output signal.

Pod PWM signal instructions:

YAW directional channel: speed mode ,connect rocker channel, (or third gear switch channel, stopping need third to middle position.)

PITCH Pitch channel: speed mode ,connect rocker channel, (or third gear switch channel, stopping need third gear to middle position.)

MODE gimbal one button back and speed adjustment:angle mode, A knob or a thirt gear channel switch.

The speed of focusing

Design for UAV aerial photography , according to aerial
characteristics, using fast focus algorithm, focus time <1s.

More technical support. Please contact us!
