Индикатор уровня заряда батареи DFUN тестер емкости свинцово-кислотных
- Категория: Battery Testers >>>
- Поставщик: Dfun,(zhuhai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.60 $* | 0.43 $* |
| Aug-17-2025 | 0.96 $* | 0.16 $* |
| Jul-17-2025 | 0.45 $* | 0.70 $* |
| Jun-17-2025 | 0.19 $* | 0.90 $* |
| May-17-2025 | 0.84 $* | 0.18 $* |
| Apr-17-2025 | 0.44 $* | 0.16 $* |
| Mar-17-2025 | 0.49 $* | 0.91 $* |
| Feb-17-2025 | 0.40 $* | 0.78 $* |
| Jan-17-2025 | 0.90 $* | 0.49 $* |
Характеристики
DFUN Battery Level Indicator Battery Capacity Tester for Lead Acid Battery

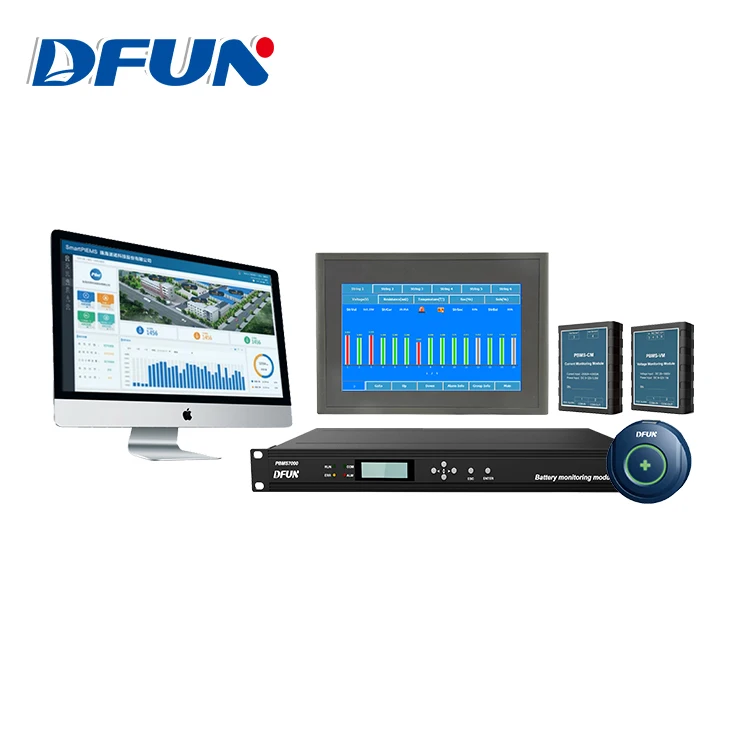

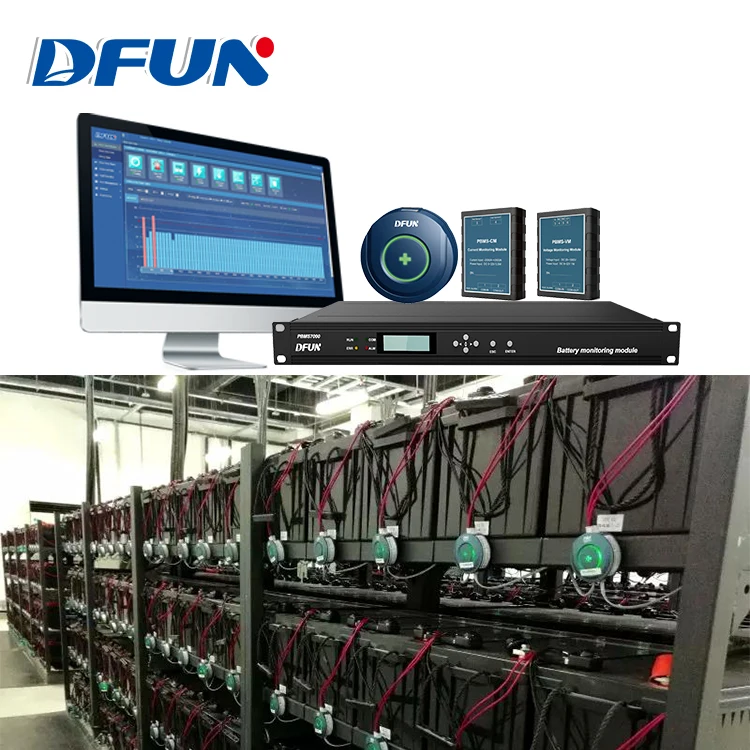

PBMS7000 --- Energy Storage Battery Monitoring Solution
Feature
▸ Monitor Battery String Voltage, Charge and Discharge Current, Ripple Voltage & Current
▸ Calculate Battery String SOC▸ Auto-Balancing
▸ Auto-sensing for the Battery Sensor's ID Address
▸Setpoint Alarming (Upper Limit / Lower Limit)
▸ Data Collecting
▸ Data Uploading Function via Build-in RS485 (Modbus-RTU) & Ethernet (Modbus-TCP or SNMP)
▸ View Battery String Status: Equalizing, Discharging, Floating Charge, Stand by and Abnormal Status
Products Description
Battery Type | Lead Acid, Lead Carbon, Multi-pole Battery |
Application | Data Center, UPS |
CPU | ARM Cortex M4 180MHz |
Flash | 128 Mbit Flash |
Dimension | Standard 19" inch 1U Device (482.6mm × 204.5mm × 44mm) |
Total Strings | 1~6 Strings |
Cell Voltage | 2V (1.6~2.6V) 6V (4.8~10V) 12V (7.5~15.6V) |
Sleeping Mode | ≤10mA |
Communication | MODBUS-RTU, MODBUS-TCP, SNMP |
Weight | PBMS7000: 2.55kg Battery Sensor: 120g |
Baudrate | 9600bps, 19200bps, 38400bps ( Optional ) |

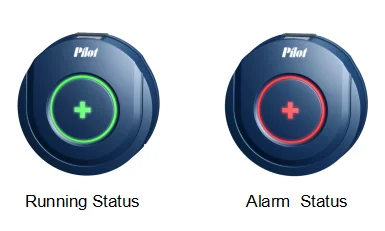

Sensor LED Indicates | Green: Normal Status Red: Abnormal Status |
HMI | Local Display and Operation (Optional), 7" inch Touch-Screen |
Operation Temperature | -15℃ ~ + 55℃ |
Operation Humidity | 5% ~ 95% Non-condensing |
Certification | EMC, ROHS, CE, ISO9001 |
Master Hardware Structure
Cell Sensor Hardware Structure

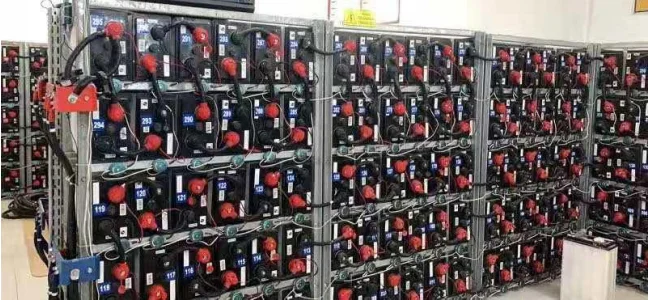

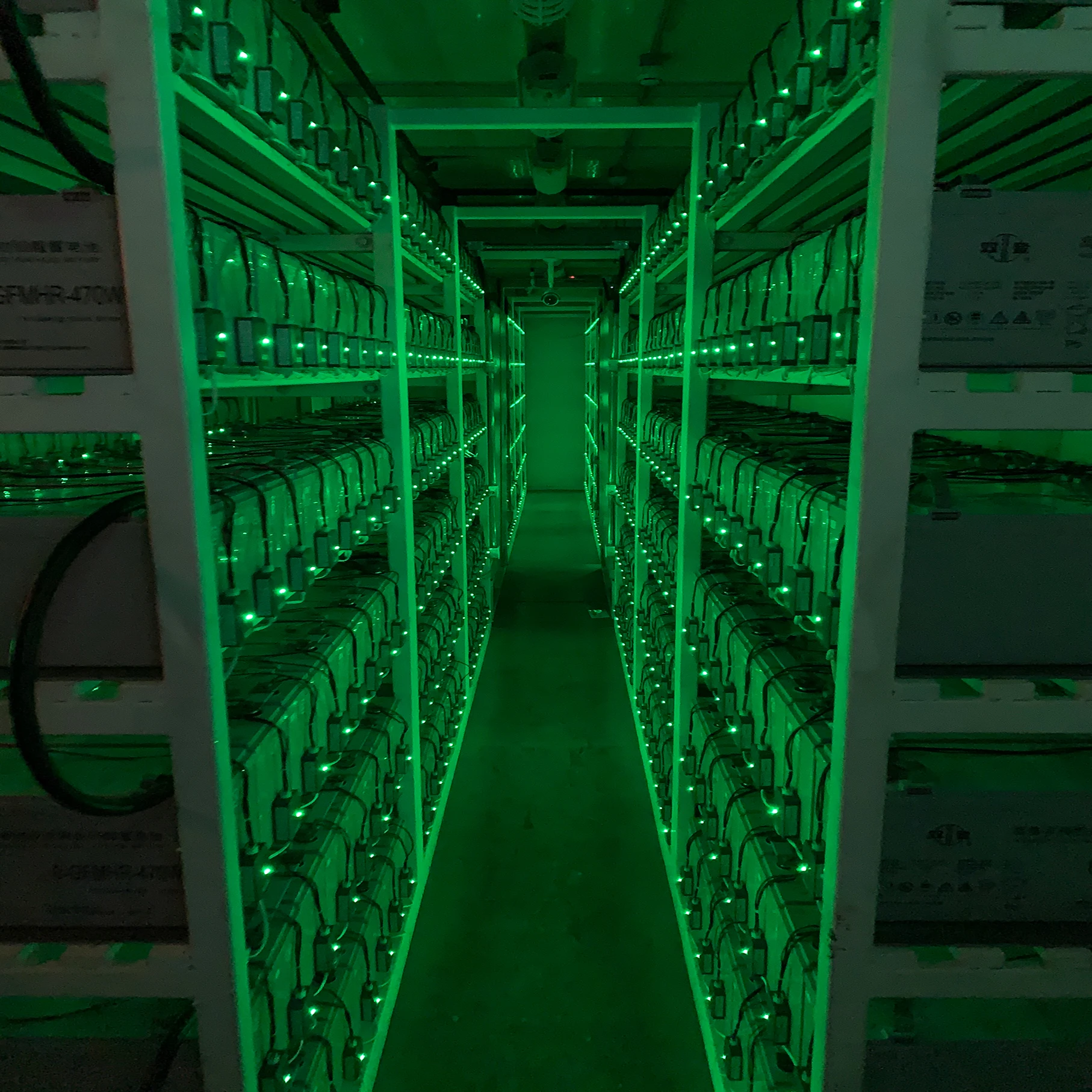

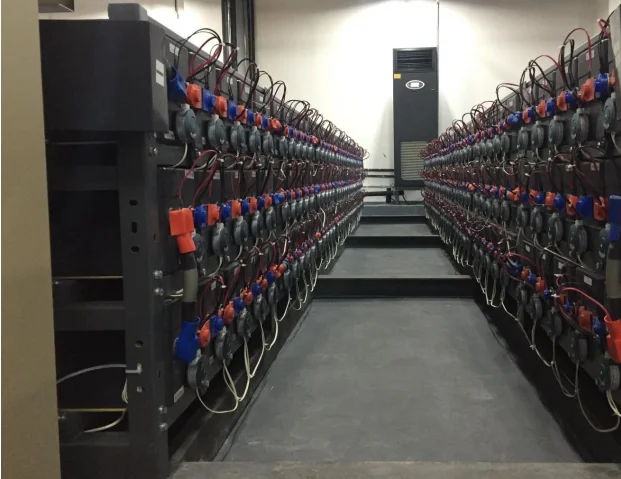

Project Reference
