Характеристики

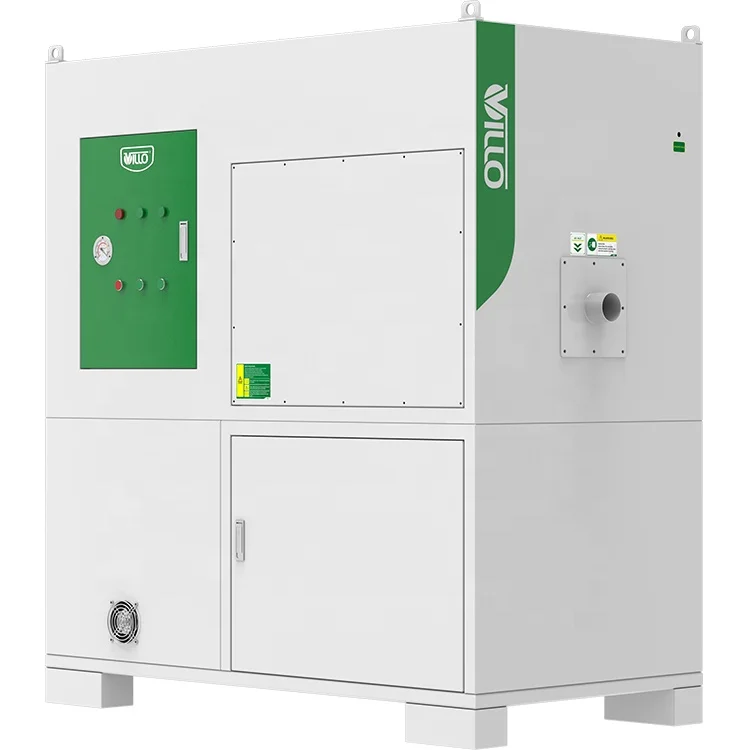

VJCF Series High Negative Pressure Type Central Vacuum System
Product description
VJCF Series is an industrial dust collector with high negative pressure, pulse jet cleaning, stable structure and small foot print.
Applications
Ideal for PCB processing industry with processes such as, multi-axis drilling, grinding board chamfering, cutting, central cleaning for workshop, etc.
Applications
Ideal for PCB processing industry with processes such as, multi-axis drilling, grinding board chamfering, cutting, central cleaning for workshop, etc.
Features
* PTFE coated filter cartridge
The filter material is polyester with PTFE coated, which can filter 99.9% dust at 0.3 microns.
* Vertical installation would protect the filter from dust accumulation, which would ultimately increase the filter life, reduce gasket leaks, and result in better pulse cleaning.
* Spoiler installed at the air inlet let the dust particles to fall directly in to the dust collector. This avoids to install an additional cyclone separator.
Technology Parameters
Model | VJCF-75 | VJCF-110 | VJCF-125 | VJCF-150 | VJCF-185 | VJCF-200 | VJCF-250 | |||||||
Voltage (V/Hz) | 380 / 50 | |||||||||||||
Power (kW) / (HP) | 7.5 / 10.0 | 11.0 / 15.0 | 12.5 / 16.8 | 15 / 20 | 18.5 / 25 | 20 / 27 | 25 / 33.5 | |||||||
Rated current (A) | 16.7 | 28 | 30 | 35 | 37 | 40 | 52 | |||||||
Max air flow (m³/h) / (CFM) | 700 / 412 | 900 / 530 | 1050 / 618 | 1150 / 677 | 1370 / 806 | 1940 / 1141 | 1940 / 1141 | |||||||
Filter area (m²) / (sq.ft) | 22 / 237 | 44/474 | ||||||||||||
Filter efficiency | >99% | |||||||||||||
Filter cleaning method | Pulse jet | |||||||||||||
Dust container capacity (L) / (gal) | 50 / 13.2 | 80 / 21 | ||||||||||||
Noise dB (A) | 72±2 | 74±2 | 74±2 | 74±2 | 77±2 | 77±2 | 80±2 | |||||||
Form of emptying | Traveler curtain type holder-on container | |||||||||||||
Dia. air inlet (mm) / (in) | Ø75 / 3 | Ø100 / 4 | Ø100 / 4 | Ø100 / 4 | Ø150 / 6 | Ø150 / 6 | Ø150 / 6 | |||||||
Dimension [L*W*H] (mm) / (in) | 1350*900*1750 / 53*35.4*68.9 | 1700*900*1850 / 67.0*35.5*72.9 | ||||||||||||
Weight (kg) / (lb) | 430 / 948 | 470 / 1036 | 500 / 1102 | 530 / 1169 | 600 / 1323 | 625 / 1378 | 650 / 1433 | |||||||
It is normal that the current value may fluctuate in a small range Voltage and frequency will affect the current value | ||||||||||||||
Product Configuration
PTFE coated filter cartridge
Air pulse jet cleaning device
Optional Configuration
Siemens Inverter
Multi Tower Light
Soft Starter

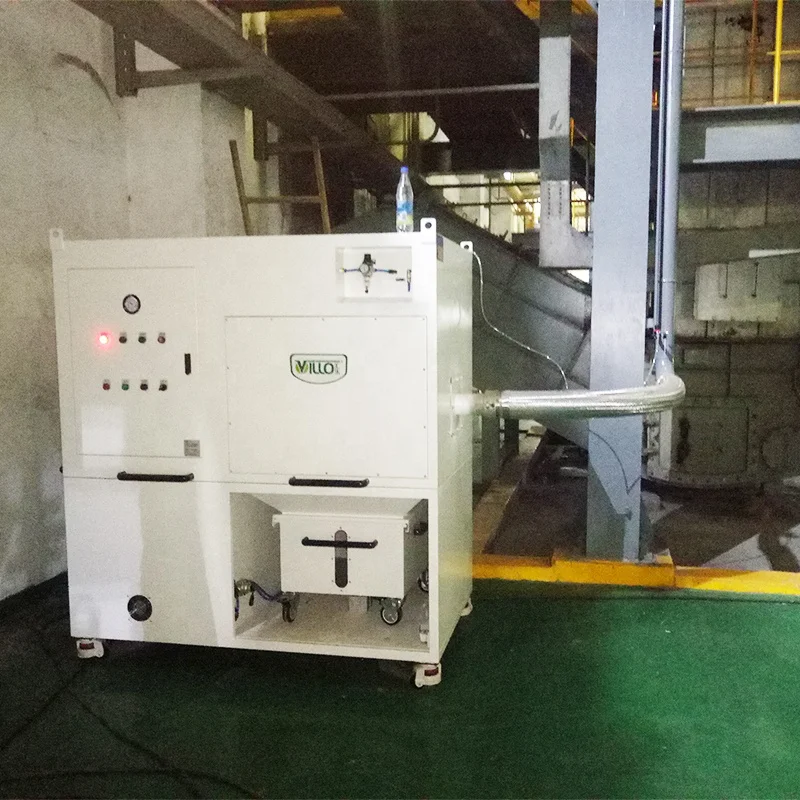

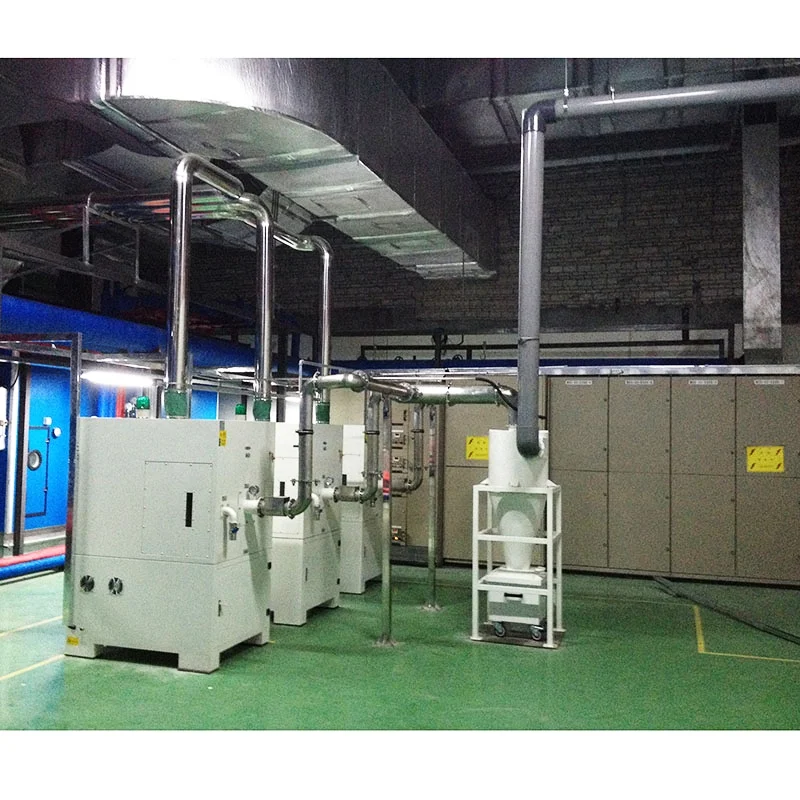

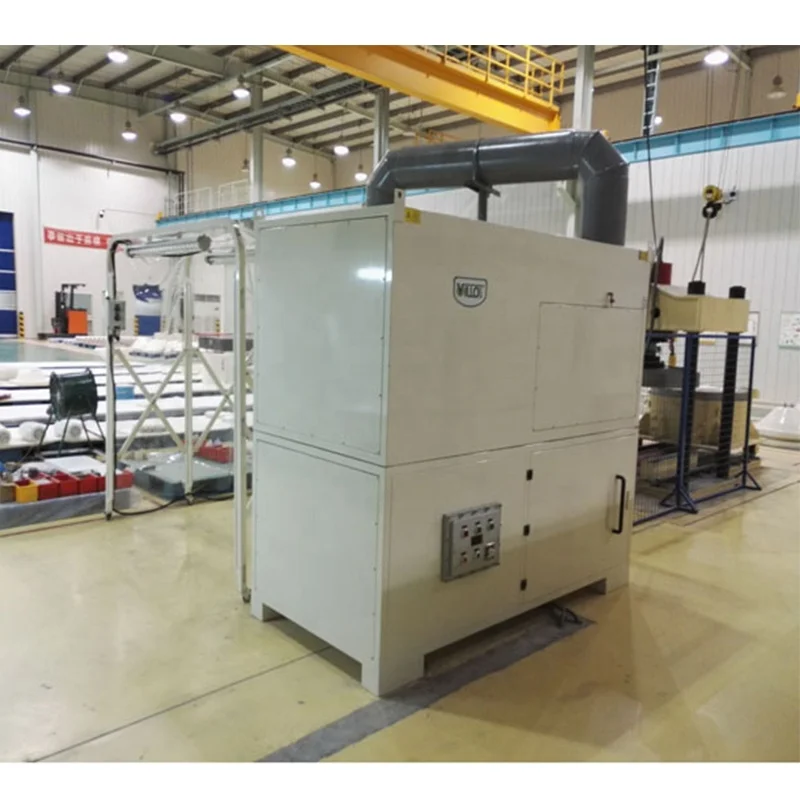

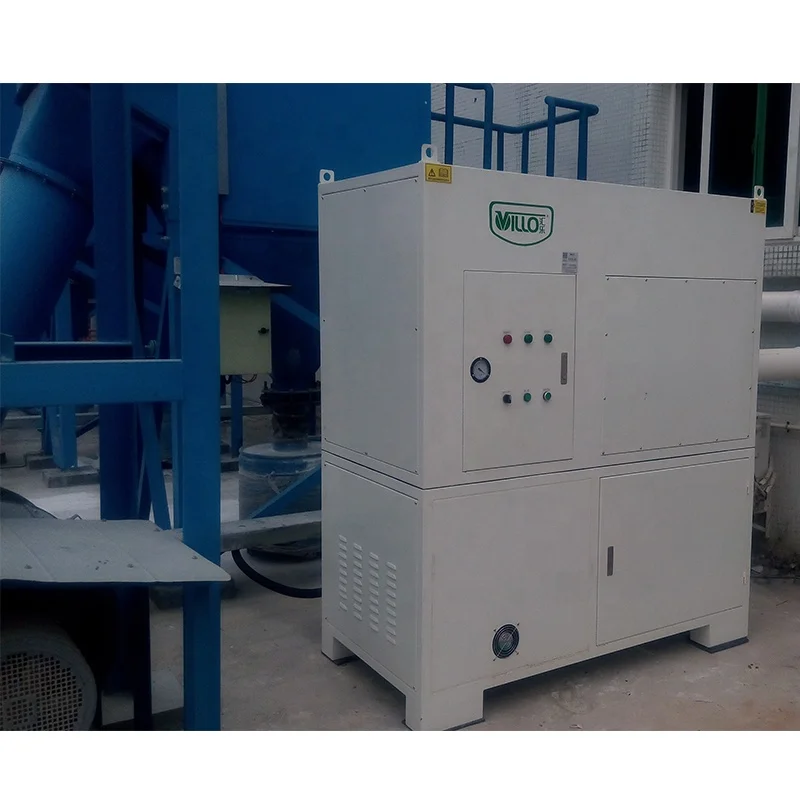

Successful Project
