Hot selling Waste Air conditioning radiator separator/radiator copper separator machine/radiator crushing separating machine









1. Introduction of radiator crushing separating machine



This radiator crushing separating machine is composed of a motor, a reduction box, a frame, a pressing roller, a blade, a nip roller, etc. The copper and aluminum of the radiator are separated by the cutting blades. The copper tube remains unchanged after separation, and the aluminum sheet keeps regular shape.

The radiator copper separator machine is suitable for dismantling and separating the internal copper and aluminum of waste air conditioners, old radiators, and waste water tanks, etc.





2. Principles of radiator crushing separating machine

1.start motor, the VE belt drives the compression roller, pinch roller and blade to rotate through the reduction box.
2. radiator is compacted by a pinch roller and sent to the fly-cutting blade. Then, radiator is cut with a fly-cutting blade, the copper tube is separated, and the aluminum mesh is cut.

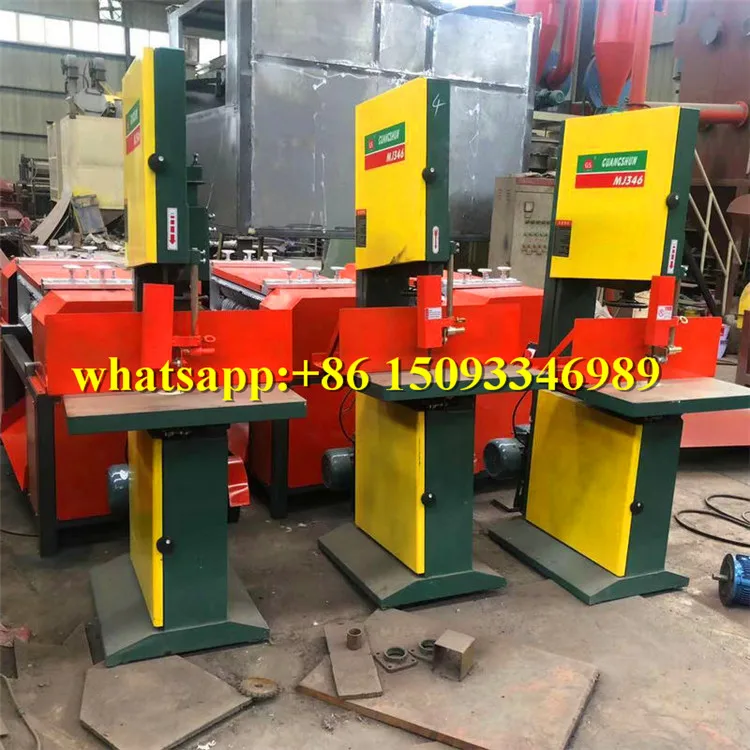

kindly note the interval width of the radiator copper pipe is different, customer needs to provide the width and thickness of the radiator copper pipe. If the radiator thickness is 3-4 layers, a band saw machine is necessary.





3. Parameters of  radiator crushing separating machine



Model	SRQ-850	SRQ-1200
Blade quantity	65pcs	117pcs
Platens quantity	70pcs	121pcs
Platen diameter	125mm	125mm
Blade diameter	105+100mm	105+100mm
Power	7kw	7kw
Weight	750kg	1250kg
Size	1700*1000*1100mm	2100*1150*1100

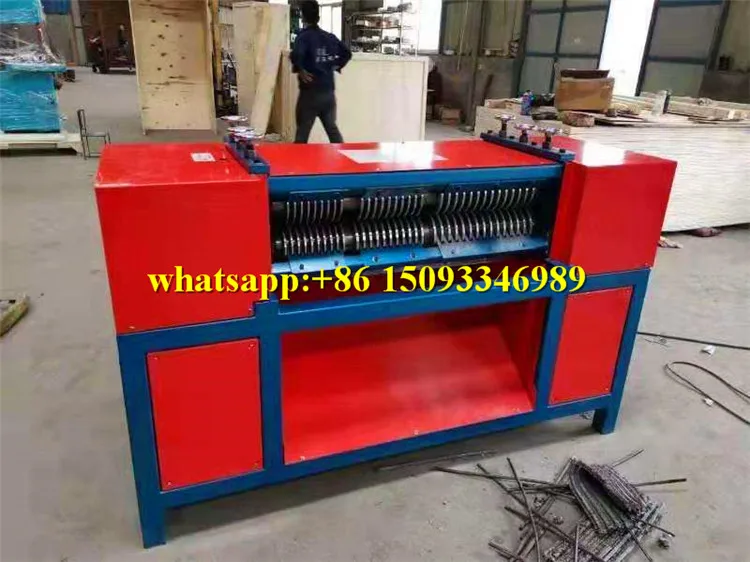

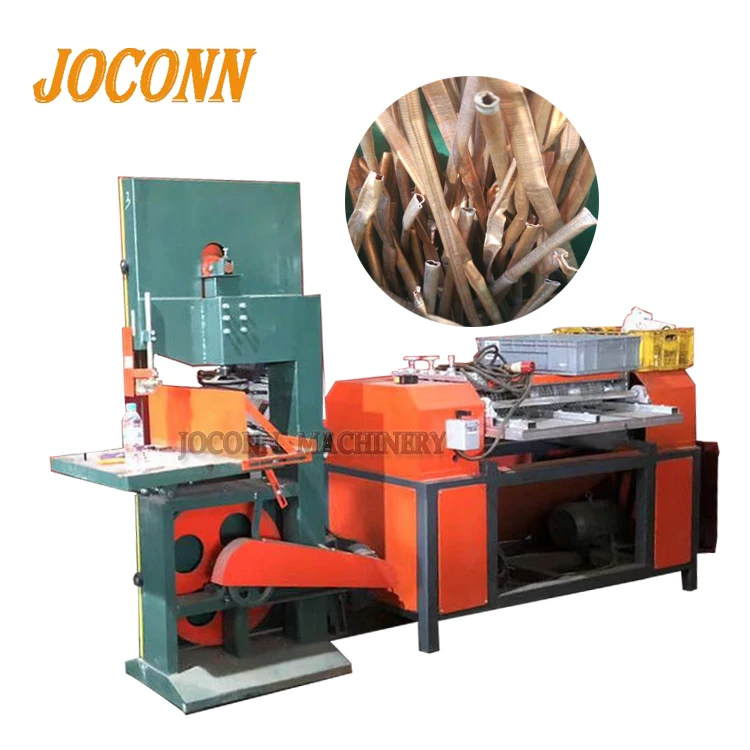

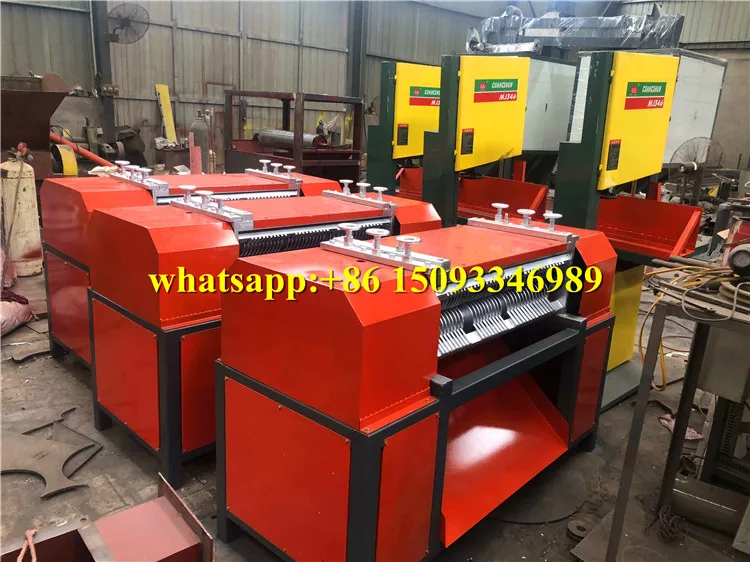

4. Pictures of radiator crushing separating machine

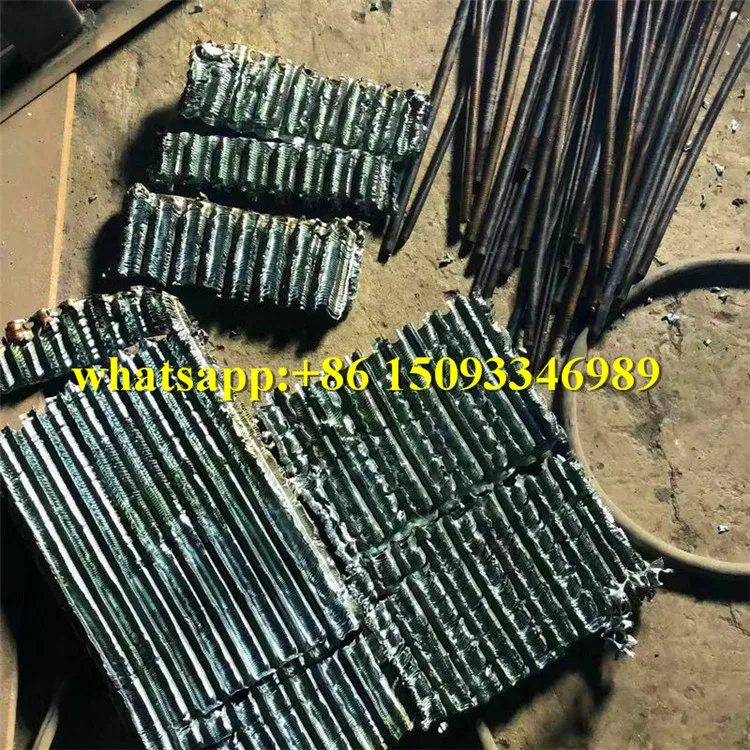

 5.Final Products
