НОВЫЙ 2 5G SFP полный гигабитный управляемый промышленный BT 90W отключение POE Ethernet
- Категория: Network Switches >>>
- Поставщик: Shenzhen,Hongrui,Optical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 450.65 $* | 473.85 $* |
| Aug-16-2025 | 446.90 $* | 468.65 $* |
| Jul-16-2025 | 374.38 $* | 393.85 $* |
| Jun-16-2025 | 438.48 $* | 460.71 $* |
| May-16-2025 | 382.48 $* | 401.61 $* |
| Apr-16-2025 | 431.53 $* | 453.3 $* |
| Mar-16-2025 | 427.33 $* | 448.27 $* |
| Feb-16-2025 | 423.77 $* | 444.93 $* |
| Jan-16-2025 | 420.25 $* | 441.25 $* |
Характеристики
bypass ethernet switch New 2.5G SFP Full Gigabit Managed Industrial BT 90W Bypass POE Ethernet Switch bypass network switch bypass switch
bypass ethernet switch New 2.5G SFP Full Gigabit Managed Industrial BT 90W Bypass POE Ethernet Switch bypass network switch bypass switch
Conventional parameters | ||

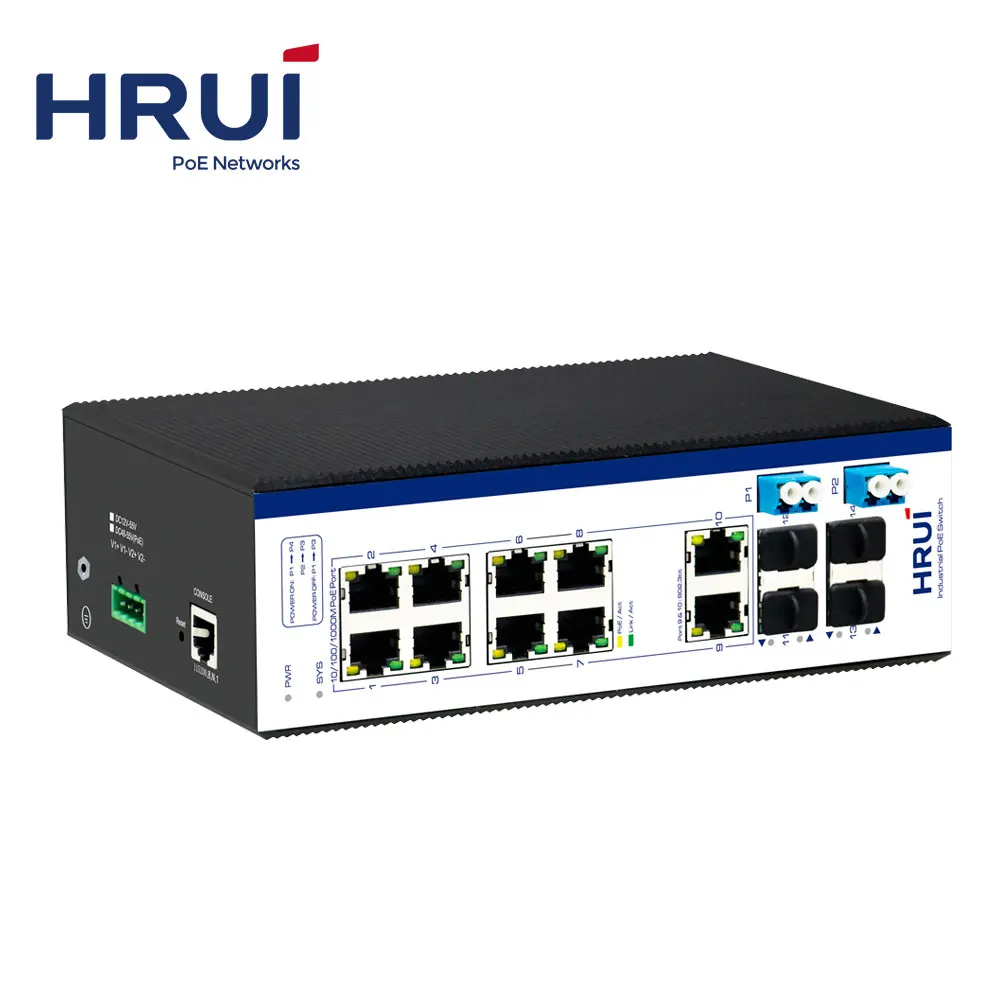

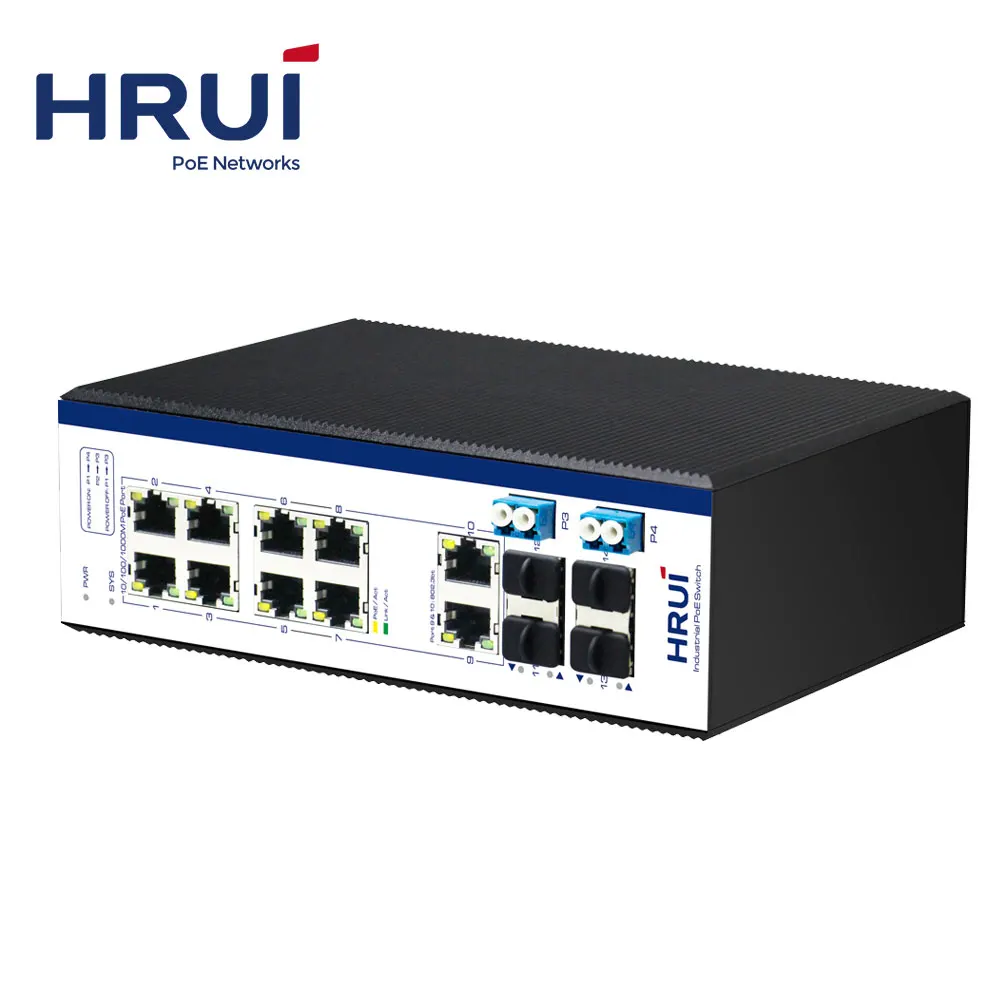

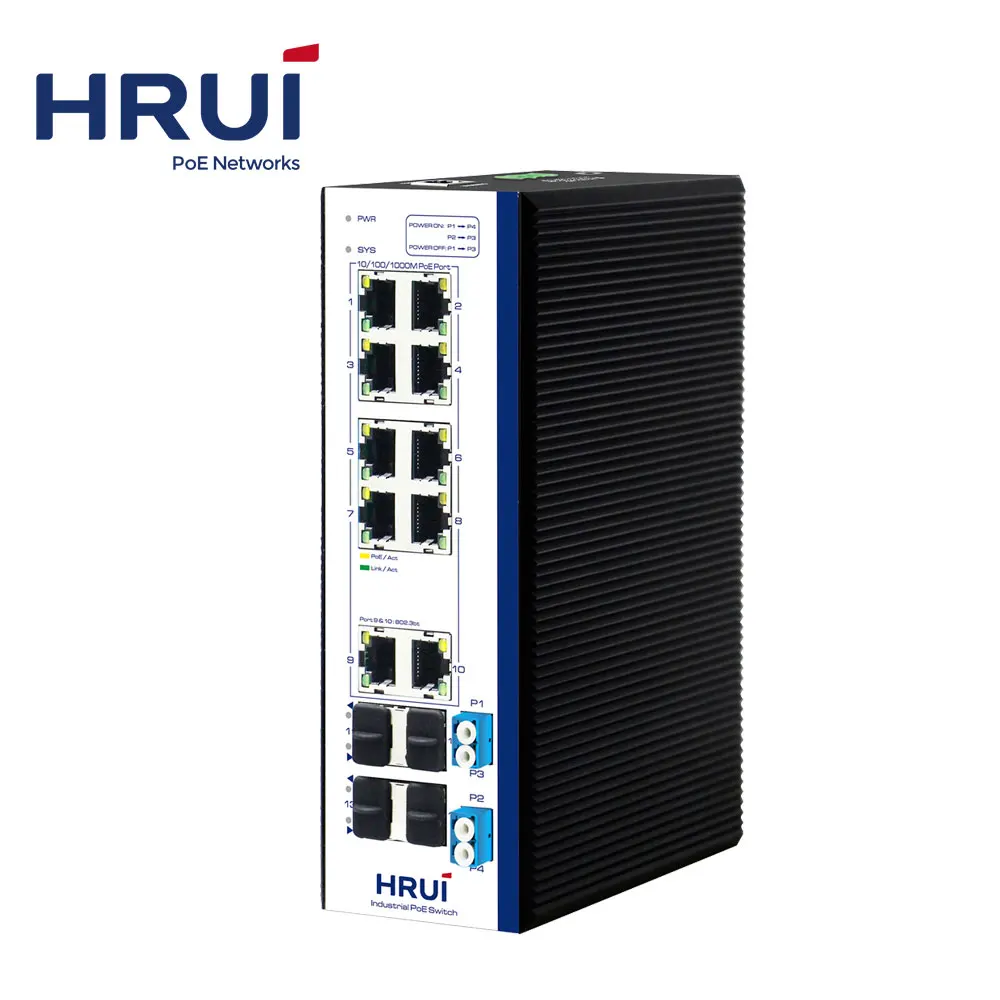

Product Name | 14 Ports Gigabit Industrial Managed PoE Switch | |
Product Model | HR600-AXGM-SWG20104AS-BP | |

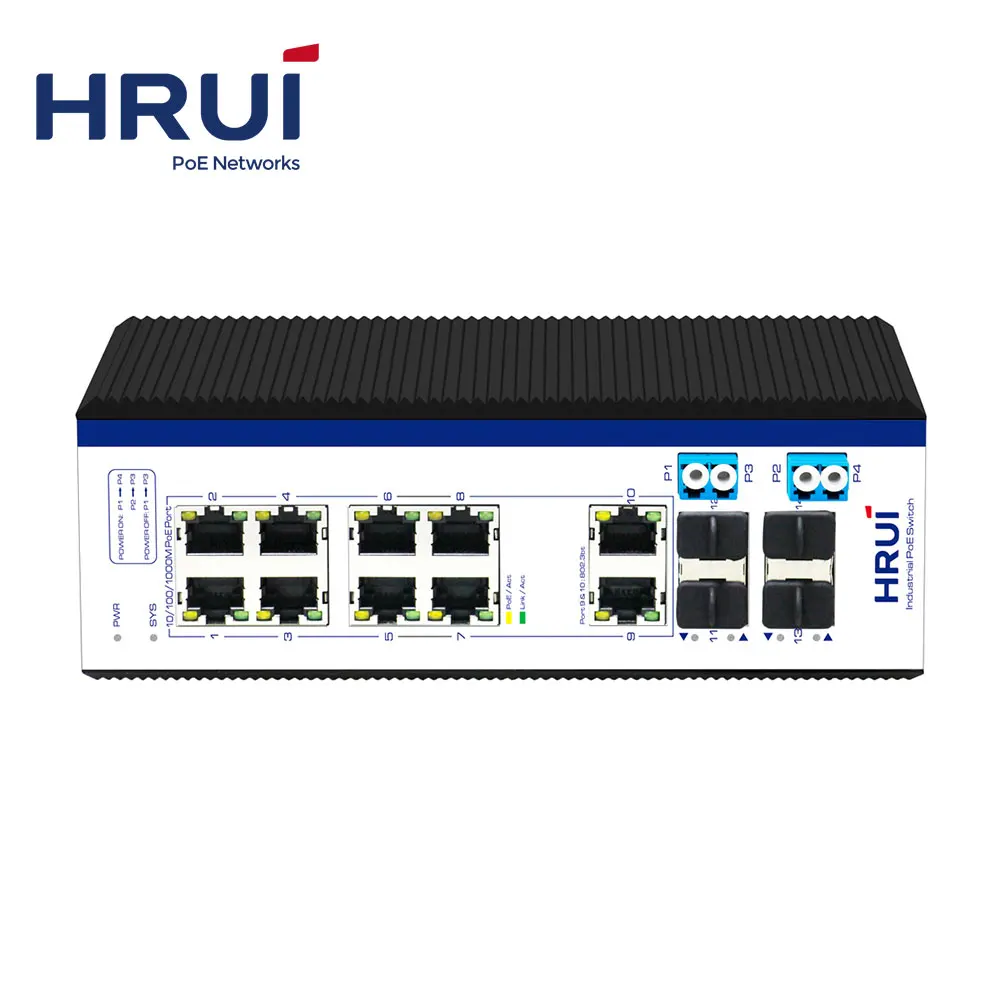

Port Definition | 10 Gigabit PoE Ports(9-10 Port Support BT) + 4 Gigabit SFP Port (13-14 Port support 2.5G, Compatible with 1.25G/155M) + 1 Console Port | |
Network Protocols | IEEE802.3 IEEE802.3u IEEE802.3z IEEE802.3ab IEEE802.3x IEEE802.1d IEEE802.1w | |
POE Parameters | POE Standard: IEEE 802.3af/IEEE 802.3at/IEEE802.3bt | |
Single PoE Port Power Output: Max: 15.4 W (IEEE 802.3af) Max: 30 W (IEEE 802.3at) | ||
Max:90 W (IEEE 802.3bt) | ||
PoE Compatibility: IEEE 802.3af / at / bt adaptive | ||
POE Power Output:DC48-55V | ||
POE Power in:1/2- ; 3/6+ (bt:1/2- 3/6+;4/5+ 7/8-) | ||
Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 M) 100BASE-TX: Cat5 or aboveUTP(≤100 M) 1000BASE-TX: Cat5 or aboveUTP(≤100 M) | |
Bypass | P1: Optical Fiber in or out Port (P3 and P4 are corresponding outlets, recommended to connect A ) P3: Optical Fiber in or out Port (P1 and P2 as corresponding outlets, recommended to connect B ) | |
P2: SFP Module Fiber Port (P3 as corresponding outlets, recommended to connect A ) P4: SFP Module Fiber Port (P1 as corresponding outlets, recommended to connect B ) | ||
Fiber Media | Multi-mode:850nm,1310nm Transmission Distance:550m/2Km Single-mode:1310nm,1550nm Transmission Distance:20/40/60/80/100/120Km | |
LEDIndicator | PWR | Lighting:Powered |
SYS | Lighting:System is operating normally Un-Light:System is not running | |
Yellow light | Lighting:PoE Powered | |
Green light | Lighting:Link normally Un-Light:Link disconnect | |
11-14 | Lighting:Fiber Connection is Normal Un-Light:Disconnect | |
Power Supply | Input Voltage: DC48~55V Type of input: 4 PIN terminal (blockV1+V1- V2+ V2-) | |

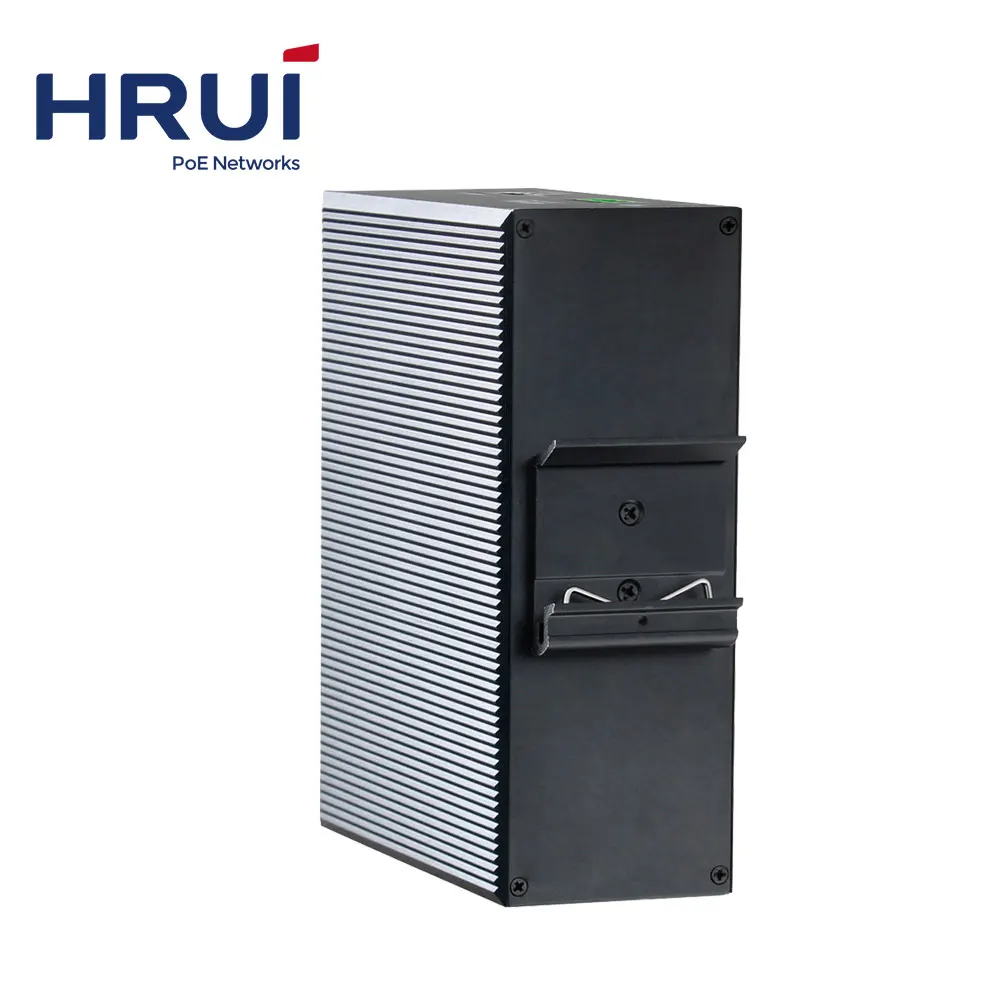

Physical structure | Protect grade: IP40 Installation:DIN Rail Product weight: 1 KG Package weight:1.3KG(Without power) Produc Dimensions(L×W×H): 188mm*130mm*64mm Package Dimensions(L×W×H): 250mm×210mm×88mm Standard packing(L×W×H): 608mm×500mm×435mm Standard packing quantity:28 (PCS) | |
Working Environment | Operating temperature: -40~85℃ Storage temperature: -40~85℃ Humidity: 5%~95 % ( No condensation) | |
Industry Standard | EMI: FCC Part 15, CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 | |
Certification | CE mark, commercial | |
MTBF | 100,000 Hours | |
Packing list | Industrial grade switch: 1 Set Instruction manual: 1PCS Certificate, warranty card: 1PCS Serial cable:1PCS Operation manual CD:1 PCS | |
Warranty | 5 years | |
Hardware Parameters | ||
Bandwidth | 34Gbps | |
PacketForwarding Rate | 25.29Mpps | |
RAM | 128MB | |
Flash | 16MB | |
PacketBufferMemory | 4M | |
Jumbo frame | 9.6Kbytes | |
VLANs | 4096 | |
MAC | 8K | |
Forwarding Mode | Store-And-Forward | |
L2 management | ||
Port management | Support enable / disable port Support speed, duplex, MTU setting, etc. Support flow control flow control settings Support port mirroring. Support port in / out direction Support port speed limit Support port isolation setting Unknown unicast, multicast, broadcast storm suppression | |
STP | Standard Spanning Tree (STP) 802.1d Rapid Spanning Tree (RSTP) 802.1w Multiple Spanning Tree (MSTP) 802.1s | |
Ring Network Protocol | ERPS | |
Link Aggregation | Support static manual aggregation Support LACP dynamic convergence | |
VLAN | Support Port based VLAN and IEEE 802.1Q VLAN | |
IGMP Snooping | Support static add / delete | |
MAC | Support static add / delete MAC address learning limit Support dynamic aging time settings | |
L3 ( Layer 3 Switching ) and Router Function | ||
Interface Configuration | Support virtual VLAN interface | |
ARP | Support check ARP | |
Router Function | Static Router | |
Extended Function | ||
ACL | based on the source MAC, destination MAC, protocol type, source IP, destination IP, L4 port number Support time-range time management | |
QOS | based on 802.1p (COS) classification Based on DSCP classification Based on the source IP, destination IP, port number classification Support SP, WRR, DRR scheduling strategy Support traffic speed limit CAR | |
LLDP | supports LLDP link discovery protocol | |
User Setting | Support add/delete user | |
Log | User login, operation, status, event log | |
Port security | Dyning Gasp,Snmp Trap | |
Prevent Attack | DOS defense Support for CPU protection, limited to send CPU message rate ARP binding (IP, MAC, PORT binding) | |
System Management | Device reset, configuration save/restore, upgrade management, time setting, etc. | |
Management Function | ||
CLI | Support serial command line management | |
TELNET | Support serial command line management | |
SSH | Support SSHv1/2 remote management | |
SNMP | Support v1/2/3 | |
WEB | Support two layers of settings | |
PoE | POE Power management | |
2.5G SFP Gigabit Industrial BT 90W Bypass POE Ethernet Switch bypass network switch bypass switch
