Product Description
SeanRo 2p 6-63A automatic circuit breaker dc breaker for solar panels
Description

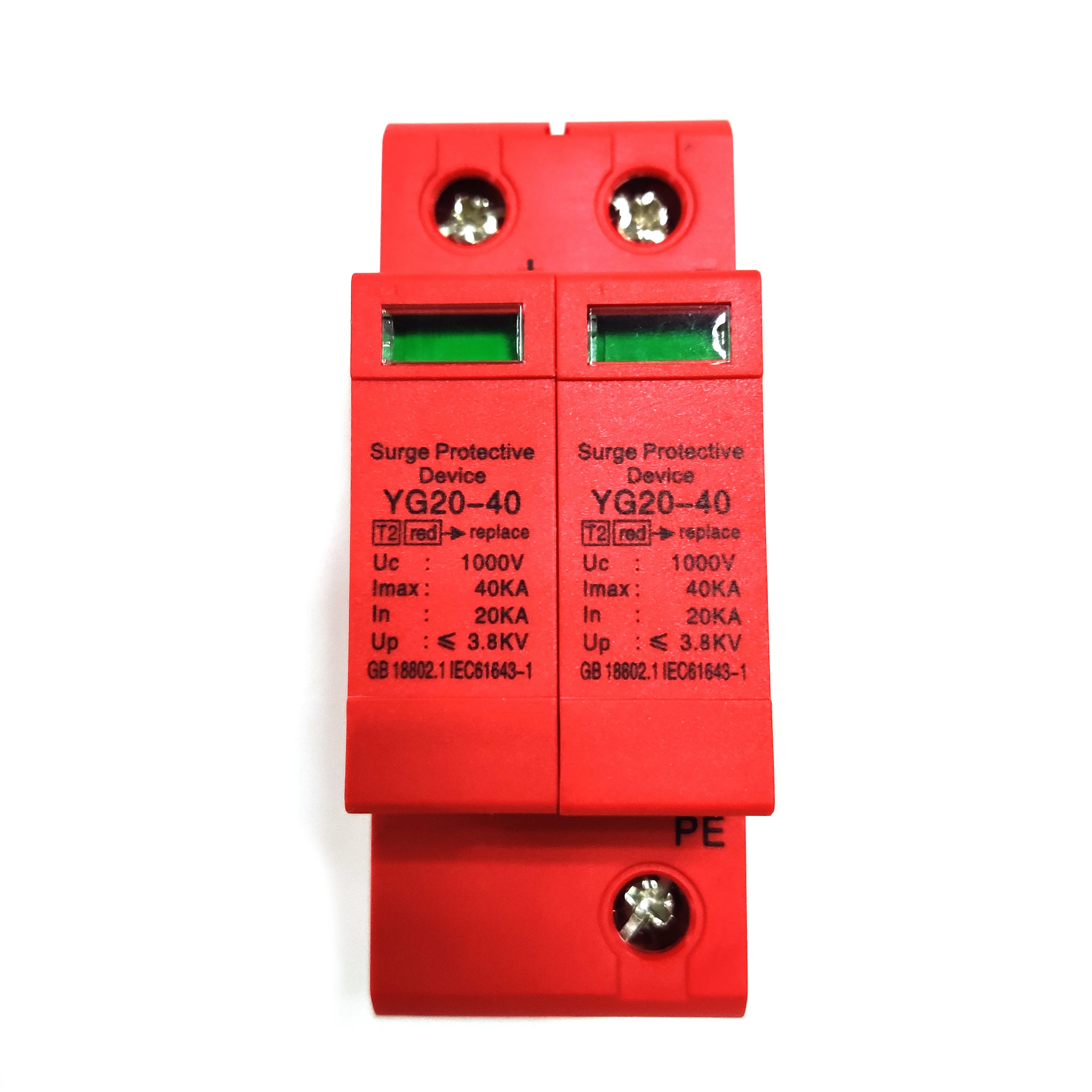

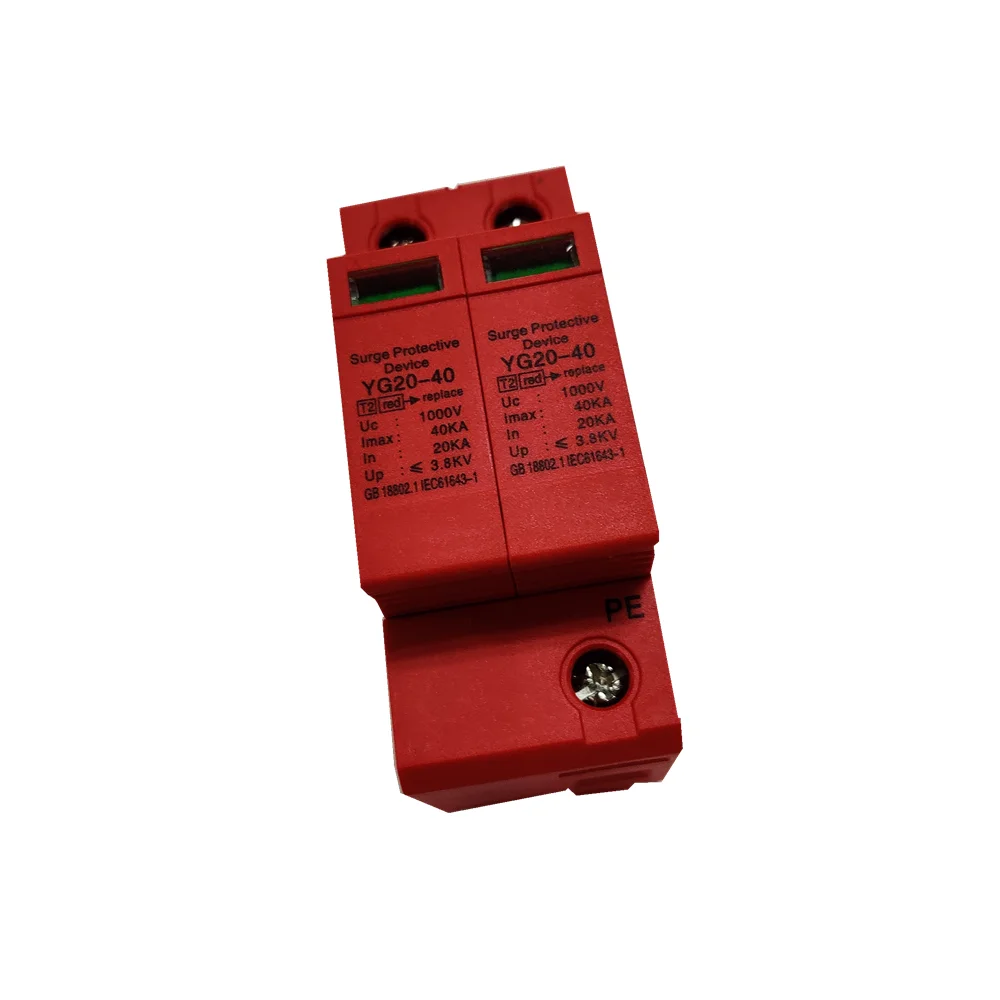

Surge protective device, protect against lightning surge voltage in solar system(photovoltaic power supply system). These units must be installed in parallel on the dc networks to be protected and provide common and different modes protection. Its installed location are recommended at both ends of the dc power supply line(solar panel side and inverter/converter side), especially if the line routing is external and long. High energy MOVs equipped with specific thermal disconnectors and related failure indicators. This product accoring to IEC66143-1/EN61643-11
Technical data
Pole | 2P&3P | |||
Classified test | II | |||
Uoc max (V) | 1000Vdc | |||
Uc (V) | 1000Vdc | |||
In (8/20)us (kA) | 20 | |||
Imax (8/20)us (kA) | 40 | |||
Up(kV) | 3.5 | |||
Installation
Wiring capacity(mm2) | Hard wire | 4-25 | 4-25 | |||
Flexible wire | 4-16 | 4-16 | ||||
Stripping length(mm) | 10 | 10 | ||||
Terminals screw | M5 | M5 | ||||
Torque (Nm) | Main circuit | 3.5 | 3.5 | |||
Remote signal contact | 0.25 | 0.25 | ||||
Protection class | All profile | IP40 | IP40 | |||
Connection port | IP20 | IP20 | ||||
Installation environment | No obvious shock and vibration | |||||
Altitude(m) | ≤2000 | ≤2000 | ||||
Working temperature | "-30℃-+70℃ | "-30℃-+70℃ | ||||
Relative humidity | 30%-90% | 30%-90% | ||||
How to install | Installed with H 35-7.5/DIN 35 Steel mounting rail | |||||
Dimension | ||||||
Operating pricipe
