Pci express сервер Intel I350 чипсет 8 портов Gigabit ethernet rj45 сетевая

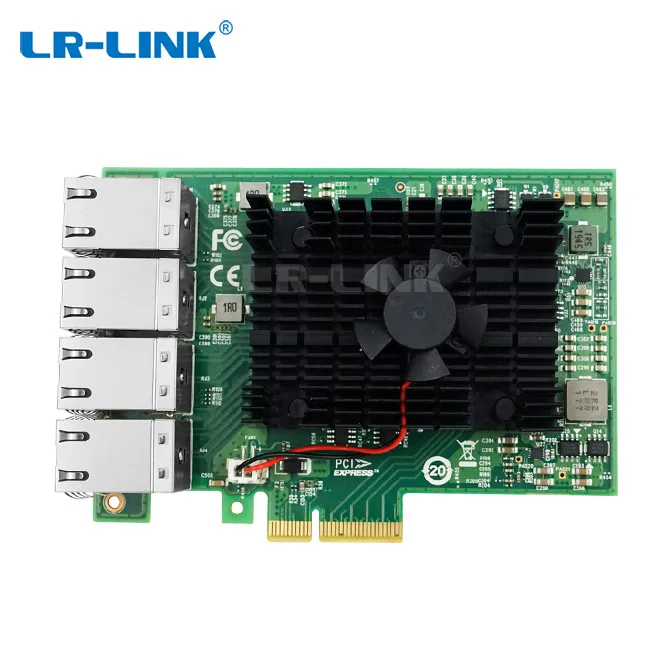

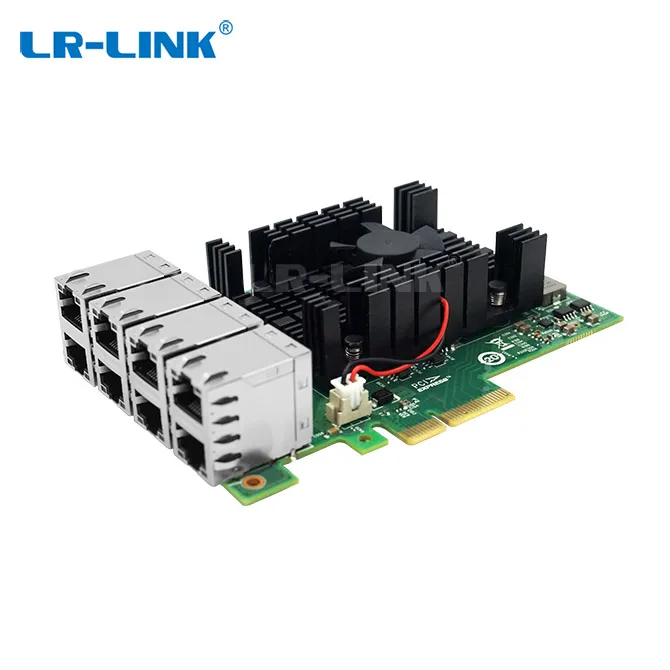

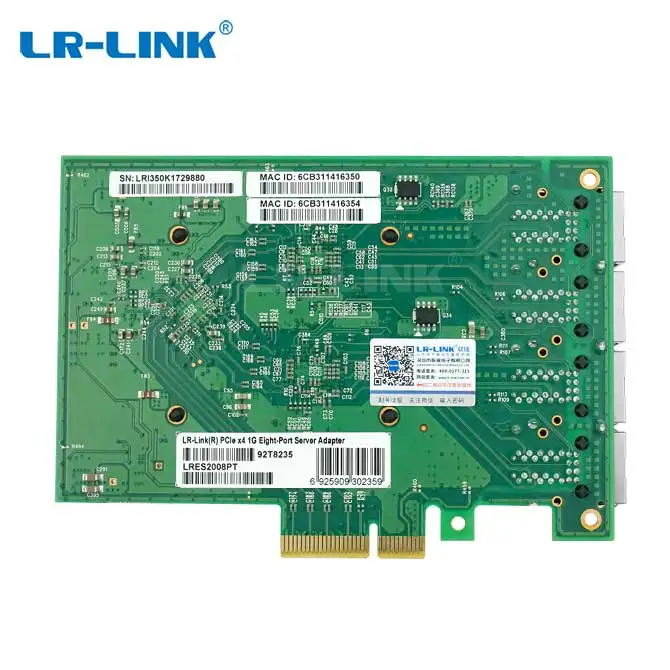

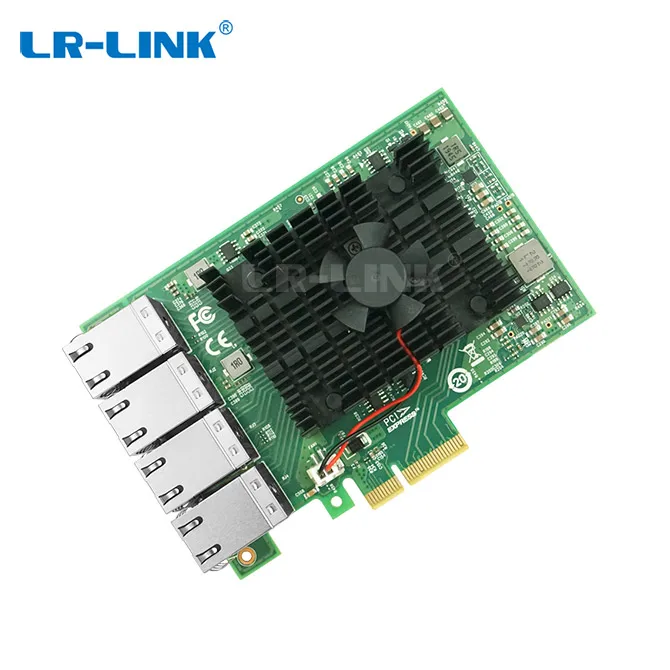

LRES2008PT is a PCI Express x4 eight-port Gigabit Ethernet network adapter independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel I350 chip solution, and is compatible with PCIe x8 and x16 channels. The design of this adapter card is mainly applied to the Internet of Things, industrial field visual inspection servers and equipment, visual field clients, fast-moving Ethernet data transmission equipment, etc., and is also suitable for ordinary servers.

This adapter card has integrated hardware acceleration function and can perform TCP / UDP / IP checksum offload and TCP segmentation tasks. The host processing technology can offload the accelerator, and the host processing technology can offload the accelerator, freeing up CPU resources to free up more CPU resources to process other applications. This adapter card is an ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers.

LRES2008PT is developed on the basis of Intel Ethernet MAC + PHY (Media Access Controller and Physical Interface Transceiver) controller, which allows eight ports to work in full-duplex mode at the same time in a Gigabit Ethernet connection In order to achieve high-performance network communication, the bandwidth can also be expanded through link aggregation and the PCI Express channel resources on the host are saved without occupying the bus bandwidth.

1. The use of large high-end high-efficiency radiators can effectively solve the problem of adapter heat dissipation in the case of poor heat dissipation environment, effectively guarantee the stable operation of the adapter card for a long time;
2. Self-adaptive to the connection rate of external equipment, up to 8 1000M working at the same time without affecting the communication performance;
3. Using compact 8-port Gigabit high-quality connectors to ensure communication quality;
4. Carefully selected RJ45 connectors with thickened and heavy gold to ensure more firm and reliable connectivity;
5. The design of eight 8-Pin RJ45 connectors can better save the precious PCIe slot resources of the motherboard.

                                                                        Technical Features
