Лестница с таймером и временным управлением GEYA GRT8-LS AC230V переключатель на Din-рейку автоматической задержкой 0 5-20 минут
- Категория: Выключатели с часами >>>
- Поставщик: Zhejiang,Geya,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 6.21 $* | 6.18 $* |
| Jul-16-2025 | 5.31 $* | 5.98 $* |
| Jun-16-2025 | 6.20 $* | 6.82 $* |
| May-16-2025 | 6.51 $* | 6.72 $* |
| Apr-16-2025 | 5.42 $* | 5.18 $* |
| Mar-16-2025 | 6.51 $* | 6.5 $* |
| Feb-16-2025 | 6.54 $* | 6.60 $* |
| Jan-16-2025 | 6.8 $* | 6.20 $* |
Характеристики
Product Description

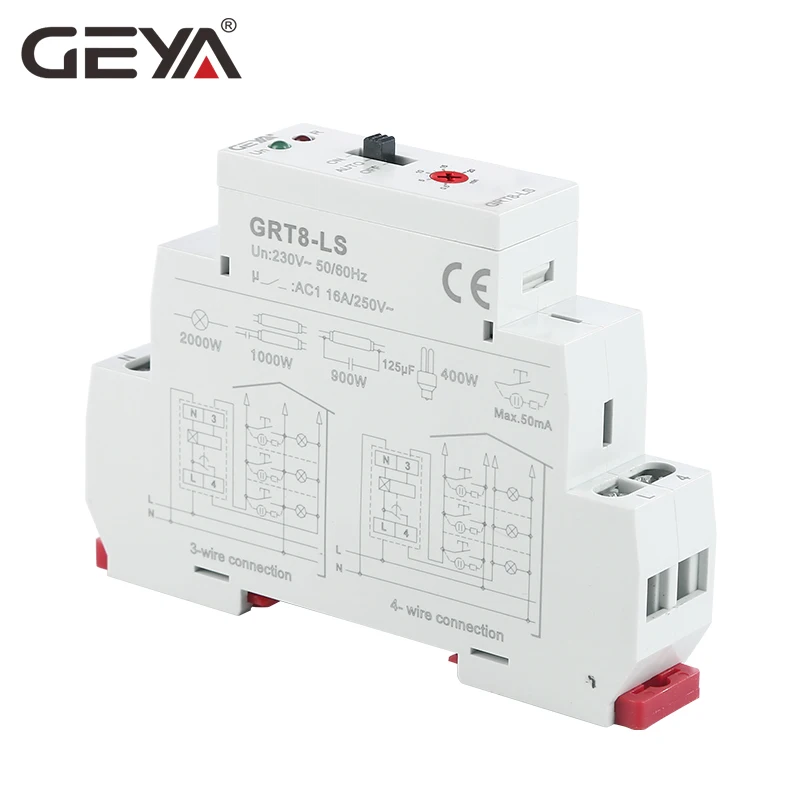

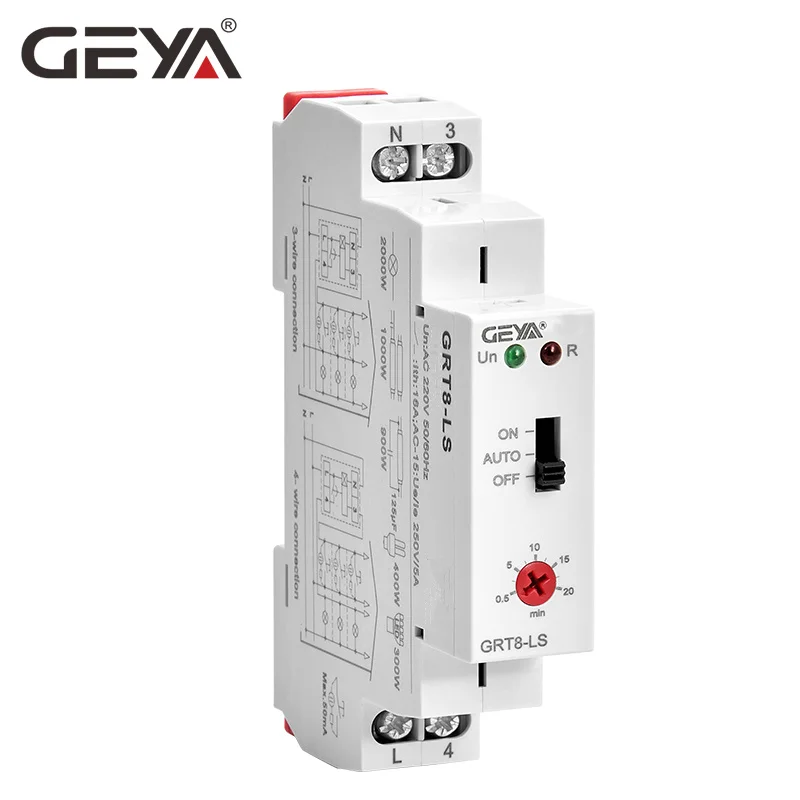

GRT8-LS Staircase time switch is used for delayed switching of lights in the corridors, entrances, stairways, halls or for delayed fi nish of fans (WC, bathroom, etc.).

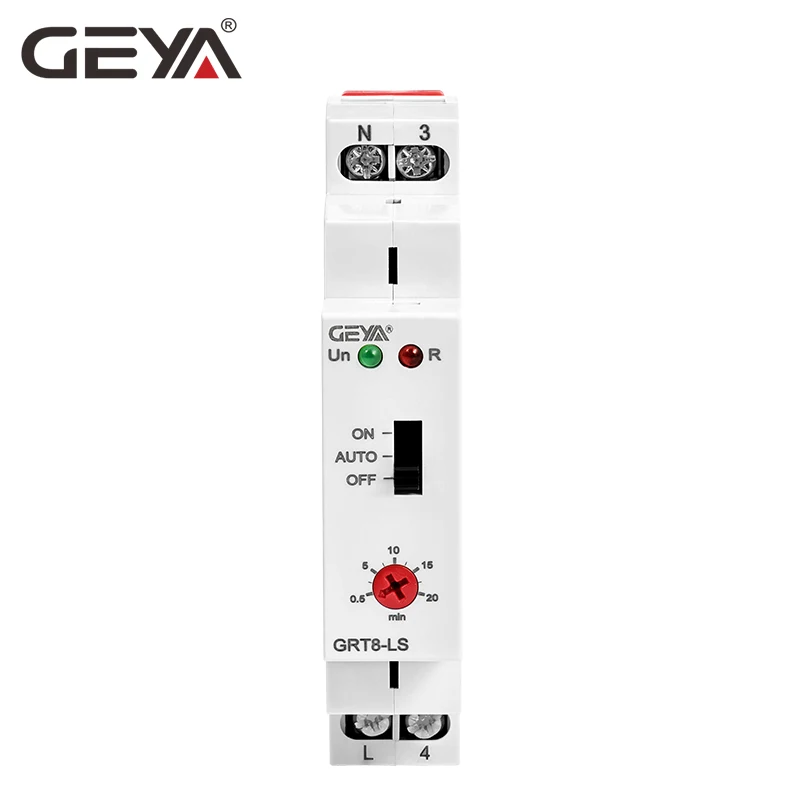

-Operating system switch:
ON- output is constantly ON .
AUTO- timing according to adjusting by potentiometer in range 0.5 - 20 min
OFF-output is constantly OFF.
- Voltage range: AC 230 V, clamp terminals.
- Relay status is indicated by LED.

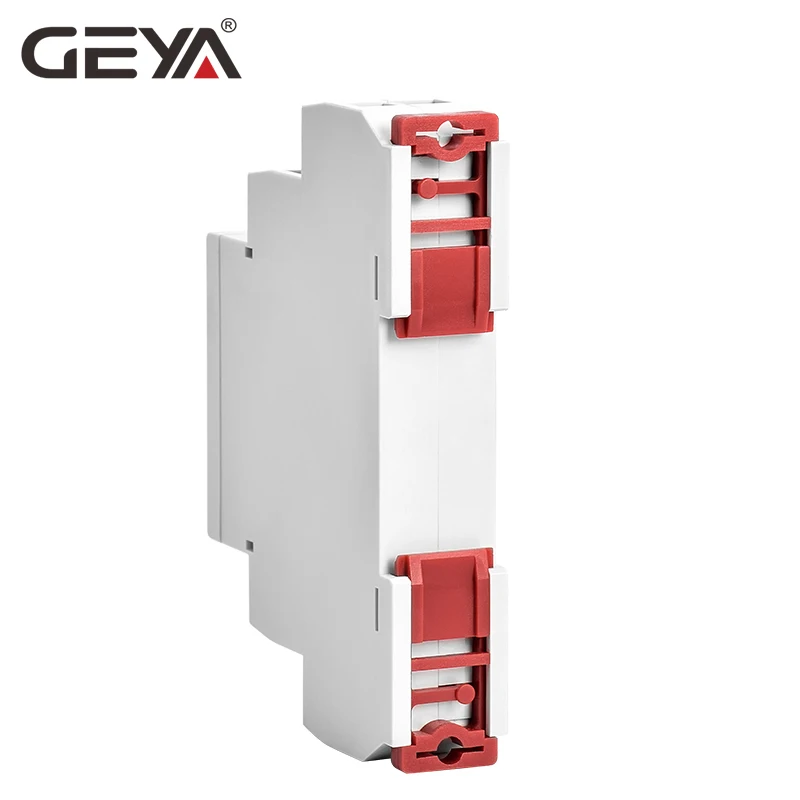

- 1-MODULE,DIN rail mounting.
- GRT8-LS
Function Features-Operating system switch:
ON- output is constantly ON .
AUTO- timing according to adjusting by potentiometer in range 0.5 - 20 min
OFF-output is constantly OFF.
- Voltage range: AC 230 V, clamp terminals.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
Technical Data
Technical parameters | GRT8-LS |
Function | delay off reacting to contact switching |
Supply terminals | L-N |
Voltage range | AC 230V(50-60Hz) |
Power input | AC max.6VA/1.3W |
Supply voltage tolerance | -15%;+10% |
Supply indication | green LED |
Time Ranges | AUTO:0.5-20min ON OFF |
Time setting | potentiometer |
Time deviation | 10%-mechanical setting |
Repeat accuracy | 0.2%-set value stability |
Minimum power time | 200ms |

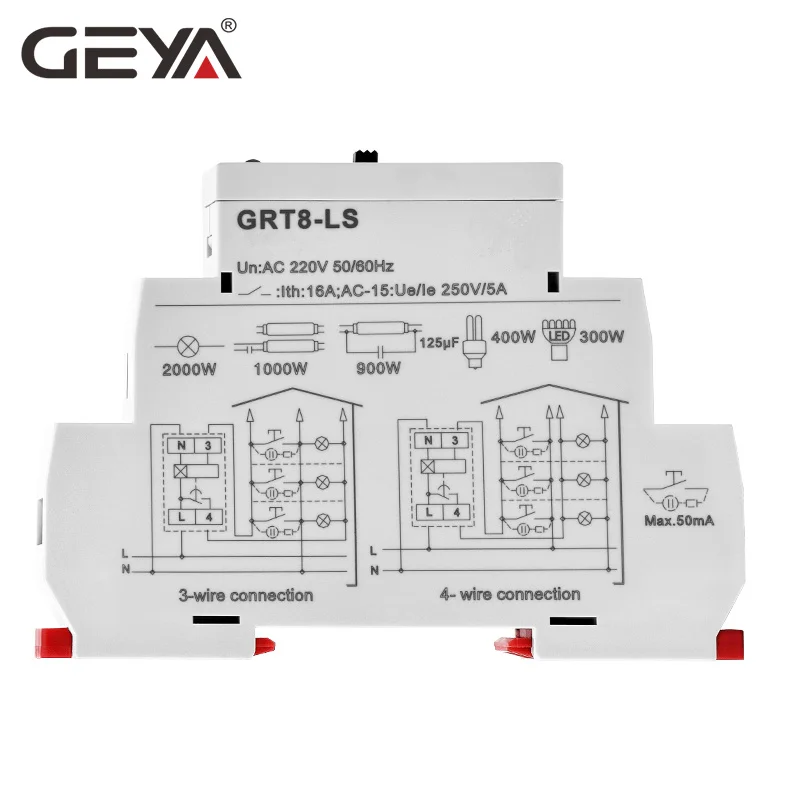

Glow tubes connections | Yes(N-3 or L-3) |
Max.amount of glow lamps | 230V,max.75pcs(Measured with glow lamp 0.68mA/230V AC) |
Temperature coefficient | 0.05%/℃,at=20℃(0.05%℉，at=68℉) |
Output | 1×SPDT |
Current rating | 1×16A(AC1) |
Switching voltage | 250VAC/24VDC |
Min.breaking capacity DC | 500mW |
Output indication | red LED |
Mechanical life | 1×107 |
Electrical life(AC1) | 1×105 |
Reset time | max.200ms |
Operating temperature | -20℃ to+55℃（-4℉ to131℉） |
Storage temperature | -35℃ to+75℃（-22℉ to158℉） |
Mounting/DIN rail | Din rail EN/IEC 60715 |
Protection degree | IP40 for front panel/IP20 terminals |
Operating position | any |
Overvoltage category | III. |
Pollution degree | 2 |
Max.cable size(mm2) | solid wire max.1×2.5or 2×1.5/with sleeve max.1×2.5(AWG 12) |
