Product Description
Overview

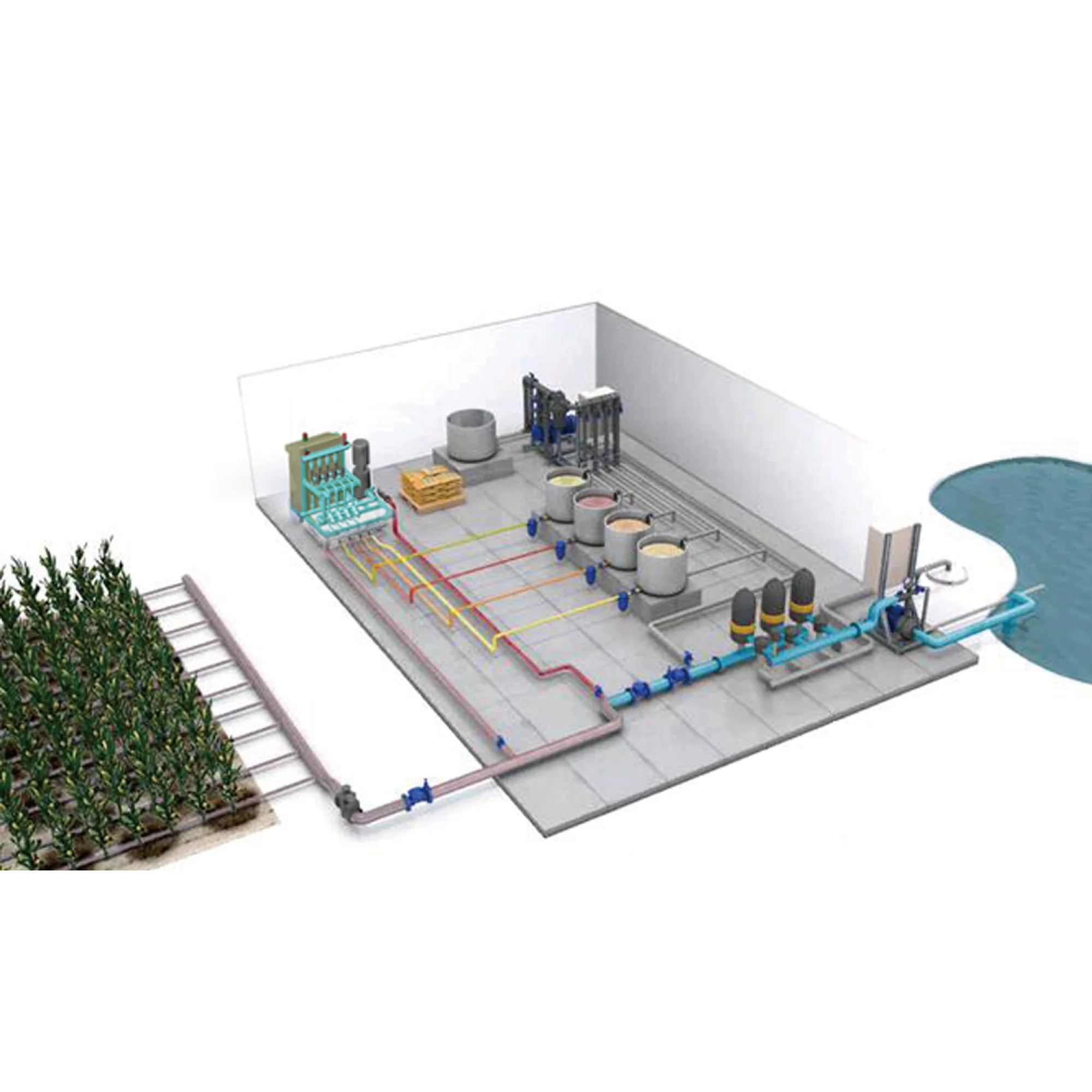

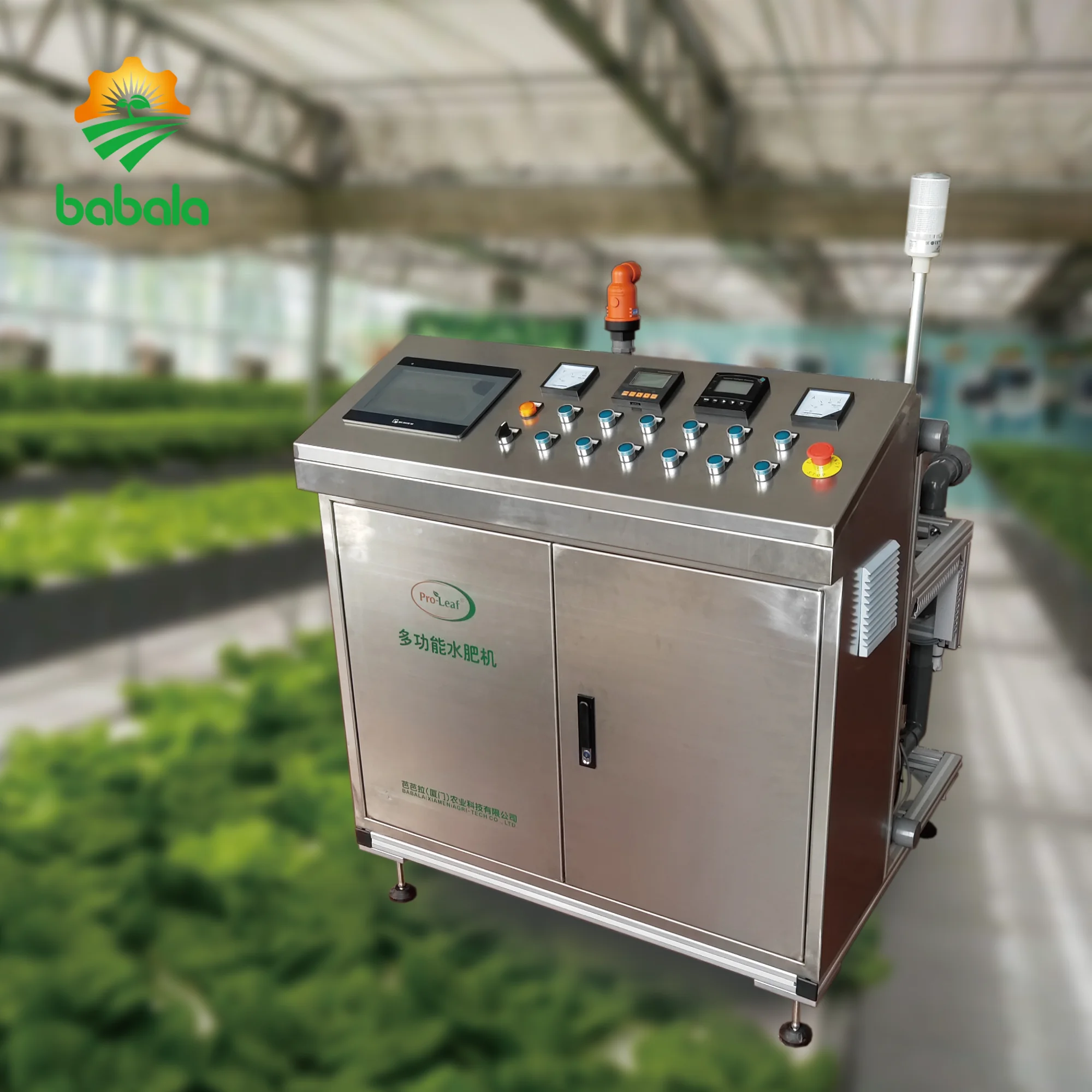

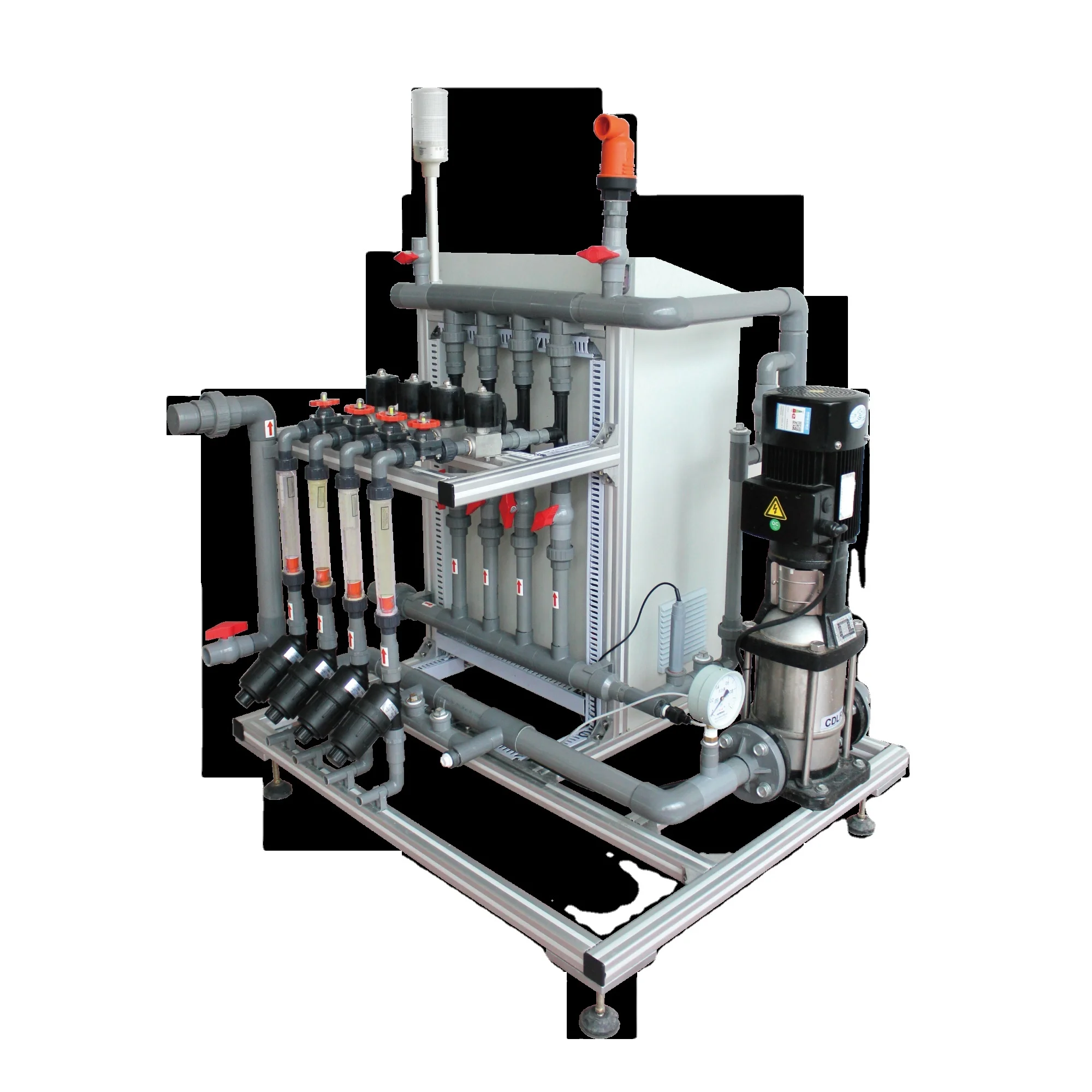

This machine is a new agricultural technology that combines irrigation and fertilization. The function of this machine is divided into three parts: one is to fill fresh water to the designated position at regular intervals; the other is to automatically fertilize fertilizer tanks according to target values; The clean water pump and irrigation pump of this machine can be operated independently and manually.
Product Features
1. It can be used in the big nutrient pool mode, that is, fertilize first and then irrigate.
2. Large LCD touch screen (10 inches), realizing human-machine interface display, data acquisition and storage, device control and other functions.

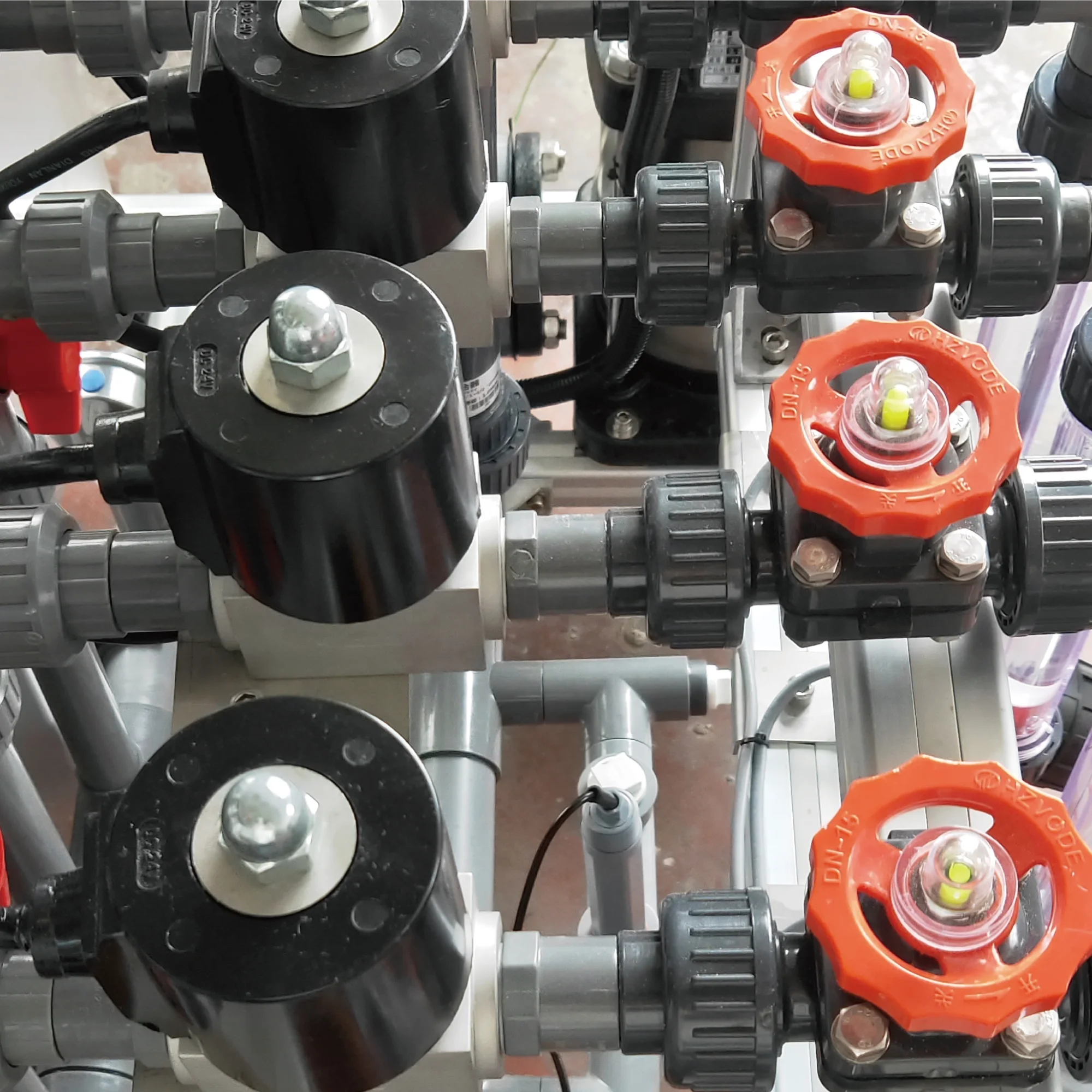

3. Equipped with 4 channels of fertilizer: with pulse fertilizing valve, adjustable flow meter and Venturi fertilizer.
4. Manual mode: The irrigation area can be set arbitrarily (while the irrigation amount does not exceed the maximum flow rate), the amount of fertilizer absorbed is manually adjusted, and the ECPH is used for monitoring.
5. Automatic operation mode: ECPH automatically and accurately distributes fertilizer according to the setting, and irrigates according to the plan.
6. Alarm function: The EC / PH value exceeds the upper and lower limits for alarm.
7. The single PH / EC measurement and control system cooperates with the pulse valve, and through intelligent calculation, stable and accurate automatic fertilizer distribution.
8.You can set 4 time periods for fertilizer application. 10 irrigation plans can be set, and multiple irrigation areas can be selected at the same time (up to 16 irrigation valves, and 10 irrigation areas can be arbitrarily formed). Supports multiple schemes for precise timing irrigation, multi-task rotation irrigation (arbitrary selection of irrigation area), multi-task quantitative irrigation (optional).
9. A total of 540 fertilizer formulas can be set for 90 planting varieties.
10.Support 10-way irrigation valve control output interface, modular design, easy maintenance.
11.The equipment provides a variety of common crop fertilization formulas for reference.
12. Equipped with frequency converter, it can adjust the working state of fertilizer pump more stably. In the online mode, the output can be provided as a constant pressure pressure output by using a frequency converter.
13.It can irrigate clean water for a long time and manually, and can be stopped by one button. The clean water pump and fertilizer pump have manual, automatic and stop functions, which is safe and reliable.
14.Laminated filters are provided on the fat road. Equipped with a fat channel detection device.
Product Paramenters

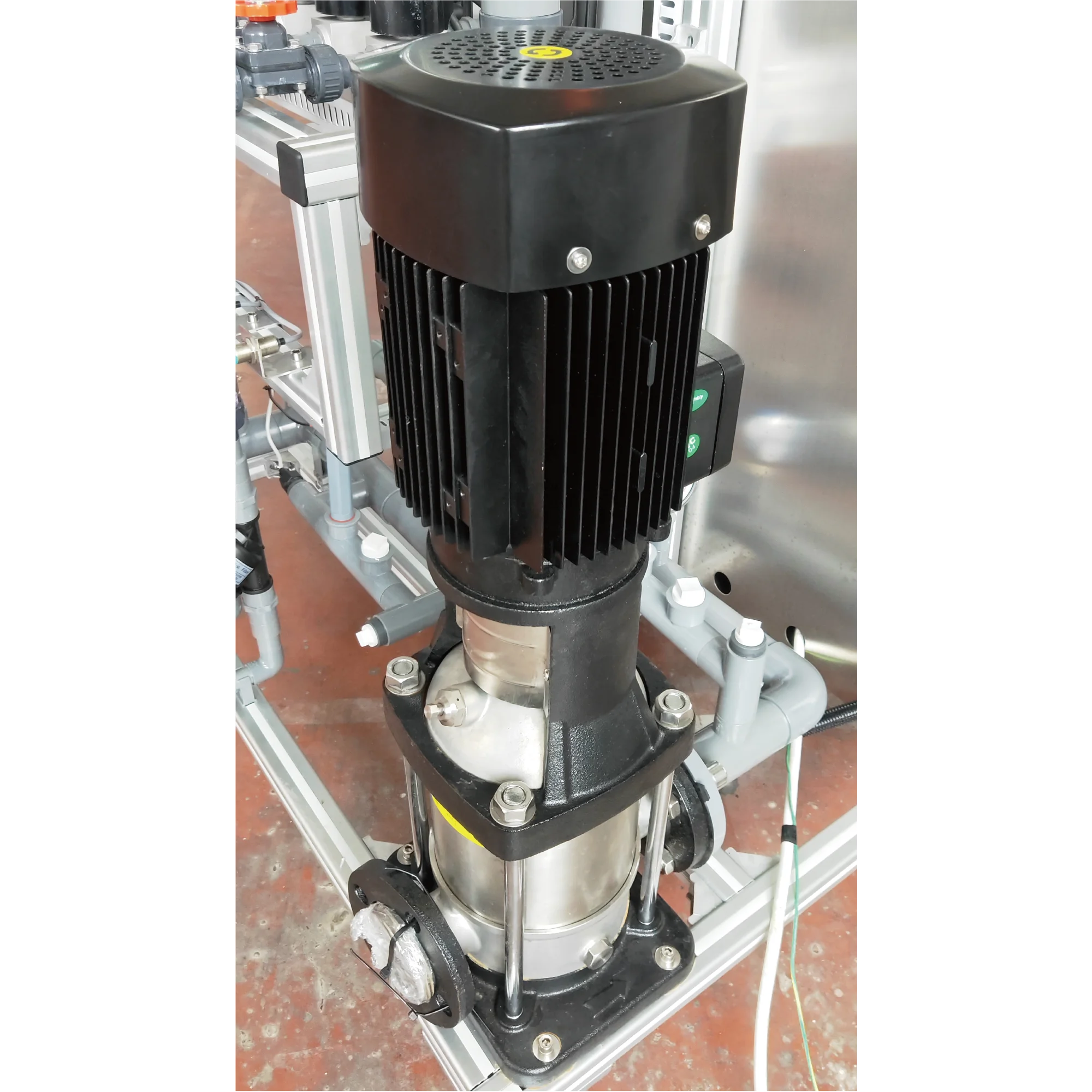

1. Irrigation pump: 8m3 / h, head 45m, 380V, 2.2KW
2. Equipped with 4 channels of fat absorption, 16 channels of output (AC24V). The maximum absorption capacity at the same time is ≥4 * 400L / h.
4. The import and export of water and fertilizer machine is DN40, and the fertilizer channel is DN15.
2. Equipped with 4 channels of fat absorption, 16 channels of output (AC24V). The maximum absorption capacity at the same time is ≥4 * 400L / h.
3. It can control one clean water pump not exceeding 220v0.55KW and one irrigation pump not exceeding 380v7.5KW.
4. The import and export of water and fertilizer machine is DN40, and the fertilizer channel is DN15.
Details Images
Product Processing
Company Profile
Located in Xiamen, China, Babala(Xiamen) Agricultural Technology Co.,LTD was originated in 2004. We’ve launched our own brand Pro-Leaf. Pro-Leaf specializes in professional and innovative environmental control systems for indoor garden and applications.Made by growers for growers, we strive to offer unique and advanced products which facilitate large harvests while also reducing labor. Pro-Leaf is committed to developing premium quality hydroponics equipment products which combine cutting-edge technology with ease of use-Let Pro-Leaf take your garden to the next level with superior control!
