Одножильный медный проводник 0 6/1 кВ изолированный силовой кабель NYY с ПВХ
Одножильный медный проводник 0 6/1 кВ изолированный силовой кабель NYY с ПВХ
Одножильный медный проводник 0 6/1 кВ изолированный силовой кабель NYY с ПВХ
Одножильный медный проводник 0 6/1 кВ изолированный силовой кабель NYY с ПВХ
Одножильный медный проводник 0 6/1 кВ изолированный силовой кабель NYY с ПВХ
Одножильный медный проводник 0 6/1 кВ изолированный силовой кабель NYY с ПВХ
Одножильный медный проводник 0 6/1 кВ изолированный силовой кабель NYY с ПВХ

Одножильный медный проводник 0 6/1 кВ изолированный силовой кабель NYY с ПВХ


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-20-2025 0.79 $* 0.22 $*
Aug-20-2025 0.79 $* 0.85 $*
Jul-20-2025 0.35 $* 0.28 $*
Jun-20-2025 0.65 $* 0.47 $*
May-20-2025 0.34 $* 0.75 $*
Apr-20-2025 0.0 $* 0.55 $*
Mar-20-2025 0.85 $* 0.26 $*
Feb-20-2025 0.0 $* 0.57 $*
Jan-20-2025 0.68 $* 0.44 $*

Характеристики


Products Application
This product is suitable for ac 50HZ, it can be used in line with rated voltage of 0.6/1kv power transmission and distribution.unable to bear external mech-anical force and pressure.
Product Construction


1)Conductor : Copper or aluminum ,Class 1 or Class 2,solid or stranded conductors
2)Insulation: Polyvinyl chloride PVC
3)Over sheath:Polyvinyl chloride PVC
Product Standards
SPECIFICATIONS:
IEC 60228 Conductors of insulate cables
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1 kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1:Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV) .

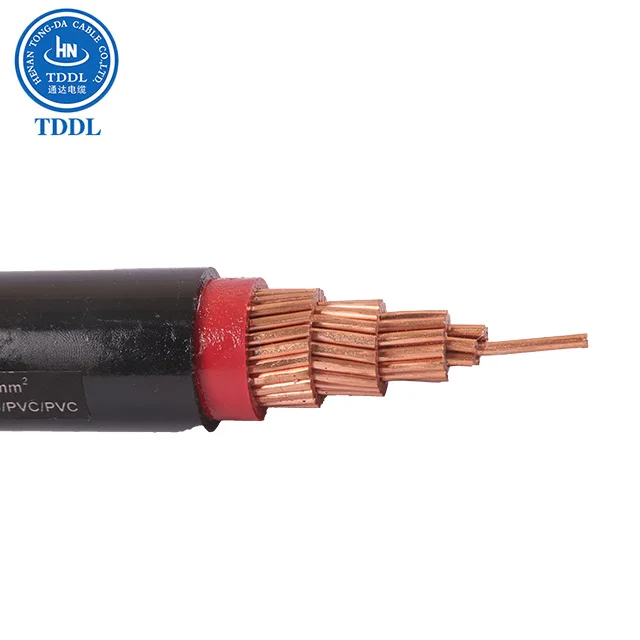

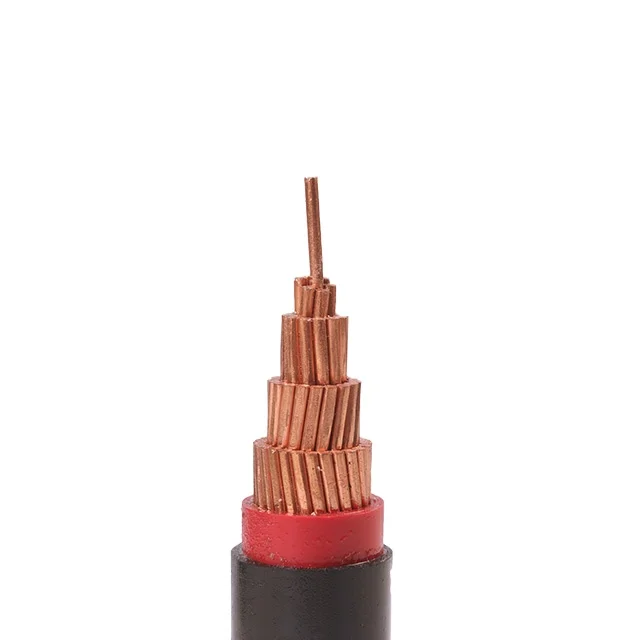

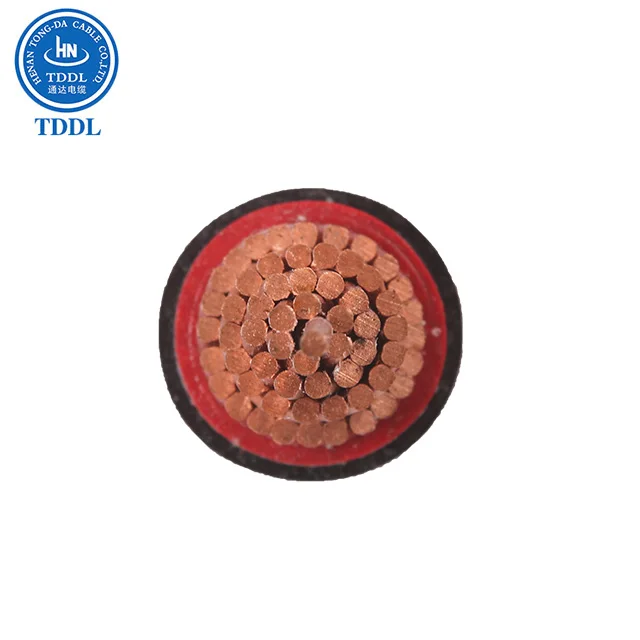

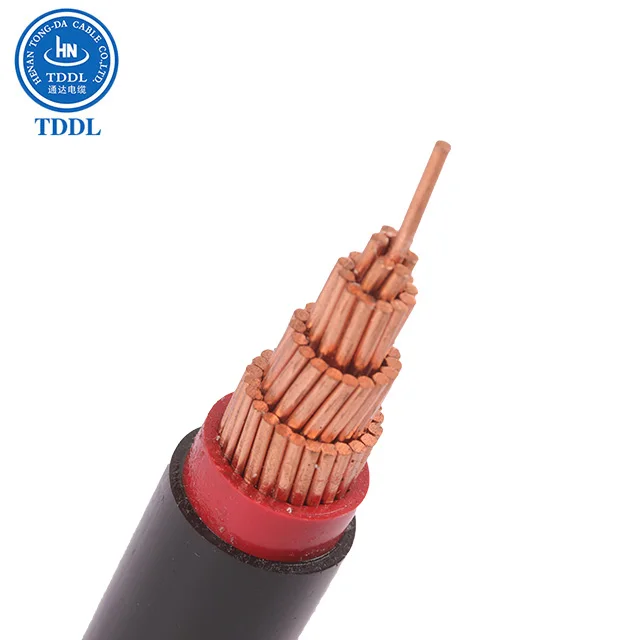

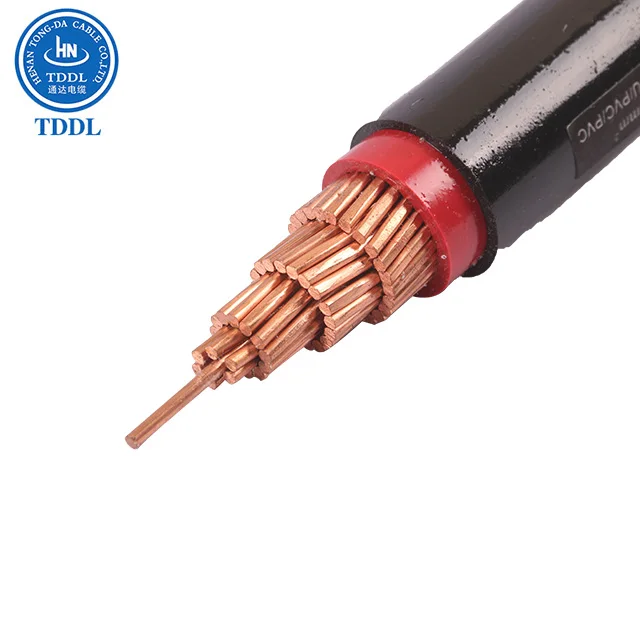

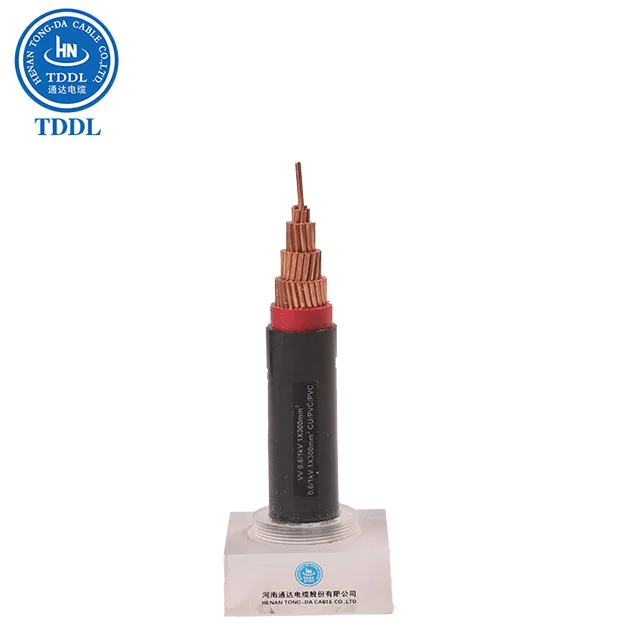

0.6/1kV-1 core copper conductor PVC insulated PVC sheathed power cable
No. of cores and nominal cross section
Thickness of Insulation
Thickness of Sheath
Approx. overall Diameter
Approx. weight
Max. DC resistance of conductor（20℃）
Current carrying capacity
(mm2)
(mm)
(mm)
(mm)
(kg/km)
(Ω/km)
In Air(A)
In Ground(A)
1X10
1.0
1.4
8.6
159
1.83
55
84
1X16
1.0
1.4
9.6
225
1.15
74
110
1X25
1.2
1.4
11.2
321
0.727
95
135
1X35
1.2
1.4
12.2
418
0.524
115
165
1X50
1.4
1.4
13.6
552
0.387
140
195
1X70
1.4
1.4
15.5
754
0.268
180
240
1X95
1.6
1.5
17.7
1020
0.193
220
290
1X120
1.6
1.5
19.1
1268
0.153
255
325
1X150
1.8
1.6
21
1584
0.124
295
370
1X185
2.0
1.7
23.3
1942
0.0991
340
420
1X240
2.2
1.8
26.2
2514
0.0754
405
485
1x300
2.4
1.9
29
3127
0.0601
470
550
1x400
2.6
2
32.3
4054
0.047
550
630
1x500
2.8
2.1
36.2
5164
0.0366
635
715
1X630
2.8
2.2
40
6431
0.0283
735
820
Company Profile
About Us
Henan Tong-da Cable Co., Ltd, successfully listed on Shenzhen Stock Exchange on Mar.3rd, 2011 (Stock Abbreviation: Tongda Stock, Stock Code: 002560), has devoted itself to the production, R & D and sales of wires and cables for more than 30 years.
The company covers an area of 360,000 square meters with a registered capital of 440 million RMB, which owns eight kinds of major professional products: Phase and earth conductor, power cable, overhead insulated cable, fire resistant cable, environmental protection PVC insulated building wire, contact and catenary wire for Electrified Railway, cable for rail traffic and control cable. Not only special wires and cables in flame retardant, fire resistant, low-smoke free halogen, irradiation cross-linking and etc. can be produced simultaneously, but also can meet the standard of IEC, British BS, American ASTM, German DIN and others, on the basis of customers' requirements.
The company has passed ISO9001 quality system certification, ISO14001 environmental system certification, OHSAS18001 occupational health system certification, CCC National Product Certification, PCCC product certification, CRCC railway product certification, and obtained the National Industrial Product Production License, AAA credit rating certificate, etc.
As the long-term main supplier of State Grid of China Corporation, China Southern Power Grid Corporation, Provincial Power Grid Corporation, China Railway Corporation and many large well-known real estate companies, Tong-da's products, widely used in smart grid, electrified railway, urban rail traffic, real estate engineering, home decoration, have exported to more than 60 countries and regions, such as Europe, Middle East, Southeast Asia, Africa and highly received unanimous praise from numerous customers.
workshop
The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. We are equipped with advanced production and inspection equipment and the products strictly according to international standards or customers' requirements.
R & D Building
The company has obtained 48 patents, including 5invention patents. and be approved "ehv conductor in henan province engineering technology research center", has accumulated rich technical reserves for company development.
Customer visit
Customer visit
The company exports to South America, Southeast Asia, the Middle East, Europe, North America, Africa and more than 60 countries and regions, and enjoys a certain reputation among users.
Product packaging
Explanation
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.
FAQ
Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 30 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power
Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines,
Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,Bolivia,Thailand Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay , Sri Lanka,New
Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our workshops
are equipped with advanced production and inspection equipment and the products strictly according to international standards or
customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.
Q5. What’s the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.
Q6. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar
model is OK for you. we provide the free samples for inspection while freight is charged.
Q7. What is our payment terms ?
We can accept the following payment terms: T/T, L/C, O/A
