Новый плотный корпус с двумя модулями управления D Storage

Новый плотный корпус с двумя модулями управления D Storage

Категория: Networking Storage >>>
Поставщик: Beijing,Guangtian,Runze,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.41 $*	0.44 $*
Aug-15-2025	0.8 $*	0.47 $*
Jul-15-2025	0.54 $*	0.43 $*
Jun-15-2025	0.45 $*	0.39 $*
May-15-2025	0.32 $*	0.25 $*
Apr-15-2025	0.33 $*	0.74 $*
Mar-15-2025	0.57 $*	0.2 $*
Feb-15-2025	0.97 $*	0.23 $*
Jan-15-2025	0.55 $*	0.71 $*

Характеристики

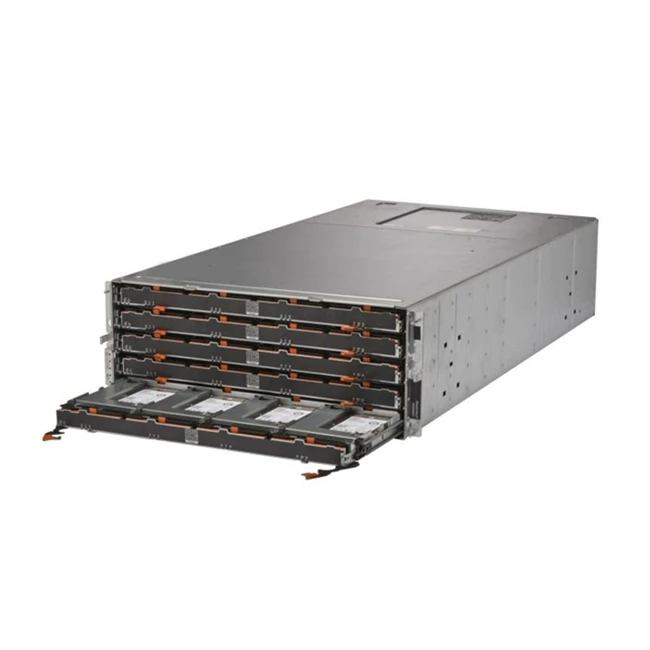

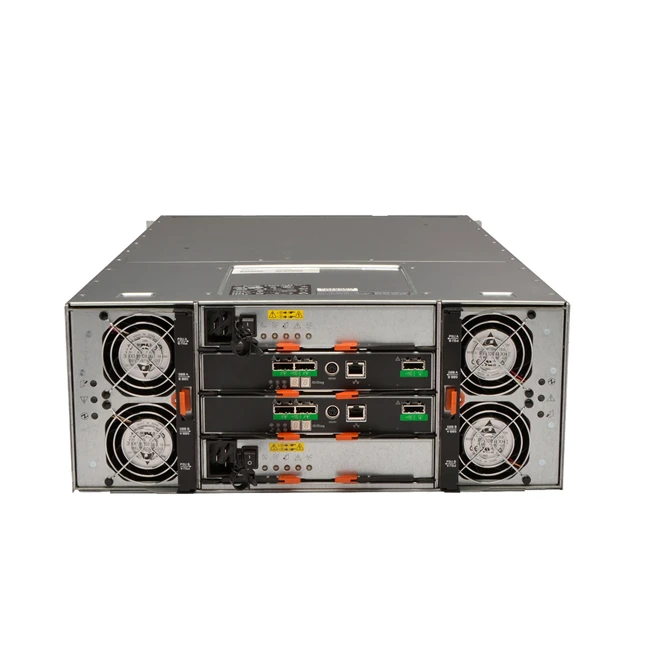

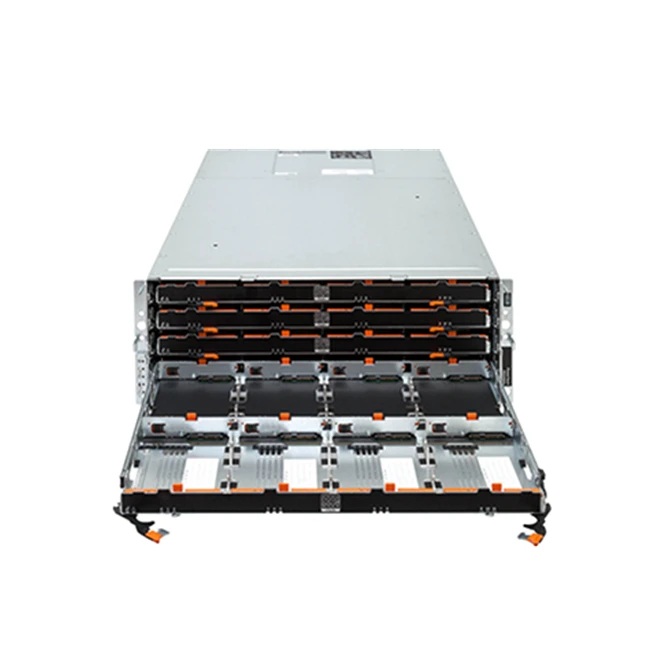

Brand new D Storage MD3060e Dense Enclosure with Dual Enclosure Management Modules

Product Description

The MD3060e dense enclosure makes server expansion affordable. It increases capacity and efficiency behind Dell PowerEdge server workloads. The versatile mix and match hard drive option supports more capacity than ever, allowing you to save space within your data center, and decrease power and cooling expenses. Administrators can non-disruptively scale to meet application demands and easily manage data through the host server.

Specification

Feature	MD3060e
Drives	60
Drive type Mix and match	3.5” and 2.5” SAS, NL-SAS, SSD, SED
3.5" drive capacity
NL-SAS 7.2K RPM	500GB, 1TB 3 , 2TB 3 , 3TB 3 , 4TB 3 , 6TB, 8TB, 10TB
SSD	200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI) (available with 3.5” HDD carriers)
2.5" drive capacity
SAS 15K RPM	146GB 3 , 300GB 3 , 600GB 3
SAS 10K RPM	146GB, 300GB 3 , 600GB 3 , 900GB 3 , 1.2TB 3
NL-SAS 7.2K RPM	500GB 3 , 1TB 3 , 2TB
SSD	200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI)
3.5” 10K and 15K HDDs are not supported on the dense model
Expansion capabilities	Up to 4 dense enclosures behind a single server
Controllers	Dual Enclosure Management Modules (EMMs)
Maximum HA host	2
Form factor	4U rack enclosure
Management software	Server controller dependent
Server support	Dell PowerEdge R630, R730 and R730xd servers
OS support	Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 6.5, Ubuntu 12.04 LTS, and Debian 7.4
Physical dimensions (height x width x depth)
177.8 mm (7.0”) x 482.6 mm (19.0”) x 825.5 mm (32.5”)
Maximum weight	105.20 kg (232.0 lb)
Environment
Power	AC 1755W
Heat dissipation (max)	5988 BTU/hr
Voltage	220V AC, auto ranging
Frequency range	50/60Hz
Temperature
Operating	10° to 35°C (50° to 95°F) with a maximum temperature gradation of 10°C per hour
Relative humidity
Operating	10% to 80% (non-condensing) with a maximum humidity gradation of 10% per hour
Altitude
Operating	-30.5 m to 3000 m (-100 ft to 9,840 ft)
Note	For altitudes above 2950 ft, the maximum operating temperature is derated 1.8°F/1000 ft.

Detail Emages

Company Information

Founded in 2000, JinMa Times is one of the success stories of the independent IT hardware sector.Specialising in the marketing of leading-edge products for high-end server environments, JinMa Times offers a unique understanding of the commercial and technical needs of the corporate customer.JinMa Times has forged strong relationships with manufacturers and vendors for over 20 years in the industrial IT market. The company offers an efficient service and a product portfolio which is reinforced by the company’s reputation for the selection of quality assured, competitively-priced, high-performance products

54bd57e969789b27e850550b131d05b_

Packaging & Shipping

GTH

FAQ

Q1. How can I place order?
A1: You can place order on line or contact us by E-mail.
Q2. Where are the products suitable for?
A2: Server, desktop, laptop, etc.
Q3. How long is the warranty?
A3: One year. But please contact customer service for the detailed warranty time of different models.
Q4. How can I pay you?
A4: After you confirm our PI, we’ll request you to pay. T/T(HSBC bank) and Paypal, Western Union are the most usual ways we’re using.
Q5. What's the Minimum Order Quantity (MOQ) ?
A5: No MOQ, 1pc is accepted.
Q6. How do you take care when your clients received defective products?
A6: Replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
Q7. When will you send packages after payment?
A7: Delivery within 3 working days after the payment has been confirmed.
