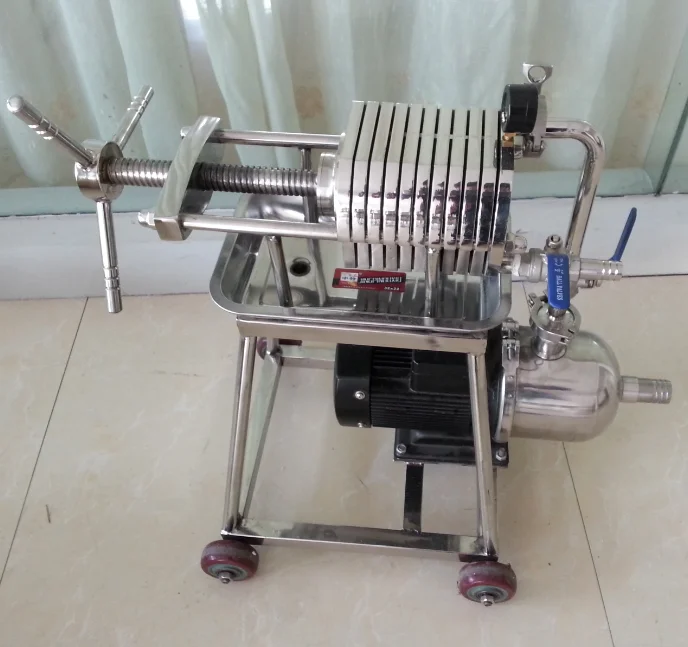

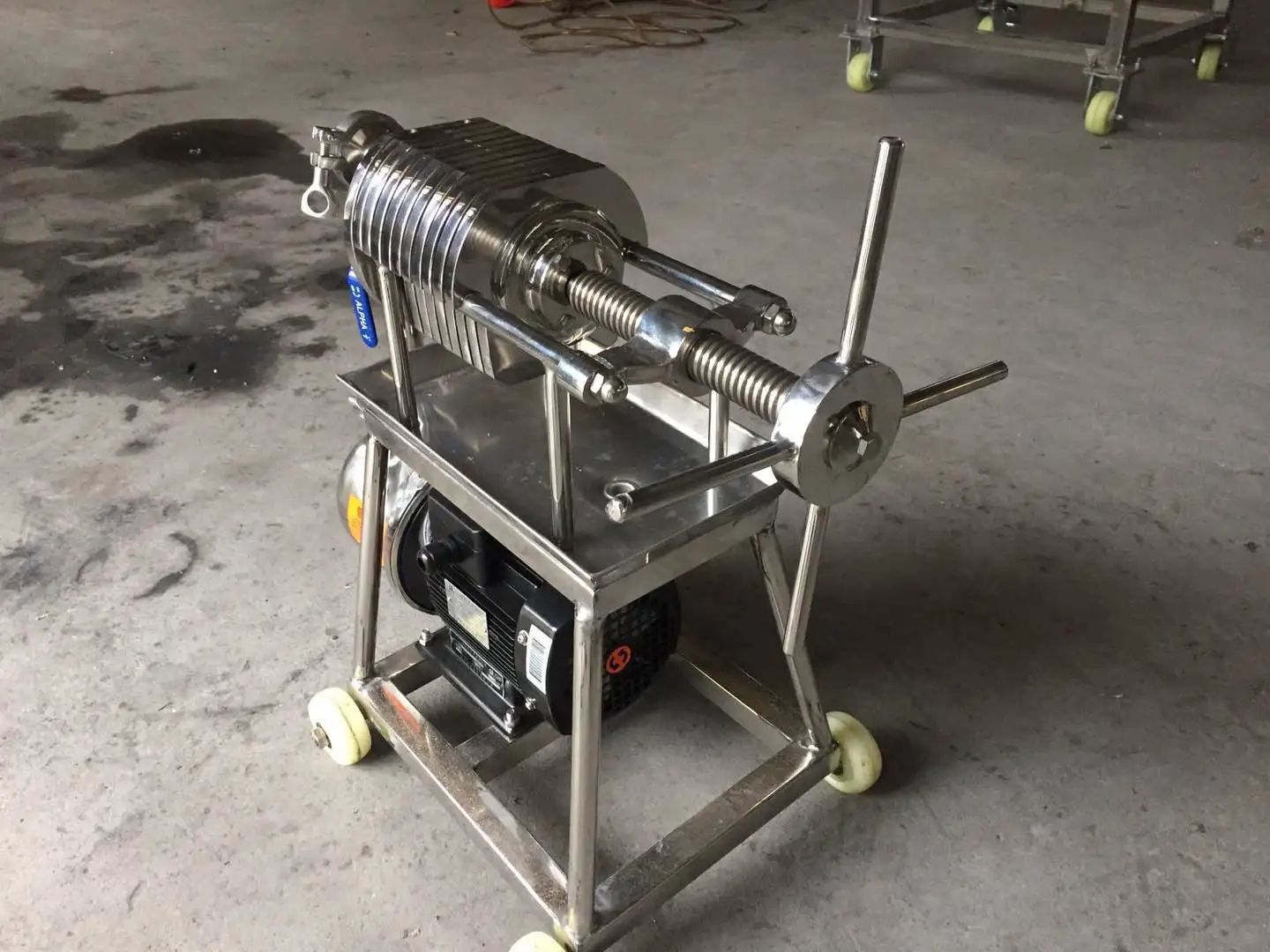

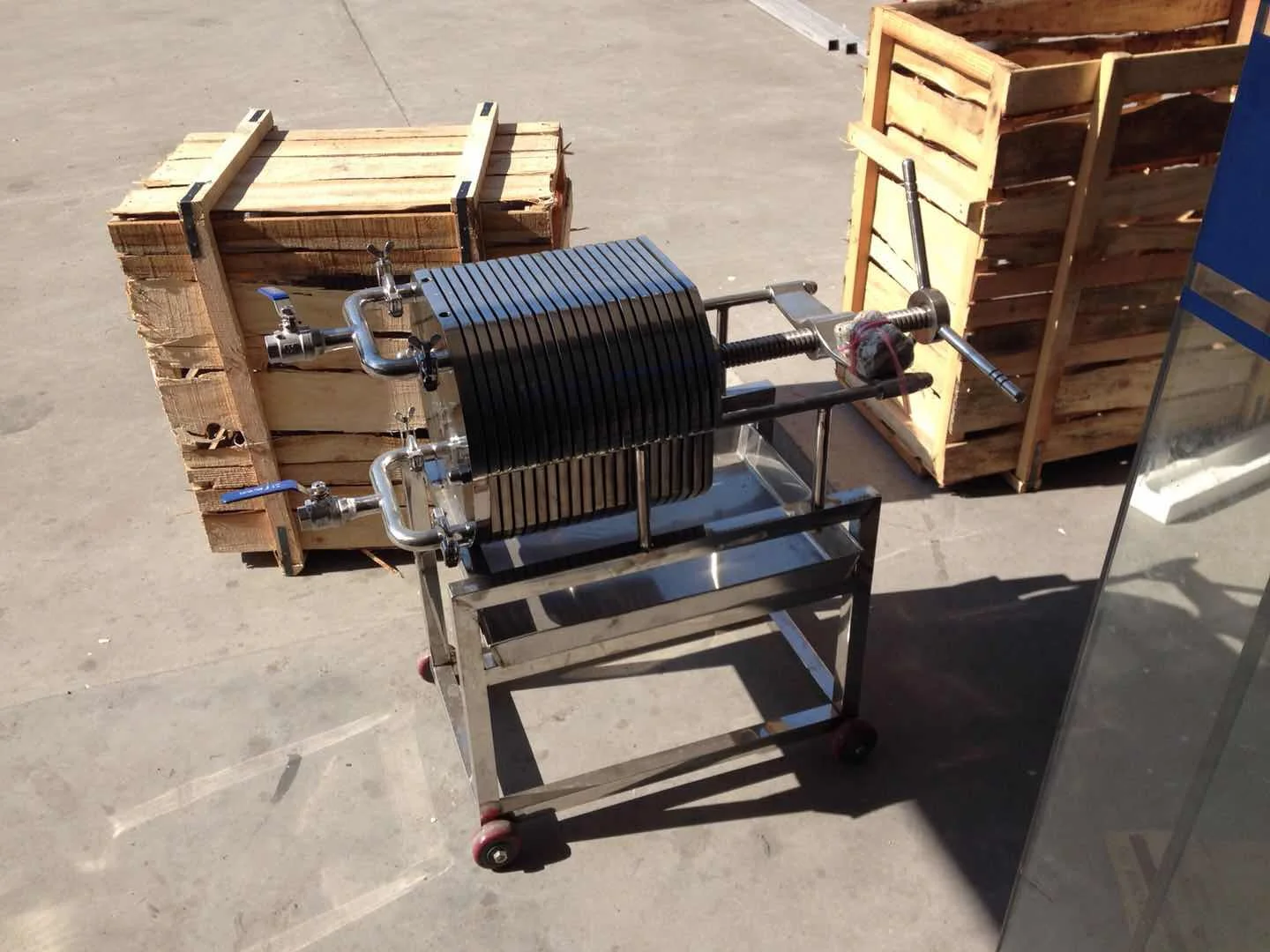

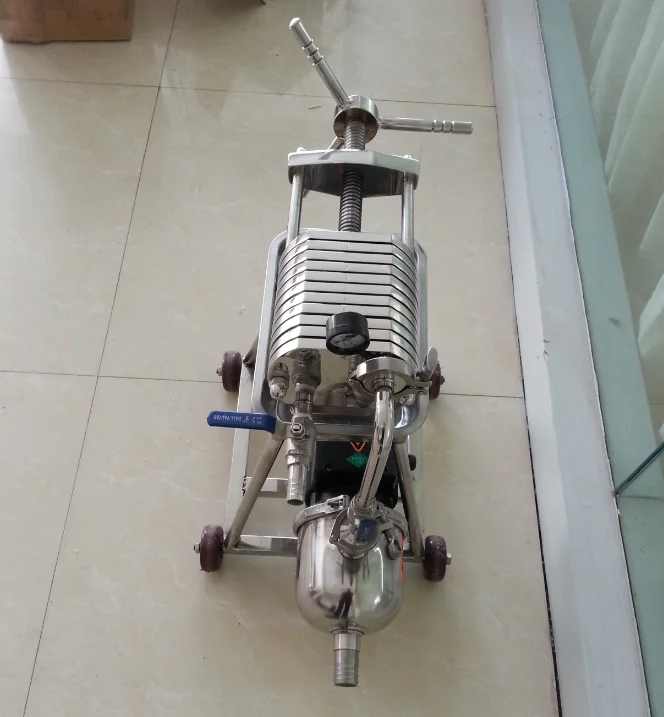

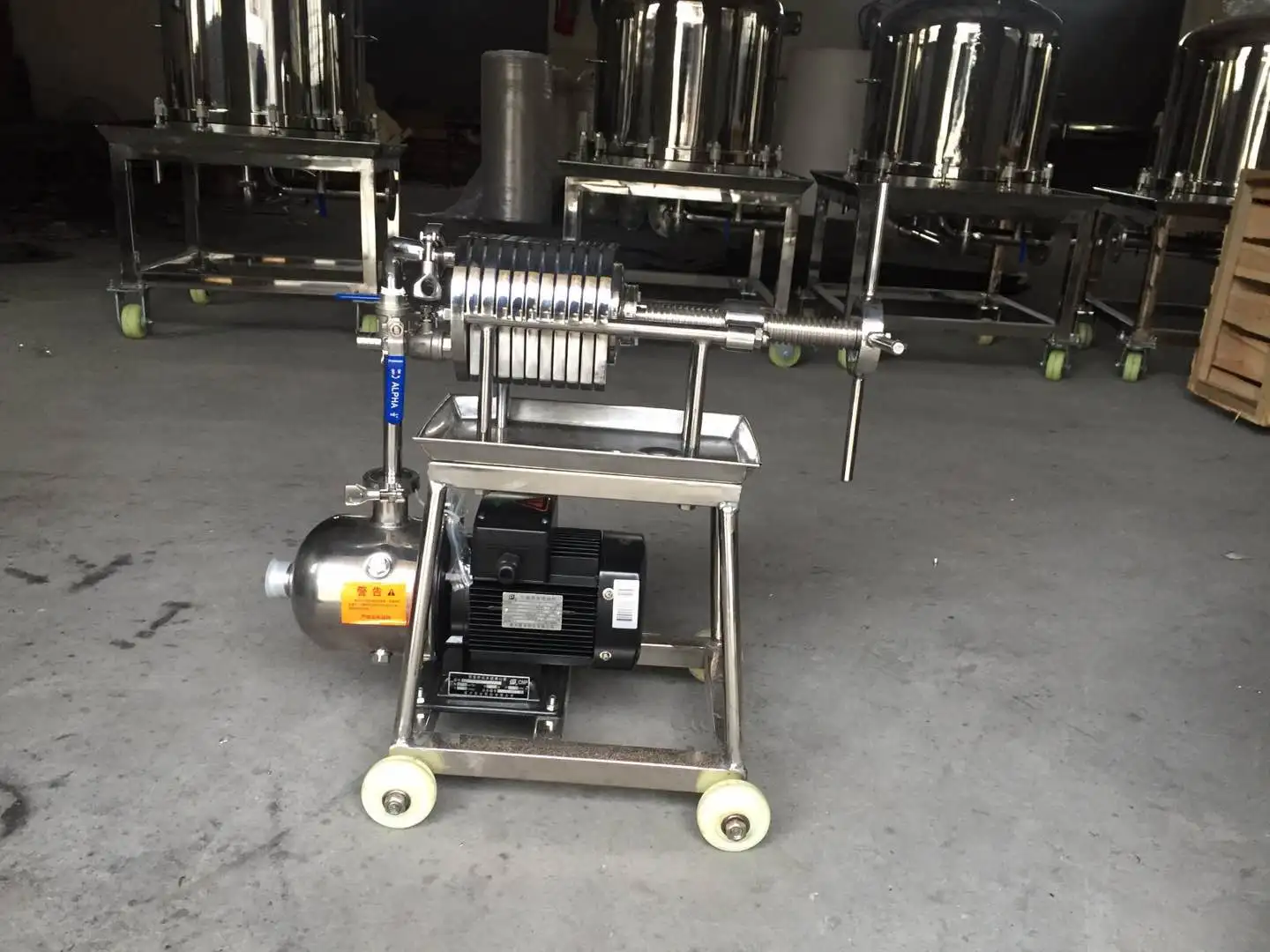

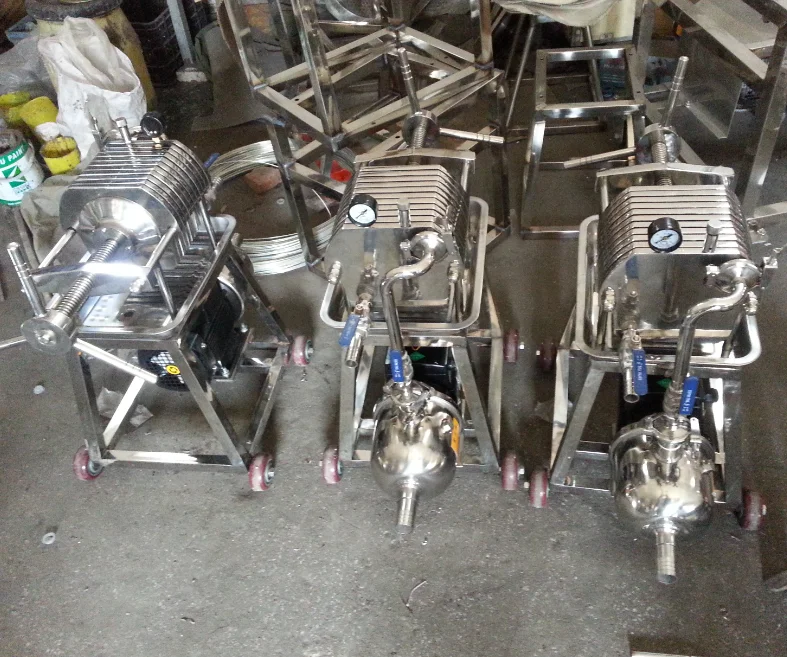

Mini Type SS304 Plate And Frame Filter Press Machine





Application

This machine is a stainless steel multi-layer plate and frame filter press. It is suitable for liquids with low viscosity below 50% and liquid with less slag content for closed filtration to achieve purification, sterilization, clarification and other fine filtration, deactivated carbon and de-particle removal. For semi-fine filtration requirements, the microporous membrane can be directly used, and the filtration can be achieved without microfiltration membrane filter. The machine has large filtering area, large flow rate and large application range, so it has a wide range of uses in the pharmaceutical, chemical, food and other industries, and is applied to the filtration of the injection liquid of the pharmaceutical factory, and the effect is very good.







Features

Except the motor, the machine is made of 304 or 316L high-quality corrosion-resistant stainless steel material. It is suitable for filtering various pH acid and alkali solutions. This machine uses pressurized closed filtration, with less filtrate loss, good filtration quality, and high efficiency. The filtering part is composed of ten layers of filter plates, which has large filtering area and large circulation; and can be replaced according to the different production processes of the filtered solution (primary filtration, deactivated carbon, particulate removal, semi-fine filtration, fine filtration). The membrane and the flow rate can appropriately reduce or increase the number of filter plates to make it suitable for production. Therefore, the machine has multiple application; the filter plate adopts flat thread mesh shape and has advanced structure. It does not deform and it is easy to clean. It can effectively increase the service life of various filter membranes, thus reducing and saving production costs. The stainless steel infusion pump equipped with this machine is equipped with small motor and consumes less electricity. The rubber wheel is mounted under the base, which is easy to operate and flexible to move.



Technical Parameters



Model	Specification	Layer	Filter Area	Filter aperture	Filtration Pressure	Water Flow	Motor Power	Inlet	Outlet
TY-100	Φ100	10	0.078	0.8	0.15	0.8	0.55	15	15
TY-150	Φ150	10	0.170	0.8	0.15	1.5	0.55	20	15
TY-200	Φ200	10	0.314	0.8	0.15	2.0	0.55	20	15
TY-300	Φ300	10	0.7	0.8	0.2	4.0	1.10	25	20
TY-410	Φ400	10	1.25	0.8	0.2	6.0	1.10	38	25
TY-416	Φ400	16	2.0	0.8	0.3	9.0	1.50	38	25
TY-420	Φ400	20	2.5	0.8	0.3	10	1.50	38	25
TY-424	Φ400	24	3.0	0.8	0.3	12	2.20	38	25
TY-432	Φ400	32	4.0	0.8	0.3	14	2.20	45	25



1. What's the payment method?

Payment can be done by cash T/T, L/C, Western Union, Alibaba Trade Assurance,etc.



2. How long is the delivery period?

Generally it takes about 10 working days for production and then the delivery will be done timely.



3.What's the package made of?

The package is made of international export standard wooden case.



4.What's the delivery method?

By train, by air, by sea, by truck, by express(TNT, DHL, FedEx, Ups, etc).



5. How long is the guarantee period?

The guarantee period is 2 years due to the product quality problems itself.



6.What services can you provide?

Online support through email, telephone, Whatsapp or other communication method; onsite taining and installation if you need; filed maintenance and repair, technical video support, etc
