Промышленные электрические трубчатые Погружные Нагреватели Laiyuan 220 В с маслофланцем 200
- Категория: Industrial Heater >>>
- Поставщик: Yancheng,Laiyuan,Electric,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 7.55 $* | 7.8 $* |
| Aug-18-2025 | 7.0 $* | 7.13 $* |
| Jul-18-2025 | 6.48 $* | 6.9 $* |
| Jun-18-2025 | 7.34 $* | 7.74 $* |
| May-18-2025 | 6.34 $* | 6.45 $* |
| Apr-18-2025 | 7.36 $* | 7.13 $* |
| Mar-18-2025 | 7.78 $* | 7.45 $* |
| Feb-18-2025 | 7.89 $* | 7.5 $* |
| Jan-18-2025 | 7.75 $* | 7.15 $* |
Характеристики
Products Description

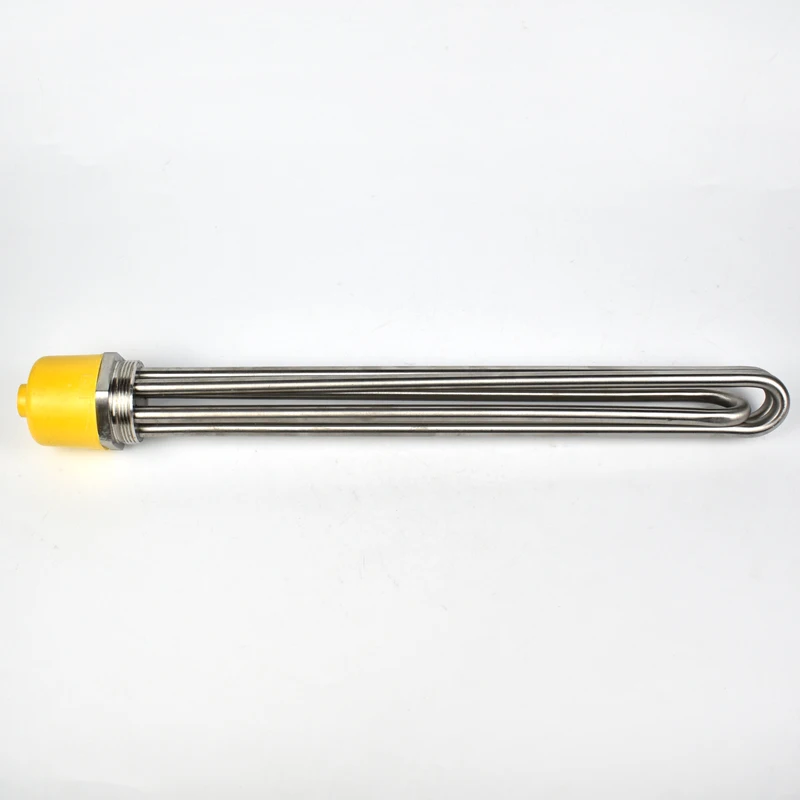

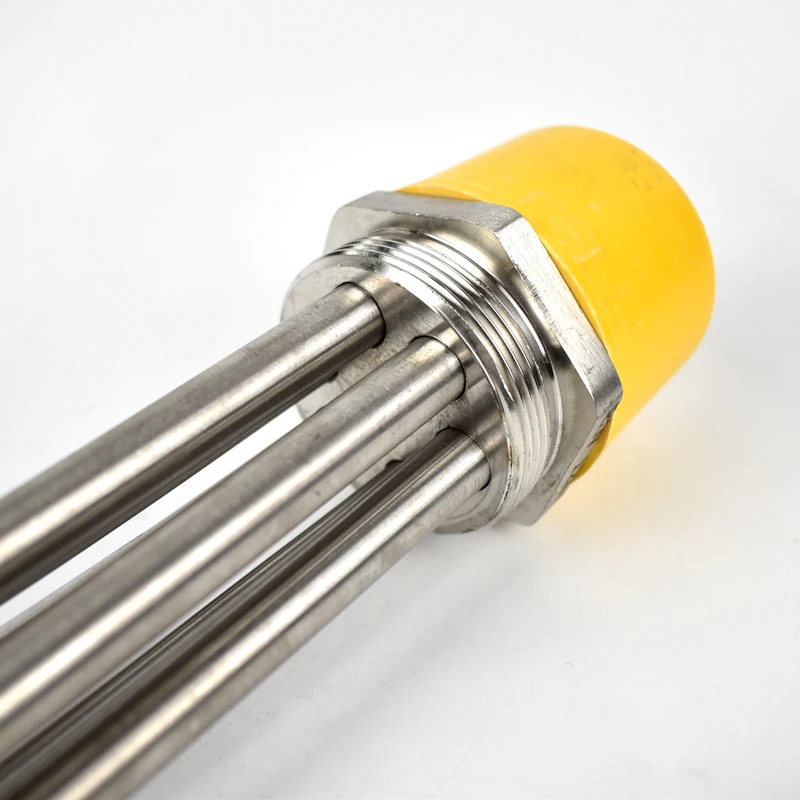

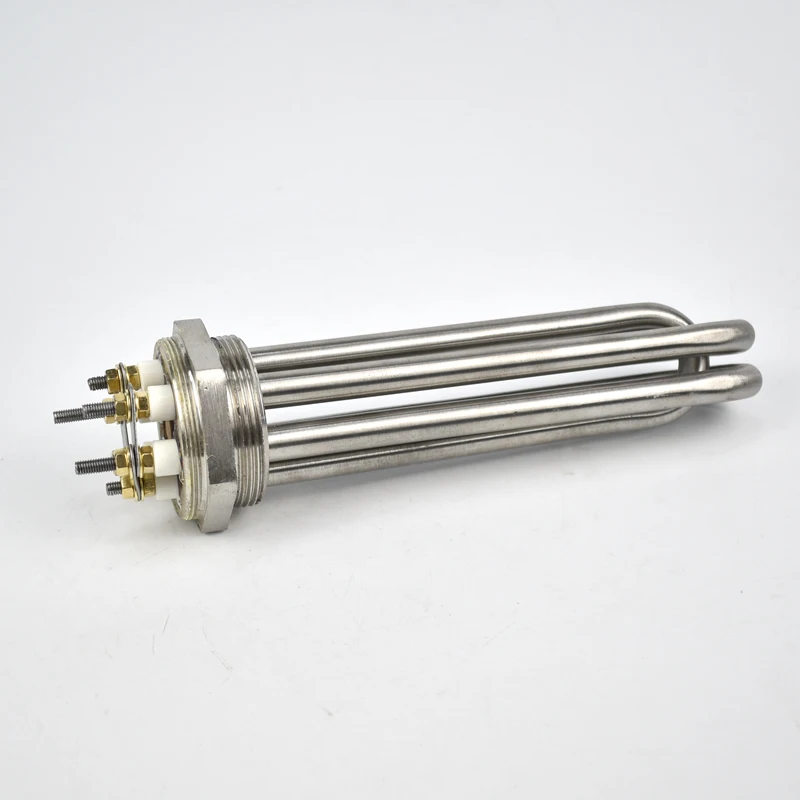

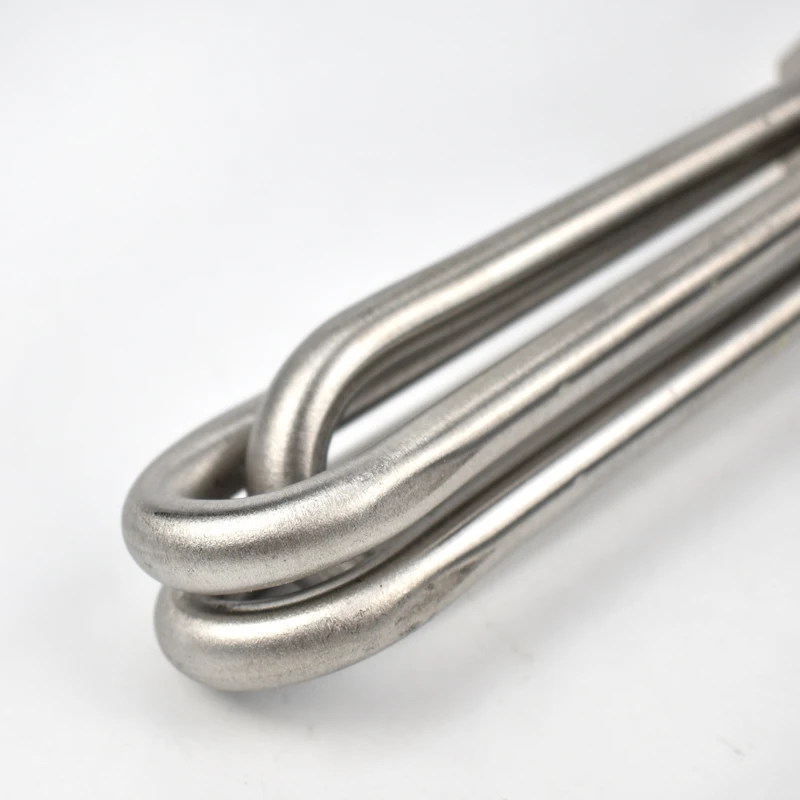

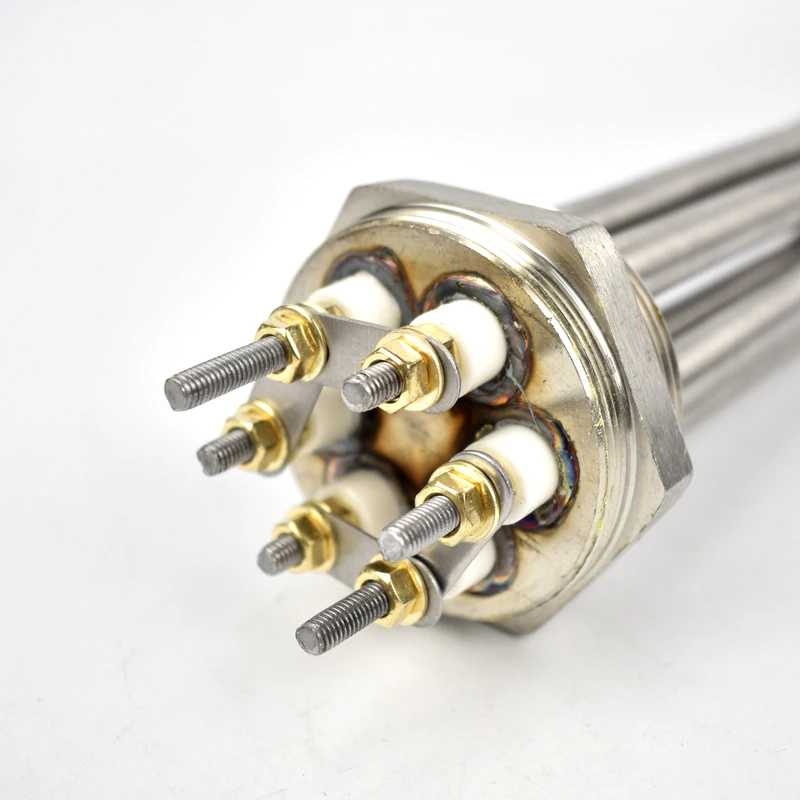

Flange immersion heater is made of seamless stainless steel tube, high-quality Mgo, High Ohm NiGr alloy wire. Flange immersion heater is more heat exchange efficient, that means flange immersion heater could standard 3 to 4 times wattage. Flange immersion heater is made of advanced production equipment and through strict quality test. Characteristic fast temperature rise heating uniformity heating exchange efficiently long-time usage appliance.
Wattage Tolerance | +5%, -10% |
Resistance tolerance | +10%, -5% |
Insulation resistance (cold) | ≥ 500 MΩ |
Maximum leakage current (cold) | ≤ 0.5 mA |
Dielectric strength | 1500 V |
Tube diameter | Φ2mm-Φ30mm |
Tube Material | Fe, SS304;SS316,SS321,ss202 etc |
Insulation Material | High-purity Mgo |
Reisistance wire element | Ni-Cr or FeCr |
Lead Connection Option | Crimped or Swaged leads |
Lead and type of connection leads | 10" Fiberglass Standard(Wire options,silicone high temperature frberglass) |
Voltage and power | customized |
Shape | customized according to drawing |
Warranty | one year |
Features
Material | Maximum Operating Temperatures | Maximum Watt Densities | ||||
Alloy 800 | 1600 F° | 870 F° | 100 W/in2 | 15.5 W/cm2 | ||
304 Stainless Steel | 1200 F° | 650 F° | 100 W/in2 | 15.5 W/cm2 | ||
Steel | 750 F° | 400 F° | 30 W/in2 | 4.7 W/cm2 | ||
N/A | 350 F° | 175 F° | 45 W/in2 | 6.9 W/cm2 | ||
Order Notification
FAQ
1. Voltage: 220 V / 380 v Power: how many kilowatts?
2. Flange diameter or model (round flange, square flange, screw flange, triangular flange)
3. Pipe length and diameter
4. Use environment of electric heating pipe
5. Our company can produce according to the drawing or design for free
2. Flange diameter or model (round flange, square flange, screw flange, triangular flange)
3. Pipe length and diameter
4. Use environment of electric heating pipe
5. Our company can produce according to the drawing or design for free
