Токарный станок по дереву
Токарный станок по дереву для токарного станка/автоматический

Токарный станок по дереву для токарного станка/автоматический

Категория: Токарный станок по дереву >>>
Поставщик: Jinan,Hitec,Machinery,Co.,Ltd.

Цена:5 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	6545.34 $*	6872.27 $*
Aug-18-2025	6490.52 $*	6815.79 $*
Jul-18-2025	5445.98 $*	5717.83 $*
Jun-18-2025	6380.83 $*	6699.81 $*
May-18-2025	5555.98 $*	5833.54 $*
Apr-18-2025	6270.69 $*	6584.77 $*
Mar-18-2025	6215.5 $*	6526.43 $*
Feb-18-2025	6160.11 $*	6468.72 $*
Jan-18-2025	6105.50 $*	6410.10 $*

Характеристики

Product Description

HITEC series of wood lathe machine for turning wood / automatic wood lathe machine for wood turning are perfect for woodworkers looking to create a wide range of designs. From six-foot decorative wooden columns to baseball bats, our CNC wood lathes can craft countless shapes.

Features of wood lathe machine for turning wood / automatic wood lathe machine

1.Hitec Double axis automatic CNC wood turning lathe machine for sale Whole machine body is cast iron, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.
2. With 2pcs spindles for twisting,grooving,slotting,etc.
3. Adopting advanced DSP system with USB connection, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.
4. Adopt Germany ball screw and Taiwan PMI helical square guide rail with high transmitting precision and longevity. Bid module helical/diagonal rack.
5. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.
6. Rotating speed is adjusted by inverter, and the speed data is shown on controlling cabinet panel.
7. One time tool setting to finish the whole work piece.
8. Double axis can double working efficiency,With 4 pcs wood lathe cutter make the wood cutting more smooth and stable.
9. Helical gear transmission way, make higher working speed, and with higher weight load, smooth running, and lower noise.

Advantage

The final products include various cylindrical working pieces, bowl shape, tubular shape and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.
1). Maximum working length is 2000mm, Max.turning diameter is 300mm.
2).You can choose 1 cutter machine, Also can choose 2 cutters at two sides of the machine, the 2 cutters work together,improve the efficiency greatly.
3).Linear square rails, ballscrews,some electronic components are imported, high precision and durable.
4). It is heavy-duty, heavy weight, avoid shaking when the spindle rotates fast.
5). Easy operation, we can draw by autoCAD and other softwares, transfer the files to machine by a USB.
6). If you want to engrave stripe, we will add a 3.5kw air cooling spindle, and add a 4.0kw stepper motor on 1 cutter machine/ a 5.5kw stepper motor on 2 cutters machine.
7). We will customize the size of machine according to customer’s need.

Application

Application Industry

CNC Woodworking Lathe Machine with Single Spindle and Double Cutters fo the production of solid wood furniture, solid wood staircase, wood columns, solid wood floor racks, wood decorative, wood crafts, such as rotating working pieces machining. Applies to furniture, staircases, decorative, wooden crafts manufacturing factory, etc.

Milling, Engraving, Cutting, Drilling, Hitec Wood turning and wood turning lathe with a machine widely used for Various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children's bed column, etc.

Product Paramenters

Model	HTL1516	HTL1530	HTL2540	Custom-Made
Max Processing Size	1500x160mm	1500x300mm	2500x400mm	Custom-Made
Max. diameter	10-300mm			10-500mm
Max. Working length	10-5000mm
Quantity of spindle	1
Quantity of cutters	4
Cutters material	Super hard alloy
Max.feeding speed	40mm/s
Processing accuracy	0.00125mm
Motor	4kw servo motor
Inverter	Fuling Inverter
Control system	F136 DSP 4axis controller
Software	Coredraw, Artcam, Type3, Ucancam, Caxa, UG, Mastercam, AutoCAD
Volatage	220v/380v

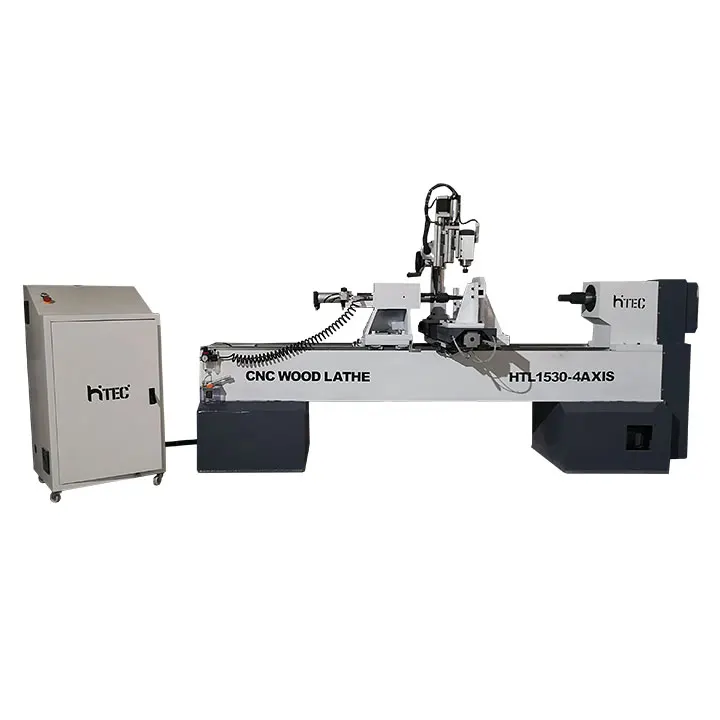

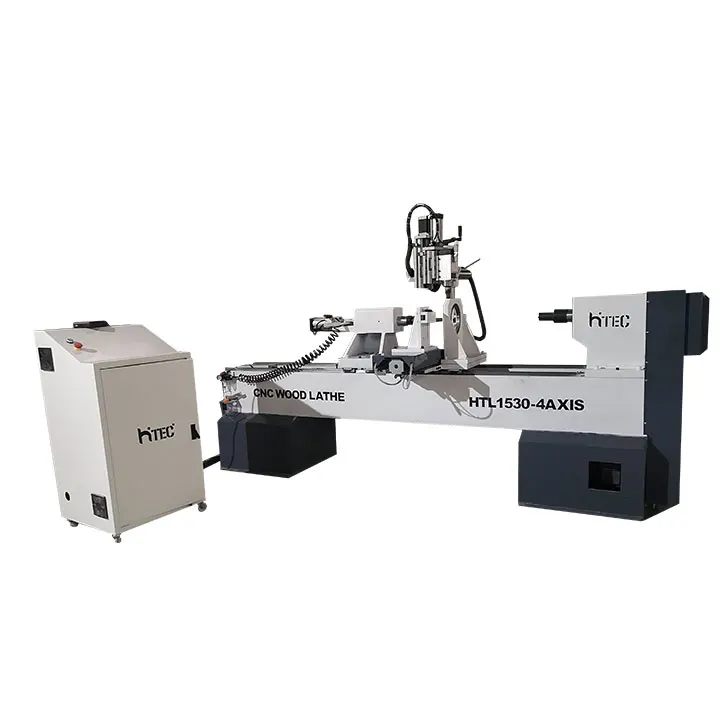

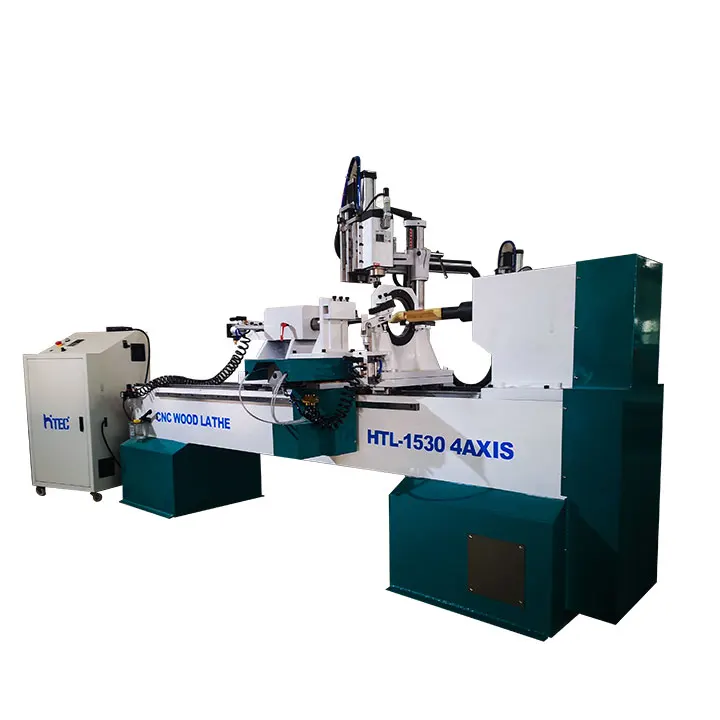

Detailed Images

Standard Package

Inside Package

1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.

Plywood Package

1. Strong plywood package

2. Avoid collision

3. Customer made

QC And Service

5 face cnc milling machine which process accurancy can be 0.001mm,to improve all the machine hardware precision,from machine bed,gantry parts to tapping.
All the machine parts Assembe by our machine milling and lathe machine,can be guarantee the machine precision and fast delivery time

Service

Technology support
We welcome all our buyers come to visit our factory for directly free training, our professional engineer will support you to study the machine operation.
We will supply machine operation manual, training videos and machine parameters, our engineer will supply online machine installation and training.
The customers’ technicians can keep in touch with our engineer at any time, through wechat/whatsapp/mobile phone or email, our engineer will help to solve your problems as soon as possible.
If customer need, we will send our engineer to the customers’ place to provide install and train the customer to use the
machine,our engineer will stay at customers’ place for 5-7days,customers should pay the round-trip airkets/hotels/food for our engineer.

The main purpose of pre-sales service is to assist customers to do engineering planning and system requirements analysis, so that
our products can meet the needs of users to the greatest extent, and at the same time make the customer's investment play the
largest comprehensive economic benefit.

1. Strengthen user communication and exchange on project progress at any time; 2. As far as possible to meet the changes of the
user's reasonable temporary needs;
3. Collaborate friendly with users to deliver qualified products.

Guarantee Policy

The guarantee period of quality shall be 3 years counting from the date on which the commodity arrives at the port of destination.
Except the damage is artificial, we are responsible for offering the fittings free of charge during the guarantee period, but you
need to send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. Out of
the guaranteed period, should the parts required to be repaired or replaced, if any, the parts will be charged.

Company Profile

JINAN HITEC MACHINERY CO.,LTD

Established in the year 2002,We are manufacturer and develop of the high technology machines. Hitec products are used in a wide variety of industries, markets and applications thoughout all over the world.Hitec is highly committed to offering the most advanced,capable and efficient manufacturing technology backed by unsurpassed service and support. We offer laser cutting machine, fiber laser cutter machine, cnc router machine, wood cnc lathe machine, cnc plasma cutter, cnc oscillating knife cutter machine.
