ONV hot selling outdoor UPS and solar solution IoT control box for smart CCTV pole

(Model No.: Leopard7000-PoE-IoT)

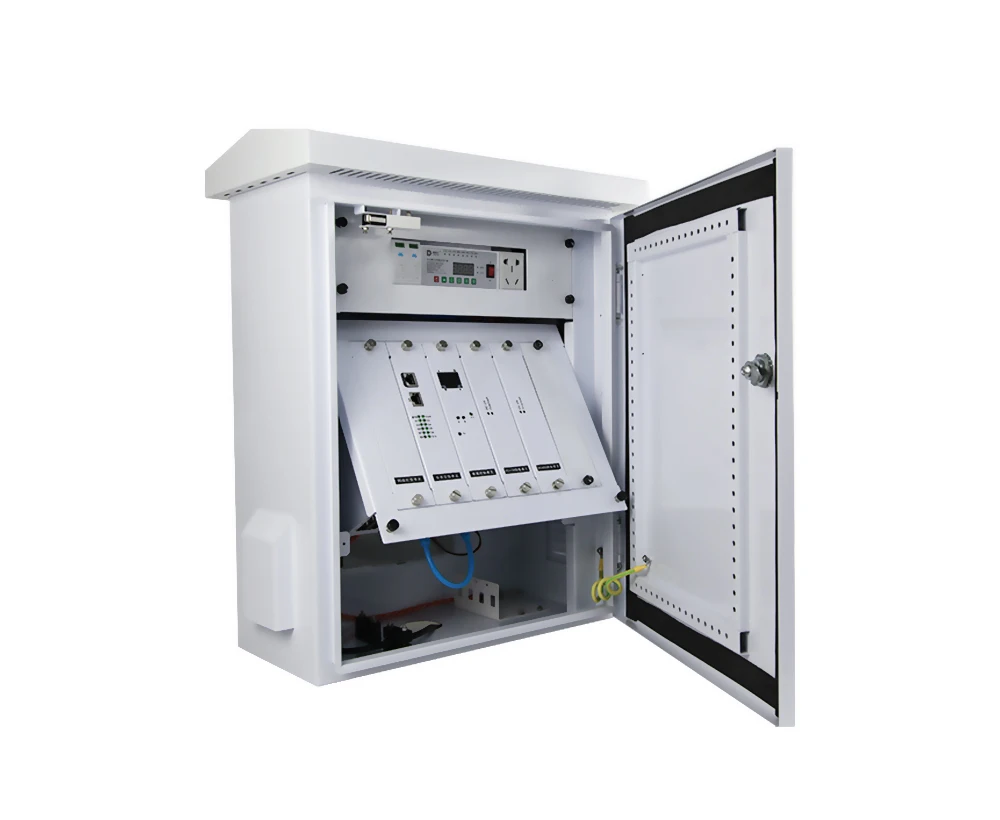

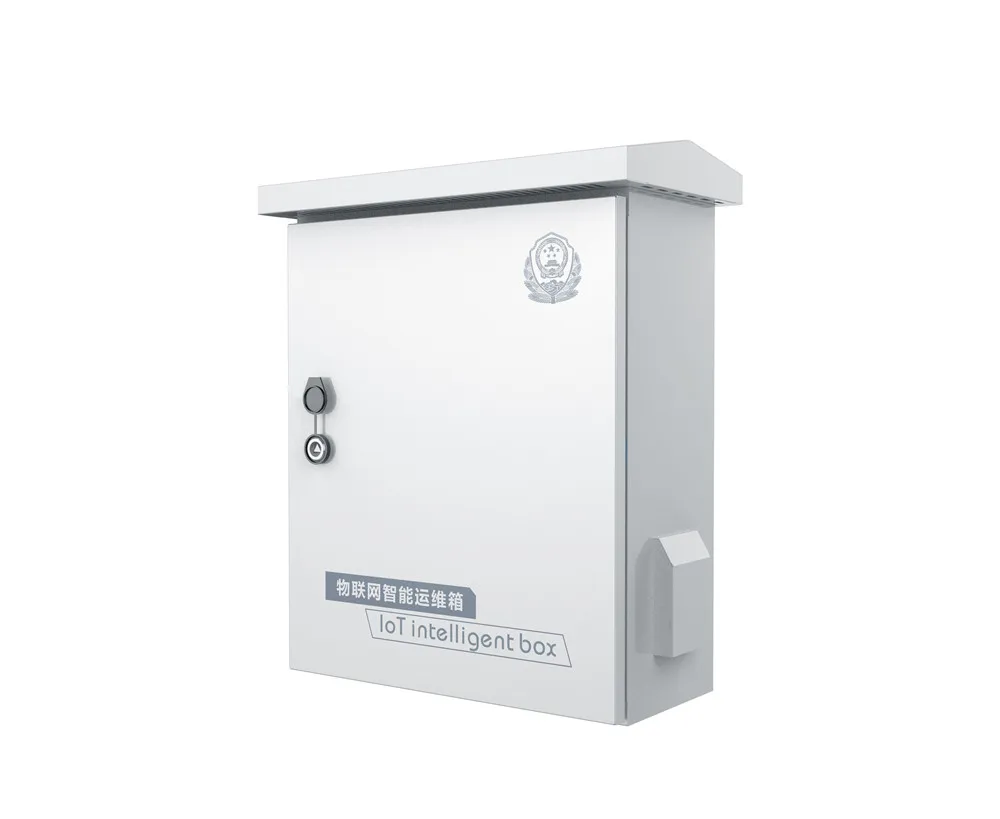

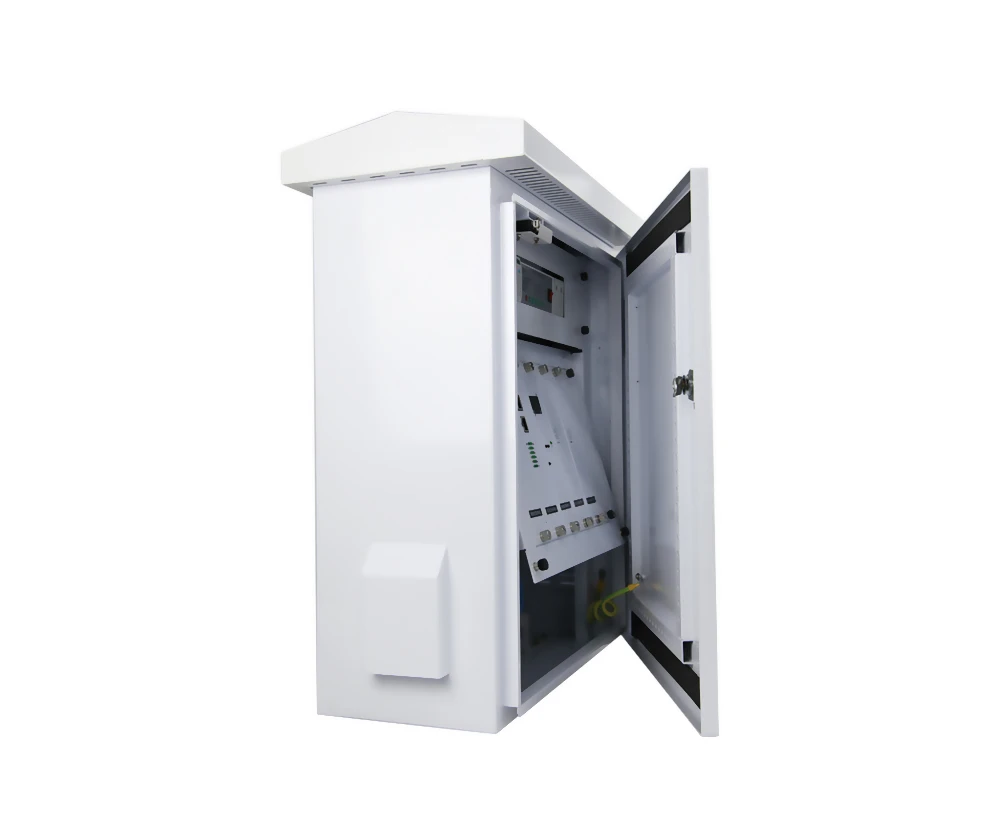

The Leopard7000-PoE-IoT series intelligent control box independently developed by ONV. It is an intelligent transmission and power control system with high integration, high functionality and simple use. It has a modular structure and provides multiple sets of power output and remote monitoring control. The transmission module can be selected according to the application requirements to realize optical transmission of various topologies. The Leopard7000-PoE-IoT control box consists of project requirements, integrated PoE power supply network transmission module, port lightning protection module, power supply control module, etc. The high-performance, high-stability power supply with intelligent control unit embedded in the main control board The control core provides practical and detailed, stable and advanced automatic control functions. Leopard7000-PoE-IoT intelligent control box can realize the detection and centralized monitoring and management of the environment, power supply, temperature, communication link and other equipment in the box. The interface is rich and powerful. It can be used for public security safe city monitoring, communication industry base stations, integrated computer rooms, and other monitoring needs, to improve the reliability of unattended sites. It is applicable to the construction of smart security IoT, such as safe city, intelligent transportation,country town monitoring, road checkpoint monitoring, infrastructure and environmental management, natural disaster monitoring and control, water conservancy monitoring, and communication base station monitoring.

FEATURE

• Built-in lightning protection module, air switch, input voltage detection, input voltage overload/underload alarm, lightning strike count indication.
• Modular design, centralized the power supply, automatic preclosing, voltage short circuit trip, self-recovery power supply. More than 1 set AC220V power output, 3 set DC12V output, 1 set AC24V output, 1 set DC52V output.

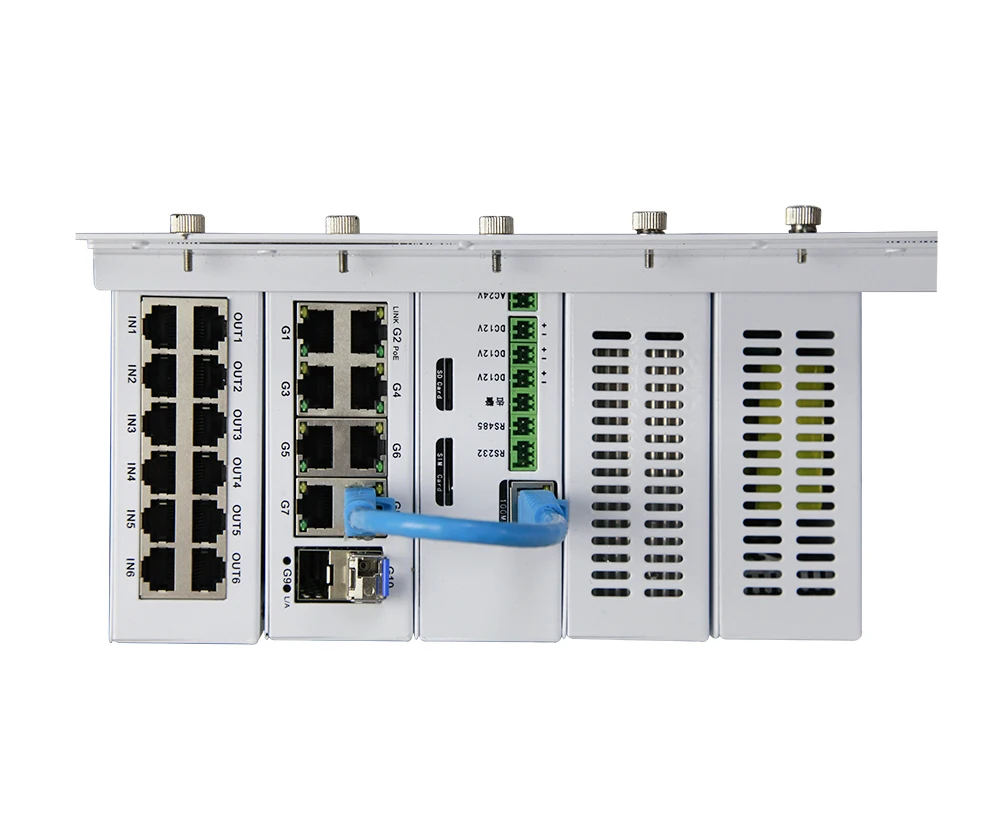

• Remote PoE power supply and management, multi-channel UTP network connection, fiber connection, link alarm, supporting optical fiber splice trays.
• Power failure detection, voltage, current monitoring, on-site recording and remote viewing of device name and model, voltage output, real-time reporting of detection results, positioning of equipment through cloud platform and online map.
• The PoE intelligent box related information can be managed by the QR code in the box to record all status information and logs of the device.
• A mechanical lock is installed in the box to record the log of the door opening and closing operation personnel and time; tamper alarm, the user can set when the door is opened, the operation and maintenance platform actively alerts.
• The network management data is output through Ethernet, and the key data of operation and maintenance is transmitted through the optical fiber and the IoT transmission module, and transmitted through the 4th generation mobile communication technology and WIFI signals.
• Centralize operation and maintenance management cloud platform, through the cloud platform software, User can manage the front-end devices, remotely view the status devices in real-time, and operate the power supply status. when the front-end devices are abnormal, it can be notified of sound and light, pop-up windows, etc. The user at the same time forms a QR code to send work orders, maintenance personnel to receive work orders under the application view, timely troubleshooting. The centralize management cloud platform has alarm records, history records, fault statistics analysis reports, and operation log records.





PRODUCT INNOVATION

• Automatic reclosing lightning protection, IP55 protection, mobile application operation, and maintenance personnel online operation.
• Management platform fault dispatch, devices online management, use location GPS positioning, door magnetic tampering, remote unlocking, unlocking alarm, centralized power supply design, early warning mechanism, voltage and current, temperature detection.
• Distinguish whether the power supply, the power supply of the IP camera and fill light is normal. The power of the remote control output power, power off  IP camera, power on, and restart.
• The alarm signal will be uploaded to the management center platform in time when the box door is accidentally opened or broken.
• When the temperature in the box up to the set threshold, the fan automatically starts to dissipate heat until it automatically stops after the normal value. When the temperature is too low, the heating system in the box automatically starts to ensure that the device works at its best.
• The box is with LED lighting for maintenance personnel to operate at night. The data control unit provides an LED display. The installation or inspection personnel can check whether the various monitoring signals and status of the smart box are working properly through the display.

MAIN FUNCTION MODULE TECHNICAL SPECIFICATION



Model	Leopard7000-PoE-IoT
Power Configuration
220V AC power supply air switch	1 set, 220V/20A
AC power supply lightning arrester	1 set of power lightning arrester: 220V max: 20kA, In: 10KA Voltage protection Level≤1.1kV Adding 1.2/50us (8-20us ) combined wave of L-N, 2KV does not cause to malfunction, 6KV is non-damaged, the upper limit is 10KV.
Auto-reclosing	Working voltage 175-275VAC  50-60Hz Rated output current 10A Leakage protection / action time 300mA/≤0.1S Over voltage protection / action time AC275V/2-5S Under voltage protection / action time AC145V/2-5S Over current protection / action time 16A/2-5S Short circuit protection/ action time 3 times input current/≤0.1S Detection function before closing, with remote control function
AC24V power supply	1 set of AC100-264V input, AC24V/2.5A output, 60W AC power supply
DC52V power supply	1 set of AC100-264V input, DC52V/4.8A output, , 250W DC power supply
DC12V power supply	3 set of AC100-264V input, DC12V/8.5A, DC power supply with total power of 90W
Power Consumption	Standby<50W, Full Load<1500W
Data Control Unit
Data port	1ch RS232 data 2ch switch interface 3ch RS485 data
Extended Function port	1ch automatic heating control 1ch lighting control 1ch fan control 1ch leak detection control 1chlocal storage SD card slot, 1ch 4th generation mobile communication technology wireless routing expansion slot
Alarm Output port	1ch alarm output 1ch status indicator output 1ch door status output 1ch automatic lighting status output
Controlled Power Supply	3ch 12VDC outputs, 1ch 24VAC output
Ethernet port	1*10/100Base-TX RJ45 port for transmitting control signals
Ethernet Standard	IEEE802.3 10Base-TX, IEEE802.3u 100Base-TX
Screen Display	A status display LCD screen, used to display the address of the device, query the status of various control switches
Tamper Alarm	Unpacking alarm signal output
Chip Parameter
Network Management Type	L2+
Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X IEEE802.3x
Forwarding Mode	Store and Forward(Full Wire Speed)
Switching Capacity	192Gbps (non-blocking)
Forwarding Rate@64byte	14.88Mpps
MAC	8K
Buffer Memory	4M
Jumbo Frame	9.6K
LED Indicator	Power: PWR (green), system:SYS (yellow);  network:Link (yellow); PoE: PoE (green); Fiber port : L/A (green)
Reset Switch	Yes, support one key to restore factory settings
Physical Parameter
Operation TEMP / Humidity	-20~+70°C;5%~90% RH Non condensing
Storage TEMP / Humidity	-40~+75°C;5%~95% RH Non condensing
MTBF	>100,000 hours
Dimension (L*W*H)	541*440*240mm
Net /Gross Weight	<17kg / <20kg

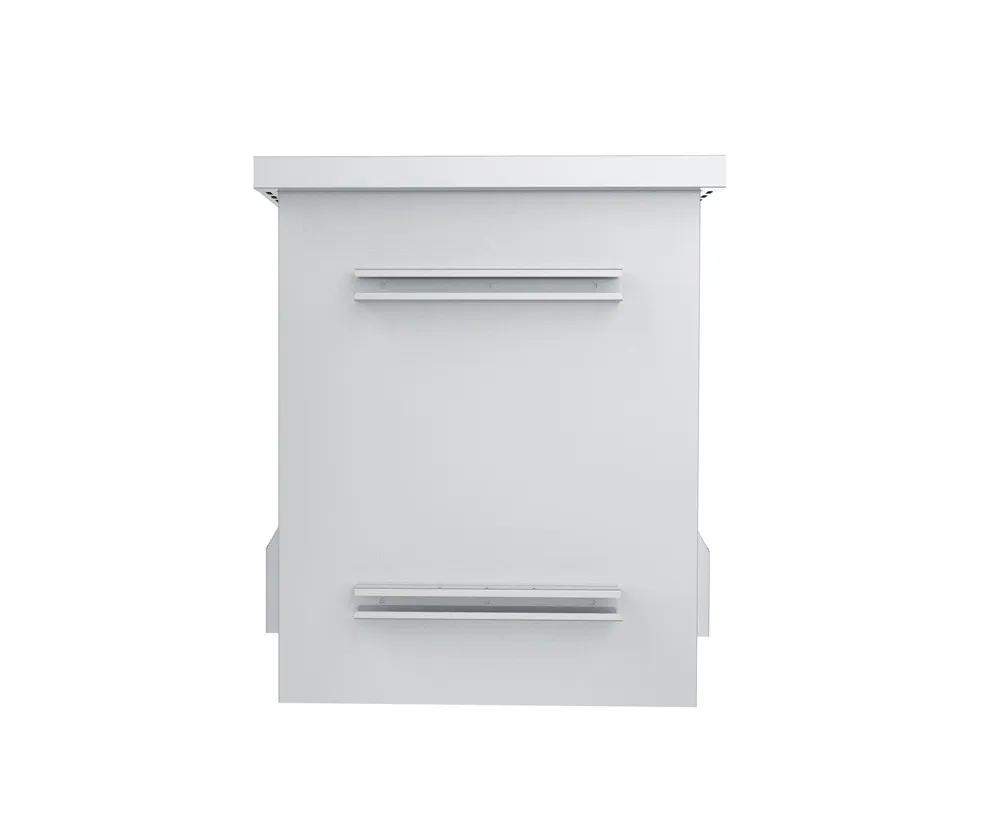

Installation	pole hoop mount
Certification & Warranty
Lightning protection / protection level	Lightning protection: 6KV 8/20us; Protection level: IP55
Certification	CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS
Warranty	3 years, lifelong maintenance.
