Характеристики
Laboratory experimental milk lyophilizer with good performance
LGJ-18 milk lyophilizer
LGJ-18 milk lyophilizer is one small type laboratory lyophilizer, according to custoemers demand, we designed standard type, top press type, manifold type and T-shelf type model. They can not only be used for bulk material freeze drying, but also suiatble for liquid and vials freeze drying.
Technical data of LGJ-18 milk lyophilizer

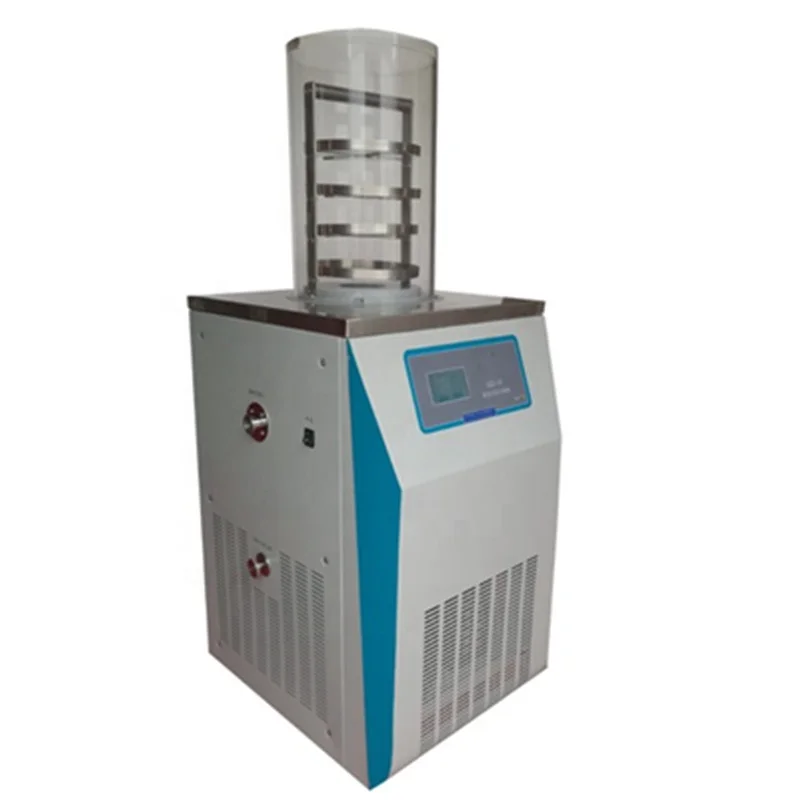

| Model | LGJ-18 Standard Type milk lyophilizer |
| freeze drying area | 0.18sq.m./0.27sq.m. |
| material tray dia. | dia 240mm |
| No.of tray | 4pcs/6pcs |
| tray spacing | 70mm |
| cold trap temperature | ≤-60℃,optional≤-80℃ |
| cold trap dept | 400mm |
| cold trap dia. | dia 270mm |
| ice collecting capacity | 6kg/24h |
| pumping speed | 4L/S |
| ultimate vacuum | ≤5pa |
| power | 1400w |
| weight | 105kg |
| overall dimensions | 630*580*970mm |
| -80℃ overall dimensions | 810*580*950mm |
| drying chamber size | dia 300*445mm |
| cooling mode | wind cooled |
| defrosting mode | air cooled |
| bulk capacity | 1.8L/2.7L(thickness 10mm) |
| Model | LGJ-18 Top-press Type milk lyophilizer |
| freeze drying area | 0.09sq.m. |
| tray dia. | dia 200mm |
| No. of tray | 3pcs |
| tray spacing | 70mm |
| cold trap temperature | ≤-56℃,optional ≤-80℃ |
| cold trap dept | 400mm |
| cold trap dia. | dia 270mm |
| ice collecting capacity | 6kg/24h |
| pumping speed | 4L/S |
| ultimate vacuum | ≤5pa |
| power | 1400w |
| weight | 105kg |
| overall dimensions | 630*580*970mm |
| -80℃ overall dimensions | 810*580*950mm |
| drying chamber size | dia 300*540mm |
| cooling mode | wind cooled |
| defrosting mode | air cooled |
| bulk capacity | 0.9L(thickness 10mm) |
| loaded vials | dia 12mm:615pcs |
| dia 16mm:345pcs | |
| dia 22mm:183pcs |

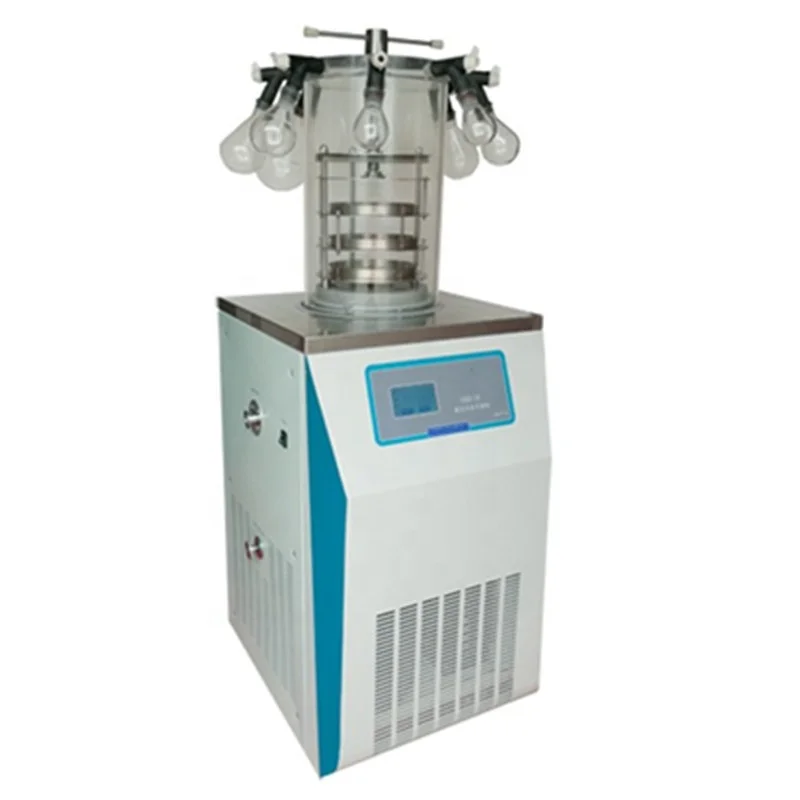

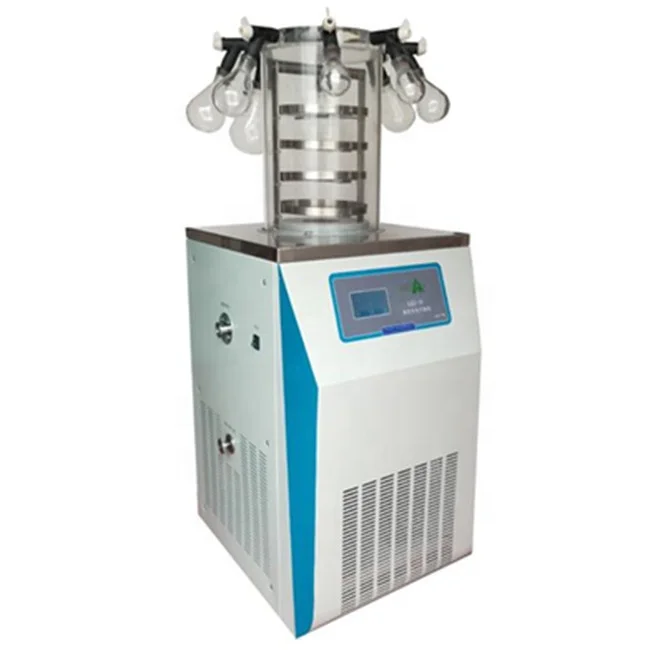

| Model | LGJ-18 Multi-pipeline Type milk lyophilizer |
| freeze drying area | 0.18sq.m./0.27sq.m. |
| tray dia. | dia 240mm |
| tray numbers | 4pcs/6pcs |
| tray spacing | 70mm |
| flask capacity & q'ty | 100/250/500/1000ml,each 2pcs |
| cold trap temp. | ≤-60℃,optional ≤-80℃ |
| cold trap dept | 400mm |
| cold trap dia. | dia 270mm |
| ice collecting capacity | 6kg/24h |
| pump speed | 4L/S |
| ultimate vacuum | ≤5pa |
| power | 1400w |
| main unit weight | 105kg |
| main unit dimensions | 630*580*970mm |
| -80℃ main unit dimensions | 810*580*950mm |
| drying chamber dimensions | dia 300*465mm |
| cooling mode | wind cooled |
| defrosting mode | air cooled |
| bulk capacity | 1.8L/2.7L(thickness 10mm) |

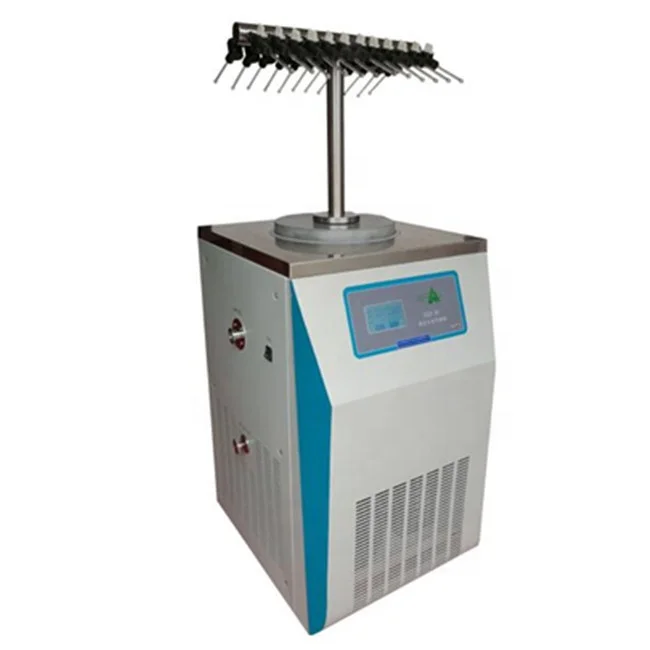

| Model | LGJ-18 T-type milk lyophilizer |
| ampules q'ty | 24pcs |
| cold trap temperature | ≤-60℃,optional≤-80℃ |
| cold trap depth | 400mm |
| cold trap dia. | dia 270mm |
| ice collecting capacity | 6kg/24h |
| pumping speed | 4L/S |
| ultimate vacuum | ≤5pa |
| power | 1400w |
| main unit weight | 105kg |
| main uint dimensions | 630*580*970mm |
| -80℃ main unit dimensions | 810*580*950mm |
| T-trype frame dimensions | 430*480mm(H *L) |
| cooling mode | wind cooled |
| defrosting mode | air cooled |
Detail parts LGJ-18 milk lyophilizer
Besides LGJ-10 instant coffee freeze dryer, we also have larger freeze dryer, such as LGJ-12 and LGJ-18, if you are interested in, please click the picture link to check.
| LGJ-10 Freeze dryer | LGJ-12 Freeze dryer |
| Freeze drying area:0.12 square meters | Freeze drying area: 0.12 square meters |
 |  |
Zhengzhou Mingyi Instrument Equipment CO., Ltd.
Zhengzhou Mingyi Company is a professional supplier of various freeze dryers and related products. We engage in providing users high quality freeze dryer with reasonable price and warm service. Our freeze dryers are divided into small experimental freeze dryer, medium in situation freeze dryer and large produce and medicine freeze dyer. Fact proves that our freeze dryer is durable, easy to operate and has good freeze drying efficience.

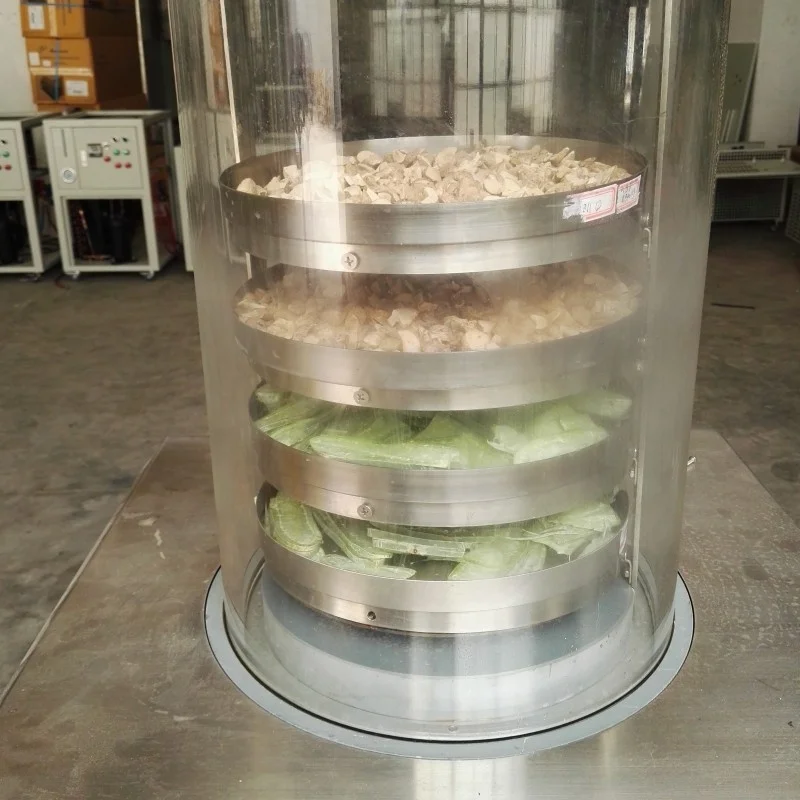

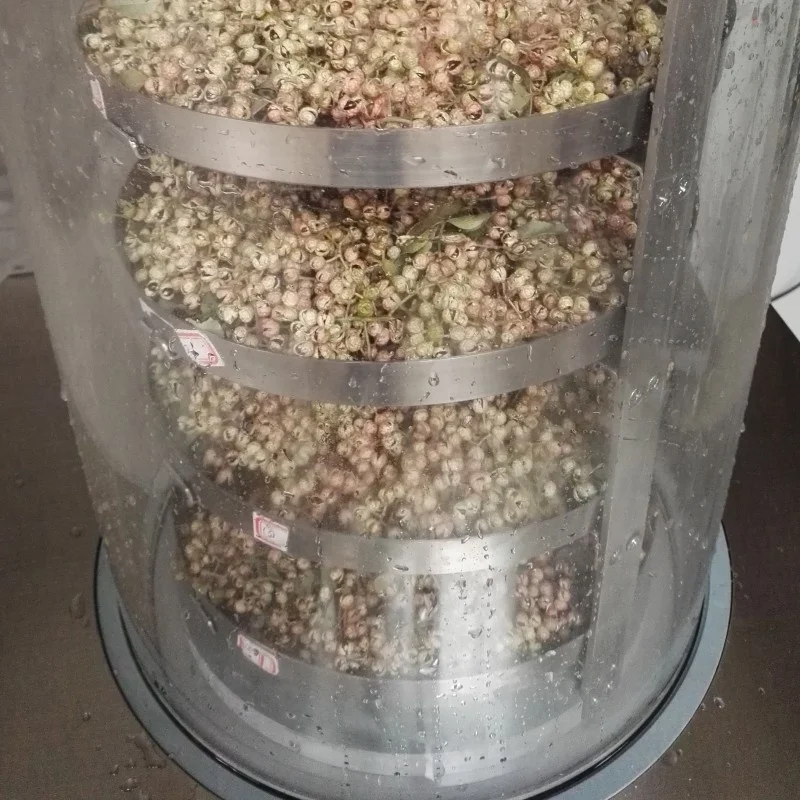

Welcome cusomer all over the world come to visit and establish long term business. Following is the freeze drying samplse from our old customers.
