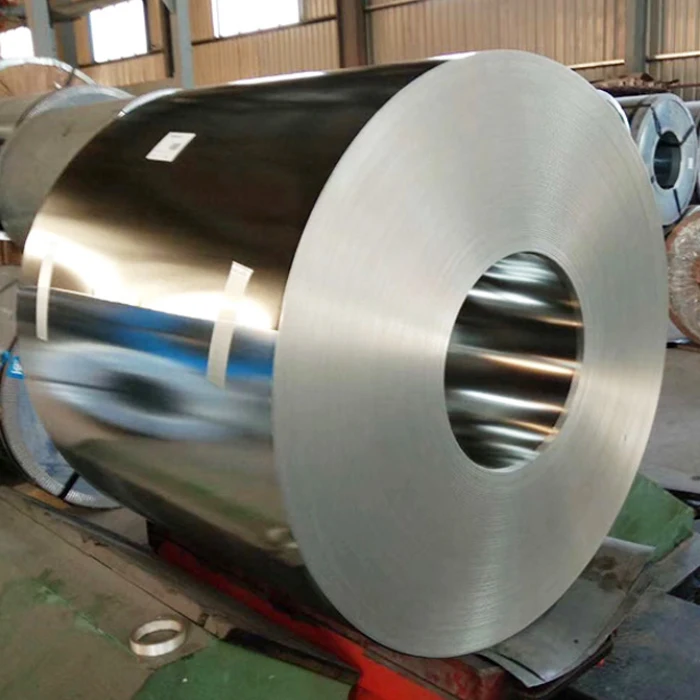

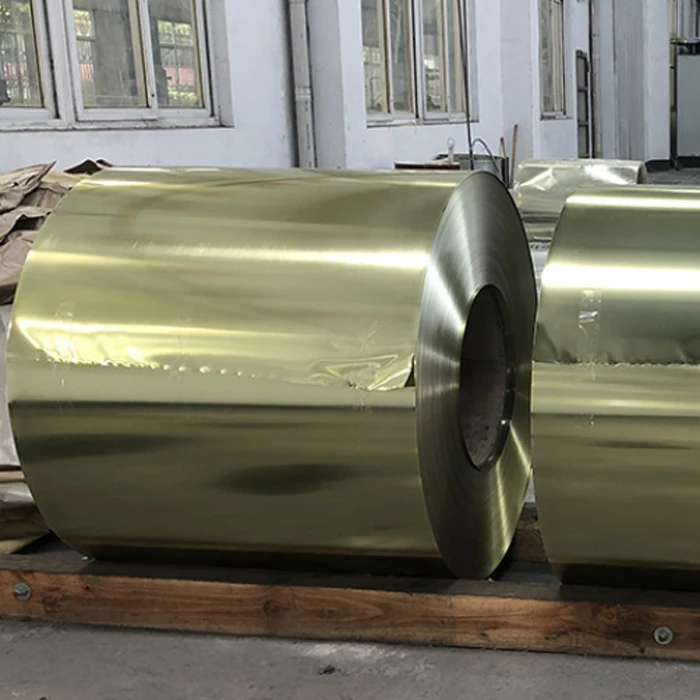

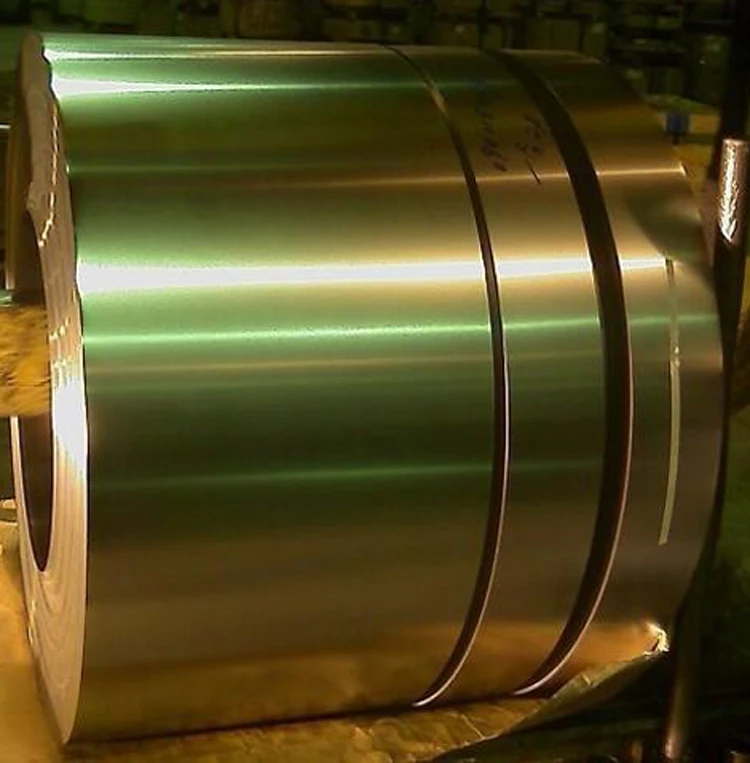

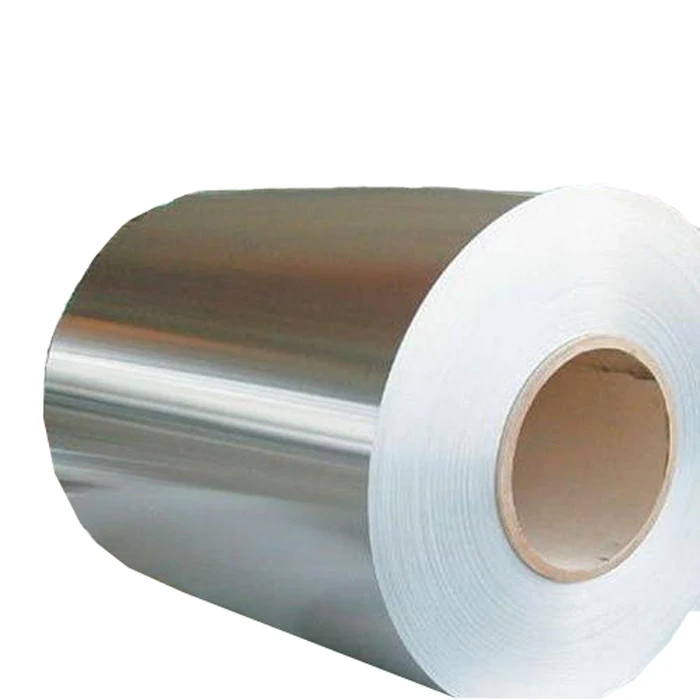

2 8/2 8 покрытие T2 SPTE BA/CA яркий камень/серебро/матовая отделка электролитическая жесть/Оловянная пластина для банка/пищевой

Описание и отзывы

Трекер стоимости

Характеристики



 Classification representation method of tin plate



classification method	Type	symbol or description.
Temper	SR	T1,T2,T3,T4,T5,T6
	DR	DR-8,DR-9,DR-8M,DR-10
Steel plate type	MR	Small residual trace ingredients, excellent corrosion resistance
		Widely used for general purposes
	L	Cu, Ni, Cr, Mo and other trace components are less, as an excellent corrosion resistant tank material
	D	Use for applications that require deep processing or are not time-sensitive
Annealing method	BA
	CA
Passive way	Cathodic electrochemical passivation	CE
	chemical passivation	CP



































                                                                                                                                                   Classification representation method of tin plate



Surface treatment	B(Bright finish)
	St(stone finish)
	S(sliber finish)
	M(matt finish)
According to the quantity of tin plating	Equal thickness tin plating	2.8/2.8,5.6/5.6,8.4/8.4,11.2/11.2
	Difference of tin coating thickness	5.6/2.8,8.4/2.8,8.4/5.6,11.2/2.8
		11.2/5.6,11.2/8.4,15.1/5.6
Base on surface quality	First grade tinplate	I
	Headphone tin plate	II
Chemical resistance (with good corrosion resistance)	K-Plate	Meet the four tests of acid hysteresis value (PL), iron solubility value (ISV), tin crystallinity (TCS) alloy-tin couple current value (ATC)
	J-Plate	Meet the three tests of acid hysteresis (PL), iron solubility value (ISV), tin crystallinity (TCS)



Tinplate test - hardness

code	Rockwell hardness target value (HR30T)
T1	49±3
T2	53±3
T3	57±3
T4	61±3
T5	65±3
T6	70±3
DR-8	73±3
DR-9	76±3
DR-10	80±3
