Fc St Sc Lc 800~1700nm Wave Length Optic Power Meter With

Fc St Sc Lc 800~1700nm Wave Length Optic Power Meter With

Категория: Other Telecommunications Products >>>
Поставщик: Ningbo,Dowell,Tech,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.3 $*	0.57 $*
Aug-16-2025	0.46 $*	0.28 $*
Jul-16-2025	0.18 $*	0.7 $*
Jun-16-2025	0.51 $*	0.51 $*
May-16-2025	0.64 $*	0.46 $*
Apr-16-2025	0.19 $*	0.45 $*
Mar-16-2025	0.94 $*	0.26 $*
Feb-16-2025	0.48 $*	0.62 $*
Jan-16-2025	0.62 $*	0.95 $*

Характеристики

1.Brief introduction

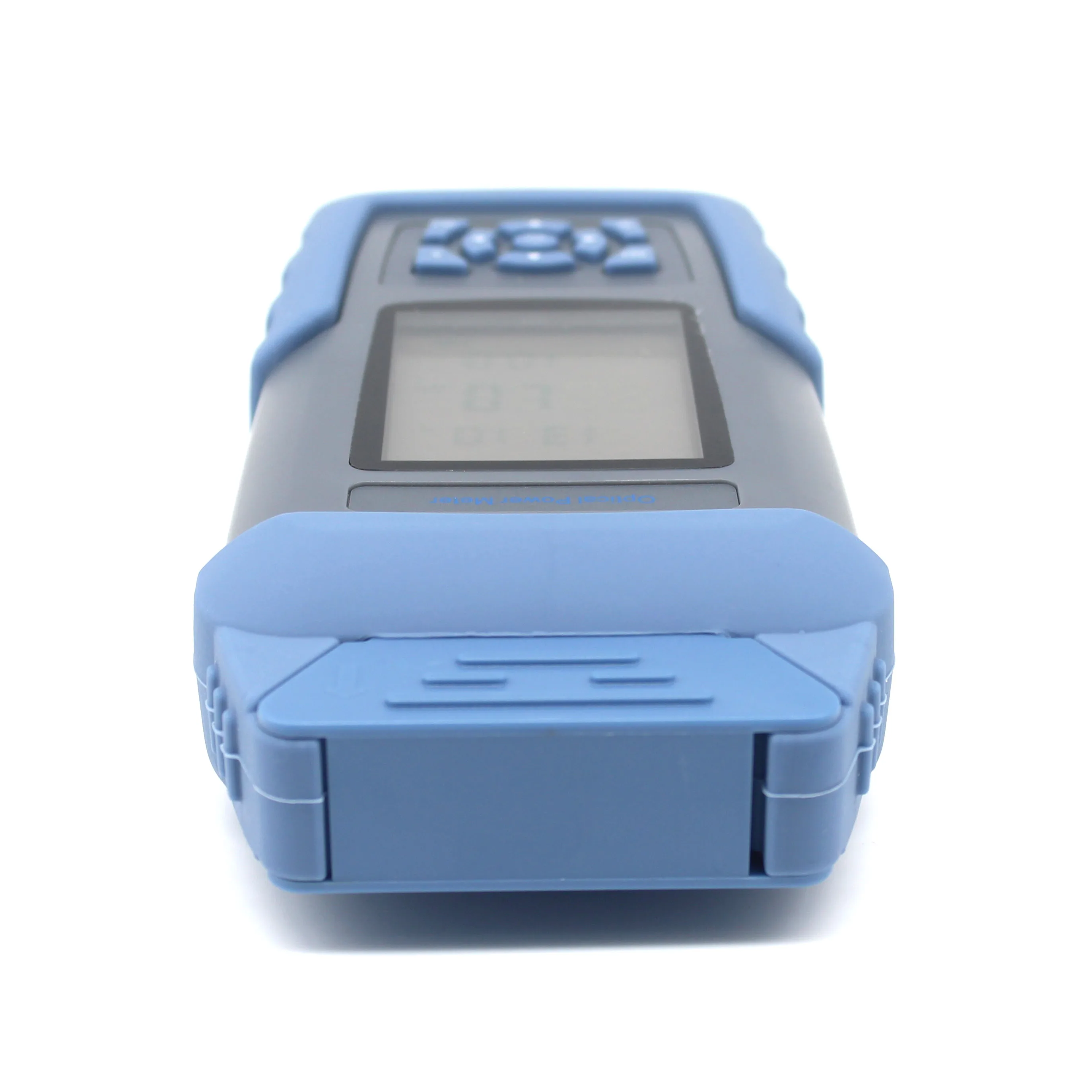

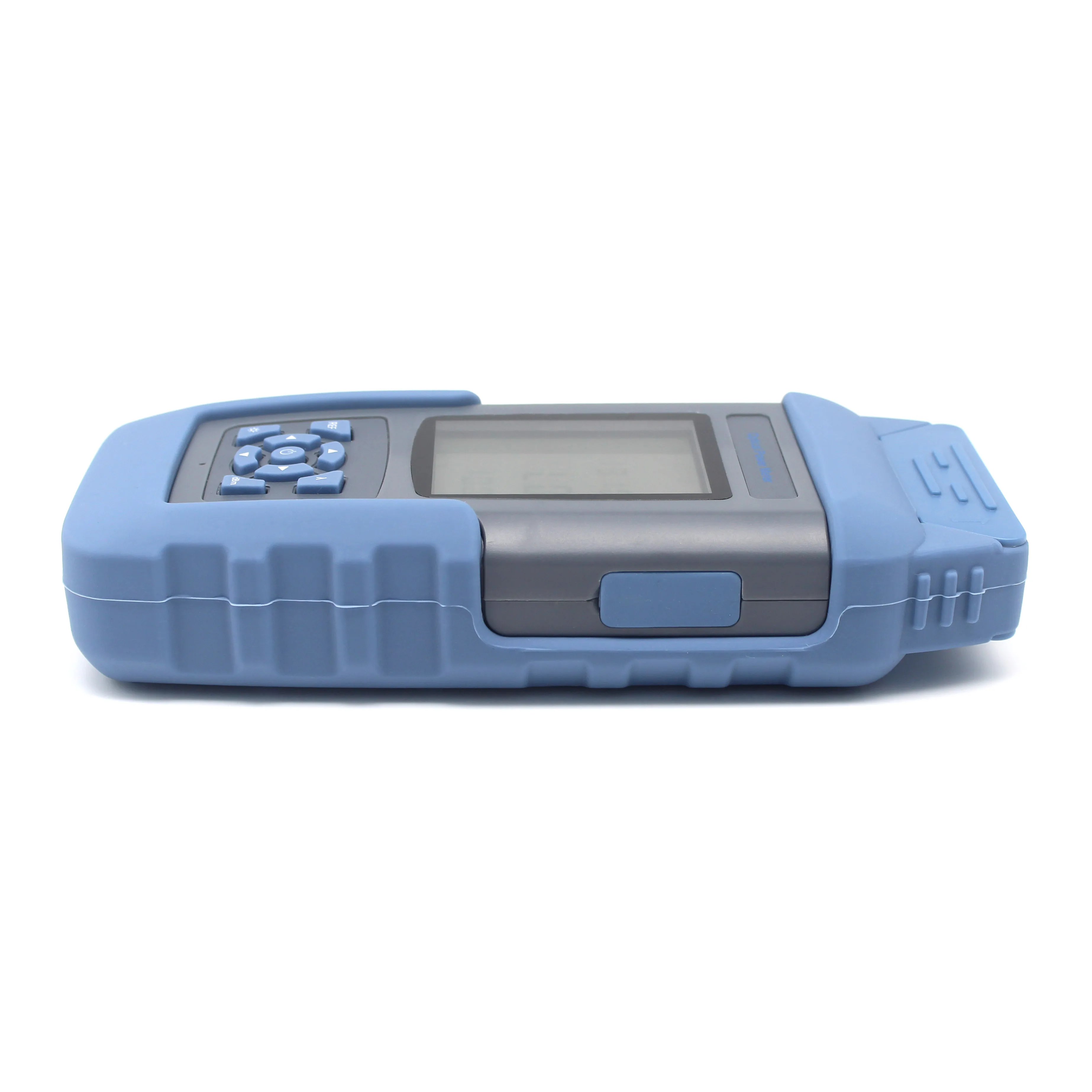

With a wide range of functions, DW-16801 optical power meter is a powerful tool for use in fiber-optic installation and maintenance. Its rugged, durable construction makes it the perfect choice for a wide range of field applications.
DW-16801 Optical Power Meter can test optical power within the range of 800~1700nm wave length. There are 850nm, 1300nm, 1310nm,1490nm, 1550nm, 1625nm, six kinds of wavelength calibration points. It can be used for linearity and non-linearity test and it can display both direct and relative test of optical power.
This meter can be widely used in the test of LAN, WAN, metropolitan network, CATV net or long-distance fiber net and other situations.

2. Functions
1) Multi-wavelength precise measurement
2) Absolute power measurement of dBm or μw
3) Relative power measurement of dB
4) Auto off function
5) 270, 330, 1K, 2KHz frequency light identification and indication
6) Low voltage indication
7) Automatic wavelength identification (with the help of light source)
8) Store 1000 groups of data
9) Upload test result by USB port
10) Real-time clock display
11) Output 650nm VFL

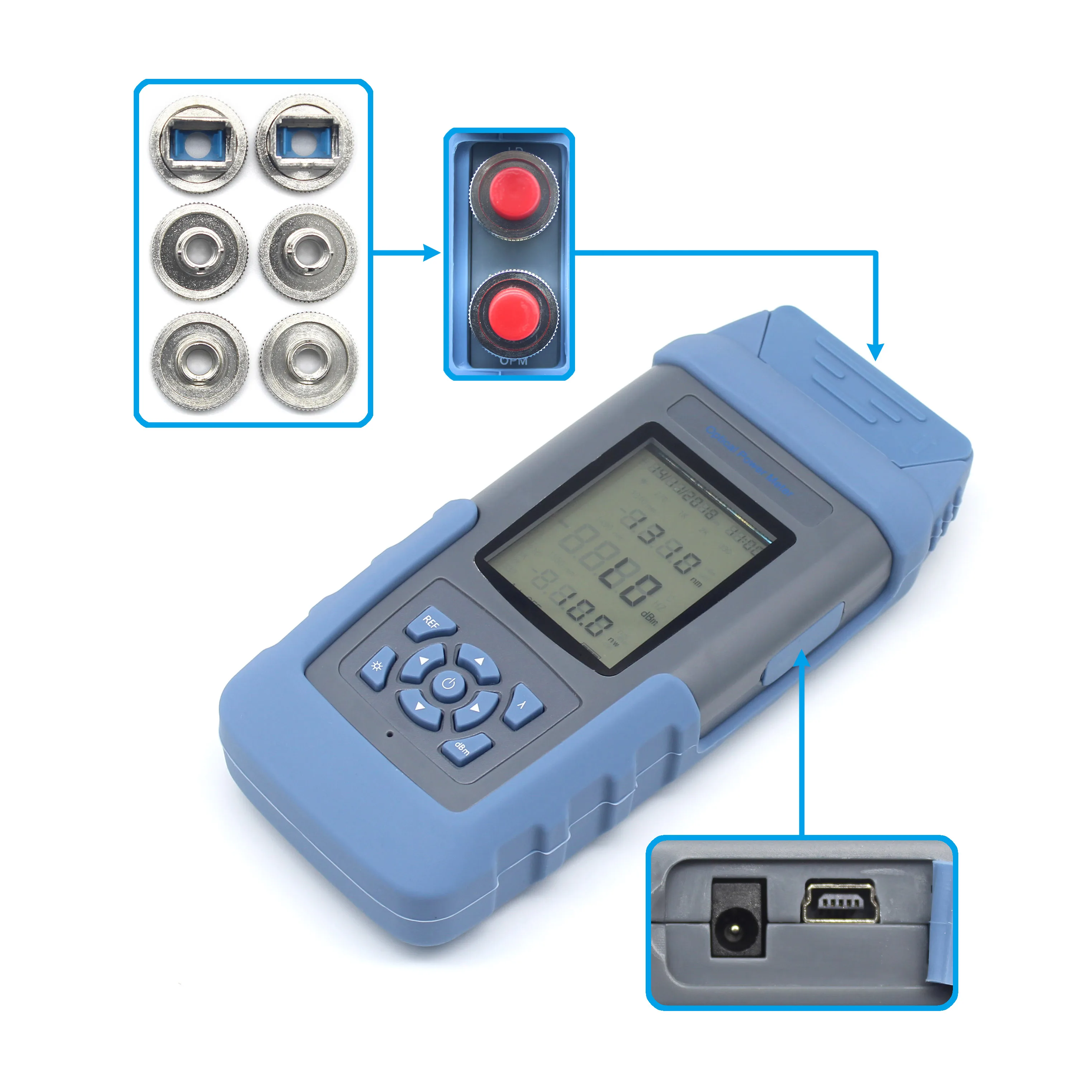

12) Applicable to versatile adapters (FC, ST, SC, LC)

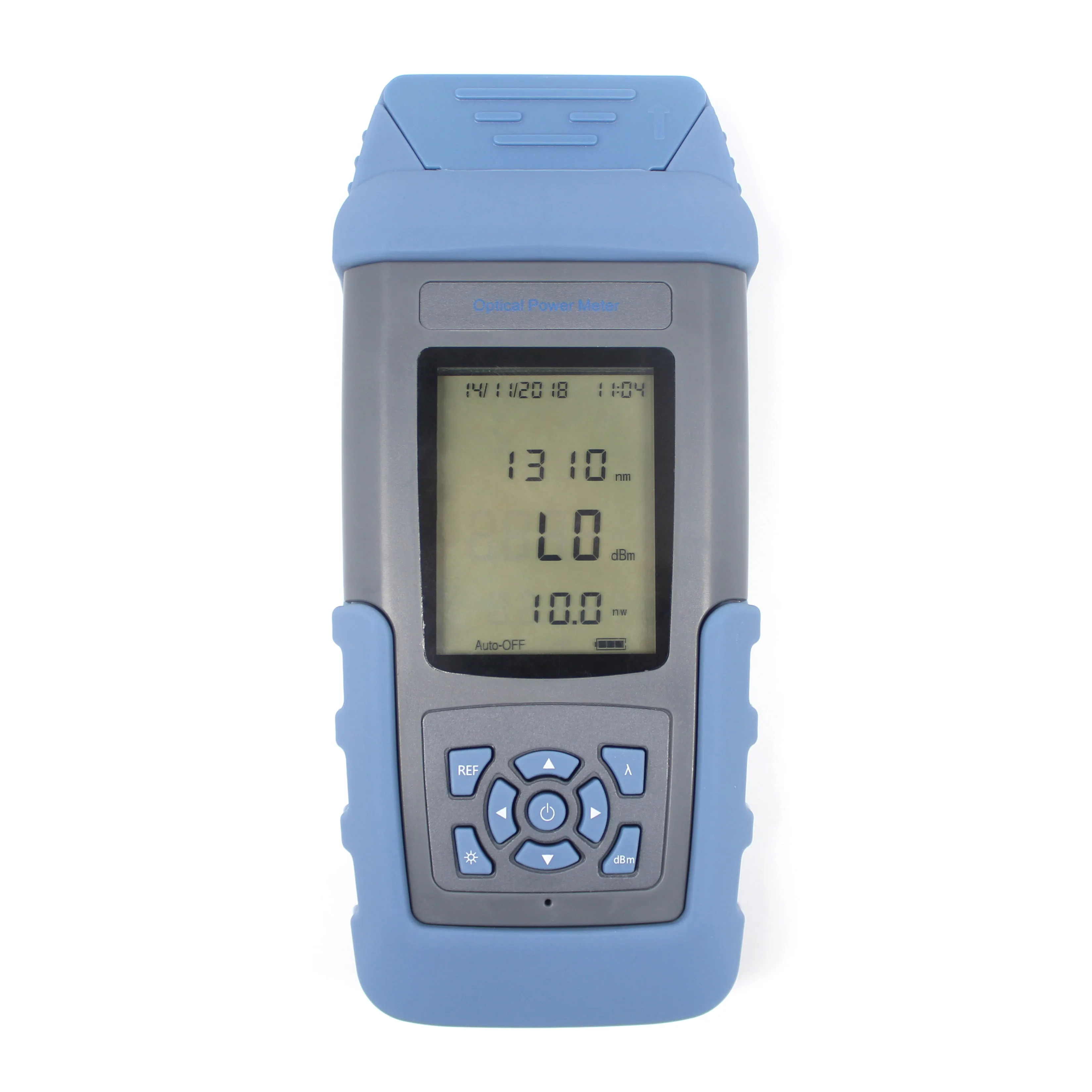

13) Handheld, large LCD backlight display, easy-to-use

3. Specifications

Wavelength range (nm)	800~1700
Detector type	InGaAs
Standard wavelength(nm)	850, 1300, 1310, 1490, 1550, 1625
Power testing range (dBm)	-50~+26 or -70~+10
Uncertainty	±5%
Resolution	Linearity: 0.1%, Logarithm: 0.01dBm
Storage Capacity	1000 groups
General specifications
Connectors	FC, ST, SC, LC
Working temperature (℃)	-10~+50
Storage temperature (℃)	-30~+60
Weight (g)	430 (without batteries)
Dimension (mm)	200×90×43
Battery	4 pcs AA batteries Or lithium battery
Battery working duration(h)	No less than 75 (according to battery volume)
Auto power off time (min)	10

1. Q : Are you trading company or manufacturer?
A : 70% of our products we manufactured and 30% do trading for customer service
2. Q : How can you ensure the quality?
A : Good question! We are a one-stop manufacturer. We have complete facilities and over-15- years manufacturing experience to ensure product quality. And we have already passed ISO 9001 Quality Management System.
3. Q : Can you provide samples ? Is it free or extra?
A : Yes, After price confirmation , we could offer the free sample, but the shipping cost need pay for by your side.
4. Q : How long is your delivery time ?
A : In stock: In 7 days; No in stock: 15~20 days, depend on your QTY.
5. Q: Can you do OEM?
A: Yes , we can
6. Q: What is your payment term ?
A: Payment <=4000USD，100% in advance. Payment>= 4000USD, 30% TT in advance, balance before shipment.
7. Q: How we can pay?
A: TT, Western Union , Paypal ,Credit Card and LC
8. Q: Transportation?
A: Transported by DHL, UPS, EMS, Fedex, Air freight, Boat and Train
