Высокопроизводительный мини-ПК 8-го поколения i5 8520U Wins8/Wins10/Linux с DDR4 VGA + HD 2 * COM 1 LAN mini
- Категория: Промышленные компьютерные и аксессуары >>>
- Поставщик: Shenzhen,Eglobal,Import,And,Export,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.65 $* | 0.91 $* |
| Aug-18-2025 | 0.69 $* | 0.85 $* |
| Jul-18-2025 | 0.34 $* | 0.52 $* |
| Jun-18-2025 | 0.37 $* | 0.92 $* |
| May-18-2025 | 0.53 $* | 0.18 $* |
| Apr-18-2025 | 0.9 $* | 0.1 $* |
| Mar-18-2025 | 0.53 $* | 0.36 $* |
| Feb-18-2025 | 0.9 $* | 0.34 $* |
| Jan-18-2025 | 0.56 $* | 0.13 $* |
Характеристики
Product Description
Product Highlight
♦ Full aluminium black color shell, Exquisite production craft on ouside design
♦ Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours
♦ Low consumption TDP only 15W/28W
♦ Can be mounted back of wall
♦ Package include the mini pc device, power adapter, dual WiFi antennas(optional), a HDMI cable( as a gift), a Screw Bag
♦ Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours
♦ Low consumption TDP only 15W/28W
♦ Can be mounted back of wall
♦ Package include the mini pc device, power adapter, dual WiFi antennas(optional), a HDMI cable( as a gift), a Screw Bag
General | ||
CPU | Onboard Intel Core i5-8250U 1.6GHz Max 3.4GHz (Turbo boost Technology) Quad Core 8 Threads | |
BOIS | AMI BIOS, ACPI supported | |
Chipset | Intel SKYBAY | |
Memory | 2 x SO-DIMM DDR4 Slot Support 8GB/16GB/32GB Dual Channel, DDR4-2400, LPDDR3-2133 | |
Storage | SSD: 8G/16G/32G/64G/128G/256G/512G/1TB HDD: 160G/320G/500G/1TB | |
Operating System | Windows 7/Windows 8/Windows 10/Linux | |
Audio | ALC897 chip, 7.1 channel sound Intel Lynx Point-LP HDA | |
Network | Onboard Realtek RTL8168/8111/8112 PCI-E Gigabit Ethernet NIC 10/100Mbps/1000Mbps BaseT LAN | |
Video | Intel® UHD Graphics 620 | |
I/O port | ||

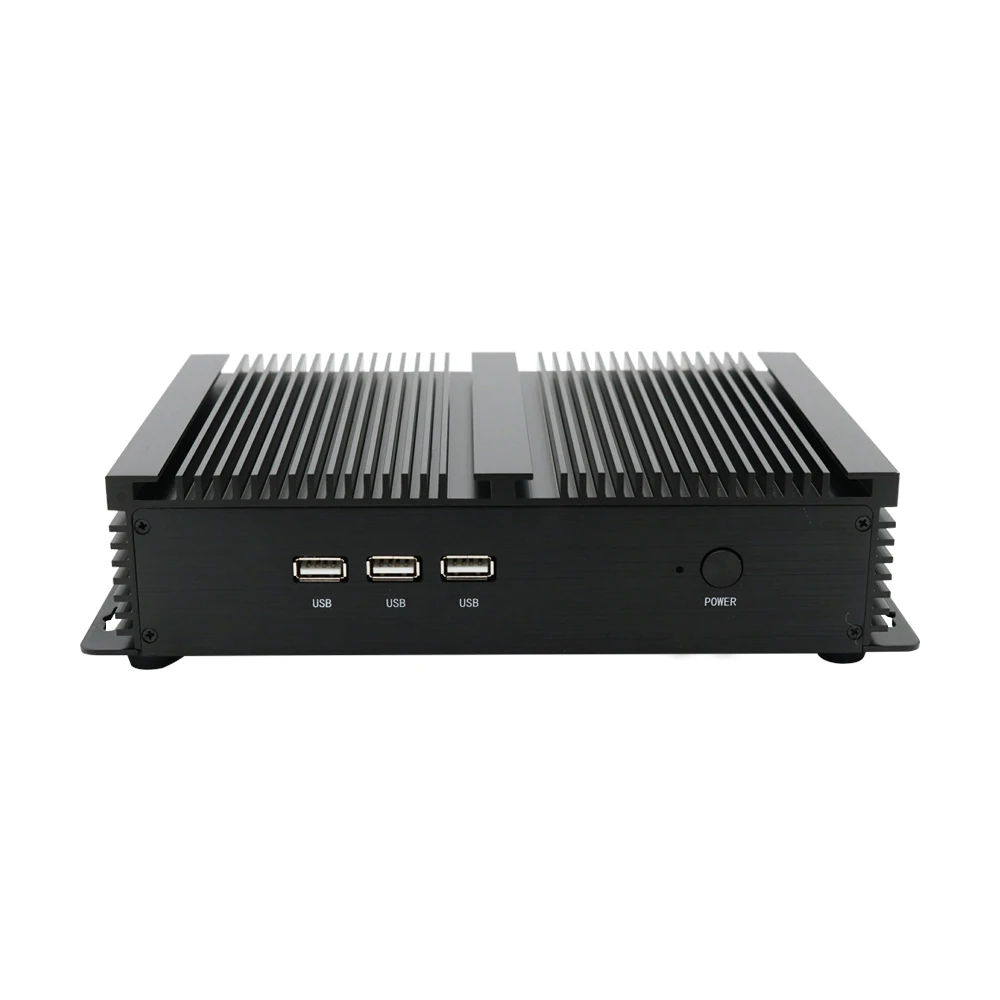

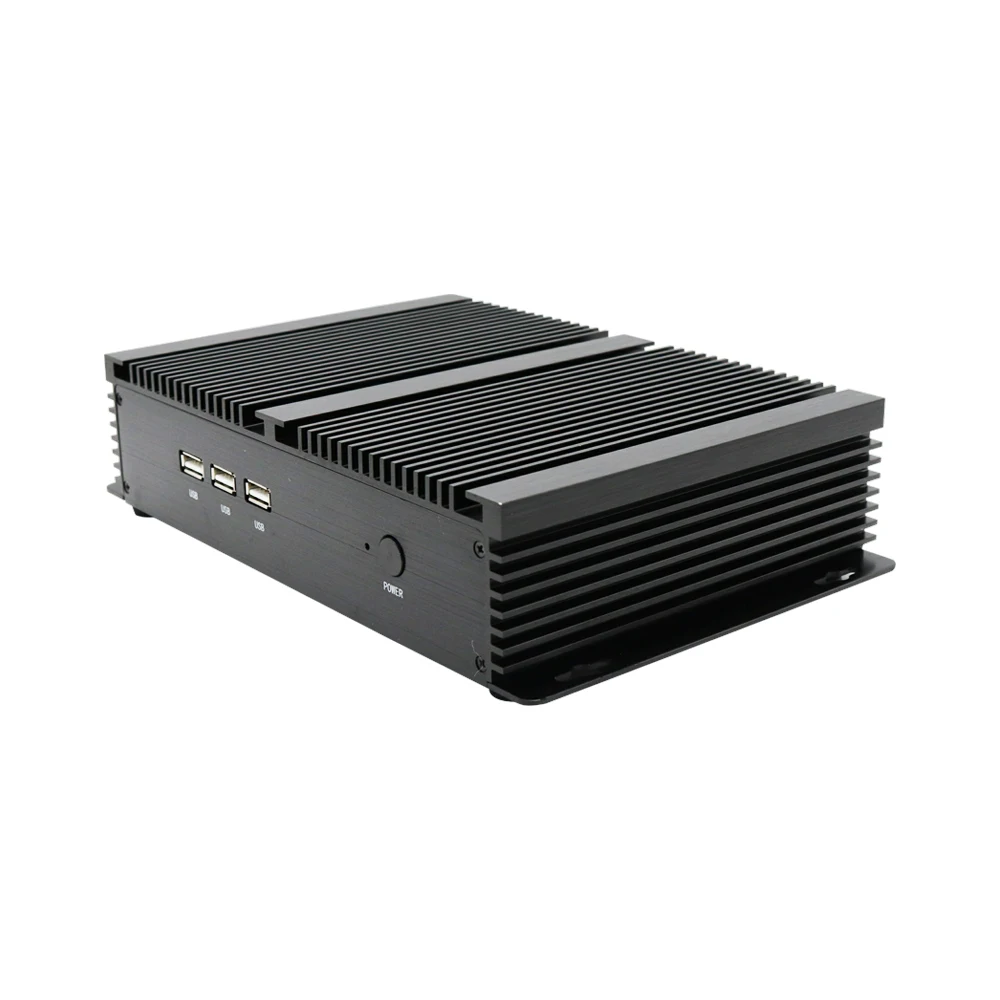

front panel ports | 3*USB2.0, 1* Power indicator and switch | |

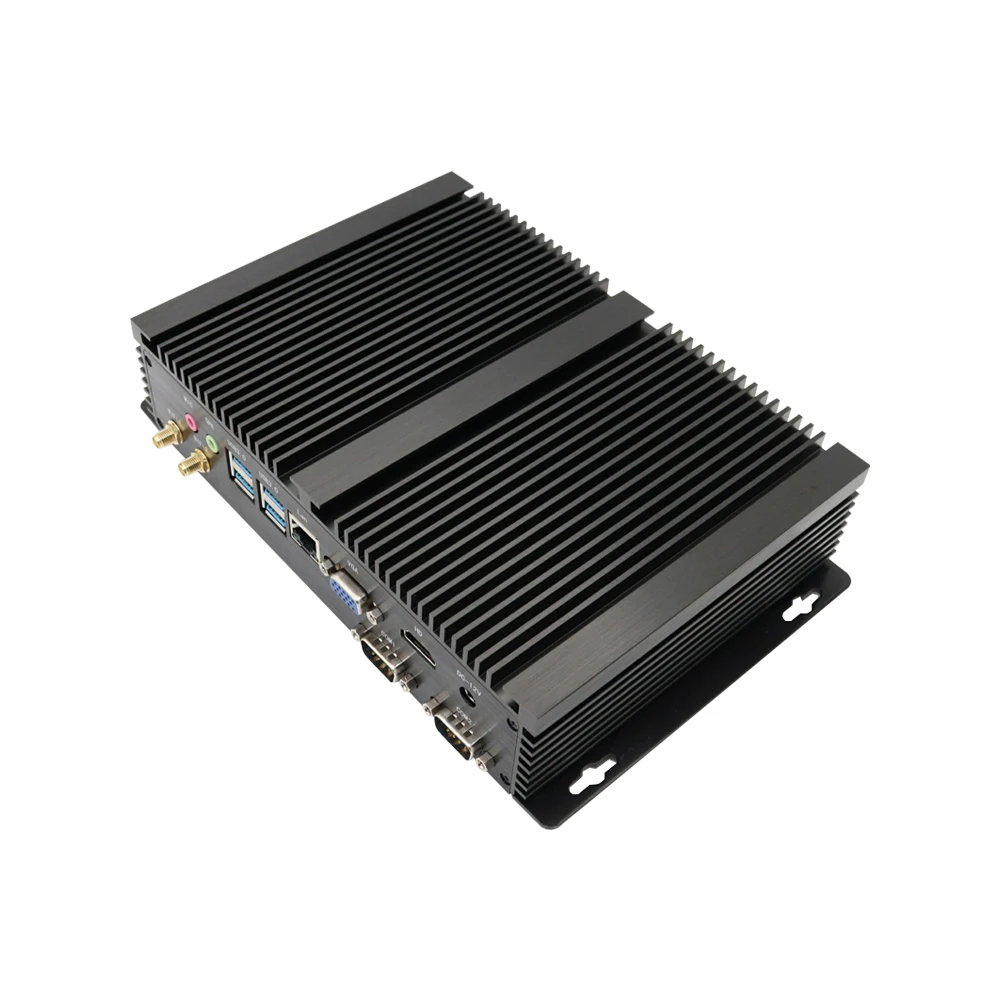

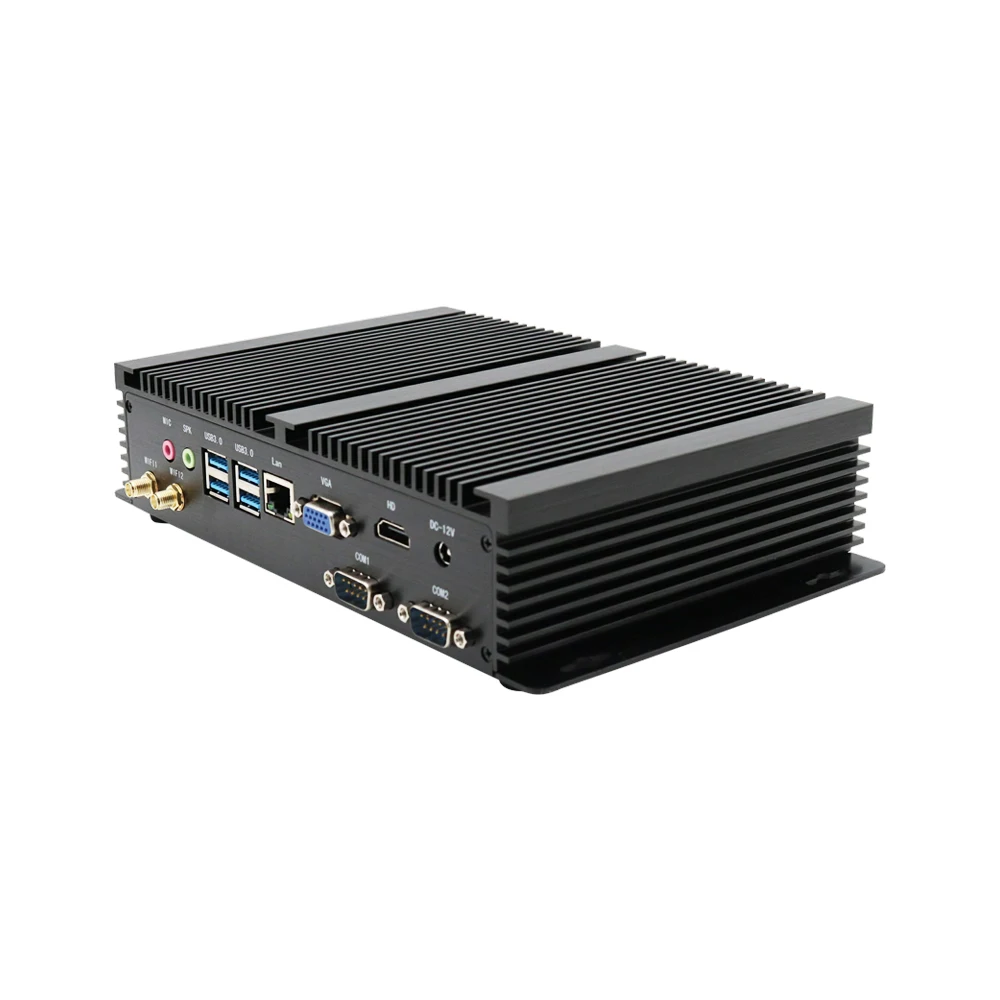

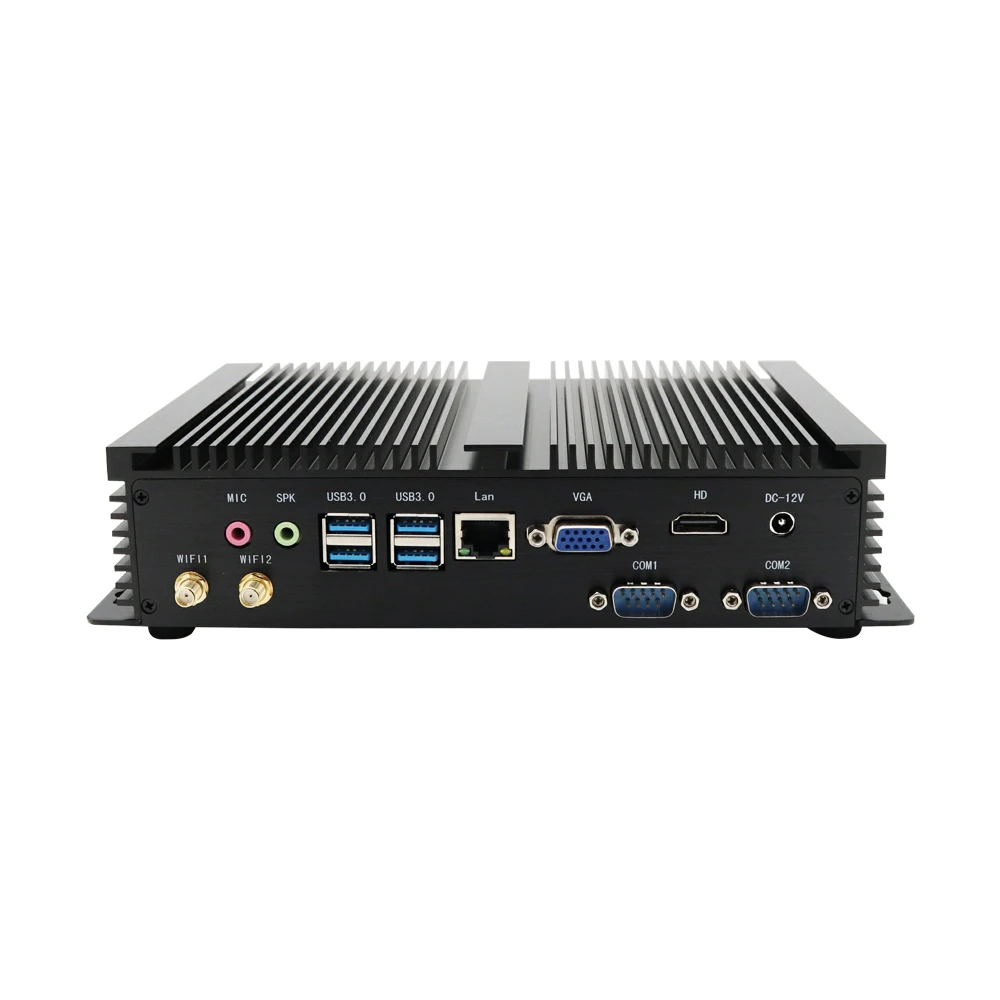

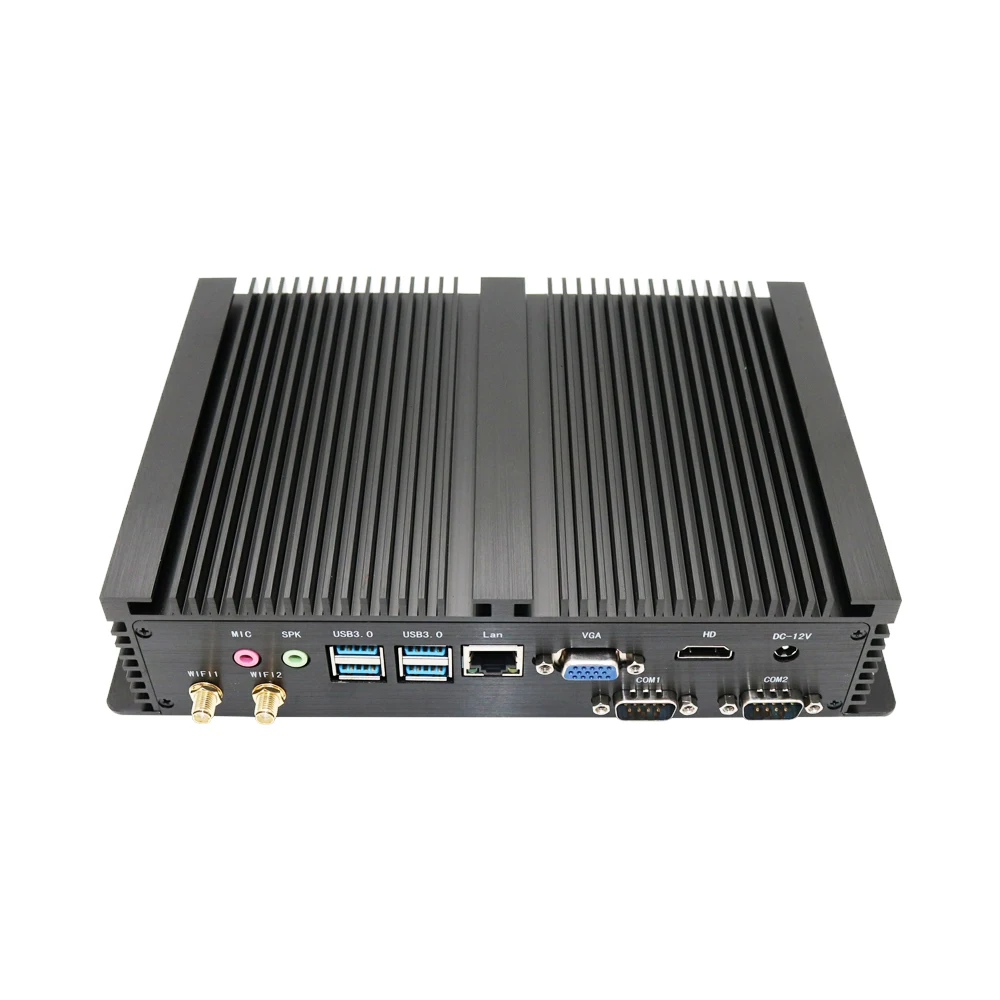

Backside ports | 4*USB3.0, 1*HD, 1*VGA, 1*LAN, 1*MIC, 1*SPK, 2*COM, 2*WIFI, 1*DC IN | |
Internal ports | 1*M-SATA3.0 port, support 6Gb/s 1*SATA3.0 port, support 6Gb/s 1*mini-PCIE port(WIFI&Bluetooth) | |
Power and Working Environment | ||
Input | DC100-240V AC/50-60Hz | |
Output | DC 12V~19V/5A | |
Operating Temperature | 0/70 Centigrade(32F~140F) | |
Storage Temperature | -20/+85 Centigrade | |
Relative Humidity | 0%~90% (non-condensing) | |
Energy-saving | Support Energy-saving technology, Speedstep | |
64 bit computing | Support 64 bit computing | |
Virtualization | Intel VT-x | |
Hyper-threading | Support Hyper-Threading | |
Product Dimension & Details | ||
Size | 234*150*43mm | |
Weight | 2.5KG | |
Consumption | 15W~28W | |
Shell | Black color aluminum alloy | |
Package Content | Mini PC device, power adapter, dual WiFi antennas(optional), a HD cable( as a gift), a Screw Bag | |
Packing&Shipping
Company Introduction
FAQ
Welcome to read the following questions carefully at first when you place order via the product link. Thanks.
Q: What Operating System is Mini PC I buy here?
A: Free Operating System: Default installed our trial activated OEM windows 10 pro English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install. Other systems we can install free are like Linux, Ubuntu etc if you need. Seller is NOT responsible and makes no compensation for trial OEM system.
Q: What brand of Ram, SSD and HDD I buy here?
A: Accessories as Ram, SSD, HDD, we use famous brand: samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingfast, phison etc, what brand we use depends on our test and our stock.
A: Accessories as Ram, SSD, HDD, we use famous brand: samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingfast, phison etc, what brand we use depends on our test and our stock.
A: We are honored to offer you samples for quality check, MOQ is 1 set, welcome to order via the link directly.We also provide free OEM service for your sample order, just feel free to contact our Sales here.
Q: How does your factory do related quality control?
A: Quality is top priority. We attach great importance to quality control from the very begining of manufacturing and 3 Years Wareanty.
Q: How about Shipping?
1. We send to buyer's address specified on Aliexpress. Please check your address/city/ post code, making sure it's matched with you shipping address.
2. We can't control the delivery time because it is processed by Third-party service. If parcel has not arrive within expected
time, please contact us, we will extend the delivery date before open dispute.
3. Normally we shipping free by faster shipment such as DHL, EMS,Fedex,Our express agent special line,etc.it depends on different countries and different cases.but for those remote areas,we have to shipping free by registered post, it will be slower than EMS, DHL,Fedex,etc.you can also add extra fee for DHL EMS Fedex etc faster shipment, thanks for understanding.All goods will be packed to make sure they arrive at high condition.
Q: How about Tax?
1. Normally we declare item as MINI PC CASE or TV BOX with value(like $20-$100), buyers are fully responsible for paying fees involved, such as dispatching fees, storage costs, brokerage, taxes or VAT etc.
2. If you have special requirement of the value,please leave a message to us when you make order.
3. Due to the tax problem, buyer refuse to receive the goods, buyer need to be fully responsible for the freight back and
forth.Thank you for you cooperation.
Q: What's EGLOBAL's Warranty?
1. EGLOBAL Mini pcs have 3 years warranty service is completely reliable and professional technical team. Motherboard warranty time 3 years, ram, hard drive, accessories(excluding gift) etc warranty time 1 year.
2. Within warranty time, if mini PC appear non-human damages and quality problems, buyer return Mini PC or Mini PC components, we free repair/exchange Mini PC or Mini PC components ( include RAMs, Hard Drive, Motherboard and other accessories ). Within 1 month, seller bear all the shipping cost for return(maximum 15USD)and resend;Over 1 month to 1 year, buyer self bear the shipping cost for return and seller bear shipping cost for resend; Over 1 year to 3 years, buyer bear all shipping cost return and resend.
3. Within 15 days, we accept refund or exchange goods (buyer bear all the shipping cost, if non-human damages and quality problem, we bear all shipping cost.
4. All time calculate from the day buyer receive goods.
1. We send to buyer's address specified on Aliexpress. Please check your address/city/ post code, making sure it's matched with you shipping address.
2. We can't control the delivery time because it is processed by Third-party service. If parcel has not arrive within expected
time, please contact us, we will extend the delivery date before open dispute.
3. Normally we shipping free by faster shipment such as DHL, EMS,Fedex,Our express agent special line,etc.it depends on different countries and different cases.but for those remote areas,we have to shipping free by registered post, it will be slower than EMS, DHL,Fedex,etc.you can also add extra fee for DHL EMS Fedex etc faster shipment, thanks for understanding.All goods will be packed to make sure they arrive at high condition.
Q: How about Tax?
1. Normally we declare item as MINI PC CASE or TV BOX with value(like $20-$100), buyers are fully responsible for paying fees involved, such as dispatching fees, storage costs, brokerage, taxes or VAT etc.
2. If you have special requirement of the value,please leave a message to us when you make order.
3. Due to the tax problem, buyer refuse to receive the goods, buyer need to be fully responsible for the freight back and
forth.Thank you for you cooperation.
Q: What's EGLOBAL's Warranty?
1. EGLOBAL Mini pcs have 3 years warranty service is completely reliable and professional technical team. Motherboard warranty time 3 years, ram, hard drive, accessories(excluding gift) etc warranty time 1 year.
2. Within warranty time, if mini PC appear non-human damages and quality problems, buyer return Mini PC or Mini PC components, we free repair/exchange Mini PC or Mini PC components ( include RAMs, Hard Drive, Motherboard and other accessories ). Within 1 month, seller bear all the shipping cost for return(maximum 15USD)and resend;Over 1 month to 1 year, buyer self bear the shipping cost for return and seller bear shipping cost for resend; Over 1 year to 3 years, buyer bear all shipping cost return and resend.
3. Within 15 days, we accept refund or exchange goods (buyer bear all the shipping cost, if non-human damages and quality problem, we bear all shipping cost.
4. All time calculate from the day buyer receive goods.
Q: How to solve the product problem?
A: Welcome to contact our Sales about any problems, they will provide nice service to each customer directly.
