Product Description
CNC Hydraulic Guillotine Shearing Cutting Machine Price with E21S For Metal Sheet Plate
Introduction:
※Hydraulic sheet metal cutting machine is a frequently used shearing machine in metal processing industry. Owing to its outstanding productivity and low noise, hydraulic guillotine is increasingly used by metal fabricating industries. In addition, CNC system ensure easy operation and adjustment.
※Hydraulic Guillotine shearing machines can be divided into different types according to different drive methods. Hydraulic guillotine shear is the most popular shear for its high productivity, excellent capacity and cutting quality. The hydraulic system connects with movable blade and drives it up-and-down motion.
Features:
1, Hydraulic guillotine cutting machine with high resolution touch screen
2, Variable hydraulic guillotine shear for all metal sheets
3, Adjustable blade gap, cutting angle and cutting length make it possible to cut all types of metals with various materials and thicknesses.
4, Blade gap adjustment is based on the material and thickness of metal sheets to be cut. Optimum gap not only effectively extend the lifespan of blade but also guarantee shearing quality. Generally, the adjustable ratio accounts for 10% of the sheet thickness.
5, Fine adjustment of cutting angle is designed for minimum distortion of metal sheets.
6.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
7. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany,
8. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
9 Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
10. CE conformity including Tiltable Fornt Finger Guard and Optical Rear Safety Guard,
11. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
2, Variable hydraulic guillotine shear for all metal sheets
3, Adjustable blade gap, cutting angle and cutting length make it possible to cut all types of metals with various materials and thicknesses.
4, Blade gap adjustment is based on the material and thickness of metal sheets to be cut. Optimum gap not only effectively extend the lifespan of blade but also guarantee shearing quality. Generally, the adjustable ratio accounts for 10% of the sheet thickness.
5, Fine adjustment of cutting angle is designed for minimum distortion of metal sheets.
6.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
7. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany,
8. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
9 Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
10. CE conformity including Tiltable Fornt Finger Guard and Optical Rear Safety Guard,
11. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
Advantages of our Hydraulic sheet metal cutting machine:
High precision cutting;
High resolution touch screen for easy operation;
Suitable for all kinds of metal sheets with excellent precision and quality;
Integral steel structure provides rigidity, stability and good resistance to deformation;
Specification:
Cutting thickness: 4mm to 40mm;
Cutting length: 2000mm to 6000mm;
Cutting angle: 1°30’ to 4°
High resolution touch screen for easy operation;
Suitable for all kinds of metal sheets with excellent precision and quality;
Integral steel structure provides rigidity, stability and good resistance to deformation;
Specification:
Cutting thickness: 4mm to 40mm;
Cutting length: 2000mm to 6000mm;
Cutting angle: 1°30’ to 4°
Detailed Images

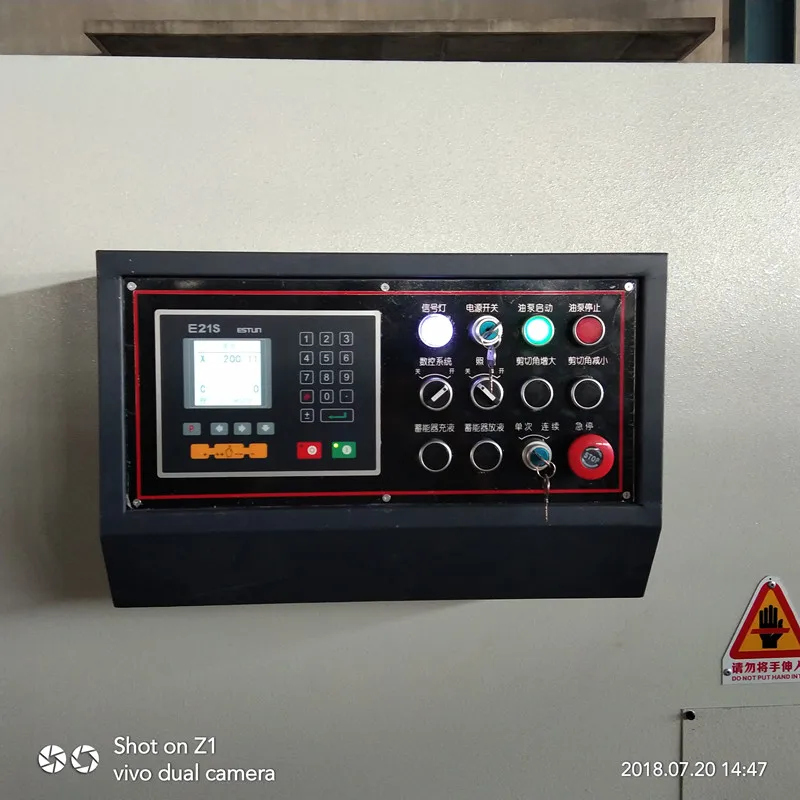

E21S CNC Controller System
Brand: ESTUN, Nanjing
Backguage Controlling;
General Motors or Inverter Control;
Intelligent Positioning;
Two Programmable digital Output;
Artifacts Count;
40 Program Storage, 25 Steps for Each Program;
Uniateral Positioning;
Concession Function;
One Key to Parameter Backup and Recovery;
Metric System;
Chinese/English.
CNC Hydraulic Guillotine Shearing Cutting Machine Price with E21S For Metal Sheet Plate
Size Information
CNC Hydraulic Guillotine Shearing Cutting Machine Price with E21S For Metal Sheet Plate
Model | Max. Cutting Thickness(mm) | Max. Cutting Width(mm) | Cutting Angle(°) | Material Strength(KN/CM) |
QC11K-12x4000 | 12 | 4000 | 2° | ≤450 |
Backguage Range(mm) | Stroke Times(Times/min) | Motor Power(kw) | Weight(kg) | Dimensions(mm) |
20-600 | 10 | 18.5 | 11000 | 4680*2150*2100 |
Packing&Shipping
Packing Detail:
☂ Each hydraulic Cutting Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods
in containers and ship them abroad.
in containers and ship them abroad.
Delivery Detail :
☀ Shipped in 30 days after payment.
Our Service
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
