Highly recommended Balance Crane for Workshop Equipment Workshop Tool

 We are users,we design and improve useful balance crane.

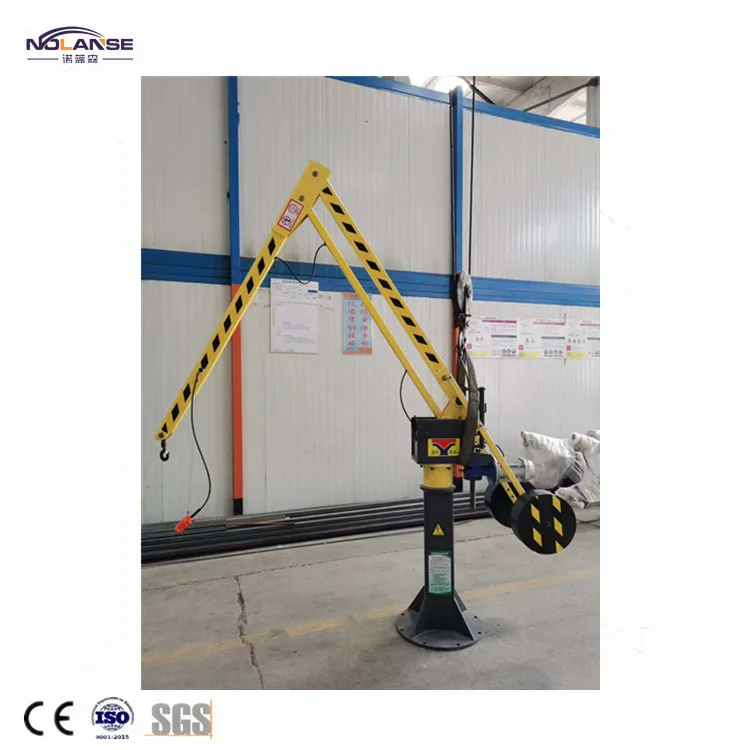

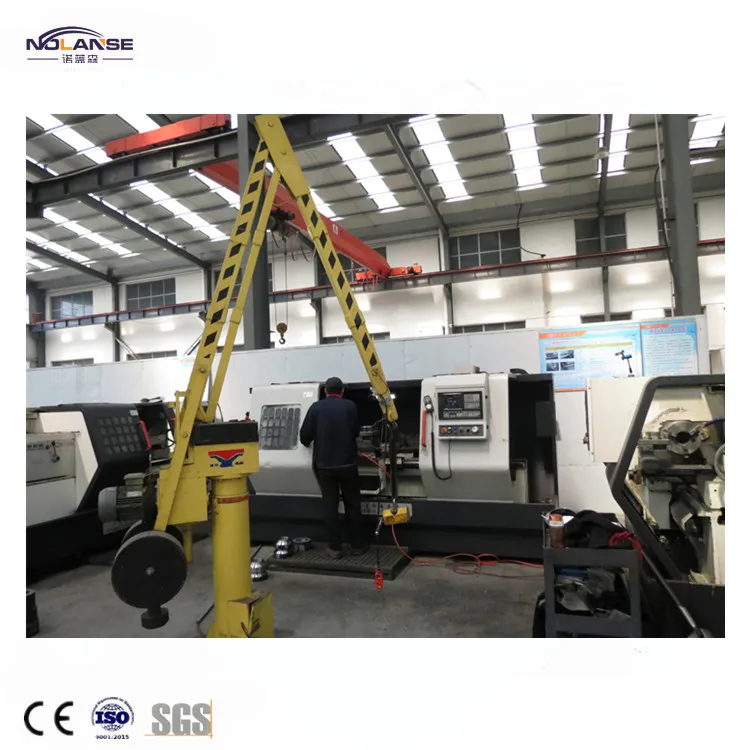

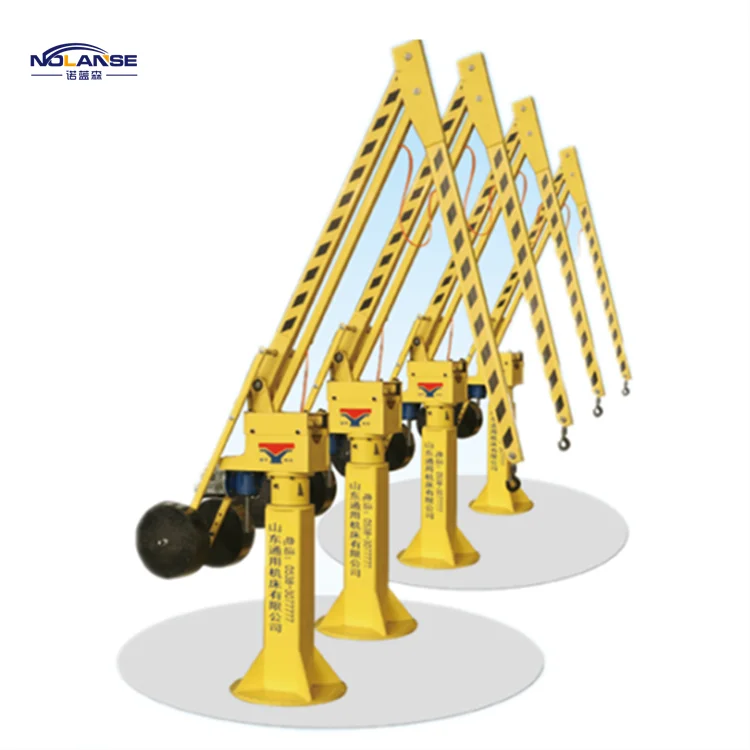

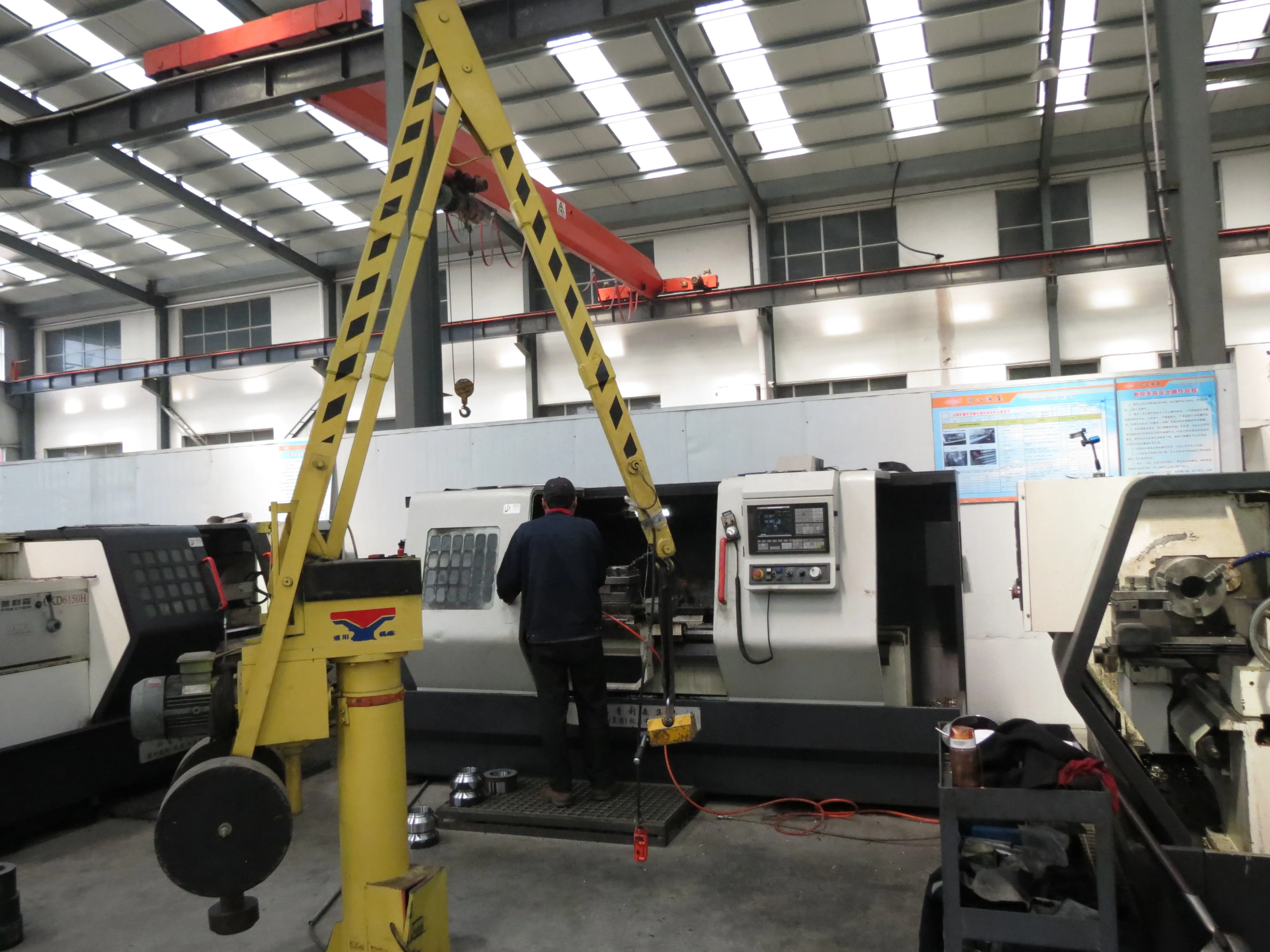

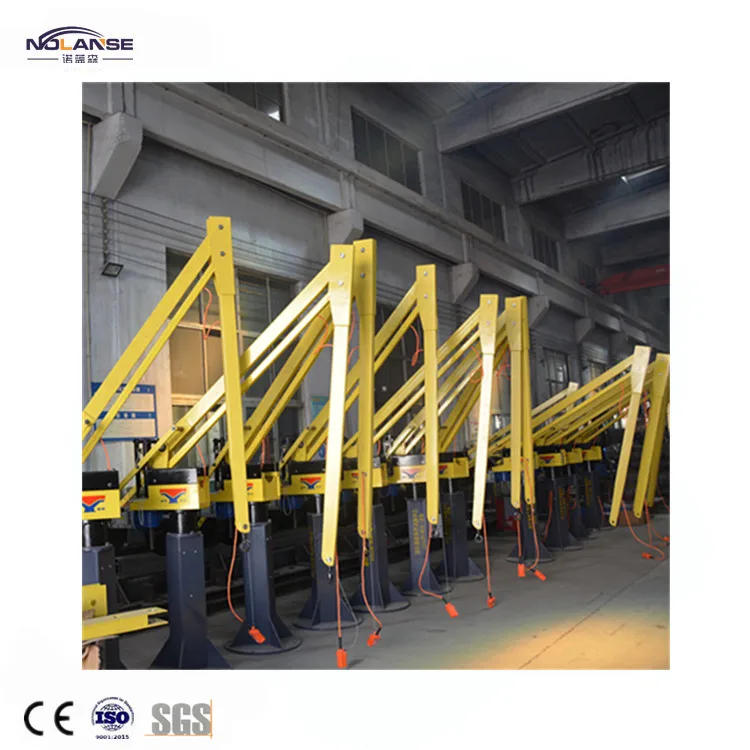

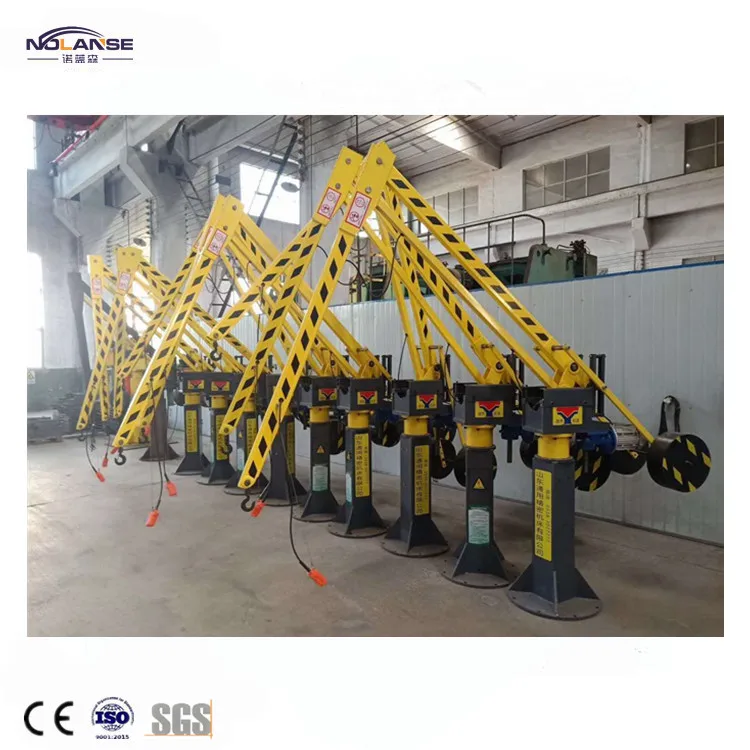

Tongyong balance crane is a new type of mechanical lifting equipment. When it is working, the hanging object can be stably located at any position in the working area at any time. It is suitable for high workpieces of several tens to hundreds of kilograms. Efficient lifting and more accurate positioning and installation. Widely used in the upper and lower parts of the machine tool; the middle part of the assembly and repair process between the lifting of the transport. Foundry's lower core, box etc.



Tongyong balance crane is especially suitable for medium and small batches of multi-variety production occasions, cutting and flow of special plane on-line. It is more accurate and intuitive than cranes, electric hoists, simpler and more flexible than robots, and versatile.



The utility model has the advantages of small size, light weight, low noise, novel and compact structure, safe and reliable use, simple and convenient maintenance and the like. It is a kind of new type of machinery that is more ideal to liberate the manual labor that the operating workers frequently load and unload. At present, it has been widely used in automobile manufacturing, tractor production and various machinery manufacturing industries.



Advantages



1. Simple structure and ingenious conception;



2. Small size, occupying small workshop space;



3. Light weight, flexible and convenient;



4. Accurate positioning and dexterous operation;



5. Simple installation and maintenance;



6. It can be hoisted on the ground or moved;



7. The rated lifting capacity includes: 50kg, 100kg, 200kg, 300kg, 500kg, 600kg, 1000kg and 1500kg, and the working radius and lifting height are 2500mm.



Environmental conditions



1. The power supply of crane is three-phase AC, rated frequency is 50Hz, rated voltage is 380V;

2. The elevation of crane installation site shall not exceed 2000m;

3. There shall be no inflammable, explosive and corrosive gas in the working environment of crane. (except for pneumatic explosion-proof balanced crane, which can adapt to the operation in harsh environment);

4. The crane is not allowed to lift molten metal, toxic substances and inflammable and explosive substances;



Technical parameters of balance crane:

Type	Capacity(t)	Rotation angle(℃)	L(mm)	R1(mm)	R2(mm)	H(mm)	h(mm)
TY 0.25	0.25	360	4300	1100	4000	3800	3000
TY 0.5	0.5	360	4300	1100	4000	3900	3000
TY 1	1	360	4400	1100	4000	4200	3000
TY 2	2	360	4400	1100	4000	4200	3000
TY 3	3	360	4500	1500	4000	4500	3000
TY 5	5	360	4500	1700	4000	4800	3000
