Характеристики
Products Description

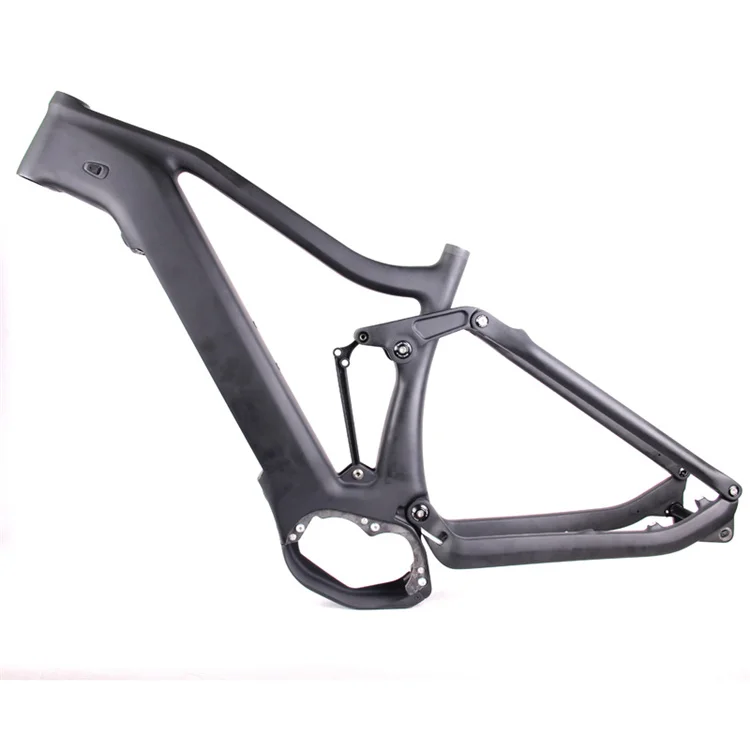

29er 650B New Enduro Carbon Bike Full Suspension E-bike Frameset Compatible for Bafang M500 M600 Motor Engine
- 27.5 plus full suspension Enduro ebike frameset
- 12*148mm plus thru axle
- Bafang M500(95NM)/M600(120NM) mid drive engine
- Bafang BTF03 battery
- 190*51mm standard mount rear shock size
- 12*148mm plus thru axle
- Bafang M500(95NM)/M600(120NM) mid drive engine
- Bafang BTF03 battery
- 190*51mm standard mount rear shock size
Frame | New Enduro full suspension ebike frameset with Bafang engine |
Material | High modulus Toray T700 carbon fiber |
Size | 17, 19, 21 (inch) |
Headtube | Tapered 1 1/8 "- 1 1/2"head tube, upper 44mm lower 56mm (Headset standard FSA No.57E) |
Weight | 2800±45g/Medium |
Seatpost Diameter | 31.6mm(37mm seat clamp) |
Bottom Bracket | M500(95NM)/M600(120NM) mid drive engine |
Battery | Bafang BTF03(450Wh) or BTF04(600Wh) |
Max Tire Clearance | 650b*2.8'' and 29er 2.35'' |
Front travel | 150mm |
Rear travel | 150mm |
Rear shock size | 22*190*51mm(Standard mount) |
Brake Type | Post Mount Disc brake 203mm disc rotor |
Dropout | Thru Axle 12*148mm boost |
Max Chainring | 32T |
Test Standard | ISO4210 |
Warranty | 2 years |
Geometry
Rear shock size 190*51 standard mount and bushing kits
17" | 19" | 21" | |
SEATPOST INSERT LENGTH | 180mm | 220mm | 220mm |
REACH | 422.8mm | 439.3mm | 455.8mm |
TOP TUBE LENGTH, HORIZONTAL | 605mm | 625mm | 645mm |
STACK | 634.1mm | 643.3mm | 652.5mm |
WHEELBASE | 1190.4mm | 1210.8mm | 1231.2mm |
CHAINSTAY LENGTH | 456mm | 456mm | 456mm |
FRONT CENTER | 739.5mm | 759.9mm | 780.3mm |
BB DROP | 20mm | 20mm | 20mm |
BB HEIGHT | 345mm | 345mm | 345mm |
SEAT TUBE ANGLE | 74° | 74° | 74° |
HEAD TUBE ANGLE | 67° | 67° | 67° |
SEAT TUBE LENGTH | 437mm | 487mm | 538mm |
HEAD TUBE LENGTH | 125mm | 135mm | 145mm |
BIKE STANDOVER HEIGH(27.5"*2.8") | 785mm | 799mm | 812mm |
FORK RAKE/OFFSET | 51mm | 51mm | 51mm |
FORK LENGTH, FULL | 561mm | 561mm | 561mm |
TRAIL | 99.5mm | 99.5mm | 99.5mm |
Technology & Test
Who is LightCarbon?
Xiamen LightCarbon Composite Technology Co., Ltd. is the leading manufacturer of carbon bike components in China.
Our main products are: carbon frames and carbon rims.
2012 – We set up a carbon frame factory in Huizhou City, Guangdong Province. Since then we started developing and manufacturing of carbon frames and carbon forks.
2015 – We took shares of a carbon rim factory in Xiamen City, Fujian Province. At the same time, we set up international
LightCarbon team, handling international sales and after-sales service.
Since 2016, we started to exhibit in global bike exhibitions, including Eurobike, Interbike, Cosmo Bike, etc. And have established business relationship with many well-known brands. After 7 years fast development, now we have served customers in over 50 countries.
Our main products are: carbon frames and carbon rims.
2012 – We set up a carbon frame factory in Huizhou City, Guangdong Province. Since then we started developing and manufacturing of carbon frames and carbon forks.
2015 – We took shares of a carbon rim factory in Xiamen City, Fujian Province. At the same time, we set up international
LightCarbon team, handling international sales and after-sales service.
Since 2016, we started to exhibit in global bike exhibitions, including Eurobike, Interbike, Cosmo Bike, etc. And have established business relationship with many well-known brands. After 7 years fast development, now we have served customers in over 50 countries.
Why Trust Us?
We have more than 20 engineers in our R&D Dept. Some of them have over 15 years experience in carbon frame bicycle industry, plus worked in OE factories for brands of Specialized, Cannondale, Pinarello etc... With the support of experienced R&D Dept., we are always in the leading for new products developing.
All of our carbon frames and rims are made of high modulus carbon fiber (Toray T700, T800 and T1000), and they are tested under new ISO4210 standard.
In addition, we raise the test standard up to 20% to do stricter testing. We never start mass production until our new products pass all the tests successfully.
Warranty: 2 years quality warranty is offered for all our carbon frames and forks, carbon rims and wheels.
At present, there are about 180 workers in our carbon rim factory, and about 150 workers in our carbon frame factory. Our current production capacity is:
carbon frame ---> 2000 sets/month
carbon fork ---> 3500 pcs/month
carbon rim ---> 4500 pcs/month
carbon wheel ---> 1000 pairs/month
All of our carbon frames and rims are made of high modulus carbon fiber (Toray T700, T800 and T1000), and they are tested under new ISO4210 standard.
In addition, we raise the test standard up to 20% to do stricter testing. We never start mass production until our new products pass all the tests successfully.
Warranty: 2 years quality warranty is offered for all our carbon frames and forks, carbon rims and wheels.
At present, there are about 180 workers in our carbon rim factory, and about 150 workers in our carbon frame factory. Our current production capacity is:
carbon frame ---> 2000 sets/month
carbon fork ---> 3500 pcs/month
carbon rim ---> 4500 pcs/month
carbon wheel ---> 1000 pairs/month
